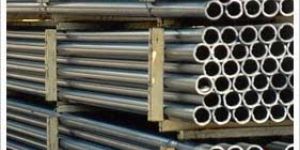

Stainless Steel Welded Tubes
Shape : Round
Length : Upto 12 Meter
Color : Silver
Feature : Corrosion Proof, Excellent Quality
Finishing : Polished
Country of Origin : India
Thickness (SCH) : S 5, S10, S 20, S 40, S60, S XS, S80, 5100, S 120, S 140, S160, S XXS
Available Grades : TP-304/L/LN/H, TP-316/ULN/H/Ti, TP-317L, TP-321/H, TP-347/H TP-409, TP-410, TP 430Ti, T-439
Material : TP 304, 304H, 304L, 304LN, 316, 316H, 316L, 316LN, 316Ti, 309, 310, 317L, 321, 347, 409 410, 420, 430, 446, 202

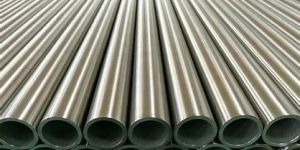

Welded 304 Stainless Steel Tubes
Length : 1-1000mm, 2000-3000mm, 3000-4000mm
Finishing : Polished
Feature : Corrosion Proof, Excellent Quality, Fine Finishing, High Strength, Perfect Shape
Dimension : 100-500mm, 500-1000mm
10 Inch Sticks Availble Size 3/8X0.035 Inch - Pack Qty : 800 Inch 1/4X0.035 Inch - Pack Qty : 1250 Inch 20 Inch Sticks Availble Size 1/2X0.035 Inch - Pack Qty : 200 Inch 3/8X0.035 Inch - Pack Qty : 400 Inch 1/4X0.035 Inch - Pack Qty : 800 Inch
Stainless Steel Welded Tubes
Thickness (mm) : 0.70 mm - 3.60 mm
Stainless steel slitted strip is fed from un-coiler and tubes are formed automatically on different stands with rolls followed by TIG welding process without the addition of filler metal. In addition, the welding bead line is polished continuously with the help of automatic bead polishing machine. The tubes also pass through series of size rolls to ensure ovality, tolerance, and then they are cut to required length. Rolled tubes are subjected to annealing, straightening and pickling operations. Finished tubespipes undergo various testing as per the specificationcustomer's requirements followed by marking and packing.
Stainless Steel Welded Tubes
sizes range : 20.00 mm to 88.90 mm
We manufacture a range of high quality Stainless Steel Welded Tubes, that are used in various industrial applications. The cold rolled stainless steel strips are welded into tubes in the state of the art tube mills under fully automated precision process. Complying with the international standards, these can be availed in various sizes and specifications to suit the diverse requirements of the clients. The manufacturing of tubes begins with slitting of strips of required width based on the diameter of the tubes to be formed. Stainless steel slitted strips are passed through a series of rollers and tubes are formed automatically on different stands with rolls and welded on fully automated process of TIG welding without the addition of filler metal.
Ss welded tube
Usage : Industries
Size : 2 inch, 3 inch, 1 inch, 3/4 inch
2 inch, 3 inch, 1 inch, 3/4 inch : 3 meter, 6 meter
Stainless Steel Welded Tubes
We are capable of delivering the product range that is accessible from our massive inventory located at Tamil Nadu(India). The range we offer to the customers are stringently packed and delivered as per the customers' requirement and convenience.
Stainless Steel Welded Tubes/Pipes
Stainless Steel Welded Tubes/Pipes are produced out of prime quality stainless steel strips procured from reputed approved vendors. Strips are converted into tubular form over tube mill & edges are welded using tungsten inert gas (TIG) welding technique. Inside weld bead is removed with bead rolling equipment fitted on the mill. Welded tubes/pipes are subjected to solution annealing, straightening and pickling operations. Finished tubes/pipe undergo various testing as per the specification/customer's requirements followed by marking and packing.
Stainless Steel Welded Tubes
Stainless welded tubespipes are produced out of prime quality stainless steel strips procured from reputed approved vendors. Strips are converted into tubular form over continuous tube mill & edges are welded using tungsten inert gas (TIG) welding technique. Inside weld bead is removed with bead scarfing equipment fitted on the mill. Welded tubespipes are subjected to solution annealing, straightening and pickling operations. Finished tubespipe undergo various testing as per the specificationcustomer's requirements followed by marking and packing.
Stainless Steel Welded Tubes & Pipes
Stainless welded tubes/pipes are produced out of prime quality stainless steel strips procured from reputed approved vendors. Strips are converted into tubular form over continuous tube mill & edges are welded using tungsten inert gas (TIG) welding technique. Inside weld bead is removed with bead scarfing equipment fitted on the mill.Welded tubes/pipes are subjected to solution annealing, straightening and pickling operations.Finished tubes/pipe undergo various testing as per the specification/customer's requirements followed by marking and packing. Specification ASTM/ASME A/SA 249, 269, 270, 312, 358, 554, 688DIN 17458 Grade TP 304, 304L, 304H, 316, 316L, 316H, 316Ti, 317, 317L, 347, 347H, 405, 410DIN 1.4006, 1.4301, 1.4306,1.4401, 1.4404, 1.4541, 1.4550, 1.4571, 1.4449
Stainless Steel Welded Tubes
Stainless steel welded Tubes Division consist of a range of Tubes Mills. cold Finishing Section. Heat Treatment Furnaces. U-Bending Facility and Testing facilities to manufacture high quality products confirming to international standards.
Stainless Steel Welded Tubes
Product Range Outside Diameter: 12.70 mm to 114.30 mm Wall Thickness: 0.70 mm to 12.70 mm Grades: TP 304LH, TP 316LHTi, TP 317L, TP 321H, TP 347H, TP 405, TP 409, TP 410, TP 430, UNS S 31500, 31803, 32205, 32750, 32760 Specifications: ASTM, ASME, DIN EN (GERMAN), NF (AFNOR), JIS (JAPAN)
Stainless Steel Welded Tubes
Stainless Steel Welded Tubes
Stainless Steel Welded Tubes
Welded Stainless Steel Square Tube
