SPECIFICATIONS   This MACHINE manufactured by us are known for their efficiency and high level production output. These machines can also cut, crease and emboss materials like fibre glass, vinyl, foam, rubber, felt, plastic sheets etc. Features Motor H.P. required as per sizes Impression/hr amounts 1000 This machine can be run on single face motor For all sharped high quality steels, En9 ultra pass is used Each platen in carefully machined to obtain perfect level surfaces with zero effect Lubrication system is provided for all necessary points. We use CE certified components in all panels

• Brand Name: Smc

We are a renowned platen die machine manufacturer in Amritsar (Punjab). Our machines are designed by professional engineers, especially for doing the task of embossing on card boards, corrugated boards, plastic boards, and PVC boards. For maintaining a control over clutch & brake of the machine, it has been equipped with a special electromagnetic push button. For safety purposes, we have equipped the machine with an electrical inter-locking time delay from 0.5 seconds to 10 seconds. Not only this, but all parts are machined aptly for accurate results. All desirous clients can get in touch with us and place the order along with the quantity of the machine.

• Brand Name: Sunlight
• Material: Ci casting
• Driven Type: Electric
• Condition: New
• Power: 7-9 KW
• Automation Grade: Semi Automatic
• Speciality: Easy To Use
• Usage: Paper & Duplex Paper Die Punching Machine, Wedding Cards
• Certification: ISO 9001:2008
• Packaging Type: Carton Box
• Phase: Three Phase
• Warranty: 1 Year
• Country of Origin: India

• Type: Platen
• Certification: CE Certified
• Voltage: 380V
• Power: 3-6kw
• Driven Type: Electric
• Warranty: 1 Year
• After-Sales Service Provided: Spare Parts
• Weight: 100-200kg

The Platen Punching Die Cutting Machine is designed for heavy jobs like Cutting, Creasing and Embossing of Paper, Linoleum, Card Board, Corrugated Board, Plastic & PVC material etc. The Platen Punching Die Cutting Machine comes with Electro-magnetic Clutch & Brake, Dwell Timing Device, Electric Impression Counter, Safety guards for operator's safety, Circuit Locking & Circuit Breaker.

Advanced transportation facilities, efficient workforce, on time delivery of the products make us stand out from the crowd. We are a quality conscious company and thus, we make certain that the quality of our product basket is superior and excellent.

With a focus on the ever-evolving demands of our customers, we have come up with a wide range of uniquely designed Die Punching Machine (size 40*56) Applications: Widely used for creasing and punching of cardboard cartons as well as corrugated boxes Size -36"x50" Platen Size -40"x56" Impression Hour -960 H.P. Required -7.5 H.P Floor Space App. -85"x80" Weight Approx (Kgs) -6800 Heavy Duty Die Punching Machine With Electro Magnetic Clutch Brake and three Brake System with 2 No. Chassis and One MS Steel Plate With Pulley V-Belt and Electrical Siemens Panel Board with Timer Counter, A.B.B Motor, Rod 80mm, Brown Brush, E9-Steel Shaft, Steel Gear, Ball Bearing S.K.F, 4 D.P Teeth, Automatic Breaking Sensor, Automatic Lubricant and all standard accessories.

• Features: Totally standardized (i.e. all components square measure inter-changeable).All shafts measure from linear unit Grade steel and pins measure grounded & bushes from Phosphorus Bronze Alloy.All bearings measure of SKF/NBC/NACHI solely.

• Power: 3.7KW
• Weight Approx. MT: 13.5
• Platen Size: 56 x 76 (in inches)
• Inside Chase Size: 52 x 72 (in inches)
• Voltage (V): 230V
• Weight (kg):: 115

Backed with rich industry experience, we are offering Platen Punching Die Cutting Machine. Our Platen Punching Die Cutting Machine is precisely designed in different specifications for heavy jobs like Cutting, Creasing and Embossing of Paper, Linoleum, Card Board, Corrugated Board, Plastic & PVC material etc. It features electro-magnetic clutch & brake, dwell timing device, electric impression counter, circuit locking and circuit breaker. Also, it is well equipped with safety guards for operator’s safety. Our Platen Punching Die Cutting Machine is widely appreciated for its high efficiency, reliability and durability.

friends” platen punching machine is designed for die cutting, creasing & embossing on paper, card board, corrugated board, leather, plastic and p.v.c. etc. totally standardized (i.e. all parts are inter-changeable)

• Power Required: 3 H.P.
• Weight (Appx.) (Kg): 2700

Platen punching machine is designed for Cutting, Creasing, Embossing and Hot Foil Printing on Paper, Duplex Board, Paper Corrugated Sheets, Fibreglass sheets, Vinyl, Foam Rubber, Felt, Gaskets, Wood Veneers, Leather, Sponge Rubber, Cork, Plastics, Polythene, Linoleum & PVC Sheets, etc. Digital counter on the Operating Penal for counting impressions made by the machine.

Our Platen Punching Machine is made from fine quality raw material which we procure from reliable sources. We supply the product at a reasonable market price for the clients. The product is properly tested to provide error free solution to the clients. We are a renowned Manufacturer, Supplier and Exporter of high quality Platen Punching Machine which is extremely useful in paper manufacturing industries.

Machines has lots of features. New Design and working accoracy. Excellent Performance High Speed

Basic Descriptions» "H.B. Expert" platen Die Punching Machine is designed for Cutting Creasing & Embossing on paper duplex, paper corrugated sheets, Leather, Gaskets & PVC Sheets, Foam Rubber, Sponge Rubber etc.Standard Features :» "Electro Magnetic Clutch & Brake" enable push button control of the machine for easy and efficient operation. The advanced electromagnetic Clutch & Brake do not require lubrication.» All Shafts are high quality Alloy Steel. Main shafts & connecting arms are mounted on phosphor bronze bushes.» Main electrical panel are equipped with international standardized components i.e. Siemens/L&T etc.» All bearings are SKF/NBC only.» Quick and simple adjustment of impression is made through eccentric bushes & graduated scales.» Machine is supplied with two steel chases (one adjustable), one precision ground steel cutting plate, delivery feeding tables and a set of essential tools.Optional Features :» Hot Foil/Leaf Printing Attachment with single, double & triple pulling.» Automatic centralized lubrication system.» Hardened cutting platen plate.

• Brand Name: RAVI BRAND
• Phase: THREE PHASE
• Usage: INDUSTRIAL
• Capacity: 1500 IMPRESSION PER HOURS
• Weight: 6 TON
• Plate Size Range: 36 X 46mm
• Machine Type: HEAVY DUTY DIE PUNCHING MACHINE

Platen Die Punching is designed for heavy jobs of Cutting, Creasing and Embossing of Paper, Linoleum, Card Board, Corrugated Board, Plastic & PVC material etc. Machine is with Electro-megnetic Clutch & Brake, Dwell Timing Device, Electric Impression Counter, Safety guards for opertor's safety, Circuit Locking & Circuit Breaker.

GURLEEN Platen Punching Machine is designed for Die Cutting, Creasing , Embossing and Half Cutting,All shafts are from EN-924 steel and pins are grinded & bushes from Phosphorus Bronze Alloy,Full-safe combination clutch brake system with adjustable system (upto microns). The main driving shaft is equipped sets of double helical self-lubricated imported polyamide driving gear.

• Condition: New
• Driven Type: Mechanical, Pneumatic
• Warranty: 2years
• Application: Punching Corrugated Sheets
• Weight: 800-900kg
• Automatic Grade: Automatic

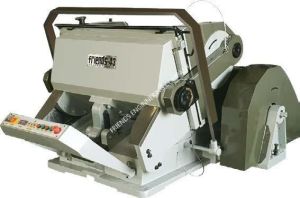

"friends" platen punching machine is designed for die cutting, creasing & embossing on paper, card board, corrugated board, leather, plastic and p.v.c. Etc. totally standardized (i.e. All parts are inter-changeable) all shafts are from en-8/9 steel and pins are grounded & bushes from phosphorus bronze alloy. all bearings are of ske/nbc/nachi only. fail-safe combination clutch brakes system with adjustable system (up to microns). the main driving shaft is equipped with two sets of double helical self-lubricated imported polyamide/steel pinion. main electric panel (operation and control) are equipped with detachable socket system with international standardized components i.e. Siemens/l&t/schneider (france) etc. self diagnostic system software with visual indications main flywheel is locked with check-nut system. centralized lubrication system is provided. quick and simple adjustment of impressions is made through two worm gears and eccentric bushes in the cam for left-right and up-down of platen to make the four corners equal. machine is having quite silent running and outlook is excellent with best quality paint and powder coated fitting. moveable footbrake is provided for extra safety. "friends" fastest platen opening (8-degree) to provide press operator increased time to feed delivering greater productivity. all features that make the "friends" platen punching machine most simple, reliable and maintenance free.

“FRIENDS” Platen Punching Machine is designed for Die Cutting, Creasing & Embossing on Paper, Card Board, Corrugated Board, Leather, Plastic and P.V.C. etc. Totally standardized (i.e. all parts are inter-changeable) All shafts are from EN-8/9 steel and pins are grounded & bushes from Phosphorus Bronze Alloy. All bearings are of SKE/NBC/NACHI only. Fail-safe combination clutch brakes system with adjustable system (up to microns). The main driving shaft is equipped with two sets of double helical self-lubricated imported polyamide/steel pinion. Main electric panel (operation and control) are equipped with Detachable Socket System with international standardized components i.e. Siemens/L&T/Schneider (France) etc. Self diagnostic system software with visual indications. Main flywheel is locked with check-nut system. Centralized Lubrication System is provided. Quick and simple adjustment of impressions is made through two worm gears and eccentric bushes in the cam for left-right and up-down of platen to make the four corners equal. Machine is having quite silent running and outlook is excellent with best quality paint and powder coated fitting. Moveable footbrake is provided for extra safety. “FRIENDS” Fastest Platen opening (8-degree) to provide press Operator Increased Time to feed delivering greater productivity. All features that make the “FRIENDS” Platen Punching Machine most simple, reliable and maintenance free. In the interest of product upgradation/improvement, the manufacturer reserves the right to change the specifications and features without notice. The sizes are standard, any special size required can be supplied on Request.

We are leading manufacturer & exporters of handfed platten punching machines sizes 15" x 20" to 71" x 140" all steel construction. Exporting the machines in usa, uk, ethopia etc. Also as per customer requrements & specifications according to the job. Also suppling the machines to all over india.

Platen punching machine are mounted on Phosphorus Bronze Bushes. BallRoller Bearing Mounted Crank Shaft drives the Platen through a Pair of high-speed Double Helical Gears (for increased strength) and two Pairs of reduction Spiral Gears being lubricated by GreaseOil.Hardened and Ground-True Make-Ready Plate

Platen Punching Machine is designed for Cutting, Creasing and Embossing on Paper, Duplex Board, Paper Corrugated Sheets, Fibreglass sheets, Vinyl, Foam Rubber, Felt, Gaskets, Wood Veneers, Leather, Sponge Rubber, Cork, Plastics, Polythene, Linoleum & PVC Sheets, etc Salient Features DWELL TIMING DEVICE' can set timing of the moving platen from 0.5 to 10 seconds. At dwell option, the moving platen remains stationary in an open position for the set dwell time before resuming motion. This is very useful feature when large/difficult jobs are being fed or when fine registration of Die in a job is required. This feature minimizes wastage in jobs. 'ELECTROMAGNETIC CLUTCH & BRAKE' enables push button control of the machine for easy and efficient operation. The advanced electromagnetic clutch & brake do not require lubrication. Multiple 'SAFETY DEVICES' viz. Off-position at Rotary Switch, Leg operated Safety Guard, Protective Wrap-Around Safety Guard, Trip Bar on the moving platen (optional), Safety is ensured by full electrical interlocking. All moving parts of the machine are protected by approved safety guards. Quick & simple adjustment of impression / pressure equalization independent for each side. The set value of impression can be read on graduated scale. High performance Precision Gears viz. Helical & Herringbone Gears (it works silently, without vibration and have capacity to bear extreme load). The Platen is driven by the ball bearing mounted shafts through a pair of reduction gears protected by guards.Rigid construction and compact design of the machine requires minimum floor-space. Number of impressions made by the machine are displayed on the operating penal. Main Shaft & Connecting Arms are mounted on Phosphor Bronze Bushes. One piece casting, properly stress relieved. All the shafts are of high quality alloy-steel. High performance Precision Gears. Single piece connecting arms of steel. Moving Platen running on hardened steel rails

SIKHANDAR MACHINERY CO. offers a range of Die Cutting Creasing Punching Platen Press Machines, Clam shell Platen Press, Hot Foil Stamping attatchments for hot foil printers & industry.The Machines are fitted with Electro magnetic Clutches & brakes with dwell timer arrangements.With the steel rule dies made to cut & crease & give a shape to sheet of paper or corrugated sheet, The Machine is used to make any type of packaging boxes.The main purpose of the Machine is to cut, emboss & texturize the materials such as paper, thin metal(soft), sponge, polyfoam, leather, foil, poster board, fabric, mat board, wall paper, rubber used in rubber stamps, corrugated sheets.The tedius task of cutting letters, numbers & shapes again & again with perfect shape and accuracy is done by this machine.The Machine is also used for stationery, greeting, wedding, scrapbooks & invitation cards.
