Manual & Automatic Honing Machine Dealers in Kolkata (6 products available)

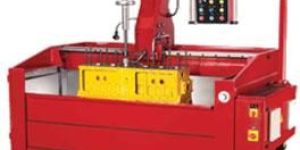

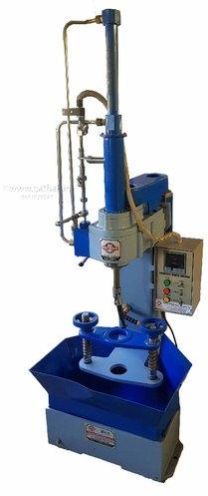

HPSM’ Vertical Honing Machine is fabricated structure using high quality steel, adequately designed to give minimum deflection under full load. The Machine consists of reciprocating Honing Head, Spindle is run through Hydraulic Motor, and Reciprocation is through hydraulic, hydraulic tool expansion system. The incorporation of most modern user friendly PLC systems makes machine operations simple. Job holding fixtures are provided suitable to component. These all-automatic machines enable the user to run continuous production and at the same time achieve a high degree of accuracy and repeatability.

We Manufacture Various Types of Honing Machines, for Honing of Spun Pipe Moulds, Hydraulic Cylinders, Gun Barrels Etc. Horizontal Honing Machines are Available Up to 6000 Mm Stroke and 750 Mm Bore. They are Ideal for Removing Heavy Stock and Provide fine Finish with High Accuracy. Tool Rotation and Reciprocating Honing Slide are Hydraulically Operated. Variable Speed of Ac or Hydraulic Motors Rotate the Work Spindle and the Tool Spindle. We also Offer Vertical Honing Machine upto 250mm Bore and 2000mm Length.

Motor for spindle stroke : 1.5 x 1440 RPM kw

Motor for Hydraulic : 1.5 x 1440 RPM kw

Coolant pump motor : 0.1 x 2800 RPM kw

Net weight (approx.) : 1500 kgs.

Shipping weight : 2000 kg.

Max. honing capacity diameter : 200mm, Max. honing stroke : 400mm, Min. honing stroke : 50mm, Max. distance table to spindle nose : 1000mm, Distance from spindle center to column : 380mm, Surface of table : Surface of table mm, Table traverse : 1700mm, Spindle speeds infinitely variable : 50-300 rpm, Reciprocating speeds infinitely variable : 0.16mmin mtr.

Power : 3HP

Brand Name : HIPAT

Automation Grade : Fully-automatic

Machine Capacity : 45 TO 100 MM

Vertical Honing Machine, Bushings, CNC Lathe Machine

Lathe Machines, Industrial Machinery, Four Wheeler Garage Equipment
