Pipe Beveling Machine Dealers in Ludhiana (11 products available)

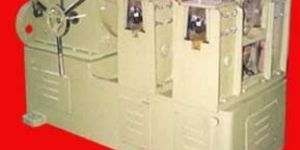

Our organization is positioned at Ludhiana(India) and has gained immense acknowledgement and a respected place in the market. We have a well-developed all the in-house storage facility, laced with all the modern facilities. Also, we have hired a team of professionals who efficiently manage and maintain it.   Bed : The Bed of Pipe Beveling Machine is made of Cast Iron. It is Very Rigid and sturdy in construction so as to take maximum Load and absorb maximum vibrations. It is provided with four Nos. Foundation Holes of Dia M20 at four corners of the bed. It is also provided with Four Tapped holes of 5/8 BSW near the Foundation Holes. The Head Stock and Clamping Vice is fitted on the Bed. Head Stock : he Head Stock body of Pipe Beveling Machine is made of Cast Iron. It is Very rigid and sturdy in design. The Head Stock is designed for Four Nos. Spindle speeds. All the Gears are of helical type made out of Axle Forging. The width of gears is 50 mm. The Shifting Gears slide on Splined Shafts. The Shafts are mounted on Heavy Duty Ball Bearings. The Input Shaft will be provided with a pulley having three grooves for C-Section V-belts. The Main Spindle is mounted on two Taper Roller Bearings mounted in Hard Chrome Plated Ground Sleeve. The Sleeve along with main spindle fitted with Beveling Head is mounted in the Head Stock body and is movable To and Fro along its axis. A Hyd. Cylinder actuated electrically makes the movement of the sleeve in the Head Stock. The Movement of the Sleeve can also be made manually. The Head Stock is Oil Filled. It is provided with Oil Filling hole, Oil Drain hole and Oil Level Indicator. Clamping Vice : The Box Type Clamping Vice is fitted on the Bed. The Vice is provided with Round Clamping Jaws for each size (4, 5, 6, 7, 8,). The Vice will be Self-centering type. The movement of the Clamping Jaws is made by Pneumatic cylinder fitted on the Vice actuated electrically. The Vice will be very rigid and sturdy in design. Machine will be supplied with single clamping vice. Beveling Head : A special Beveling Head will be provided with the machine. Two Tools of HSS will be used, One for Beveling and second for Root Face. The Beveling Tool will be mounted in a special Spring Loaded Tool Holder with a Roller device. It is fitted on the main spindle that is then mounted in the traveling Sleeve.

• Weight: 100-1000kg
• Voltage: 220V
• Driven Type: Electric
• Warranty: 1year
• Rated Power: 1-3kw
• Automation Grade: Automatic

Pipe Beveling Machine is used for the purpose of beveling the Pipe End. Pipe is Beveled from the Outer and Front is faced by two different tools. The Pipe remains Stationery and the Beveling Head rotates and comes out of the Head Stock for cutting the Pipe End. The Pipe Beveling Machine mainly consists of the following: Base Head Stock Saddle Bed or Pillar Type Clamping Vice Die Head. BED: –The Bed of Pipe Beveling Machine is made of Cast Iron. It is Very Rigid and sturdy in construction so as to take maximum Load and absorb max. Vibrations. It is provided with four Nos. Foundation Holes of Dia M20 at four corners of the bed. It is also provided with Four Tapped holes of 5/8” BSW near the Foundation Holes. The Head Stock and Clamping Vice is fitted on the Bed. HEAD STOCK: –The Head Stock body of Pipe Beveling Machine is made of Cast Iron. It is Very rigid and sturdy in design. The Head Stock is designed for Four Nos. Spindle speeds. All the Gears are of helical type made out of Axle Forging. The width of gears is 50 mm. The Shifting Gears slide on Spline Shafts. The Shafts are mounted on Heavy Duty Ball Bearings. The Input Shaft will be provided with a pulley having three grooves for C-Section V-belts. The Main Spindle is mounted on two Taper Roller Bearings mounted in Hard Chrome Plated Ground Sleeve. The Sleeve along with main spindle fitted with Beveling Head is mounted in the Head Stock body and is movable To and Fro along its axis. A Hyd. Cylinder actuated electrically makes the movement of the sleeve in the Head Stock. The Movement of the Sleeve can also be made manually. The Head Stock is Oil Filled. It is provided with Oil Filling hole, Oil Drain hole and Oil Level Indicator. CLAMPING VICE: –The Box Type Clamping Vice is fitted on the Bed. The Vice is provided with Round Clamping Jaws for each size (4”, 5”, 6”, 7”, 8”,). The Vice will be Self-centering type. The movement of the Clamping Jaws is made by Pneumatic cylinder fitted on the Vice actuated electrically. The Vice will be very rigid and sturdy in design. Machine will be supplied with single clamping vice. BEVELING HEAD: –A special Beveling Head will be provided with the machine. Two Tools of HSS will be used, One for Beveling and second for Root Face. The Beveling Tool will be mounted in a special Spring Loaded Tool Holder with a Roller device. It is fitted on the main spindle that is then mounted in the traveling Sleeve. Note:-One set of Round Type Clamping Jaws will be provided with the machine. Other Round Type Clamping Jaws are Optional and will be supplied at an extra Cost.

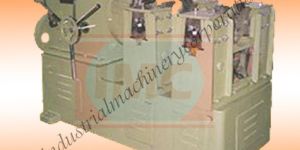

Industrial Machinery Corporation Pipe Beveling Machine is used for the purpose of beveling the Pipe End. Pipe is Beveled from the Outer and Front is faced by two different tools. The Pipe remains Stationery and the Beveling Head rotates and comes out of the Head Stock for cutting the Pipe End. The Pipe Beveling Machine mainly consists of the following: Bed  Head Stock  Clamping Vice  Beveling Head.BED: - The Bed of Pipe Beveling Machine is made of Cast Iron. It is Very Rigid and sturdy in construction so as to take maximum Load and absorb max. Vibrations. It is provided with four Nos. Foundation Holes of Dia M20 at four corners of the bed. It is also provided with Four Tapped holes of 5/8” BSW near the Foundation Holes. The Head Stock and Clamping Vice is fitted on the Bed. HEAD STOCK: - The Head Stock body of Pipe Beveling Machine is made of Cast Iron. It is Very rigid and sturdy in design. The Head Stock is designed for Four Nos. Spindle speeds. All the Gears are of helical type made out of Axle Forging. The width of gears is 50 mm. The Shifting Gears slide on Spline Shafts. The Shafts are mounted on Heavy Duty Ball Bearings. The Input Shaft will be provided with a pulley having three grooves for C-Section V-belts. The Main Spindle is mounted on two Taper Roller Bearings mounted in Hard Chrome Plated Ground Sleeve. The Sleeve along with main spindle fitted with Beveling Head is mounted in the Head Stock body and is movable To and Fro along its axis. A Hyd. Cylinder actuated electrically makes the movement of the sleeve in the Head Stock. The Movement of the Sleeve can also be made manually. The Head Stock is Oil Filled. It is provided with Oil Filling hole, Oil Drain hole and Oil Level Indicator. CLAMPING VICE: - The Box Type Clamping Vice is fitted on the Bed. The Vice is provided with Round Clamping Jaws for each size (4”, 5”, 6”, 7”, 8”,). The Vice will be Self-centering type. The movement of the Clamping Jaws is made by Pneumatic cylinder fitted on the Vice actuated electrically. The Vice will be very rigid and sturdy in design. Machine will be supplied with single clamping vice. BEVELING HEAD: - A special Beveling Head will be provided with the machine. Two Tools of HSS will be used, One for Beveling and second for Root Face. The Beveling Tool will be mounted in a special Spring Loaded Tool Holder with a Roller device. It is fitted on the main spindle that is then mounted in the traveling Sleeve. Note:-  One set of Round Type Clamping Jaws will be provided with the machine. Other Round Type Clamping Jaws are Optional and will be supplied at an extra Cost.

•  Model No.:  NCT-B- 4" to 8"
•  Capacity of the machine for Beveling Min.:  4" N.B. Pipe
•  Capacity of the machine for Beveling Max.:  8" N.B. Pipe
•  Outer Dia of the Sleeve:  200 mm
•  Main Spindle Bearings (Taper Roller):  32218 & 32219
•  Number of Spindle Speeds:  Four Nos.
•  Cutting Tools Required (HSS 10% Cobalt)or Carbide Tool:  3/4" (Carbide Tool)
•  Main Motor:  15 H.P., 960 RPM
•  Max. Travel of the Sleeve:  90 mm
•  Approx. Wt. Of the machine.:  2800 Kgs.

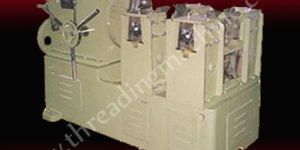

we are manufacturer of pipe machinery used by steel pipe industry. we manufacture different type of pipe processing  machineries, an following is the list of our pipe products: pipe threading machine pipe end facing machine pvc pipe threading machine pipe bevel machine square threading machine scaffolding props jack pipe threading machine rod threading machine conduit pipe threading

The Pipe Beveling Machine is used for the objective of beveling the pipe end. Pipe is beveled from the External and Front side is experienced by two different resources. The Pipe continues to be Invitations and the Beveling head moves and comes out of the head stock for reducing the Pipe end.The Pipe Beveling System mainly includes the following:Bed Head Stock Clamping Vice Beveling Head. Bed  Head Stock  Clamping Vice  Beveling Head. BED: - The Bed of Pipe Beveling Machine is created of cast iron. It is Very Firm and durable in development so as to take highest possible Fill and process max. Oscillations It is offered with four Nos. Base Gaps of Dia M20 at four sides of the bed. It is also offered with Four Utilized holes of 5/8” BSW near the Base Gaps. The head stock and Clamping Vice is fixed on the Bed. HEAD STOCK: - The head stock whole body of Pipe Beveling Machine is created of cast iron. It is Very rigid and durable in style. The Go Inventory is developed for Four Nos. Spindle rates of speed. All the Equipment are of helical kind created out of Axle Developing. The dimension gears is 50 mm. The Moving Equipment move on Splined Golf club shafts. The Golf club shafts are installed on Large Responsibility Football Bearings. The Feedback Base will be offered with a lever having three lines for C-Section V-belts. The Primary Spindle is installed on two Blend Curler Bearings installed in Difficult Firefox Coated Floor Sleeve. The Sleeve along with main spindle fixed with Beveling Go is installed in the Go Inventory whole body and is portable To and Fro along its axis. A Hyd. cylinder tube actuated electronically creates the activity of the sleeve in the Go Inventory. The Movement of the Sleeve can also be created personally. The head stock is Oil Loaded. It is offered with Oil Stuffing gap, Oil Strain gap and Oil Stage Signal.

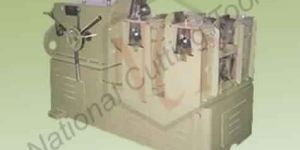

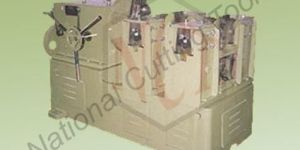

National Cutting Tools is one of the leading Manufacturers, Exporters and Suppliers of Pipe Beveling Machine. It is used for the purpose of beveling the Pipe End. Pipe is Beveled from the Outer and Front is faced by two different tools. The Pipe remains Stationery and the Beveling Head rotates and comes out of the Head Stock for cutting the Pipe End. It consists of the following:- Bed : The Bed of Pipe Beveling Machine is made of Cast Iron. It is Very Rigid and sturdy in construction so as to take maximum Load and absorb maximum vibrations. It is provided with four Nos. Foundation Holes of Dia M20 at four corners of the bed. It is also provided with Four Tapped holes of 5/8 BSW near the Foundation Holes. The Head Stock and Clamping Vice is fitted on the Bed. Head Stock : he Head Stock body of Pipe Beveling Machine is made of Cast Iron. It is Very rigid and sturdy in design. The Head Stock is designed for Four Nos. Spindle speeds. All the Gears are of helical type made out of Axle Forging. The width of gears is 50 mm. The Shifting Gears slide on Splined Shafts. The Shafts are mounted on Heavy Duty Ball Bearings. The Input Shaft will be provided with a pulley having three grooves for C-Section V-belts. The Main Spindle is mounted on two Taper Roller Bearings mounted in Hard Chrome Plated Ground Sleeve. The Sleeve along with main spindle fitted with Beveling Head is mounted in the Head Stock body and is movable To and Fro along its axis. A Hyd. Cylinder actuated electrically makes the movement of the sleeve in the Head Stock. The Movement of the Sleeve can also be made manually. The Head Stock is Oil Filled. It is provided with Oil Filling hole, Oil Drain hole and Oil Level Indicator. Clamping Vice : The Box Type Clamping Vice is fitted on the Bed. The Vice is provided with Round Clamping Jaws for each size (4, 5, 6, 7, 8,). The Vice will be Self-centering type. The movement of the Clamping Jaws is made by Pneumatic cylinder fitted on the Vice actuated electrically. The Vice will be very rigid and sturdy in design. Machine will be supplied with single clamping vice. Beveling Head : A special Beveling Head will be provided with the machine. Two Tools of HSS will be used, One for Beveling and second for Root Face. The Beveling Tool will be mounted in a special Spring Loaded Tool Holder with a Roller device. It is fitted on the main spindle that is then mounted in the traveling Sleeve.

Backed by efficient logistics team, we make deliveries of the goods in the set time span. Raw material that is used for preparing the offered lot is sourced from the genuine vendors. Also, we procure it only after complete quality inspection.   Bed : The Bed of Pipe Beveling Machine is made of Cast Iron. It is Very Rigid and sturdy in construction so as to take maximum Load and absorb maximum vibrations. It is provided with four Nos. Foundation Holes of Dia M20 at four corners of the bed. It is also provided with Four Tapped holes of 5/8 BSW near the Foundation Holes. The Head Stock and Clamping Vice is fitted on the Bed. Head Stock : he Head Stock body of Pipe Beveling Machine is made of Cast Iron. It is Very rigid and sturdy in design. The Head Stock is designed for Four Nos. Spindle speeds. All the Gears are of helical type made out of Axle Forging. The width of gears is 50 mm. The Shifting Gears slide on Splined Shafts. The Shafts are mounted on Heavy Duty Ball Bearings. The Input Shaft will be provided with a pulley having three grooves for C-Section V-belts. The Main Spindle is mounted on two Taper Roller Bearings mounted in Hard Chrome Plated Ground Sleeve. The Sleeve along with main spindle fitted with Beveling Head is mounted in the Head Stock body and is movable To and Fro along its axis. A Hyd. Cylinder actuated electrically makes the movement of the sleeve in the Head Stock. The Movement of the Sleeve can also be made manually. The Head Stock is Oil Filled. It is provided with Oil Filling hole, Oil Drain hole and Oil Level Indicator. Clamping Vice : The Box Type Clamping Vice is fitted on the Bed. The Vice is provided with Round Clamping Jaws for each size (4, 5, 6, 7, 8,). The Vice will be Self-centering type. The movement of the Clamping Jaws is made by Pneumatic cylinder fitted on the Vice actuated electrically. The Vice will be very rigid and sturdy in design. Machine will be supplied with single clamping vice. Beveling Head : A special Beveling Head will be provided with the machine. Two Tools of HSS will be used, One for Beveling and second for Root Face. The Beveling Tool will be mounted in a special Spring Loaded Tool Holder with a Roller device. It is fitted on the main spindle that is then mounted in the traveling Sleeve.

Pipe Beveling Machine, GI Pipe Threading Machine, Pipe Threading Machines

We are leading manufacturer and supplier of Pipe Beveling Machine
