AIR Lock Valve Dealers in Mumbai (14 products available)

Brand Name : Miteck Systems

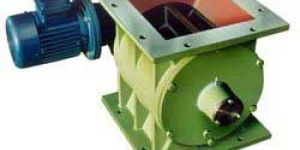

We are offering Rotary Airlock Valve. For over sixteen years, Miteck Rotary Airlock valves have been leading industry in Design, Workmanship, Functionality, Longevity and Serviceability. They have repeatedly proven to be the best quality as well as economical. Miteck has an extensive range of rotary valves used in a wide range of applications from heavy minerals industries to light agricultural applications. Rotary valves, otherwise known as rotary feeders, rotary air locks or star valves have applications in the solid gas separation applications or solids metering applications. Miteck rotary valves are ideally suited for air locks on dust collection systems or solids feeding applications and can service a very wide range of industries. Ranges Of Rotary Airlock Valves: * DROP THRU VALVE (DV SERIES) : The DT-RAV are designed for economical reliable material metering. Ideal for Pollution Control application beneath dust collector and cyclone separators. For brief Details : http://goo.gl/7cX1v * ECONOMICAL DROP THRU VALVE : The EDTV are designed to provide a low cost airlock solution for simple dust collection under baghouses and cyclones. This design is uniquely suited for a low pressure application where a quality air seal is necessary in light duty non-abrasive dust collection applications. The EDTV valves are available in sizes 6 through 14 with square or round housings to match most collector discharge flanges. ​​The EDTV series are available in sizes in 150mm to 350mm with square and round matching flange. For brief Detials : http://goo.gl/f0N75 * QUICK CLEAN SERIES : The Quick Clean Series is designed for fast disassembly cleaning reassembly of the material contact surface. The Quick Clean are specifically designed to be cleaed without tools & removal from service. These type of valve normally we supply to pharmaceutical industry & food industry. For brief Detials : http://goo.gl/jZ4ex * FABRICATED VALVES : Fabricated valves are especially suited to handle large volumes of light to medium density products including large irregular material typically found in dust collection and low pressure pneumatic systems. These valves are available in carbon steel, stainless solution. The precision cut and welded valves feature flange type bearings, ribbed housing and headplates wim replaceable neoprene, viton or ure-i-hane sealstrips. For brief details : http://goo.gl/EnQmt * SIDE ENTRY SIDE DISCHARGE TYPE : ​Side Entry – Side discharge model Rotary Air Lock Valve lines are specially designed with offset inlet and discharge opening to reduce product shearing while maintaining an efficient product flow in conveying or metering applications. The valve name derives form the Offset inlet and outlet flanges, where product enters the side of the rotor instead of top. For brief details : http://goo.gl/Koi0A * SEMI- ROTARY ISOLATING VALVE (ROTARY PLUG VALVE) Based on Ball valve mechanism to suit your application.This types of rotary valves are normally used below storage cylo. Sizes Available Are 250,300,350. More More Detials On Miteck Rotary Airlock Valves : www.mitecksystems.com

RANGE : 0.1 to 0.3 mm.

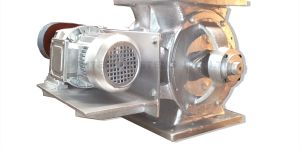

Rotary Airlock Valve (RAV) is the equipment which is fitted below the Bag Filter, Cyclone, Multicyclone etc. The main function of the RAV is to lock the air and discharge the dust powder. In the Bag Filter system there is negative pressure in the Bag Filter. So at the powder discharge point if there is any air leakage the powder will not fall down. So to restrict the leakage we provide the Rotary Airlock Valve. RAV consists of a stator & rotor. The radial & axial clearance is between 0.1 to 0.3 mm. The rotor has vanes (6 or 8) welded on the shaft. The rotor is mounted on the bearings at both the ends of the stator. A Geared Motor is provided to rotate the rotor. Since the clearance between rotor & stator is so low. Because of this air leak is very minimum and it delivers only powder.

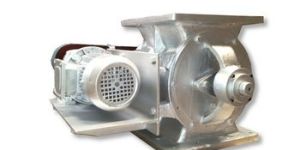

At ADVANCED DRYING SYSTEMS, we provide you with a supreme range of Rotary Airlock Valve, which is extensively used to discharge dust particles from bag filter. Our Rotary Airlock Valve maintains the operating pressure in the system. Offered in a variety of dimensions and capacities, our Rotary Airlock Valve is also presented custom-made to our clients. Salient FeaturesPrime qualityEasy operationRobust constructionEasy maintenance Used inPharmaceutical industriesChemical industriesFood industries

Rotary feeders are commonly used for discharge of bulk solid materials from hoppers/bins, receivers and cyclones. Components of a rotary feeder include a rotor shaft, housing, head plates, and packing seals & bearings. Rotors have large vanes cast or welded on and are typically driven by electric motors. Industries requiring this type feeding mechanism include cement, asphalt, chemical, mining, plastic, food etc.

ø 150 : ø 200

Chain / Direct. : MS,CI,SS

ø 250 : ø 300

ø 400 : ø 500

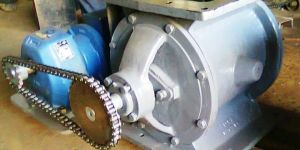

We are offering rotary air lock valve. Avail from us an efficient range of rotary airlock valves that is also referred as rotary air feeder and is extremely used for dust discharge device. It is better than gravity operated double flap valve as it gives continuous discharge and has a better air tightness. While discharging dust, the valve prevents gas leakage through the inlet opening. This valve consists of a cast or fabricated housing that is provided with a rotor and a shaft. The fins of the rotor are welded to the shaft. The volume of rotor is determined by the empty space between the two fins. On each rotation, dust that is held in the pocket is discharged. And depending on the applications, material of constructions are decided whether cast iron mild steel fabrication should be used or stainless steel.

The unit is designed to provide a flexible air seal, allowing larger particles to easily pass through the valve while maintaining its air seal. Bolting arrangement on side plate allows service or change-out of the reinforced rubber vane tips without removing the entire unit from the system.Components of a rotary feeder include a rotor shaft, housing, head plates, and packing seals and bearings. Employing Karyasiddhi make rotary airlock   on your dust collection system allows for continuous operation without the need to shut down for barrel removal or lost labor time for barrel change outs. A rotary airlock can also minimize employee exposure to dust while making your system less susceptible to material back-up and damage.   Applications   • Steel Industry Blast Furnace, Electric Arc Furnace, BOF, etc   • Fertilizer Industry Phosphate Rock Dryers & Calciners, Dryers   • Non-Ferrous Copper Reverberatory Furnace, Laea Blast Furnace   • Pulp & Paper Lime Kilns, Back Liquor Recovery, Bark Boilers   • Sugar Industry Boiler Flue Gas, Bagging Section   • Mineral Products Asphalt Stone Dryers, Cement Kilns   • Pharmaceuticals Tablet Coating Fans, etc

Rotary Air Lock Valve are important components of pneumatic conveying systems. Rotary airlock is also known as rotary valve, rotary feeder or airlock feeder. The basic use of the rotary airlock valve is as an airlock or sealing pressurized systems against loss of air or gas while maintaining a flow of material between components with different pressure. We Manufacture Rotary Air Locks used for feeding materials under vacuum or pressure while sealing in air & gas. Principle of gravity is used for dropping the material in the container. This is done with the help a vane rotor. The rotor consists of a no of Vanes and is available in different diameters as per the requirement of the process. The rotary air lock consists of rotor with minimum clearance of 0.5mm between van tip & interior of body. This is done to ensure perfect air locking considering the wear & tear of the rotors are driven with the help of standard motor & gearboxes. Our Rotary Air Lock Valves have high filling efficiency due to effective inlet shape and close running clearances. Our Rotary Airlock valves have wide application in industry wherever dry free-flowing powders, granules, crystals, or pellets are used. Typical materials include: Chemicals, Dyes, minerals, grains, plastics, dust, fly ash, flour, gypsum, lime, coffee, cereals, pharmaceuticals, etc. Application Areas Silo Discharge : The rotary valve placed under the silo or dust collection system is used to control the bulk solid discharge.Dosage Control : By controlling the rotation speed of the airlock feeder, volumetric metering and dosing of granular solids is achieved.Pneumatic Transportation : The airlock mounted under a cyclone is used for discharging the cyclone. Rotary valves mounted under cyclones, silos or hoppers are used to feed the pneumatic conveying line. Construction Carbon steelStainless steelCI castingsPneumatic Conveying SystemsAir Pollution Systems, PowderConveying systems

Material : Casting

Temperature Of Media : High Temperature

Power : Solenoid

Port Size : 3/4 BSP

Brand Name : MITECK SYSTEMS

Pressure : High Pressure

Standard or Nonstandard : Standard

Supply Ability : 100 Set/Sets per Month

Port : mumbai

Media : Other

SILVER : blue

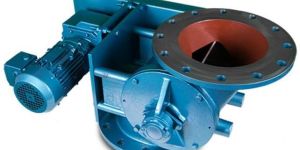

SMB's ROTARY AIRLOCK VALVE’s are designed for various applications, feeding material under high pressure / vacuum with perfect provision of air right scals & uniform discharge from the outlet. It is simplex form of Vane Feeder consists of Airlock Valve Housing, Rotor, Geared Motor, Chain, Sprocket, Chain Guard & Mounting Frame complete. The quantity / flow of material could be adjusted by changing the speed of ROTOR / SPROCKETS. The Rotor blades in pocketed shapes are so perfectly designed that, it handles fine pelverise material, the Rotor is not jammed and also the material is not clogged between the fine gap of the impeller body. The material enters the valve housing from the top & as the Rotor Rotates, each pocket discharges when it reaches the bottom opening of the body.   The clearance between the Rotor blades & Valve Housing is precisely maintained to prevent to prevent the free passage of air between inlet & outlet size of the valve. The RAV’s width NTN FC 207 Bearing of Japan make, are also supplied on request.   SPECIAL FEATURES OF ROTARY AIR LOCK VALVES 1) Body of close grained cast iron or fabricated from M.S. to provide adequate stregth, rigidity and high grade quality of casting.2) Rotor of M.S. / S.S. with shaft ends, machined accurately and mounted on anti-fabrication bearings/ NTN FC Bearings of Japan on request.3) Rotor vane edges machined and fitted with special fibre / SS linings to facilitate close fit between Housing and Rotor which avoids air leakage.4) Rotor speed could be regulated to give rated output as may be required to suit site requirements.5) Various designs of Rotary Air Lock Valve to suit any applications / material.6) Material of Construction: as per requirement.

We provide our clients with a world-class range of Rotary Air Lock Valves, which can be put to use as a discharger, pneumatic feeder and batch feeder. These valves are made using quality material, which makes these all the more durable. Our clients can avail these valves at an affordable price.
