Nitin Rao Santacruz West, Mumbai, Maharashtra

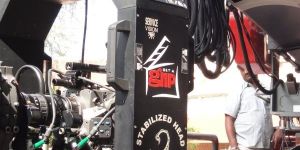

Features Its digital system stabilizes any film or video camera upto 45kg. Its Stabilization is effective upto 300mm focal length in 35mm and will Stabilize typical zooms such as 24-275mm or 24-290mm. The level of stabilisation is optimal for any telescopic crane, fixed crane, dolly, camera or any type of platform Provides power supply for Scorpio Focus or any other popular lens control Control options of Handwheels, Joystick, Panbar (JDR and Hand held). Provides programmable limits,Damping and speed adjustment for all axis Provides Horizon Level Looking straight down 4th axis control capability Max Camera weight: 45Kg Power Requirements: 30V DC Standby Current: 800mA Max usable lens focal: 300mm Control options: upto 500 meters cable / Microwave Scorpio Radio System

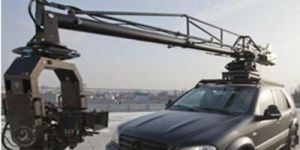

The Scorpio Arm is a complete Camera Car. Camera movements are executed from a Mercedes ML 350, remote controlled from inside, creating images that are more stable, dynamic compared to other systems. The arm operator, head operator, focus puller and DOP, communicate among themselves and with the precision driver with wireless head phones, and view the images from 5 high resolution monitors (HD and SDI). The design of our arm allows putting the camera at a height, maintaining the Centre of Gravity closer to the car than any other Russian arm or Scorpio arm built so far internationally. It’s digital control allows pre-recorded positions, set limits, movement memory and makes the system efficient and reliable. Gyro stabilization in the TILT axis Versatile arm configurations: 12′, 14′ and 18’ Limits, speed control and damping control are available from the control desk Controlled from joystick situated inside the car Send the position of each axis constantly like a Motion Capture Record and repeat all movements of each axis like a Motion Control Go to a fixed position with switch for safety purpose Max. Weight with maximum payload and standard configuration (12′): 365kg

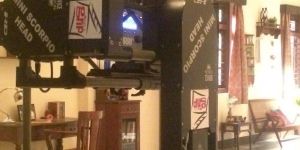

2 and 3 Axis Remote head for video, film and HD cameras (with HD slip rings). Mini Scorpio Head can be controlled from up to 500 meters by cable or by wireless half-duplex microwave 2,4GHz. All Axis (Pan, Tilt and Roll, and Focus, Iris and Zoom if you use the Scorpio Focus) are programmable and repeatable. The system has a bank of 6 memories of 2 minutes each one. In these memories you can modify each axis independent. Is possible to transfer all memories to a computer true serial channel 232. Option to determine 4 Start positions. Limits programmable, damping and speed adjustment for all axis available. 3 control systems are available: JDR (Pan Bar), Joystick and Handwheels. The Joystick includes Focus and zoom control directly connected to the Zoom Lens. All axis have 2 slip rings inside. This allows a movement of 360º continuously Power supply for all film and video cameras. The head provides 2 different risers (10cm and 20 cm) to change the size of the head. It is possible to work under slung and over slung.

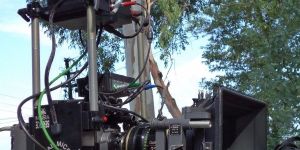

Features Compact two Axis remote head for video and film cameras Independent Axis connected by cable The micro Scorpio head can be positioned in over slung and under slung mode Mounts available: Mitchell mount, tripod mount, a flat mount, 150 mm and 100 mm bowl mount & mount for jimmy jib Both Axis can be moved manually to balance the camera All Axis are programmable and repeatable Programmable limits, damping and speed adjustment for all Axis available Four control units are available: JDR [pan bar], joystick, handheld and handwheels Connection for Scorpio focus or other lens control systems

The Panther Galaxy Crane is a rideable, modular, remote crane that has a total of 15 configurations. Easy to handle, with fast and uncomplicated setup, the Galaxy Crane has an extremely rigid arm which remains steady at all times. Utmost stability is the primary objectives of the crane arm. The outrigger has a remarkable cross-section of 25 cm2 (10“x 10“) to be strong enough against torsion. The position of the bracing kit and especially the V-trapezoid, offer optimal 4-sided stability, ideal to dampen the vibrations of the arm, particularly during remote operation. Consequently, all remote versions are operational up to a wind speed of 45 km/h. The use of special, non-corroding bearings in the central section facilitates the precise handling. The Galaxy is black to avoid possible reflections on location. Remote version max. height: 63 ft max. payload: 80kg / 176lbs Platform version version max. height: 12,0m / 39ft max. payload: 250kg / 551lbs

The Mo-Sys Lambda is a highly precise motion control head.Navigate through its simple, intuitive touch-screen and program a series of moves in mere seconds. It’s that easy. An all-in-one motion control & remote head designed for filmmaking that is industry-renowned for its strength, precision, and versatility. Its modular design means you can add a 3rd axis for roll capability. One of the strongest heads on the market with a payload of 50kg (110 lbs), making it suitable for 3D camera rigs Zero backlash, no delay unlike ordinary worm gear drives High resolution drive for smooth operation and crisp responsiveness Quick set-up due to a unique plug & play design and simple Mo-Sys bus cabling system Simple, intuitive touchscreen control Unrivalled ease of adjustment Can be underslung, getting the lens closer to the floor than a geared head. With the slip ring fitted option, the Lambda head is capable of continuous, multi-turn 360 degree rotation in all axes without the worry of cable wraps. Frame accurate recording and repetition in sync with the camera Simple, intuitive touch screen control Unique plug & play set up Full interface to full production Upgradeable by email (upgrade kit required) Moves can be downloaded to a laptop by USB Optional real time motion capture output for VR Simple cabling using Mo-Sys bus in a daisy chain network

One of the strongest heads on the market with a payload of 50kg (110 lbs), making it suitable for 3D camera rigs Zero backlash, no delay unlike ordinary worm gear drives High resolution drive for smooth operation and crisp responsiveness Quick set-up due to a unique plug & play design and simple Mo-Sys bus cabling system Simple, intuitive touchscreen control Unrivalled ease of adjustment Can be underslung, getting the lens closer to the floor than a geared head. With the slip ring fitted option, the Lambda head is capable of continuous, multi-turn 360 degree rotation in all axes without the worry of cable wraps.

We believe in efficiency and organised equipment on set. It is necessary to reduce labour and man hours spent on basics like transportation. Storage solutions on set, improved access to gear and optimised assembly process are all a breeze to handle with Customised carts. All our gear such as Steadicam, Remote Heads, Drones and Crane weights is transported from vehicle to set to in customised handcarts and trolleys. Assembly and storage on set and shifting within the set is also a one man operation! These versatile Carts are available for both sales and rental to Production houses, and rental houses that like to function efficiently.

The Mo-Sys Lambda is a highly precise motion control head.Navigate through its simple, intuitive touch-screen and program a series of moves in mere seconds. It’s that easy. An all-in-one motion control & remote head designed for filmmaking that is industry-renowned for its strength, precision, and versatility. Its modular design means you can add a 3rd axis for roll capability

31 feet Jib with easy to operate Scorpio Micro Head and quick assembly Panther precision auto- levelling tracks. Remote heads

The Gripshaw is a simple home built device similar to a hand pulled rickshaw. It can be used with a Steadicam or handheld camera to make lengthy tracking shots and Sit down/Stand up chase situations more interesting!

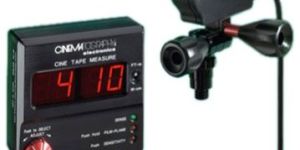

Measuring distance just became easier with the CINE TAPE MEASURE System. This versatile ultrasonic system continuously calculates the distance between a subject and the camera’s film-plane. By continuously measuring distance during a shot, small or subtle subject movements are no longer a problem. With non-stop measurements, focusing a camera lens is simplified which saves time, avoids retakes and reduces production costs. The control displays accurate distance measurements from the constant stream of data that is received by the sensors. The CINE TAPE MEASURE System is a small, rugged, lightweight, and quiet ultrasonic range finder. It is compatible with all lenses, film cameras and video cameras. In addition, it is easy to set up and use, making it the first choice of professional filmmakers. Cine Tape Measure Control CINE TAPE MEASURE CONTROL is the brain of the system. A simple one-time Film-Plane offset adjustment programs the relationship of the film plane to the sensor position. When the control detects a subject, the green Sense LED glows and the calculated distance is shown on the LED display in either feet-inches or meters-centimeters. Adjustable brightness levels for the large red LED display offers comfortable viewing under different lighting conditions. The digital Sensitivity adjustment feature fine-tunes the system range, which is also helpful with different subject reflectivity. The Close Focus feature sets the minimum sense distance. Objects within this area are disregarded. All of the functions are set and stored digitally, which safeguards against accidental changes and provides accurate repeatability between units. Sensor Assembly The innovative SENSOR ASSEMBLY consists of two small cone-shaped “horns,” a miniature pan tilt mechanism, a mounting stud, and an electrical connector. The horns send and receive ultrasonic signals that are used to calculate the distance measurement. Mounting the SENSOR ASSEMBLY onto a camera package is simple with the combo stud. With its pan and tilt adjust/lock knobs, aiming the horns towards the subject is quick and straightforward. The SENSOR ASSEMBLY interfaces to the control via a short detachable Sensor Cable. A spring-loaded holder permits laser pens to be attached parallel to the sensors, providing a visual reference during calibration.

Scorpio Stabilised Arm The Scorpio Arm is a complete Camera Car. Camera movements are executed from a Mercedes ML 350, remote controlled from inside, creating images that are more stable, dynamic compared to other systems. The arm operator, head operator, focus puller and DOP, communicate among themselves and with the precision driver with wireless head phones, and view the images from 5 high resolution monitors (HD and SDI). The design of our arm allows putting the camera at a height, maintaining the Centre of Gravity closer to the car than any other Russian arm or Scorpio arm built so far internationally.
