Underslung Cranes Dealers in Mumbai (12 products available)

he Under Slung Cranes can also be supplied with overhang (girder extending beyond crane span) on one side or both the sides as per the requirement of customer. The crane mainly comprise of bridge girder made from rolled sections such as I beams U beams. The bridge girder is connected to two end carriages, each housing a pair of wheels and running on the shop beam flanges. The wheels are driven by motor gearbox units. A wire rope hoist or electric chain hoist is suspended below the bridge girder. The crane can be operated through pendent station hanging from wire rope hoist or through radio remote control. The pendent station can be made to move independent of hoist movement as per customer’s choice. Power supply to the wire rope hoist is through festoon cable system. The flexible cables are supported by cable hanger or cable trolleys that move on either taught wire or enclosed C track depending on customer choice.

We bring an extensive range of Underslung Crane which are designed accurately and are sturdy and stable. These machines are used where the building structures make the normal traveling cranes less suitable. The main feature of the Underslung Crane is that the crane track is not fastened to pillars but to the beams of the building. These machines offer the advantage of very small trolley approach dimensions and as a result an optimal utilization of the building width. The Underslung Crane provides a load capacity range of 0.5 T up to 10 T and spans of up 15 m. Optimal area coverage can be accomplished by providing overhang on 2 sides. The highest hook position can be increased further by inserting the main girder between the end carriages. Features Light weight Easy operation Easy maintenance Modular design allows direct fits between components All components are designed as per quality compliance Details Electrical panel has modular design and a vast operating range. They are designed for easy installation and maintenance and reliability, with ducted wiring, fuse less circuitry, and non-screwed terminals. Each drive group is equipped with a motor overload protection device to provide protection against inadmissible overloading Single or Dual-disc electromagnetic DC Brakes provide automatic braking on power failure. Environmentally sound brake linings designed for approx. 1 million braking operations offer long maintenance intervals Accurate flat helical or spur Gear units in light alloy housings with case-hardened gears, high-grade surface treatment and permanent oil or grease lubrication Sturdy cylindrical or conical rotor pole-changing Motors with elegant continuous cast aluminium sections, integrated safety brakes insulation class F, IP54 protection Every component and part is thoroughly scrubbed and painted with two coats of primer before assembly and two coats of synthetic enamel after testing Special Details Push button stations which are extremely light, easy to operate, and handy Electric or Electronic Soft Start modules electrically coupled to the long travel drives to achieve cushioned ,smooth and jerk free starts Optional Features Independent push button stations for jobs which are bulky Two speeds for all drives Range Capacity : 0.5 Tons Onwards Span : 3 Mtr. to 15 Mtr. Lift : 3 Mtr to 18 Mtr.

Application : Construction, Industrial

After-Sales Service Provided : YES

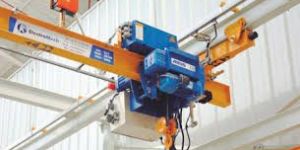

Underslung crane The single girder under slung crane with components from STAHL Crane Systems needs very compact space.In conjunction with the radio control technology, the main power supply is designed as a conductor line,

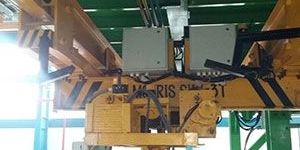

Brady & Morris manufactures Underslung Cranes in capacities ranging from 1T to 15T. These cranes are primarily used when headroom is limited. These cranes can be electrically operated (EOT) or manually operated (HOT) or a mix of both (Semi-EOT). For EOT cranes, the client can use either an electric wire rope hoist or an electric chain hoist. Brady & Morris is eligible to supply Underslung Cranes through consultants such as MECON, CET, MND, Jacobs, Tata Consultancy and many more.

These types of cranes are installed at the ceilings of the shed These types of cranes are used for light and medium duty applications. Main features - Economical Prized and occupy minimum area of the shed. Ease of maintenance of every component at the installed height is the advantage. Power consumption is less compared to heavy duty cranes. Standard capacity ranges from 1 to 10 Ton with 6 to 8 meter height of lift, preferred class of duty II and III. Optionally these cranes can be design for double girder E.O.T. Crane type as per the customer requirements.

Designed and developed to bear heavy loads for longer time spans, our range of Double Girder Underslung EOT Crane is a perfect solution. The Double Girder Underslung EOT Crane is advantageous over the conventional cranes in terms of low headroom. The hook of the Double Girder Underslung EOT Crane can be lifted between the girders. Equipped with crane duty components, our superior quality machine is known to possess unmatched features. Why Our Double Girder Underslung EOT Crane? Integrated safety brakes and insulation protectionPrécised flat helical/spur gear units in light alloy housings with case hardened gear type gear boxesSingle, dual-disc electromagnetic DC brakes enables automatic breaking on power failureModularly designed electric panelEach group fitted with motor overload protectionOver hoisting and over lowering of hook prevented with limited switchesJerk free, cushioned and smooth start achieved with electronic soft start modulesExtra light, handy, easy to operate push buttons

At VHS we manufacture and offer a wide range of under slung cranes which are used in various industries for material handling solution. These are manufactured using the advanced production techniques and has a huge demand in global markets Features of under slung cranes: Performance Durability Efficiency Rates High performance Long operational life Smooth operation

LIGHT/ MEDIUM / HEAVY DUTY : HEIGHT OF LIFT UPTO 05 MTRS.

we are offering Under Slung Cranes. Under slung H.O.T / E.O.T cranes up to 10 MT capacity.

Underslung Cranes, Goods Lifts, Jib Cranes, Wire Rope Hoists

Under Slung Crane, Single Girder E.O.T. Crane, Double Girder E.O.T. Crane

Underslung Cranes, Double Girder Overhead Cranes, flame proof cranes
