Digital Torque Controller (Wattage Base)
45,000 Per Each
1 Each (MOQ)
The Digital Torque Controller (Wattage Base), offered by us, is designed in compliance with the stated industry-specific norms. We are a celebrated Manufacturer, Exporter and Supplier of Digital Torque Controller (Wattage Base). The Digital Torque Controller (Wattage Base) that we deal in is compact in design, sturdy in construction having longer service life. We make sure that the placed order, be it bulk one, is delivered within the stipulated frame of time. Highlights : Electronic Control Panel with the “State of the art” Technology Fully Solid State Design with no moving parts hence no wear and tear or noise with a longer life Easy to maintain with just one main circuit board Automatic identifies and indicate connected drive by LED Micro-controller operated. Reduced starting currents due to soft start in all drives increases long Life of carbon brushes and drive Accurate and easy to replicate identical results: Due to proper torque setting calibration and 1 watt resolution Adjustable Slow & Fast Drive Speed for rotation in reverse Four different ranges Torque setting suitable for four different drives. Prevents drive abuse or overuse through automatic wattage range selection for connected drive Display : Actual drive wattage (torque) is displayed. Pressing one button displays the Set wattage (torque), line voltage and drive current as well Adjustable time settings : Trip time : 0.1 sec to 10 sec Reverse time : 1 sec to 100 sec Pause time (interval between cycles) : 1 sec to 100 sec LED indication to show conditions of forward, reverse and trip drive MCB for protection against over current by short circuits in panel and drives Easy to replace spares (using only screw driver) inside the panel like: PCBs, Transformers, CT, and Relays DPM etc. Plug in PCBs for reducing trouble shooting down time to a bare minimum Push button for Emergency Manual reverse Modes available : Hand (trigger) or foot switch Single cycle or auto repeat mode for undertaking expansions Trigger (Hand) OR Foot Switch both options are available.
Torque Controller
Get Price Quote

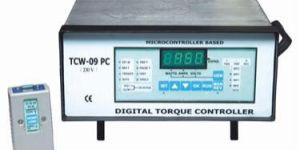

We are offering torque controller. Features of tcw-09-pc torque controller fully solid state design - no moving parts - no wear and tear of parts - no noise - consequently long life. uses one main circuit board for easy maintenance. accurately calibrated digital torque settings with a resolution of 1 watt makes torque settings accurate and can be easily reproduced for identical results. soft start has been provided for all drives. This feature reduces starting currents in the drive. As a result, life of carbon brushes and drive increases. connected drive is automatically recognised and indicated by means of led on the torque controller. trip time adjustable from ( 0 sec to 10 secs.). adjustable reverse time from ( 0 sec to 90 secs.). drive toque adjustable in reverse rotation with surface to set torque. hand (trigger) mode or foot switch mode, both are available. expansions can be carried out either in single cycle mode or auto repeat mode. automatic indication on the display for controllers tripping due to voltage or current fault. electronic over current protections incorporated for all four drives. over voltage protection at 275 volts and under voltage protection at 180 volts.
Best Deals from Torque Controller

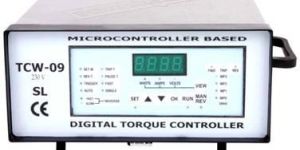

Torque Controller
Get Price Quote
Voltage Single Phase 50/60 Hz : 110 V
Weight (kg) : 7.5
Fully Solid State Design - no moving parts - no wear and tear of parts - no noise - consequently long life. Uses one main circuit board for easy maintenance. Uses the latest micro-controller chip for control functions. Accurately calibrated digital torque settings with a resolution of 1 watt makes torque settings accurate and can be easily reproduced for identical results. Soft start has been provided for all drives. This feature reduces starting currents in the drive. As a result, life of carbon brushes and drive increases. Connected drive is automatically recognised and indicated by means of LED on the torque controller. Torque setting arranged in four different ranges to suit four different drives. Appropriate wattage range is automatically selected for the connected drive, hence drives can not be abused or overused. Actual drive wattage (torque) is displayed. Set wattage (torque), drive current and line voltage can be seen by press of a button.
