Magnetic Float Level Switch
Get Price Quote
Usage : industrial
Insertion Length : 150mm to 3000 mm
MOC : SS304, PP or PVDF
Max Temp : 80° C
Max Pressure : 10 Kg/cm2
Liquid Density : ≥0.6 g/cm3
Contacts : 40VA (NO), 60VA(C/O)
Enclosure : IP66 or Ex-P Gr IIB or IIC
Options : Intrinsically safe, Small /Large/Multiple Floats, In-Situ Test Device
Magnetic Float Level Switches are applicable for various type of liquid in water treatment, Filtration system, pump house & cooling tower application.Details Our magnetic float level contains hermetically sealed glass encapsulated reed switch. The product is user-friendly and gives various options to customers. User can opt for various models. Also Available for hazardous application. GeneralApart from the above basic features, our Magnetic Float Level Switch for liquids can handle maximum temperature up to 80 degrees Celsius and pressure up to 10 KG per square centimeter. Different options of the product include intrinsically safe small, large, and multiple floats and in-suite test devices. All the products and its parts are under warranty. So, users can choose the same considering their regular or casual needs.Most of the products, including Magnetic Float Level Switch, provided by Jayceetech are multi-purpose. We are well-known Magnetic Float Level Switches manufacturer in India. So, whatever is our customers’ demand, we are duty-bound to fulfil the same in the given time frame. We have efficient staff members as well as technical people who work day and night to facilitate the world in the best possible way. So, users can rely on our products with no element of doubt and tension. We also provide a complete guide along with every product of Jayceetech so that customer can use it with full confidence.In order to make your work simpler, choose the products of jayceetech.com at your doorsteps. Yes, we are also available online. So, buying from anywhere is possible with jayceetech products has become easier. List your requirements and choose the best product in the market by option the best Magnetic Float Level Switches supplier in India.We have a special catalogue section for the different design livers. Customers are requested to check our different design in the catalogue along with the prices before buying magnetic float level switches. Keep jayceetech products around you and use them perfectly to get the best results in your field. We are just here to support and cater your needs with our finest work!Applications High and Low Alarm in Process Tanks. Water Treatment and Filtration Systems. Pump and Cooling Circuit Protection. Salient Features Hermetically sealed glass encapsulated reed switch. Option of Remote or Integral control unit. Option of Remote Counter and Totalizer for volume calculation. Option of Intrinsically Safe Switch.
Magnetic Float Level Switch
2,000 - 10,500 Per Piece
10 Piece(s) (MOQ)
Material : SS
Type : Magnetic Float Switch
Temperature : 0Dig C To + 60Dig C
We are offering magnetic float level switch. The unit consists of a vertical guide pipe (stem) within which are located the sensor switches, magnetic float sliding over the stem according to the level in the tank, switch terminal housing (head) and necessary mounting connection.
Best Deals from Magnetic Float Switch

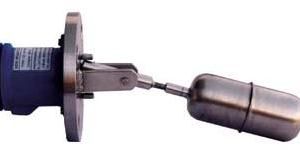

Magnetic Float Pivoted Level Liquid Switch
Get Price Quote
We are the largest manufacturer, exporter and supplier of Magnetic Float Pivoted Level Liquid Switch in Maharashtra, India. This is an economical and maintenance free device used for high, low or intermediate point level switching. It is side mounted and ideal for tanks with inaccessible tops or bottoms. This liquid switch finds application in hydraulic and lubrication systems, waste water, filtration plants, boiler drum level, cooling tower and power plants. We provide the orders in completely safe packages at reasonable price. Details : Economical & maintenance free device used for high, low or intermediate point level switching. It is side mounted and ideal for tanks with inaccessible tops or bottoms. Density - ≥0.6 g/cm3 Wtd Parts - SS304/316, PP or PVDF Max Temp - 350oC Max Pressure - 20 Kg/cm2 Contacts - 5A, 250VAC x SPDT/DPDT Enclosure - Cast Al x IP66, Ex-P IIB/C Applications : Hydraulic & Lubrication Systems, Waste Water, Filtration Plants, Boiler Drum Level, Cooling Tower & Power plants
Magnetic Float Switch
Get Price Quote
1 Piece (MOQ)
Frequency : 50HZ
Hole Diameter : 0-20mm
Contact Rating : 10 W
Switching cycles : 0.5 x10 6
Switching Current : 0.5 Amp DC
Insertion Length : 150mm to 3000 mm
We bring forth efficient Magnetic Float Switch for our valued clients. The Magnetic Level Switch consists of non-abrasive float carrying permanent magnet and non-ferrous stem carrying one. Two or multiple reed switches. The float glides along the stem and when the float nears the vicinity of reed switch the magnetic field of permanent magnet forces the contact to close, thereby completing the external electrical circuit. We offer Magnetic Level Switch at reasonable price. Applications : Due to simple design, reliability and with only one moving part i.e., Magnetic float, Magnetic Level Switch finds application in various liquids where accurate and repeated liquid level control is called for. Magnetic Level Switch is suitable for storage tanks, utility tanks, process tanks, hydraulic power pack, centralized lubrication system, fuel tanks, cooling tower, textile, pharmaceuticals and special purpose machines.
Magnetic Float Level Switches
Get Price Quote
Brand Name : Protocontrol Instruments
We are offering vertically guided magnetic float level switches are used for point level detection of liquid in all types of vessels. it is suitable for corrosive chemicals, food industry, lubricating systems for machine tools, printing & packing & spm’s. it operation is without external power. The float switch is designed to provide long, trouble free service. It is provided high repeatability, minimizing the effects of shock, vibration & pressure. Two types of level switches are available. Top mounted vertically guided and side mounted. Float of top mounted switch moves directly with the liquid surface, actuates a hermetically sealed switch within the stem. By using these contacts control action can be generated. contact rating is 30 va at 24 v dc. Special switches are available with higher contact rating. various float material are available depending on the application and media whose level is to be sensed. Standard is ss. Other floats like pp, pu are available.
Magnetic Float Type Level Switch
Get Price Quote
Presenting Magnetic Float Type Level Switch which is one of the most important parts in any plant. The Magnetic Float Type Level Switch manufactured by us is best in terms of quality. Our products are manufactured using best grade material available and advanced technology. We are one of the best known and trusted manufacturers, exporters and suppliers of Magnetic Float Type Level Switches all over the country.
FLOAT OPERATED MAGNETIC LEVEL SWITCH
Get Price Quote
Features :• Reed Switch & micro switch operated, Horizontal & Vertical mounted• Custom built with multi float & multi set points.• Protection Class IP-23, IP-55, IP-65. Intrinsically Safe & Explosion proof housings.• Various sizes of floats & process connections available
Magnetic Float Type Level Switch
Get Price Quote
Magnetic Float Type Level Switch, Magnetic Level Switches, Float Switch
Magnetic Float Switch
Get Price Quote
Magnetic Float Switch, liquid level float switch, Float Switch
Side Mounted Magnetic Float Switch
Get Price Quote
Side Mounted Magnetic Float Switch, Electromagnetic Pipe Flow Meters
Magnetic Float Switch
Get Price Quote
Magnetic Float Switch, flow measurement switche, Gauges
Magnetic Float Switch
Get Price Quote
Magnetic Float Switch, pneumatic controller, Vibrating Fork Level Switch
