Del Pd Pumps & Gears Private Limited Wadhwan, Surendranagar, Gujarat

We are prominent Viscous Liquid Transfer Pump manufacturers in Gujarat that offer a range of viscous liquid transfer pumps, with the solutions most suited pump high viscosity liquids. Our proved Viscous Liquid Transfer Pump is widely used in pumping of high viscosity fluids, like viscous chemicals, adhesives, pastes and slurries, require specific types of pumps able to handle them. As the liquid passing through the pump internals are thick, certain technologies such as centrifugal pumps struggle due to frictional losses inside the pump making the flow rate rapidly decline. As a trustworthy Viscous Liquid Transfer Pump Supplier India, our company offers efficient and reliable machine to our valued customers.

Feature : Cost Effective, Durable, Heavy Power, Low Fuel Consumption

Driven Type : Electricity

Warranty : 1 Year

Automation Grade : Semi Automatic

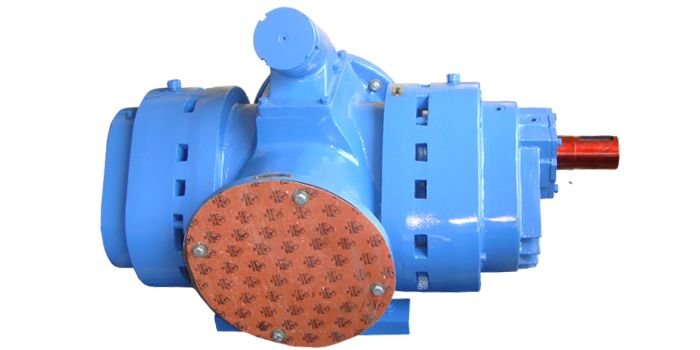

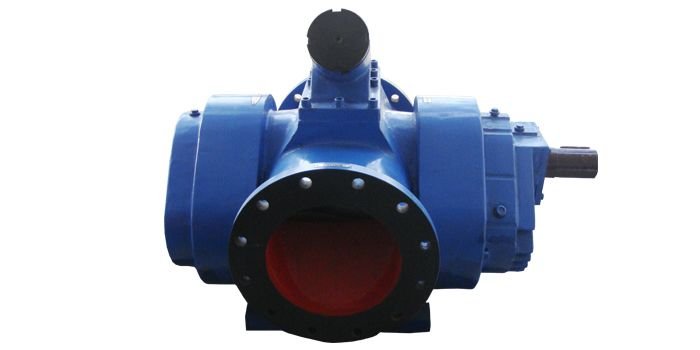

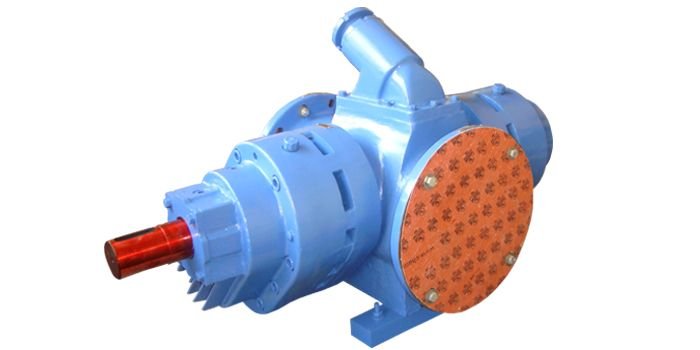

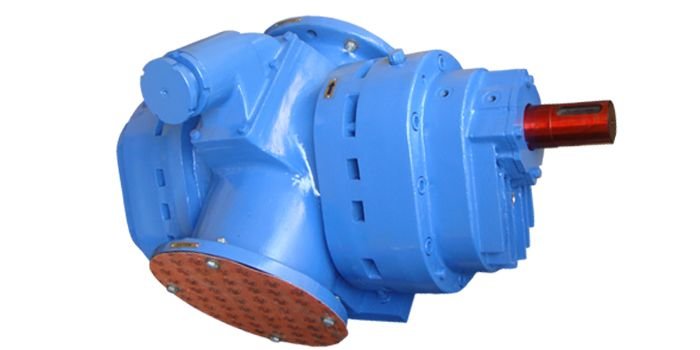

NDX series pumps are designed to handle bulk volume of viscous & semi viscous liquids quite efficiently at medium pressure up to 11 bar. The pump can be coupled directly with drive as impeller speed reduction ismade possible within pump, making it very compact & cost economical & there by reducing the over all cost & space, the timing gear reduces the noise level & enhances the working life of the pump.This pump out performance twin Screw pump in all aspect in this range & they are suitable for wagon decanting, cargo-un-loading of various viscous liquids such as edible oils, Fuel oils, viscous chemicals etc. Step-down Versions are also available; type MDX comes without reduction gears where as type JDX comes without timing & reduction gears, type JDB is with bush bearing suitable for molasses applications.

We are prime Manufacturers, Exporters and Suppliers of Stainless Steel Rotary Gear Pump in India. The Stainless Steel Rotary Gear Pump we provide is made using high-grade raw material and is high on demand in both, national and international markets. Our offered Stainless Steel Rotary Gear Pump is easy to clean, requires less maintenance, compact design, rugged construction and enhanced working life. The application of this Stainless Steel Pumps is in Oil industry, Paint industry, Steel plants, Refining industry and Pharmaceutical industry. As a prominent manufacturer of Stainless steel rotary gear pumps in Gujarat, we stick to our time line of delivery of our machinery and special pumps for OEMs can also be developed as per requirement of our clientele. Reach us today We are an eminent Stainless Steel Pumps Supplier in India.

Both of our online and offline payment processing methods are secure for transaction offering you a reliable assistance. We thus accept all kinds of cash payments as well as bank transfers. We are reckoned for the quality that we offer in our products. And, for maintaining it, we make use of the world-class raw material for manufacturing the products.   Overview Compact Efficient Durable

Uses NDX series pumps are designed to handle bulk volume of viscous & semi viscous liquids quite efficiently at medium pressure up to 11 bar. The pump can be coupled directly with drive as impeller speed reduction ismade possible within pump, making it very compact & cost economical & there by reducing the over all cost & space, the timing gear reduces the noise level & enhances the working life of the pump.This pump out performance twin Screw pump in all aspect in this range & they are suitable for wagon decanting, cargo-un-loading of various viscous liquids such as edible oils, Fuel oils, viscous chemicals etc. Step-down Versions are also available; type MDX comes without reduction gears where as type JDX comes without timing & reduction gears, type JDB is with bush bearing suitable for molasses applications.

We are reliable Rotary Pumps Manufacturer In India and offering wide range of rotary pumps to industrial needs. A Rotary Pump is a type of pump that is capable of pumping more liquid than reciprocating pumps with the same weight. These pumps are used for pumping oils and various other heavy viscous liquids. They are preferred for large torque values and low rational speeds. We are trustworthy supplier and exporter of Rotary Pumps in Gujarat, to majority of industrial needs and enjoy reliance of our valued clientele. Rotary pumps have a wide variety of applications, making up about 10 percent of all the pumps used in industry. Our Rotary Pumps are best suited for pumping clean and non-corrosive, non-abrasive liquids, which makes them useful in oil transfer applications in the food industry.

We offering efficient ROTODEL rotary pump type "HGBX" to our esteemed clientele. We are prime Rotary Oil Transfer Pumps Manufacturers In India that is a self-priming, bi-directional, positive displacement gear pump in simple two-piece cast iron construction with single helical modified profile carbon steel gears. Our offered rotary oil transfer pumps can be run in either direction with change in Inlet-Outlet port position. Our Rotary Oil Transfer Pumps are widely used in Industry and well appreciated for its efficiency and performance by our customers. As a renowned supplier of Rotary Oil Transfer Pumps in Gujarat, we ensure supply of best machines to our valued customers.

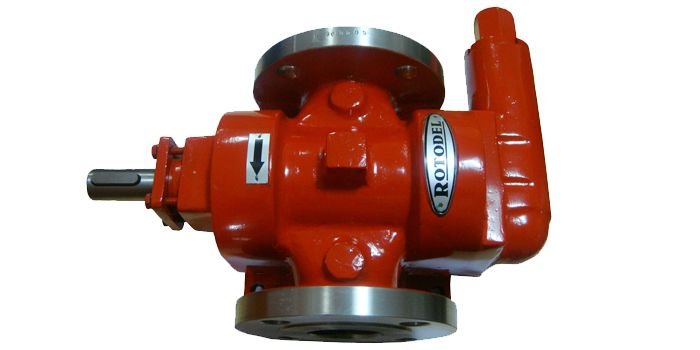

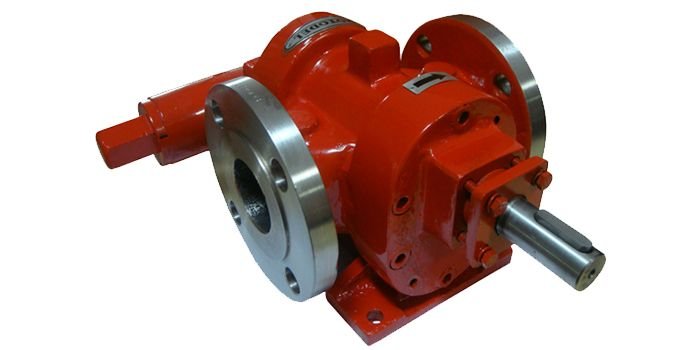

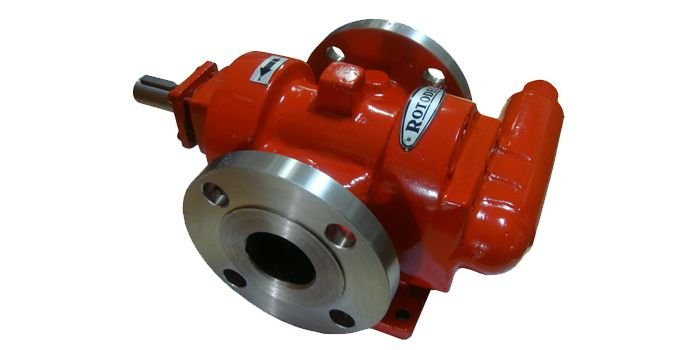

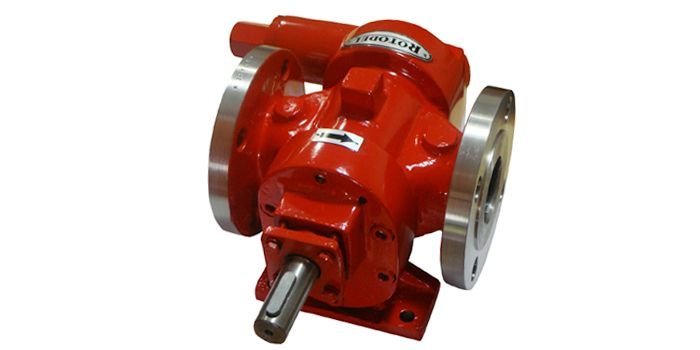

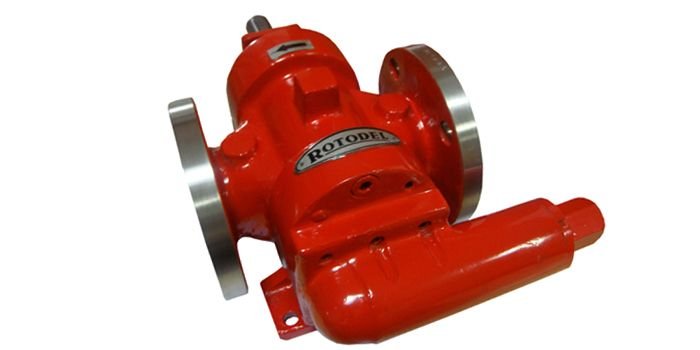

General ROTODEL Rotary gear pump type RDMS is all SS, simple four piece construction pump specially designed to handle thinner or thicker & even corrosive liquid having lesser or no lubricating value. The SS-316 herring bone Rotors runs on Teflon coated dry running DU bush bearing supported on bronze wearing plate, placed inside the pump casing, alternatively graphite/bronze wearing plate cum bushes are also provided for heavier viscous liquid application. The stuffing box is fitted with Z-pack sealant with provision to fit mechanical shaft Seal. The pump is provided with add-on type pressure relief valve. MOC   Pump Body CF8 Front Cover CF8 Back Cover CF8 Gland Cover CF8 Rotar Gear SS-316 Stator Gear SS-316 Rotar Shaft EN-57/SS-430 Stator Shaft EN-57/SS-430 W.Plate - Bronze/Graphite Bushes Teflon Coated DU Shaft Seal - Z Pack/Mech. Seal Key SS-316   POWER SPEED   The Hydraulic HP should be calculated by multiplying the unit HP with the duty point pressure, the viscous horse power of appropriate viscosity should be added to this from above chart. Margin for R.V. operation & Safety margin should be provided brfore fixing the drive HP. All model of RDMS series are basically design to run at 1440 RPM up to viscosity of 200 CST however in higher sizes above 2" the pump speed is required to be reduced with increase in viscosity for this refer viscosity speed curve or consult the works. Whir reducing the speed, the pump shaft should not be loaded with heavy gears or pulley use bearing block to take up such load.   Uses RDMS Pumps are used for handling thinner liquid at moderate pressurizing viz. foam pressurizing application for fire fighting, high pressure coolant transfer application for machine tools, light fuel pressurizing application or boiler & burners, heavy viscous liquid transfer application such as Molasses, Magma, Soap stock, Tar, Bitumen, Paints, Varnish, Crude oil etc.

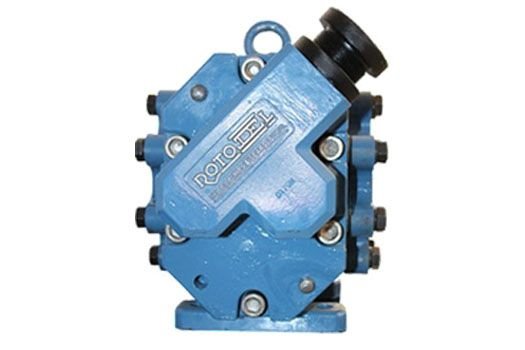

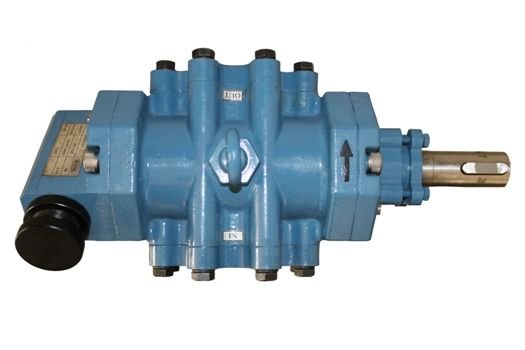

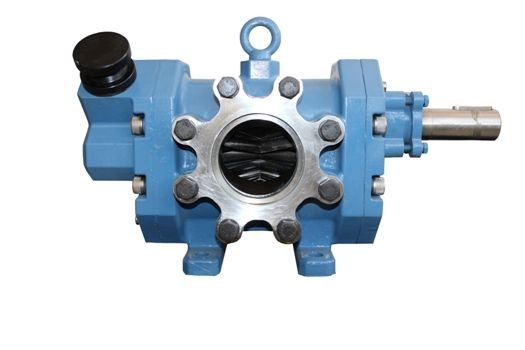

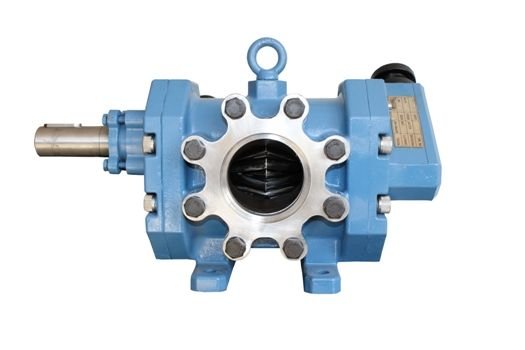

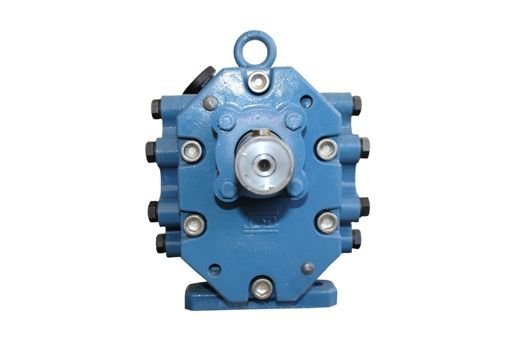

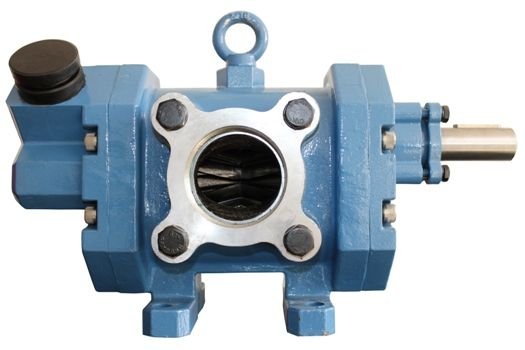

ROTODEL Rotary gear pump type RDMNS is all SS, simple four piece construction pump specially designed to handle thinner or thicker & even corrosive liquid having lesser or no lubricating value. The SS-316 herring bone Rotors runs on Teflon coated dry running DU bush bearing supported on bronze wearing plate, placed inside the pump casing, alternatively graphite/bronze wearing plate cum bushes are also provided for heavier viscous liquid application. The stuffing box is fitted with Z-pack sealant with provision to fit mechanical shaft Seal. The pump is provided with add-on type pressure relief valve. MOC     Pump Body CF8 Front Cover CF8 Back Cover CF8 Gland Cover CF8 Rotar Gear SS-316 Stator Gear SS-316 Rotar Shaft EN-57/SS-430 Stator Shaft EN-57/SS-430 W.Plate - Bronze/Graphite Bushes Teflon Coated DU Shaft Seal - Z Pack/Mech. Seal Key SS-316   power speed The Hydraulic HP should be calculated by multiplying the unit HP with the duty point pressure, the viscous horse power of appropriate viscosity should be added to this from above chart. Margin for R.V. operation & Safety margin should be provided brfore fixing the drive HP. All model of RDMNS series are basically design to run at 1440 RPM up to viscosity of 200 CST however in higher sizes above 2" the pump speed is required to be reduced with increase in viscosity for this refer viscosity speed curve or consult the works. Whir reducing the speed, the pump shaft should not be loaded with heavy gears or pulley use bearing block to take up such load.   Uses RDMNS Pumps are used for handling thinner liquid at moderate pressurizing viz. foam pressurizing application for fire fighting, high pressure coolant transfer application for machine tools, light fuel pressurizing application or boiler & burners, heavy viscous liquid transfer application such as Molasses, Magma, Soap stock, Tar, Bitumen, Paints, Varnish, Crude oil etc.

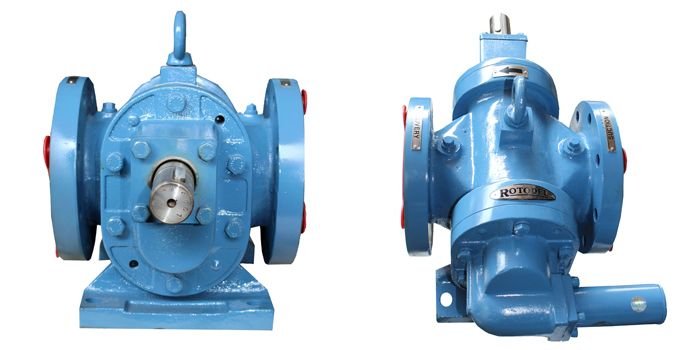

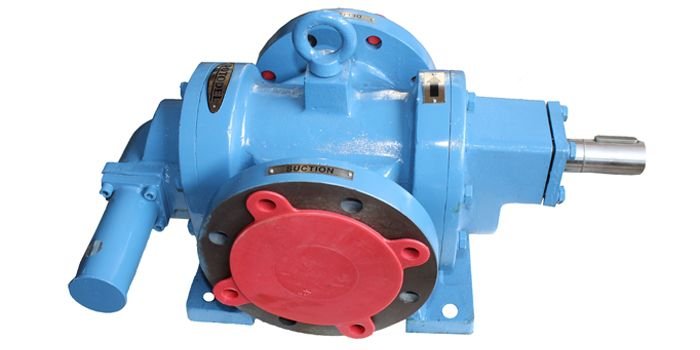

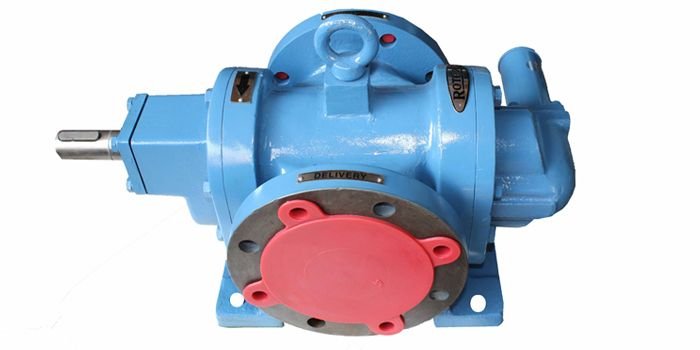

Handling high volume of viscous liquid at medium pressure is a challenge & calls for expertise. We at DEL have aquired this over last 25 years through in house research & development based on customer feed back & field trials. The proven range of rotary twin gear pump type 'RDRN' have been modified to achieve high pressure by reducing the bearing span, balancing the hydraulic force & blocking the slippage path but without compromising on the basic features prominent with all ROTODEL rotary pumps viz the compactness, efficiency, reliability & low noise level. A pair of impeller with herringbone gear fitted on hardened & ground shaft with shaft sleeves in floating design supported on either side on needle/bush bearings located on end covers with ltb. wearing plate packed in between and placed inside close tolerance accurately machined casing with built in pressure relief valve makes the pump. Size 1/2" to 2 1/2" are provided with BSP thread inlet - oulet flange connections & they are available with foot or flange mounting. Size 3" to 6" are foot mounted with inlet-outlet port drilled to ASA-300 class. Type RDBX is a bush bearing version & is offered upto 2 1/2" size. This pump can also be offered with different MOC viz. CI,CS, Bronze, SS etc. Pump upto 35 bar are also offered in this series by further reducing the bearing span. The flange type pump coupled with flange type electric motor is offered in horizontal as well as vertical construction.   Pump Operation & Performance Characteristics Gear pump is the most versatile rotary positive displacement pump & it scores over other types of Pd pumps viz. Screw, Vane, Lobe, Tracoidal, Radial piston etc. & therefore it is used for the widest range of application i.e. loading-unloading, transfer, fuel pressurizing, hydraulic, lubrication in IC engines, Polymers metering applications etc. Gear pump can develop high pressure uo tp 210 bar in same configuration simply by tightening the working clearances & improving the workmanship, whereas in screw pump the thread length is needed to increase making the pump bulky & difficult to manufacture. In gear pump each tooth gap contributes to the capacity while in screw pump only one pitch length contributes to the capacity thus gear pumps are always cpmpact & efficient. The capacity of the pump varies directly with speed but remain constant against pressure, however some liquid always by-passes to suction due to running clearance between the casing & impeller causing slip which depends upon the differential pressure, viscosity of the liquid & the workmanship. Gear pumps are capable of handling liquids of any viscosity, th slip reduces with increse in viscocity but the frictional power increses. Though the pump has a self priming capability some net positive suction head(NPSH) is always required to avoid cavitation, this again depends on the viscosity of the liquid to be pumped & the pumping speed. Internal power losses In rotary gear pumps are of two types.The mechanical loss is the power required to overcome friction drag of all the moving part within the pump while viscous loss is power loss due to fluid viscous drag & shearing action of the fluid, this can be calculated from the graph shown here. Horse power calculation The bhp required to drive a rotary pump is sum of the theoretical HP & internal losses. The former is the actual work done in moving the fluid from inlet pressure condition to outlet pressure condition & is product of constant C=0.037, Capacity in M3/hr. & Pressure in Kg/CM2 or Constant c-2.3, Capacity in GPM & Pressure in PSI. Gear Pump Selection & uses RDBX/NX series pump are medium pressure pumps designed for viscous pressure application up to 21 bar. The bush bearing version type RDBX is used for clean or dirty viscous & semi viscous liquid where the shaft surface speed is less. Pump upto 21/2" size can be run at 1440 RPM & for higher size the speed should be reduced to 960 RPM or lower. The self-lubricated needle roller bearing type can be used for clear viscous liquid & can be run at 1440 RPM for all the sizes. This pump are ideally suited for fuel pressuring, hydraulic, medium pressure lubrication & transfer applications. Inspection & testing All pumps are assembled after due inspection of each & every parts & than they are tested for duty parameters in accordance with API-676 & JIS-B 8312-1976. Third party inspection are also offered, we are approved by following consultants & inspection agencies.

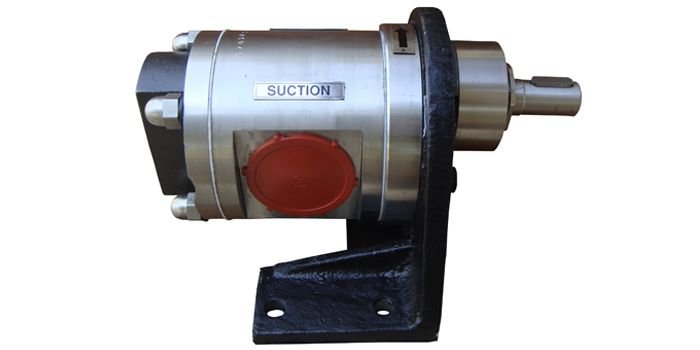

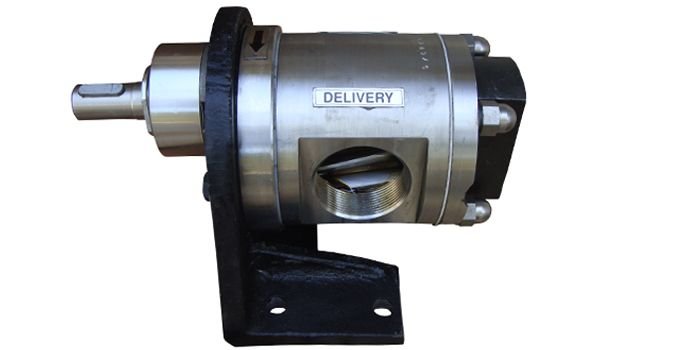

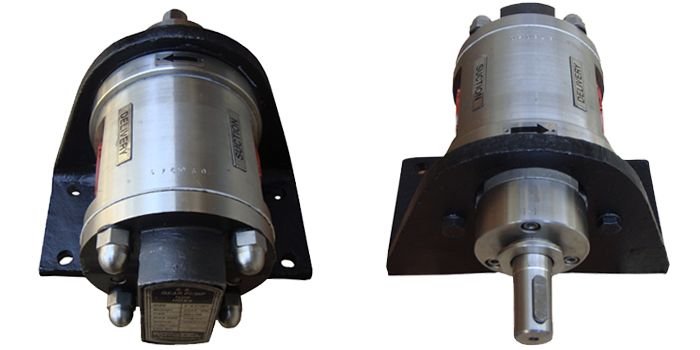

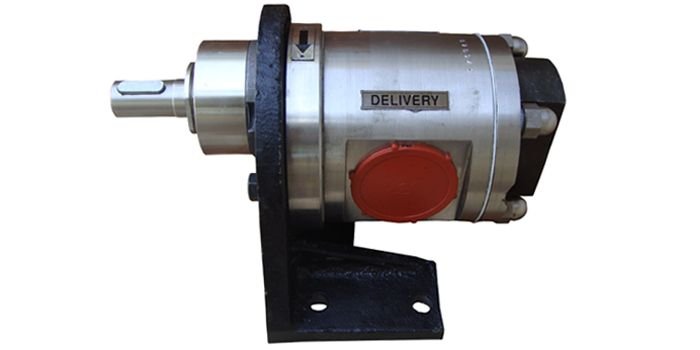

ROTODEL gear pump type "HGSX" is all stainless steel SS-316 self priming bi-directional positive displacement rotary pump, fitted with teflon coated dry running 'DU' bush bearing. Three piece design makes the pump easy cleanable, easy maintainable simply by removing four dom nuts on back cover. Mechanical seal is optional for teflon gland packing. The mounting bracket converts the pump to foot mounting & facilities to align the pump with electric motor of appropriate ratings on base plate at same frame height.   Pump Body Front Cover Back Cover Seal Cover - SS 316 - CF8M R.H. & L.H. Gear Rotor/Stator Shaft Dom nuts, Stud & Key - SS AISI 316 Bearings - Teflon Coated 'DU' Bracket - CI/CS Sealing & Packing - Teflon SPECIAL NOTES Power requirement at duty point can be worked out by multiplying the duty point pressure with unit hp.& adding no Load viscous power of appropriate viscosity to this. Safety margin may be provided before fixing the rating of the pri-mover. For higher viscosity further margin may be kept or the manufacturer may be consulted. All sizes of 'HGSX' pumps are designed to run at 1440 RPM up to viscosity of 500 CST, however small size pump up to 1" can be run at 1440 RPM safety, even at higher viscosity up to 1000 CST but with additional horse power, for higher sizes reduce the speed to 960 RPM. For viscosity above 1000 CST. speed is require further to avoid cavitation & over loading consult our expert.   Uses This compact & efficient SS pumps finds different application for handling food products like Ghee, Butter fruit pulp, vegetable souse, kanji etc. They are also used in Pharmaceutical application for handling sugar solution, Glycerine, Glycol etc. Corrosive viscous chemicals application can also be met with this pump most effectively.

Applications 'ROTODEL' Rotary gear pumps are useful for handling viscouse liquids i.e.all kind of oils, vicouse chemicals,and food application. Following liquid can be handle with them. All kind of mineral oils. All kind of vegetable oils. Coal tar, Bitumen, asphalts Paints & varnish Sugar molasses & syrups Printing inks & Dyes. All kind of fish & animal oils. Glycerine & glycole. Fuel oil, Diesel oil & funace oil Soap solution & lard. Glue. Viscouse chemicals. Rotary gear pumps finds wide application in Power Plant, Steel Mills, Refineries, Oil Storage Instolation etc. Design improvement is a continous process at DEL there for information in this catalouge is subject to change without notice.

ROTODEL rotary pump type "HGBX" is a self priming bi-directional positive displacement gear pump in simple two piece cast iron construction with single helical modified profile carbon steel gears shrunk fitted on alloy steel hardened & ground shaft as impeller firmly supported on 4 nos of seld-lubricated sintered bronze bush bearing. The pump can be run in either direction with change in Inlet-Outlet port position.The relief valve operations can be reversed by simply changning the R.V. parts on opposite side. The motorised pump-set in mono-block design ensures perfect alignment, saves space & reduces down time. MOC     1) casing & covers - ci gr20, is-210 2) Drive shafts-EN-9 hardened & ground 3) Impeller gears-EN-8 toughened 4) Bush-Bearing-sintered bronze 5) Seals-Oilseals nitrile rubber 6) R.V. Spring- AISI S.S.302 7) R.V.Ball Valve-EN-31 hardened & ground 8) R.V. Screw & plug-Brass 9) Key for Coupling-Mild steel.   SPECIAL NOTES For calculating power requirement, multiply unit hp per Kg Pressure with duty point pressure & add no load viscous hp of appropriate viscosity, adquate margin may be provided to this. Higher/Lower rating motor can be employed based on duty point power requirement than what is specified as above. Bracket in different height available to match the height of electric motor. "HGBX" series pumps are designed to run at 1440 RPM up to viscosity of 500 CST, for higher viscosity it is desirable to reduce speed for sizes above 11/4". Performance at low speed is always advantageous as it improves efficiency reduces noise level & NPSHR & enhances operational life, Capacity will reduce in proportion to the speed.   Uses Due to simple & compact design & with mono-block version these pumps are ideally suitale for OE application of engine lubrication, pumping & heating units, oil filtration, cleaning & cooling systems. The pump can also be used for general purpose application to handle viscous liquid such as fuel oil, lube oil, LSHS, mineral oil, transformer oil, LDO paints, varnish, glue, glycerine, soap solution, sugar solution & molasses.

Ndx series pumps are designed to handle bulk volume of viscous & semi viscous liquids quite efficiently at medium pressure up to 11 bar. The pump can be coupled directly with drive as impeller speed reduction ismade possible within pump, making it very compact & cost economical & there by reducing the over all cost & space, the timing gear reduces the noise level & enhances the working life of the pump.this pump out performance twin screw pump in all aspect in this range & they are suitable for wagon decanting, cargo-un-loading of various viscous liquids such as edible oils, fuel oils, viscous chemicals etc. Step-down versions are also available; type mdx comes without reduction gears where as type jdx comes without timing & reduction gears, type jdb is with bush bearing suitable for molasses applications.

We are flexible in offering the product basket in the committed time span as we have advanced logistics facilities available. With the aid of diligent professionals and smart packaging system, we can easily render bulk and customized packaging requirements of the patrons. Also, we ensure that the packed lot has shock sustainability to circumvent loss during transit.   Overview : From 1/2. to 6" NB Size (Flanged to ASA 150 Class)Capacity, From 0.5 TO 200 WTI, Pres-up to 11 Kaden, Viscosity up to 1,00,000 - est, temperature - up to 110110ºC Compact Economical Low Noise   Advantages Herrigbone rotos design eliminates side thruts. Modified tooth profile enhances the tooth life. Floating gear-design ensures uniform load distribution. Low-leakage path by design improve volumetric efficiency. Extra thick shaft reduces bending effectively. Sleeve on shaft make maintenance economical & easy.   Pump Characteristics : Gear pump is a rotary positive displacement pump with positive pressure characteristics. The capacity of the pump varies directly with speed but remain constant against pressure, however due to running clearance between the casing & impeller some liquid always by-passes to suction causing sleep, which depends upon the differential pressure, viscosity of the liquid & ofcourse the workmanship. The pumps are capable of handling any vcosity, the sleep reduces with viscosity but the viscous power increases. The punp has a self-priming capability however some net positive suction head (NPSH) is always required to avoid cavitations depending upon the viscosity of the liquid to be pumped & the pump speed.   Internal power losses : The internal power losses in rotary pumps are of two types. The mechanical losses is the power necessary to overcome frictional drag of all the moving part within the pump While viscous losses is power requited to overcome fluid viscous drag & shearing action of the fluid, this can be computed from the graph on the opposite side.   H.P. calculation : The break horse power required to drive a rotary pump is sum of the theoretical HP & internal losses. The theoratical power is the actual work done in moving the fluid from inlet port to out let pressure condition & is product of Constant C=0.037, Capacity in cub. Mt./hr. & Pressure Kg/Sq. Cm or Constant=2.39, Capacity in us GPM & Pressure in PSI.   Pump Selection & uses : The bush bearing type of pump can be used for clean viscous liquid having sufficient lubricating value such as clean tube oil, Vegitable oil, Fish & Animal oil, Gear oil, Glycerine Hydraulic oil, Honey,ASMI & SAE lubricating oil for intermittant duty. However for continues duty pump with needle roller bearing in 'RDRN' series should be selected. For liquid having low viscosity,poor lubricating values or Containing dirts or impurities such as Crude oil, Dirty lube oil, HSD,Kerosene,LDO,Paints, Sugar solution, Turpentine, Varnish, WoodPulp. Pump with independently lubricated bearing should be selected. For liquid which tends to solidify at room temperature such as Ashphalt, Bituman, Fumace oil, Tar, Cellulose, Starch, LSHS, HPS, Molasses, Naptha, Phenol resin, RFO, Silicate, Soap solution,Viscous,Wax etc. Jacketing constructions hould be selected to facilitate the heating or the pump by steam or thermic fluid.   Inspection & testing : All Pumps are individialy tested for its performance as per JIS B-8312-1976. Third party inspection is also offered to following agencies with whom we are already registesed as an approved supplier of these pumps.   Pump Motor Coding Sign # Indicates Pump Size - 5-short, 6-medium, 7-long Sign @ Indicates Pump Type - 0-RDRB, 1-RDRBJ, 2-RDRN, 3-RDRNJ, 4-RDRX, 5-RDRXJ Sign * Indicates Motor Type - W-NON-Flame Proof, X-Flame proof motor

Proven Performance & Operational economy are prime consideration while evaluting your pumping requirement. When it comes to handling viscous or semiviscous liquirds, 'ROTODEL' rotary gear pump is an obvious choice for the very reasons. 'ROTODEL' rotary gear, twin gear & screw-gear pumps are welknown, widely accepted pd pumps in all th industries for it's efficient performance, operational reliability, compact design & noiseless operation. These pumps have outclassed convenational gear pump & has also broken myth about screw pump offering better overall performance at considerable reduced cost.Many imported gear & screw pumps are replaced with 'ROTODEL' pumps in power stations, steel plants, refineries, oil installation on navy vessels & cargo ships. Popular range of 'RDNXJ' series `ROTODEL' rotary screw-gear pumps are re-designed & re-engineered to offer further simplicity with added reliability meeting international standard like API, JIS, DIN & above all, the growing expectations of enlightened customers. New 'RDRN' series twin gear pump now offers enlarged capacity range with option of self or independently lubricated jacketed or non-jacketed construction with all sizes designed to run at synchronous speed of 4-pole primemover to further reduce the overall cost of the pump set.. It will be a wise decision to go for `ROTODEL' rotary twin gear pump even If it amounts to scrapping exisiting Pump at your present installation.   Advantages Herrigbone rotos design eliminates side thruts. Modified tooth profile enhances the tooth life. Floating gear-design ensures uniform load distribution. Low-leakage path by design improve volumetric efficiency. Extra thick shaft reduces bending effectively. Sleeve on shaft make maintenance economical & easy.   Pump Characteristics Gear pump is a rotary positive displacement pump with positive pressure characteristics. The capacity of the pump varies directly with speed but remain constant against pressure, however due to running clearance between the casing & impeller some liquid always by-passes to suction causing sleep, which depends upon the differential pressure, viscosity of the liquid & ofcourse the workmanship. The pumps are capable of handling any vcosity, the sleep reduces with viscosity but the viscous power increases. The punp has a self-priming capability however some net positive suction head (NPSH) is always required to avoid cavitations depending upon the viscosity of the liquid to be pumped & the pump speed. Internal power losses The internal power losses in rotary pumps are of two types. The mechanical losses is the power necessary to overcome frictional drag of all the moving part within the pump While viscous losses is power requited to overcome fluid viscous drag & shearing action of the fluid, this can be computed from the graph on the opposite side. H.P. calculation The break horse power required to drive a rotary pump is sum of the theoretical HP & internal losses. The theoratical power is the actual work done in moving the fluid from inlet port to out let pressure condition & is product of Constant C=0.037, Capacity in cub. Mt./hr. & Pressure Kg/Sq. Cm or Constant=2.39, Capacity in us GPM & Pressure in PSI. Pump Selection & uses The bush bearing type of pump can be used for clean viscous liquid having sufficient lubricating value such as clean tube oil, Vegitable oil, Fish & Animal oil, Gear oil, Glycerine Hydraulic oil, Honey,ASMI & SAE lubricating oil for intermittant duty. However for continues duty pump with needle roller bearing in 'RDRN' series should be selected. For liquid having low viscosity,poor lubricating values or Containing dirts or impurities such as Crude oil, Dirty lube oil, HSD,Kerosene,LDO,Paints, Sugar solution, Turpentine, Varnish, WoodPulp. Pump with independently lubricated bearing should be selected. For liquid which tends to solidify at room temperature such as Ashphalt, Bituman, Fumace oil, Tar, Cellulose, Starch, LSHS, HPS, Molasses, Naptha, Phenol resin, RFO, Silicate, Soap solution,Viscous,Wax etc. Jacketing constructions hould be selected to facilitate the heating or the pump by steam or thermic fluid. Inspection & testing All Pumps are individialy tested for its performance as per JIS B-8312-1976. Third party inspection is also offered to following agencies with whom we are already registesed as an approved supplier of these pumps.

We are reckoned for the quality that we offer in our products. And, for maintaining it, we make use of the world-class raw material for manufacturing the products. As we are instrumental in supplying excellent quality RDMS Type Rotary Gear Pump, we are named amid the celebrated names in the industry.   Overview : Self lubricated bish bearing design ROTARY GEAR PUMP type 'RDMS' for Foam-pressurizing fire fighting, Chemicals and Pharmaceutical applications & transfer of all kind of Viscous, Non viscous Thick or Thin liquids.   Features : Pump Body CF8 Front Cover CF8 Back Cover CF8 Gland Cover CF8 Rotar Gear SS-316 Stator Gear SS-316 Rotar Shaft EN-57/SS-430 Stator Shaft EN-57/SS-430 W.Plate - Bronze/Graphite Bushes Teflon Coated DU Shaft Seal - Z Pack/Mech. Seal Key SS-316   Uses :RDMS Pumps are used for handling thinner liquid at moderate pressurizing viz. foam pressurizing application for fire fighting, high pressure coolant transfer application for machine tools, light fuel pressurizing application or boiler & burners, heavy viscous liquid transfer application such as Molasses, Magma, Soap stock, Tar, Bitumen, Paints, Varnish, Crude oil etc.

With the assistance of our dedicated workforce, we are able to bring forth a comprehensive range of RDMNS Type Rotary Gear Pump. Raw materials are feedstock for the finished products and thus it becomes crucial to source these inputs only from certified vendors. So, as a reliable name, we do the same.   Overview : Compact Efficient Durable   Features : Pump Body CF8 Front Cover CF8 Back Cover CF8 Gland Cover CF8 Rotar Gear SS-316 Stator Gear SS-316 Rotar Shaft EN-57/SS-430 Stator Shaft EN-57/SS-430 W.Plate - Bronze/Graphite Bushes Teflon Coated DU Shaft Seal - Z Pack/Mech. Seal Key SS-316   Uses : RDMNS Pumps are used for handling thinner liquid at moderate pressurizing viz. foam pressurizing application for fire fighting, high pressure coolant transfer application for machine tools, light fuel pressurizing application or boiler & burners, heavy viscous liquid transfer application such as Molasses, Magma, Soap stock, Tar, Bitumen, Paints, Varnish, Crude oil etc.   Power Sped : The Hydraulic HP should be calculated by multiplying the unit HP with the duty point pressure, the viscous horse power of appropriate viscosity should be added to this from above chart. Margin for R.V. operation & Safety margin should be provided brfore fixing the drive HP. All model of RDMNS series are basically design to run at 1440 RPM up to viscosity of 200 CST however in higher sizes above 2" the pump speed is required to be reduced with increase in viscosity for this refer viscosity speed curve or consult the works. Whir reducing the speed, the pump shaft should not be loaded with heavy gears or pulley use bearing block to take up such load.

Our product range is secured properly with premium packaging materials that protect the products from mechanical damage and ensure the product delivery is safe and without damage. In order to deliver an exceptional lot of products, we make use of the finest grade material for producing them. As a result, the finished products comply with high quality standards.   Features : From 1/2" to 6" Size, Capacity up to 125 M3/hr, Pressure up to 21 bar Viscosity 1,00.000 CST, Temperature - up to 110ºC Efficient Reliable Proven Compact   Pump Motor Coding : Sign # Indicates Pump Size : 5-short, 6-medium, 7-long Sign @ Indicates Pump Type : 6-RDBX, 7-RDNX   Pump Operation & Performance Characteristics Gear pump is the most versatile rotary positive displacement pump & it scores over other types of Pd pumps viz. Screw, Vane, Lobe, Tracoidal, Radial piston etc. & therefore it is used for the widest range of application i.e. loading-unloading, transfer, fuel pressurizing, hydraulic, lubrication in IC engines, Polymers metering applications etc. Gear pump can develop high pressure uo tp 210 bar in same configuration simply by tightening the working clearances & improving the workmanship, whereas in screw pump the thread length is needed to increase making the pump bulky & difficult to manufacture. In gear pump each tooth gap contributes to the capacity while in screw pump only one pitch length contributes to the capacity thus gear pumps are always cpmpact & efficient. The capacity of the pump varies directly with speed but remain constant against pressure, however some liquid always by-passes to suction due to running clearance between the casing & impeller causing slip which depends upon the differential pressure, viscosity of the liquid & the workmanship. Gear pumps are capable of handling liquids of any viscosity, th slip reduces with increse in viscocity but the frictional power increses. Though the pump has a self priming capability some net positive suction head(NPSH) is always required to avoid cavitation, this again depends on the viscosity of the liquid to be pumped & the pumping speed.   Internal power losses : In rotary gear pumps are of two types.The mechanical loss is the power required to overcome friction drag of all the moving part within the pump while viscous loss is power loss due to fluid viscous drag & shearing action of the fluid, this can be calculated from the graph shown here. Horse power calculation : The bhp required to drive a rotary pump is sum of the theoretical HP & internal losses. The former is the actual work done in moving the fluid from inlet pressure condition to outlet pressure condition & is product of constant C=0.037, Capacity in M3/hr. & Pressure in Kg/CM2 or Constant c-2.3, Capacity in GPM & Pressure in PSI.   Gear Pump Selection & uses : RDBX/NX series pump are medium pressure pumps designed for viscous pressure application up to 21 bar. The bush bearing version type RDBX is used for clean or dirty viscous & semi viscous liquid where the shaft surface speed is less. Pump upto 21/2" size can be run at 1440 RPM & for higher size the speed should be reduced to 960 RPM or lower. The self-lubricated needle roller bearing type can be used for clear viscous liquid & can be run at 1440 RPM for all the sizes. This pump are ideally suited for fuel pressuring, hydraulic, medium pressure lubrication & transfer applications.   Inspection & testing : All pumps are assembled after due inspection of each & every parts & than they are tested for duty parameters in accordance with API-676 & JIS-B 8312-1976. Third party inspection are also offered, we are approved by following consultants & inspection agencies.

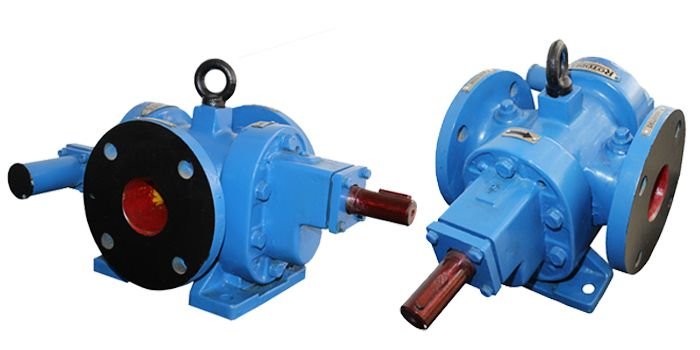

Sign # Indicates Pump Size, 5-short, 6-medium, 7-long, Sign @ Indicates Pump Type, 0-RDRB, 1-RDRBJ, 2-RDRN, 3-RDRNJ, 4-RDRX, 5-RDRXJ, Sign * Indicates Motor Type, W-NON-Flame Proof, X-Flame proof motor. Modified tooth profile enhances the tooth life. Floating gear-design ensures uniform load distribution. Low-leakage path by design improve volumetric efficiency.

Our offered ROTODEL Rotary gear pumps are widely used as lubrication pumps in machine tools, in fluid power transfer units, and as oil pumps in engines. We are renowned exporters, suppliers and manufactures of Gear Pumps in India that are well known for robust and very reliable, meaning they require little maintenance. With a proven design that has worked repeatedly for our customers, our Gear pumps often praised for its compact design and power. As a renowned Gear Pumps Manufacturers In India, we have the capability to handle a range of temperatures and fluid types, it has been found to work in a host of situations. The ability to customize this pump allows the customer to buy a machine that really suits their business needs.

Customers should stay rest assured with us for the payment procedures. They can pay us conveniently through wide-ranging payment mediums. The team of quality auditors ensures the product quality on several counts prior to final dispatch.

Temperature - 120ºC Max.Pressure - 7.0 Kgcm2, Application - LubricationTransferUnloading, Motor - 4POLE, RPM:1440, Make: KECHINDUSTANCROMPTONROTOMOTIVE. Description:BODY. Material:C.I. GR.-20.
