Biozen Laboratories Transport Nagar, Agra, Uttar Pradesh

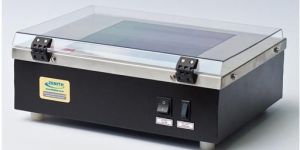

Zenith transilluminators feature special glass filters that block all visible light and only pass ultraviolet rays of the designated wavelength. This ensures clear and distinct observation of gels placed on the transilluminator, with nearly no visible light.The top of the transilluminator is made from brushed stainless steel, that's easy to clean and rust-proof. A comparison was done between the performance of our transilluminator and a European transilluminator. The same EtBr-stained gel was viewed and photographed in our transilluminator and then immediately again (so that the lighter bands did not diffuse) on a famous European-brand transilluminator. The camera settings were the same and transilluminators intensity set at maximum in both transilluminators. Post processing involved cropping & pasting the gel images together and the text annotations shown in image above. No processing was done to deliberately lighten the bands in the European-brand transilluminator. This comparison was done at a large biotech company in Bangalore (India) that had access to both our and the other transilluminator.Clearly, our transilluminators perform better than the European brand despite being much less in price. Features - Long life UV quartz filter- Special polymer filter mounted on hinges to block UV rays from harming the observer- Transilluminator window sizes: 10 x 10 cm, 20 x 20 cm, 21 x 26 cm- Electronic ballast ensures no humming and low heating of transilluminator- Intensity control provided: 70% and 100%- Transilluminator models also available without filter for low cost, student work Advantages- All spare parts are easily available, including filter glass, tubes and protection polymer- Various sizes and models available to suit all budgets- Cost effective transilluminators that match imported transilluminators in performance- Upgrade the transilluminator later to a basic gel documentation system if needed Standard Models> Budgetary Transilluminators Student model. Window 10x10 cm. 365 nm wavelength. Without UV filter.College model. UV only. Window 20x20 cm. 365nm wavelength.Without UV filter.> White Light Transilluminators (for protein gels)White light. Window 20x20 cm.Without UV filter. > Transilluminators - Research - Single WavelengthResearch UV transilluminator. Window is 20 x 20 cm. 6 x 8W 254 / 312 / 365 nm wavelength UV tubes. With quartz UV filter. Equivalent to imported UV transilluminators. > Transilluminators - Research - Dual WavelengthResearch UV transilluminator. Window is 20 x 20 cm. Dual wavelength model. 4 x 8W 254 / 312 / 365 nm wavelength UV tubes. With quartz UV bandpass filter. Equivalent to imported transilluminators.

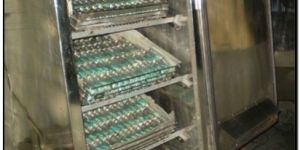

ZENITH-INSPI series serum inspissators (media coagulators) provide valuable resource to tuberculosis detection and treatment labs. Media containers, bottles, petri dishes, tubes with culture medium can be inspissated quickly and effectively in large batches. Two different models of our inspissators (INSPI-MAX and INSPI-S) are capable of inspissating from 170 to over 700 McCartney bottles in a single load. The INSPI-MAX has three trays that can load anywhere from 250 to 700 bottles during one run and has been designed for repositories and hospitals which handle large samples. For smaller labs, INSPI-S can inspissate up to 170 bottles in one load. Zenith serum inspissators are low cost units and have been designed in collaboration with National JALMA Institute for Leprosy & Other Mycobacterial Diseases, Agra, Indian Council of Medical Research, which is a Government of India research organisation. The institute is at the forefront of tuberculosis research in India. Instrument usage reference can be had from Dr. Vishwa Mohan Katoch, Secretary, Department of Health, Government of India.     Inspissator is built of rust-proof stainless steel sheet.Inside chamber, body and water bath made of stainless steel. Inside chamber: 25” (width) x 21” (depth) x 32” (height). Outside body: 29” x 25” x 52”. With heavy duty roller wheels. Inside the inspissator three stainless steel wired trays are provided to hold media bottles. These trays are removable from main unit for easy loading of media bottles. Trays are positioned at an angle of 20 degree approx. to provide slope to media. Inspissating capacity of the inspissator for 3” x 1” (approx. size) of McCartney media bottles is about 450 bottles in three trays with single layer of bottles in each tray. Capacity can be increased to 600 by loading more bottles in each tray in two-three layers. Bottles are at angle of about 20 degree. Each inspissator has two water heaters: 1.5 kW each (total 3 kW) running at 220VAC, 50Hz.Two spare heaters are additionally provided for emergency use in case of failure of one of the working heaters during the working of the inspissator. Temperature range of the serum inspissator is from 5 C above ambient temperature to 95 C. Temperature is settable by the user. Accuracy of inner temperature is better than 2 C. Least count of controller is 1 C. Sensor used is Pt100.   Inspissator is built of rust-proof stainless steel sheet. Outer body and tray are made of stainless steel. Tray size: 31” x 24” (80x60cm). Outer body: 41” x 26” x 16” (104x65x40cm) In the inspissator a single tray of stainless steel is immersed in water such that the water just touches the bottom of the tray. The tray has a set of slopes to provide an angle of 8-10 degree to the media containers. Water temperature is maintained through a heater and stirrer. The tray also heats up to the water temperature and temperature uniformity is maintained in the water, tray and media containers. The total heat up time is less than 2.5 hours.For user and operation safety, we provide fixed cut-out fuse and miniature circuit breaker at the back of the controller unit of the inspissator.The controller is digital, with an LED/LCD display to indicate set and actual temperature. User input is taken through a dial and button. Resolution is 0.1C, uniformity is better than 0.5C and working temperature is 85C. Temperature range for the inspissator controller is from 0C to 100C. The controller is a composite unit of 1.5kW heater, controller, sensor and stirrer. It is easily removable for servicing. We also provide spare heaters along with the serum inspissator for emergency use in case of failure of the working heater during usage. A constant water level setup ensures that the heaters never run dry and that evaporation losses are compensated. Tank capacity is about 50 litres

Sharp zoom lens coupled to a highly sensitive 16-bit Sony scientific grade CCD camera, the Gel.ProCCD gel documentation system, is a high quality, yet low cost professional gel and bio-imaging system. From agarose, PAGE, western blots, dot blots, nucleic acid, colorimetric to fluorescent imaging and upgradeable to chemiluminescence; this gel system has all the options.Featuring high resolution extremely sensitive scientific grade CCD camera (with choice of 1.4, 5.6 and 9 megapixel cameras) with extremely low noise and dynamic flat field calibration coupled to a motorized zoom lens (with an option for numerical feedback value) that is pre-focussed for different zooms or sample setting, mounted in an enclosure that covers and protects the camera and lens from dust and mold. The camera, lens and cabinet connects to and can be controlled from the PC using the live-view acquisition capture software.Choice of illumination options with long-life UV trans/epi lighting, wavelength-specific LEDs and more, add to the versatility of the system. UV roll-out transilluminator can be provided in single, dual 302-312nm and 365nm (additionally 254nm, for triple wavelength configuration), and even Red, Green, Blue LEDs ranges. Large filter size of transilluminator for gel images up to 21x26cm, with extra large special filter size of up to 26x26cm also is available.Colorimetric samples up to 38x30cm can be captured. Epi-white light illumination from above is standard using two LED tubes. Optionally, ultraviolet epiillumination in a variety of wavelengths (254/312/365nm) can also be provided. UV to white light and UV to blue light trans converter screens are also available. UV tubes and LED lamps are high-quality, long-life tubes and lamps, with the latter lasting for more than 40,000 hours of usage (under proper usage with flicker-less, stabilized power supply). Reflectors are standard for uniform light distribution. The mild & stainless steel, epoxy coated microprocessor controlled dark room cabinet has features for UV irradiation safety switch that switches off the UV lights as soon as the door is opened. Additionally, a timer is provided that switches off UV in case the user forgets to shut it off. Option to adjust timer for excision. Also, the user can opt for automatic switching on of the Dual Epi-White LEDs on opening of door and for automatic controls of UV light and exposure. A transilluminator cooling system is also provided to prevent overheating of gels. Optionally, a window and access door can be provided for gel observation and cutting. And, a gel platform temperature control(4.0 orders of magnitude- EtBr 590 filter standard- 312nm / 254nm / 365nm UV or any dual or triple combinations of these wavelengths- Operate camera, lens and dark-room cabinet via PC Advantages- Easy to us- Low cost, yet highly sensitive- Control camera, lens, cabinet and transilluminator from PC using a microprocessor based controller- Adjust camera lens focus, clicking, shutter speed, aperture from PC- Camera mounted safely inside a dust-protective enclosure- Easy access to transilluminator- Safety interlock switches shuts UV off as soon as door opens - Small foot print requires less space Applications- Gel Capture and Analysis- Fluorescent Imaging- Protein Electrophoresis Imaging- Western Blotting Imaging- Colony and Petri Imaging- Upgrade to chemiluminescent imaging Camera Specifications  - Standard model cameras have 16-bit pixel depth (65,536)- Budgetary model cameras of 12-bit pixel depth (4,096) also available- Cameras use high quality scientific grade Sony CCD imaging sensors- Standard models cameras have 1.4, 5.6 and 9 megapixel high resolution cameras in 16-bit sensitivity- Pixel size are 4.6x4.6um to 6.5x6.5um - Camera sensors are flat-field calibrated - Also available are cameras with 12-bit sensitivity for budgetary applications- Anti-reflective, microlens sensor- Exposure Control from 0.01s to 100s - 16-bit grayscale tiff images- Superior signal-to-noise ratio, 68 dB- Excellent dynamic range, >4.0 OD in 16-bit cameras- >3.5 orders of magnitude in 12-bit cameras- Operate camera, lens and dark-room cabinet via PC using microprocessor based control system Lens Specifications  - Standard model have manual or motorized zoom lens- Zoom ranges available are 8-48mm and 8.5-51mm- Special ranges of zoom are also available: 5-50mm and 12-75mm- For highly sensitive applications fixed lens are availabe in 17mm, 25mm and 50mm focal lengths- Aperture is F1.2 - All lenses have focus, iris and zoom control- In motorized lenses, focus, iris and zoom control are controllable from PC software using microprocessor based control system- In manual lenses, focus, iris and zoom control are controlled manually Filters  - Options for filter holders- Standard is manual 3-position filter holder- Advanced models with 7-position motorized filter holder available- Orange 590 EtBr and clear are standardChoice of filters available for these stains:- Orange 590: Ethidium Bromide (EtBr), SYPRO Ruby, ProQ Diamond, Deep Purple, etc- Green 520: SYBR Green I, Green II, SYBR Gold, GFP, Fluorescein, FITC- Orange 560: SYBR Safe, Rhodamine, Cy3, etc- Red 630: SYPRO Red, Texas Red, etc- Blue 480: Hoechst, Coumarin, etc- Clear: Coomassie Blue, Silver etc Lighting  - Standard lighting systems are UV transillumination in 302-312nm* and Epi-white light- Trans illumination area options are 20x20cm for smaller gels and 21x26cm for larger gels- Special size filter to view extra large gels up to a maximum of 26x26cm also available- Sample size area is 38x30cm- We also offer UV transillumination in dual wavelength (312+365nm being most common)- For rare applications UV transillumination in triple wavelength (254+312+365nm) can also be given- Multi broad band wavelengths can also be offered 254nm, 312nm and 365nm UV trans lights- Intensity control for low and high trans-illumination - low for preparative work and high for quantitative- Trans white light tables are optional to use gel doc for protein gels documentation- Excitation wavelengths are UV, white, blue, RGB etc- For special stains, blue light tables can also be given- Multi-wavelength epi-illumination LEDs are also available for Red, Green, Blue lights for special stains- UV blocking polymer filter is also provided to block harmful UV wavelength- Cabinet uses microprocessor based control system to control camera, lens and lighting of the cabinet- Stain-free system (with 30 sec, 2.5 min, 5 min and user-defined UV-on timer)* Please note that 300nm, 302nm, 306nm and 312nm are in the same range of wavelengths called UV-B (also known as mid-range). Some manufacturers quote 302nm but it is the same as 312nm..   Convenient and easy-to-use Gel Capture software has options for adjusting the shutter speed, aperture, focus, directory, rotation etc. You can view the gels live on the screen and capture the image using the software. This software is provided standard with the gel documentation system.Gel image acquisition and control software allows user to adjust camera, darkroom, lens settings like exposure time settingngs, motorized zoom, focus and iris aperture. Transilluminator, epi-illuminator, LEDs etc can also be directly controlled from computer. Histogram display on the screen shows image saturation and warns over-saturation/exposure.   Package Includes- Dark room cabinet with safety switch with low footprint- Roll out variable intensity 312nm transilluminator- Epi-white light illumination- CCD camera- Gel capture software- 590nm orange filter, suitable for EtBr stained gels- Power cords, USB cable, instruction manual, warranty card - Options that can be ordered like motorized filter holder, special zoom lens, illumination etc- 1 year standard warranty against manufacturing defects Optionals are- Transilluminator in 365nm, 254nm, dual or multi wavelengths- White or blue light converter tables - Epi-illumination in multiple wavelength (RGB) LEDs - Motorized filter holders - Stain-free system (with 30 sec, 2.5 min, 5 min and user-defined UV-on timer)- UV safety over-ride switch- Gel viewer window in front besides the option to have a UV safety foldable cover on the Transilluminator - Computer Systems of user's specifications and choice- Extended Warranty of 2 year and more are available in addition to 1 year standard warranty against manufacturing defects

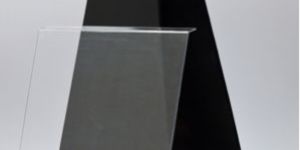

One of the easiest to use systems for gel documentation and electrophoretic imaging applications, the Gel.PRIME stands alone to provide the lowest cost yet high quality scientific gel visualization and analysis digital system for classrooms and labs.The Gel.PRIME gel doc system offers reproducible, high-resolution digital images for gel documentation and imaging. Gel.PRIME is ideal if you have a limited budget because we have a lot of options for you. Purchase the basic system with the camera, transilluminator, darkroom hood and later add a printer or gel analysis software as the need arises.Featuring a 12 megapixel digital camera, the camera connects to a PC through a USB and can be controlled from the PC. Ultraviolet transillumination can be provided in 254nm, 312nm or 365nm ranges. Filter size of transilluminator is 20x20 cm. Maximum gel size that can be captured is 16x20 cm. The transilluminator can be used separately too, in case the user just wants to observe the gel.   How the Gel Documentation System worksA transilluminator and a removable, light-weight hood with camera is supplied. The camera is mounted on top of the hood. Simply put the gel on the transilluminator and then place the hood over the transilluminator. Switch on the transilluminator and the camera. View the gel on the camera built-in LCD or connect the camera to a PC using USB to get a real-time live view image of the gel. Adjust camera settings (like shutter speed, aperture, focus) directly on the camera or using the provided gel capture software that controls the camera from the PC. Click your images and save them on the PC.With the optional 1D gel analysis software, you can analyse the gels. Features- 12 megapixels- 8 bit grayscale- 24 bit RGB- Excellent image quality- 3x manual optical zoom- EtBr 590 filter- 312nm / 254nm / 365nm UV- Use transilluminator separately Advantages- Easy to use- Low cost, yet high quality images- Control camera from PC- Adjust camera focus, clicking, shutter speed, aperture from PC- Use the camera separately- Camera mounted conveniently- Easy access to transilluminator- Small foot print requires less space     Convenient and easy-to-use Gel Capture software has options for adjusting the shutter speed, aperture, focus, directory, rotation etc. You can view the gels live on the screen and capture the image using the software. This software is provided standard with the gel documentation system. Package Includes- Dark hood- Variable intensity 312nm transilluminator- UV safety polymer for transilluminator- 12 megapixel camera- Gel capture software- 590nm filter, suitable for EtBr stained gels- Power cords, USB cable, instruction manual, warranty card Optionals are- Transilluminator in 365nm, 254nm or dual wavelengths- 1D Gel Analysis software

Model MS: Standard set. Complete with paired Wide field Eyepiece 10x (FN.23) and turret mounted 2x & 4x (or 1x & 3x) in-built objectives. Without light.Model MS-TIL: With built-in light source. Standard set. Complete with paired Wide field Eyepiece 10x (FN.23) and turret mounted 2x & 4x (Or 1x & 3x) in-built objectives. Light stand ( Incident: 6V 15W Lamp and Transmitted: 5W Fluorescence Lamp). Complete set in thermocol pack. It has large visual field & high diopter. Magnification range 6.5x – 45x with 10x eyepiece. 45 degree inclined having Zoom Ratio 1:7, Objective Zoom Range (0.65 – 4.5x). Paired Widefield Eyepieces SWF 10x/22mm, working distance 100mm, With in-built Light Stand (Incident : 6V 15W Lamp and Transmitted : 5W Fluorescence Lamp).

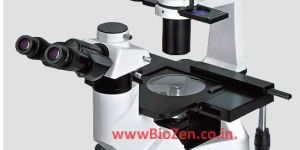

Olympus Opto Inverted Tissue Culture Microscope model Invi     For brightfield and phase contrast applications (30° inclined, interpupillary 48mm~75mm) having 6v30w halogen light illuminator, quintuple revolving nosepiece, coaxial coarse (stroke : 37.7mm per rotation) & fine (stroke : 0.2mm per rotation) adjustment, plain stage (160x250mm) with glass insert, auxiliary stage 70x180mm, Condenser LWD 72mm, Long working distance Plan Infinity Brightfield Objectives 4x/0.1 (W.D 18mm) & 40x/0.6 (W.D 2.6mm - Cover Glass 1.2mm) And Phase Contrast Objectives 10x/0.25 (W.D 10mm) & 20x/0.4 (W.D 5.1mm) with phase annulus plate (10x-20x, 40x) & High eyepoint, extra wide field eyepiece EW10x (F.N.22) standard set complete. Features :Long Working Distance Plan Infinity OpticsPre-Centered Phase AnnulusTrinocular Port In Standard UnitExcellent Field Flatness.

Focusing by coaxial coarse and fine roller guide (Comfortable position of focusing knobs). Tension adjustment. Quadruple revolving nosepiece. Large stage 120 x 132 mm. With mechanical stage right hand drive. Abbe condenser 1.25, with iris diaphragm, Blue filter. Anti-Fungus Achromatic objectives: iNE 4x, iNE 10x, iNE 40x (spring), iNE 100x (spring, oil Imm.).  Paired Eyepiece Wide field  iCWHK 10x.  In thermocole pack. Standard set complete with Seidentopf Binocular head, in-built 6V 20W halogen light illuminator, withAnti-Fungus Plan Achromatic Objectives 4x,10x,40x (spring) & 100x (oil, spring), paired eyepieces wide field 10x (F.N.20) in thermocole packing, manufactured under license from Olympus Corporation, Japan.Features : UIS2 Plan Infinity Optics providing image flatness, Seidentopf observation head for individual choice of adjustment, Anti-fungus treatment for component durability, High eyepoint design eyepiece (F.N.20), Interchangeability of Objectives, the abbe condenser & the light relay system fitted with high performance aspheric lenses for bright & uniform illumination, Window in arm & the Ergonomic design for user convenience, Illumination system through SMPS circuit for constant voltage output, Rackless stage for durability and ease of use, Mechanical stage focus-lock prevents mishaps, Component security - student proof.

Olympus Opto Laboratory / Medical Microscope model MAGNUS HB Body Monocular die-cast body, inclinable upto a horizontal position (90°). Magnification 100X ~ 1000X. Optional 40X - 1000X. Stage Built-in graduated mechanical stage 120 X 125 mm with convenient adjustment for manipulation of slide. Nosepiece Quadruple nosepiece with positive dick stops for precise and smooth alignment of objectives. Focusing By coarse & fine focusing knobs. Eyepieces Widefield Eyepiece (NWF 10X). Objectives Hard anti-reflection coated, colour coded Parfocal Achromatic 10x, 40x and 100x (spring loaded, oil immersion). Condenser Sub-stage Abbe condenser of 1.25 N.A. focusable with rack and pinion; fitted with an iris diaphragm and filter holder (for blue filter) to facilitate optimum adjustment of light. Illumination Plano-concave mirror in adjustable fork mount. Optional Objective achromat 4X, Eyepieces Widefield 15X, Huygenian 5X, 10X, 15X. Finish Grey or black durable acid resistant epoxycoated finish. Olympus Opto Laboratory / Medical Microscope model MAGNUS GB Body Monocular die-cast body, inclinable upto a horizontal position (90°). With draw tube Magnification 100X ~ 1000X. Optional 40X - 1000X. Stage Built-in graduated mechanical stage 120 X 125 mm with convenient adjustment for manipulation of slide. Nosepiece Quadruple nosepiece with positive dick stops for precise and smooth alignment of objectives. Focusing By coarse & fine focusing knobs. Eyepieces Widefield Eyepiece (NWF 10X). Objectives Hard anti-reflection coated, colour coded Parfocal Achromatic 10x, 40x and 100x (spring loaded, oil immersion). Condenser Sub-stage Abbe condenser of 1.25 N.A. focusable with rack and pinion; fitted with an iris diaphragm and filter holder (for blue filter) to facilitate optimum adjustment of light. Illumination Plano-concave mirror in adjustable fork mount. Optional Objective achromat 4X, Eyepieces Widefield 15X, Huygenian 5X, 10X, 15X. Finish Grey or black durable acid resistant epoxycoated finish.

Eyepieces : Huygenian 10x and 15x.

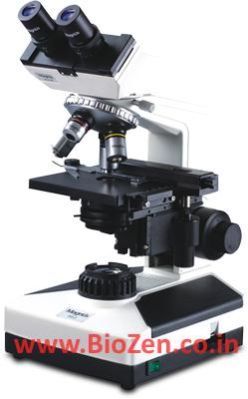

Olympus Opto Binocular Microscope model MAGNUS MLX-B     Standard set. With built-in 6V, 20W halogen illuminator, quadruple ball bearing nosepiece. Coaxial coarse & fine focusing controls.  Co-axial low drive mechanical stage, substage Abbe condenser (NA 1.25) with iris diaphragm with rack and pinion. High resolution long barrel achromatic objectives 4X, 10X, 40X & 100X (spring, oil imm). Paired Widefield eyepiece WF10X.  With a Binocular observation head. Olympus Opto Monocular Microscope model MAGNUS MLX-M Standard set. With built-in 6V, 20W halogen illuminator, quadruple ball bearing nosepiece. Coaxial coarse & fine focusing controls.  Co-axial low drive mechanical stage, substage Abbe condenser (NA 1.25) with iris diaphragm with rack and pinion. High resolution long barrel achromatic objectives 4X, 10X, 40X & 100X (spring, oil imm). Paired Widefield eyepiece WF10X.  With a monocular observation head. Olympus Opto Binocular Microscope model MAGNUS MLX-i Standard set. High resolution long barrel infinity corrected PLAN achromatic objectives 4X, 10X, 40X & 100X (spring, oil imm). With a siedentopf binocular observation head. With built-in 6V, 20W halogen illuminator, quadruple ball bearing nosepiece. Coaxial coarse & fine focusing controls. Co-axial low drive mechanical stage, substage Abbe condenser (NA 1.25) with iris diaphragm with rack and pinion. Paired Widefield eyepiece WF10X. Olympus Opto Binocular Microscope model MAGNUS Theia “Theia”- a combination of cutting edge Japanese technology and contemporary European design microscope.The PLAN infinity corrected optics of the Theia-i produce extremely flat, clear and sharp images. The Theia-i optics are multi-layer coated to greatly enhance the light transmission and image contrast. Further, the FN 20 eyepieces provide a wider visualization of the specimen under view.The high quality mechanics and the excellent optics of the Theia-i ensure that its ready to meet the daily rigors and demanding applications of its users. The Theia-i has been developed keeping long term use and durability in mind.

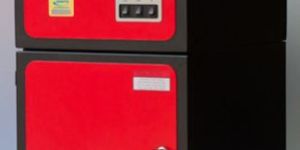

Excellent optics coupled to a high quality camera, the Gel.LUMINAX gel documentation system, is a high performance and reliable fluorescent and colorimetric bio-imaging system.Featuring a 18 megapixel digital camera, the camera connects to a PC through a USB and can be controlled from the PC. The light-tight cabinet has a UV safety switch and a roll-out transilluminator. A choice of illumination options with UV trans/epi lighting, wavelengthspecificLEDs and more, adds to the versatility of the system.Ultraviolet transillumination can be provided in 312nm, 365nm or 254nm ranges. Filter size of transilluminator is 20x20 cm or 21x26cm. For extra large gels, we also offer a 26x26cm filter transilluminator. Epi-white light illumination from above is standard. Optionally, ultraviolet epi-illumination in a variety of wavelengths can also be provided.The dark room cabinet has features for safety switch that switches off the UV lights as soon as the door is open. A timer is attached to the transilluminator, which auto switches off UV light in case the user forgets to switch it off. This increases the life of the UV lamps.This gel doc system is perfect for diagnostic labs, biotech start-ups, for HLA-typing facilities, DNA and protein research and academic labs. Gel.LUMINAX gel documentation system is used to capture images of:- Protein and DNA gels,- HLA typing applications,- Petri plates and Agar plates, - Tissue Culture Flasks, - Membranes, - TLC plates, - Microplates…   A comparison was done between the performance of our gel doc transilluminator and a European system. The same EtBr-stained gel was viewed and photographed in our system and then immediately again (so that the lighter bands did not diffuse) on a famous European-brand system. The camera settings were the same and transilluminators intensity set at maximum in both transilluminators. Post processing involved cropping & pasting the gel images together and the text annotations shown in image above. No processing was done to deliberately lighten the bands in the European-brand transilluminator. This comparison was done at a large biotech company in Bangalore (India) that had access to both our and the other transilluminator.Clearly, our system performs better than the European brand despite being much less in price. How the Gel Documentation System worksA transilluminator is mounted on roll-out rails inside a light-tight cabinet. To place the gel, the door is opened and transilluminator pulled out. Push it in, close the door and switch on the UV light and camera. The camera is mounted on top of the cabinet along with zoom lens and wavelenght filter (nominally 590nm filter suitable for Ethidium Bromide EtBr gels is provided).Connect the camera to the PC using the USB cable and gel capture software, to get a real-time live view image of the gel. Adjust camera settings (like shutter speed, aperture, focus) till the optimum image is obtained. Click your images and save them on the PC. A white light epi-illuminations source is also provided, that illuminates objects from top. With the optional 1D gel analysis software, you can analyse the gels.     Features - Low Noise CMOS imaging sensor- 8-bit and 14-bit options- 18 megapixel cameras- Excellent dynamic range- 3.0 orders of magnitude, 58 dB- Superior signal-to-noise- Sharp Zoom lens- Motorized auto-focus- Motorized aperture setting- Manual zoom range 3x- Exposure from 0.00025s onwards- Single/Dual 312nm/365nm/254nm UV- RGB LEDs and convertor screens- Operate camera via PC- Timer for auto-off of UV- Advanced Gel Analysis Software Filters  - Options for filter holders- Standard is manual 3-position filter holder- Advanced models with 7-position motorized filter holder available- Orange 590 EtBr and clear are standardChoice of filters available for these stains:- Orange 590: Ethidium Bromide (EtBr), SYPRO Ruby, ProQ Diamond, Deep Purple, etc- Green 520: SYBR Green I, Green II, SYBR Gold, GFP, Fluorescein, FITC- Orange 560: SYBR Safe, Rhodamine, Cy3, etc- Red 630: SYPRO Red, Texas Red, etc- Blue 480: Hoechst, Coumarin, etc- Clear: Coomassie Blue, Silver etc Lighting  - Standard lighting systems are UV transillumination in 302-312nm* and Epi-white light- Gel filter illumination area is 20x20cm, with 21x26cm option for larger gels. For extra large gels, we also offer a 26x26cm filter. - Gels up to a maximum of 26x26cm can be observed, captured and analysed- Sample size area is 38x30cm- We also offer UV transillumination in dual wavelength (312+365nm being most common)- For rare applications UV transillumination in triple wavelength (254+312+365nm) can also be given- Multi broad band wavelengths can also be offered 254nm, 312nm and 365nm UV trans lights- Intensity control for low and high trans-illumination - low for preparative work and high for quantitative- White light tables are optional to use gel doc for protein gels documentation- For special stains, blue light tables can also be given- Multi-wavelength epi-illumination LEDs are also available for Red, Green, Blue lights for special stains* Please note that 300nm, 302nm, 306nm and 312nm are in the same range of wavelengths called UV-B (also known as mid-range). Some manufacturers quote 302nm but it is the same as 312nm.. Advantages- Easy to use, safe dark-room- Low cost, yet high quality images- Control camera from PC- Focus, clicking, exposure from PC- Camera mounted conveniently- Easy access to transilluminator- Small foot print requires less space- Superb performance/price     Convenient and easy-to-use Gel Capture software has options for adjusting the shutter speed, aperture, focus, directory, rotation etc. You can view the gels live on the screen and capture the image using the software. This software is provided standard with the gel documentation system. Package Includes- Dark room cabinet with safety switch- Roll out variable intensity 312nm transilluminator- Epi-white light illumination- 18 megapixel camera- Gel capture software- 590nm filter, suitable for EtBr stained gels- Power cords, USB cable, instruction manual, warranty card Optionals are- Transilluminator in 365nm, 254nm or dual or triple wavelengths- Epi-illumination in multiple wavelength LEDs - Gel Analysis software- Tablet with touch screen to give a stand-alone gel documentation setup

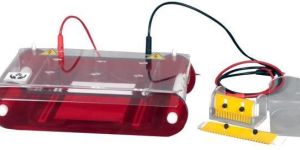

Features- Dark background plate for easy visualization of wells for trouble-free loading- Thickness of 0.2 mm diameter of wire for rapid run- Height adjustments of the comb is allowable for different experiments- Plexiglass rod is provided on both ends for easy lifting Package Includes- Buffer tank with safety lid- Electrodes Positive and negative- Gel Running Trays and Combs (1.0mm thick)- Power cord Optionals are- Combs of thickness 0.75mm and 1.5mm and varied number of wells- Gel Casting Systems

Simple to use, 12 megapixel digital camera based gel documentation systems. With removable hood and ultraviolet transilluminator, so that the transilluminator can be used separately to view gels.

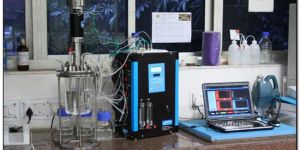

ZENITH India presents a range of low-cost autoclavable and in-situ sterilizable laboratory Bioreactors and Fermentors designed for performance and ease of use.Using the latest in 16 bit microprocessor technology we offer fermentors and bioreactors that use multi-loop process control techniques to maximize yields in cell-culture and fermentation. At the heart of our fermentors and bioreactors lies 16 bit microcontrollers from Microchip Technology Inc, USA. On board electronics and sensors are sourced from reputed and reliable manufacturers like Texas Instruments, Allegro Micro, National Semi, etc. to give a controller system for these fermentors and bioreactors that works effectively and is extremely reliable.BioFERMA autoclavable and in-situ sterilizable laboratory fermentors and bioreactors are controlled digital PID control algorithm. The temperature control range is from room temperature plus 3C to 60C. Using optional cooling system, temperature can be controlled from 10C to 60C. It has a stirrer agitation speed range from 100 to 1000 rpm and it can be used for anaerobic micro-organism or aerobic microorganism fermentation process.BioFERMA series is a low-cost, compact, autoclavable and in-situ sterilizable laboratory fermentors and bioreactors perfect for a range of educational, research and industrial applications.Fermentor systems are available for microbial and cell culture:- Microbial Culture: Bacterial, Yeast and Fungi culture.- Cell Culture: Plant, Animal and Insect culture.- Moving up from a tissue culture flask and shaker.- Interchangeable culture vessels (2.5 L, 4 L, 7 L).Dedicated microprocessor controller system that has been designed specifically for autoclavable and in-situ sterilizable laboratory bioreactor and fermentor control. 4 colour 16 key pad for user interface to input control parameters, calibrate sensors and set values.Stainless steel head plate with ports for sensors, feed and harvesting, heater, gas/air sparger, motor.DC motor: Top driven for microbial culture and bottom magnetic driven for cell culture (optional).Peristaltic pumps provided at the side of controller unit for addition of acid & base (for pH control) and feed & harvest of media and culture. FeaturesVessel Borosilicate Glass Borosilicate glass vessels of total volumes of 2.5 L, 4 L & 7 L.User defined capacities can also be supplied up to 10 L. Working volume is 50% to 70% of total volume.Stainless Steel SS316L vessels for volumes of 10 L and above. Standard volumes are 10 L, 15 L, 35 L, 50 L, 100 L. User defined sizes can be supplied Head PlateMOC Stainless Steel 316L head plate is supplied with sufficient number of ports for sensors, tubings, sparger, motor, heater etc. Contact parts are made from SS316L. All ports have been designed to prevent contamination cross-over. Fitting of ports, sensors, tubings, motor etc. is convenient.Stirring & AgitationMOC Stainless Steel 316L stirring rod with propellor type stirrer.Motor PMDC motor, 12V, 80W, high starting torque.Control Algorithm PID control Sensor Magnetic gear tooth sensor.Range 100-1000 RPM in 10 RPM increments. Temperature MOC Heating finger made from SS316L for contact heating. For cooling, chiller unit with forced circulation. Control Algorithm PID control for regulating temperature. Sensor Platinum RTD dipped in SS316L thermowell. Range 3C above room temperature to 60C. Increments of 0.1C.With cooling system: 10C to 60C.pHSensor Autoclavable gel-filled pH electrode.Control Algorithm PID control.Control System Peristaltic pumps dispense weak acids or base, automatically depending on set and actual pH.Range 2 pH to 12 pH, increments of 0.1pH & accuracy of +/- 0.1pH.Dissolved Oxygen (pO2)Sensor Autoclavable galvanic DO probe fits in 12mm port of headplate. Control System Controls dissolved oxygen by sparging air or gas. Rotameters are provided on front to control flow of air into unit.Range Up to 100%, in increments of 1%FoamSensor SS316L conductivity probe for foam sensing. Control System Peristaltic pumps dispense anti-foam agent depending on probe placement.Range Control range is height adjustable.Peristaltic PumpsTwo peristaltic pumps are included with pH module. One with Harvest / Feed module. One with Foam module. Diagnositic ModeDiagnostic ModeUnique diagnostic mode in our lab autoclavable and in-situ sterilizable fermentors and bioreactors, enables the user to evaluate the health of the fermentor and its various components like pH and DO probes, peristaltic and diaphragm pumps, motors, sensors, calibration, reading etc. This allows remote diagnosis and support can be offered over the phone or email. This enables us to give better after-sales service remotely, often within a few hours of the user request.The screen below shows the diagnostic mode of the agitation and stirring module of the fermentor. The motor speeds can be checked at Low, Medium and High speeds by pressing 1,2,3 keys. The motor RPM sensor tells the user if its working and consequently if the RPM is being calculated properly. At the company, the service person can ask the user to press and few keys and can remote diagnose the module without having to be physically present. Our fermentor and bioreactors are the only ones in India, to have this feature.   Standard Configurations available in Borosilicate Glass Vessels Even our basic units mentioned below are fully functional fermentors and bioreactors. They have been designed in such a way that the units meet your budget yet at the same time are fully upgradeable in the future. So you can add advanced optional modules.At the same time, the basic unit has systems to control motor speeds and agitation, motor RPM, temperature above ambient, will display pH values and has a 2-gas sparging and aeration system with filters and rotameters. Basic unit has systems for · Agitation · Aeration · Temperature control (from 3C above room temp. to 60C) · pH display · Fermentor diagnostics (for remote technical support). Model BioFERMA-01-01Bioreactor basic unit with 1.5 litre working and 2.5 litre total volume. Model BioFERMA-01-02Bioreactor basic unit with 3 litre working and 4 litre total volume. Model BioFERMA-01-03Bioreactor basic unit with 5 litre working and 7 litre total volume. Optional modules can be ordered · For temperatures below room temperature (Cooling System) · pH control (pH Control System) · control Dissolved Oxygen (DO display and control system) · Foam Control · Feed & Harvest · Datalogging Software. (Order these with the basic unit of your choice) 1-A. Cooling system: For attaining temperatures below room temperature: Control range (10C to 60C). In case you need to set temperatures below your normal room temperatures, order this module. For example, if you need to run fermentation at 20C and your room temperature is normally 30C, then order the cooling system. 1-B. pH Control system: The basic unit has an autoclavable gel filled glass pH electrode that displays the real time pH of the run. If you need to control the pH of the reaction, use this module. The control range is pH 2.0 to 12.0. It uses two peristaltic pumps with acid & base reservoirs which automatically add acid or base depending on the pH set and actual values. 1-C. Dissolved Oxygen Display & Control system: With two gases sparging system. This module consists of a low-maintenance autoclavable galvanic glass DO electrode to measure and automatically sparge air to control the dissolved oxygen levels of the reaction. 1-D. Feed/Harvest Module: With one bidirectional, variable speed peristaltic pump. Order this if you need to periodically add and remove media, inoculum and samples from the reactor vessel. 1-E. Foam Control Module: With one peristaltic pump and conductivity probe that monitors the foam. Anti-foam agent is automatically added to the vessel in case of excess foam.   1-G. Datalogging Software: MS Windows XP based software that displays graphs of and logs pH, temperature, DO and RPM values to MS Excel sheets.

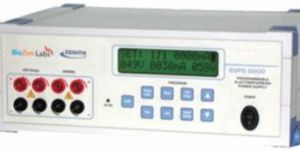

Features - High voltage, high current, high wattage power supply with crossover facility- Highly programmable with options to save program- Overload detection, short circuit protection standard- Excellent stability even with sudden load changes- Real time clock to program runs as per time- LCD display with keypad for user interface- Program can stopped, paused and resumed by user- Auto-restart in case of power failure- Voltage, current, power, voltage*time, timer controls; all available- Can also be connected to PC with cable to program and archive (optional)   Package Includes- Power Supply- Power cords for electrophoresis system (Red and Black)- Spare Fuse- Instruction manual- Power cord for mains supplyOptional- PC software with data cable to program and archive program methods in power supply from PC

Compact design that looks good, the Colony.PRO and Colony.TOUCH automated colony counters are high performance colorimetric bio-imaging system. Featuring a 12 megapixel camera, the camera connects to a built-in touch-screen or PC through USB and can be controlled from the touch-screen or PC. Epi-white and trans-white high brightness LEDs that let the petri dishes be illuminated from above and below are standard. A choice of illumination options with colour and wavelength-specific LEDs, UV and more, adds to the versatility of the colony counter.The Colony Capture and Count software will let you control the camera from the touchscreen or PC and capture sharp images of petri dishes. The counting software does automatic and accurate colony counting within seconds. Report generation and export is easy.The colony counter system is perfect for microbiology labs, pharma companies, biotech companies, research and academic labs. How the Automatic Colony Counter worksA compact cabinet has a trans-illuminated platform (that is, light from below) to illuminate petri plates from below. Also, provided standard is a lighting system to illuminate the petri dishes from top.A colour camera with high-quality optics and superior resolution is built inside. The camera is fully controllable from the touchscreen or an external PC or laptop. In Colony.TOUCH colony counter model, we provide a touchscreen that is already connected to the camera and without the need of any external PC, the user can observe, click and count the colonies. The touchscreen has ability to connect to a wi-fi network to transer and email images and count reports.In Colony.PRO colony counter model the user's PC can be used to connect to the camera using USB, click sharp images of the plates and carry out the counting using the provided software. The work flow is:- Place the petri plate and switch on the lights (transmitted or reflected or both). Petri dishes up to 6" (15cm) diameter can be captured.- Start the Colony Capture software and get a real-time live view image of the plate. - Adjust camera settings (like shutter speed, aperture, focus) till the best image is obtained. This is usually a one time exercise, that is, once set, subsequent captures usually do not need any camera adjustment.- Click your images and save them. If there are more plates, capture them too. The images are automatically named. The naming convention can be user-defined.- After clicking the plates,the colony counting software will count the colonies in the petri dishes, generate analysis reports and export them.The software also has features to manually count the colonies with the help of the mouse.     Features - Capture images of plates up to 6" (15cm)- 12 megapixels- Sharp optics - Excellent image quality- Full colour images for colorimetric colonies- High brightness LEDs for top and bottom illumination- Operate camera via PC or built-in touch-screen- Count colonies in under a minute- Generate and export analysis reports Advantages- Easy to use- Low cost, yet high quality image analysis- Control camera from PC or built-in touch-screen- Adjust camera focus, clicking, shutter speed, aperture from PC- Use touch-screen separately- Camera mounted inside, so less chance of damage or theft- Small foot print requires less than 30cm x 25cm footprint- Attractive design Package Includes- Compact, epoxy-coated steel cabinet- Touch-screen with Colony.TOUCH model - Trans-white light HB LED illumination- Epi-white light HB LED illumination- High resolution colour camera with sharp optics- Colony Capture and Counting software- Power cords, instruction manual, warranty card Optionals are- Transmitted-light illumination system in ultraviolet sources- Reflected-light illumination system in multiple wavelength LEDs (for example: red, blue, orange) Specifications- Epoxy coated steel enclosure- 12 megapixel camera with USB control- Counts colonies on petri dishes of diameter up to 6" (15cm)- High-brightness LED based illumination systems- 3 combinations of lighting (increase choice with optional illumination systems)- Power: 100-240V, 50-60Hz, 80W.- Unit size: 30cm (front) x 25cm (depth) x 60cm (height).- Unit weight: 14kg - Packaged carton size: 40cm x 40cm x 90cm.- Packaged carton weight: 18kg

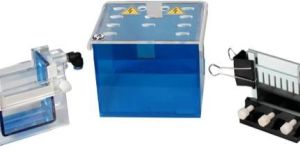

Features- Dark background plate for easy visualization of wells for trouble-free loading- Thickness of 0.2 mm diameter of wire for rapid run- Air tight Nylon nozzle for water cooling unit (in certain models) Package Includes- Buffer tank with safety lid- Water cooling system (in certain models) - Electrodes Positive and negative- Glass plates (2 sets)- Teflon Combs (Thickness 1 mm and 1.5 mm)- Glass supporter, Clamps (2 nos) and Bolts (5 nos)- Power cordOptionals are- Combs of varied number of wells and special thickness- Gel Casting Stand System
