Ambica Boiler Amraiwadi, Ahmedabad, Gujarat

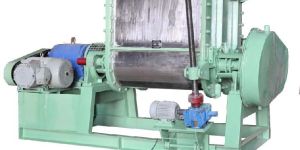

Z-blade mixers are used in a number of food and commercial adhesive applications. Ingredients are blended until the consistency is correct. The ingredient is then tipped out of the mixer and forwarded to the next step in the process.    These types of machines are available in M.S. And S.S. construction. The kneader can be tilted by means of a mechanical system or manually and for bigger models beyond 250 Kgs we provided hydraulic tilting.Hydraulic tilting system is provided with complete power pack, electric motor, pressure valves, pipes, fittings, cylinders and hoses which makes the tilting mechanism quick, easy and simple to operate.   Applications: Double Arm Sigma Blade Mixers are suitable for many applications, including: Sealing compounds, asphaltic derivatives, mastics, hot-melts, floor coverings, colorings, rubber base, master-batches, chewing gum, rubber compounds, silicone, lubricating greases, dispersed pigments, butyl, gums and adhesives, ceramic paste, polyester compounds, greasy inks, pencil leads, explosives, powders to granulate, PVC coatings, resins, soap, brake linings, carbon electrodes, celluloid, Bakelite, battery paste, polishing pastes, … LABORATORY DOUBLE ARM SIGMA BLADE MIXERS Laboratory Mixers are available in sizes ranging from 3 Liters to 10 liter working capacity. Variable speed drive on the blades standard. Stainless steel construction standard, jacketed is standard.

Vacuum Tray Dryer are used where heating and drying are essential parts of manufacturing process in industries such as Chemicals, Dye stuff, Pharmaceutical, Food Products, Colors etc. Vacuum Tray Dryer is suitable for drying of thermal sensitive material easily deteriorated under higher Temperature. It eliminates configuration damage of the drying materials

We are one of the trusted providers of quality-approved Twin Shaft Dispersers that are considered as most versatile equipment for paint production. As the name suggests, the disperser range has been specifically designed to disperse, mix and homogenize products. The process of dispersion is carried out by the centrally located shaft, and the low speed shaft is responsible for the mixing mechanism. Reckoned for trouble-free operations, the equipment made available in this range is extensively used for manufacturing plastic emulsions and eco-friendly water based paints. These top notch quality twin shaft disperser machines are also employed in various industries for mixing highly viscous materials. Manufactured using graded steel, our dual shaft dispersers are known in the market for ensuring long service life. These machines comprise two agitator shafts, and are available in different sizes and capacities. One of the shafts operates at high speed and the other at slow speed. As per the requirement of clients, we can make these twin shaft dispersers available in 500 kg, 1200 kg, 2500 kg and 4500 kg capacity.     SALIENT FEATURES : To Sterilize Surgical Medical Device Products like I.V. Sets, Disposable Syringes, Disposable Surgical Set, catheter, Urin Bag, to reduce microbiological load; and increase life span of material. Modular construction of chamber. Model is available from 1/2 CU.MTR TO 20 CU.MTR. Easy to operate. Fully automatic operation based on PLC control (optional). Semi Automatic (Pneumatically Operated Ball Valave) Control Contact parts are SS 304 / 316. Process time about 8 hrs. IQ/OQ/DQ documentation(OPTIONAL). It is useful for prevention of micro biological contamination retairing flavour useful for treatment of spices, dried nuts, Foods Packed cereals etc.

The Tray Dryer offered by us is used for diverse drying applications like food, electrodes, bakery, plastic & powders and drying of pigments. The Vacuum Tray Dryer is used in the industries like Pharmacy where drying and heating are the essential parts of the manufacturing process. Thermostatic inner chamber of the dryer is fabricated using Aluminium and stainless steel, which helps us maintain our position as the apex Pharmaceutical Tray Dryer Manufacturer in Ahmedabad, India. SALIENT FEATURES : All contact parts made of SS 316 as PGMP standard Available in wide range models from 6 to 192 raise capacity Design for uniform circulation of hot air in the drying chamber Heating cold and fan motor having electrical inter locking for safety of heating elements Electric/Steam/Thermic Fluid heating system Fresh air inlet and outlet air flow can be adjusted with damper control valve IQ/OQ/DQ documentation(OPTIONAL).

The Mixing Assembly consists of series of paddle type blades of appropriate shape to move the material back towards the center of the container. The paddle type blades are provided on the central shaft which runs through a hollow shaft on which other sets of blades are welded. Both the sets of blades intermeshed with each other and rotates in clockwise and anti-clockwise direction respectively and one sets also scraps the container wall for thorough and uniform mixing of the material.

A jacket is provided on the Outside of the shell for Heating the reactor by passing steam or thermic Oil. or Cooling the reactor by passing cooling media. Stiffener Rings are provided on shell in between the shell and jacket to give uniform circulation of the heating or cooling media and to intensify the vessel. JACEKTED REACTION VESSEL DESCRIPTION : Jacketed Reaction Vessel consist of a Cylindrical vertical shell with standard torospherical dish on both ends. TECHNICAL SPECIFICATION : A jacket is provided on the Outside of the shell for Heating the reactor by passing steam or thermic Oil. or Cooling the reactor by passing cooling media. Stiffener Rings are provided on shell in between the shell and jacket to give uniform circulation of the heating or cooling media and to intensify the vessel. Agitator assembly mounted on the Top dish of Reactor consists of Shaft supported by Lantern Assembly on the Top End containing Bearing Housing with Tapered roller bearing and Ball bearing to withstand impact load and vibratory load ensuring smooth rotation of the Shaft. Water cooled Stuffing box filled with gland rope pressed by Gland pusher is also provided. On the other end of the shaft Blade is fitted of different types as per the need of the Process viz. Single Anchor, Double Anchor, Gate, Paddle, Flat or Curved Turbine & Propeller types. Baffles are also provided inside the shell as per the requirement. Top Dish of the Reactor is provided with various Nozzles viz. Manhole, Light Glass, Sight glass, Vapour, Addition, Reflux, Thermowell etc. Bottom Dish of the Reactor is provided with an Outlet nozzle where valve is fitted.

 Pug mixer inner walls are constructed of SS or MS sheets. The mixer consists of a centre shaft of appropriate diameter and is either made of S.S or M.S materiaI. The centre shaft is fitted with specially designed agitator blades in order to provide contraflow action. Contraflow ensures constant circulation of mix/blend ingredients from one end to another to homogenise the batch.  Both the ends of the vessel are provided with stuffing boxes on the shaft. Blend ingredients are prevented from leaking and entering into bearings by the stuffing box. The shaft is supported by heavy duty pedestals. For models below 300 kgs the unit is provided with a pulley drive system along with tilting arrangement for discharge.    For models above 300 kgs the unit is provided with a gearbox drive coupled to a motor and the discharge valve provided at the bottom

This type of machine consist of a motor of reputed make. All contact parts will comprise of S.S 304 material. It will have a protecting cage with two 20 mm bar held apart by closing flat ring clamping on to the bar. The shaft will be coupled directly to the motor shaft. An extra bearing on the coupling sleeve will be provided to reduce the load on the motor bearing. lt will consist of an impeller of special design.

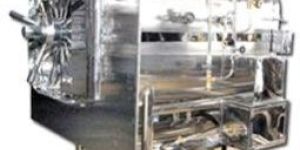

SALIENT FEATURES : To Sterilize Surgical Medical Device Products like I.V. Sets, Disposable Syringes, Disposable Surgical Set, catheter, Urin Bag, reduce microbiological load; and increase life span of material. Modular construction of chamber. All machines are available with conventional hinged doors, or Modern Automatic sliding door options Model is available from 1/2 CU.MTR TO 5 CU.MTR. Contact Parts : S.S.304 / 316 Quality. In case of GMP complete S.S ( Material of Construction. Fully automatic operation based on PLC control (optional). Semi Automatic (Pneumatically Operated Ball Valave) Control Models are available in Semi Automatic as well as Fully Automatic. Double door, flush mounting with door interlocking systems. IQ/OQ/DQ documentation(OPTIONAL).

For Sterilization of glass wares containers, vessels, linen, rubber articles culture media etc. Modular construction of chamber. Model is available from 12 CU.MTR TO 3 CU.MTR. Easy to operate. Fully automatic operation based on PLC control (optional). Semi Automatic (Pneumatically Operated Ball Valave) Control Sliding doors with high temperature resistant silicone gaskets.

We are the manufacturer and supplier of wide range of Spices Mixer. The dimensions and configuration of the mixer are carefully balanced to provide a movement of material within the container that avoids dead spots and gives rapid product discharge. These are developed by using top quality raw material.

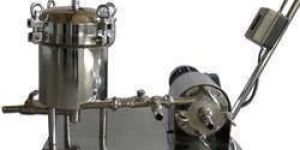

Industrial Filter Press We are a leading Manufacturer & Supplier of Industrial Filter Press such as Fabricated Filter Press, Filter Presses Machine, Sparkler Type Filter Press, Plate and Frame Filter Press, Plate & Frame Type Filter Press (horizontal), Semi Automatic Filter Press and many more items from India

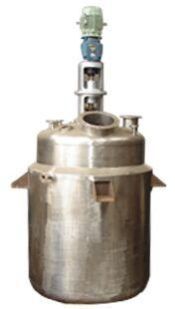

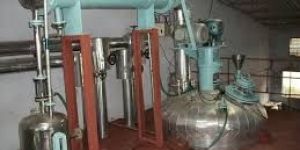

Solvent Based Resin Plant What is Resin ?Resins are film forming materials used in the production of paints and coatings. It binds the pigment particles into a coherent film that adheres to the substrate. The quality of the resin used in the production of paints and coating decides the durability of the paint. Resins are used depending upon the functional properties of the paint.Functions of Resin To provide gloss and elasticity. For the suspension of pigments. To provide resistance to water, chemicals and abrasion. Makes coating adhere to the surface. Acts as a dispersant. For drying properties. Alkyd resins from the largest group of synthetic resins are used in paint industry. Most air drying enamels are based on long or medium oil alkyd resins. These resins dry at room temperature and have excellent flow and leveling properties, good exterior durability and can be thinned with mineral turpentine. Oils used for producing alkyd resins are linseed oil, soybean oil and Dehydrated Castor Oil (DCO).   Range of Equipments :  * Sigma Kneaders  * Ribbon Blenders  * Hydraulic Dissolvers  * Pug Mixers  * Ball Mills  * Planetary Mixers  * Batch type Sand Mills  * Conical Blenders  * Continuous Sand Mills  * Resin Plants  * Bead Mills  * Turnkey Projects  Applications : * Varnishes & Paints * Resins, Glues, Adhesives * Polyurethanes *  Pharmaceuticals * Colourants * Chemicals * Inks * Lacquers * Foods * Cosmetics

We have marked a distinct position in the market by providing excellent quality Soft Gelatin Plant. This machine is precisely manufactured using supreme class components and sophisticated technology in compliance with set industry standards. The offered machine is used in diverse industries like pharmaceutical, food processing, chemical, cosmetic, etc. This machine is available in different technical specifications as per the needs of clients.

blender motor consists of U shape shell ,double ribbons and drive unit. The exterior ribbon transfers raw material from the two ends to center while the interior ribbon moves the material in opposite in the form of counter-current movement. Ribbons can be changed into paddles,and chopper is optional for different materials. The top cover can be concave for pressure application ,or full open way to allow for easy cleaning. The advantages of stainless steel slurry mixer

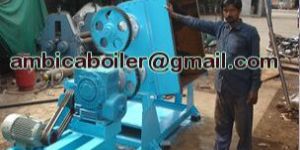

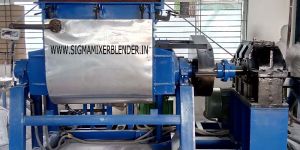

This machine has a double 'U' shaped container welded together inside which rotates 2 (two) 'Z' type sigma blades in opposite directions of each other sigma mixer blade. The clearances between the walls and the container are kept to a minimum for optimum efficiency in kneading and mixing. The shafts of the sigma blades are fitted in bearing blocks which are each provided with roller bearings, steel glandsteflon rubber seals for smooth and leakless operations. The kneader is mounted on a sturdy base frame fabricated out of ISMC sections and are free from vibrations. For cooling and heating jackets are provided. the machine also called Z BLADE MIXER

APPLICATION OF SIGMA MIXER   APPLICATION OF SIGMA MIXER OR SIGMA KNEADER : KNEADING, MIXING HIGH VISCOUS MATERIAL, PIGMENT KNEADING SIGMA MIXER OR SIGMA KNEADER IS GENERALLY USED FOR HEAVY DUTY MIXING, KNEADING, DOUGH KNAEDING, USES IN THE PAINT, PIGMENT, FOOD, ADHESIVES, CHEMICAL, PHARMACEUTICAL, DYESTUFF INDUSTRIES.

ABF offers the most extensive and innovative line of horizontal mixers and kneaders used for mixing powder, dough, cream, batter, paste, sludge, slurries and granules for various applications such as the baking industry, pharma, ceramics, sealing compounds, metal powder, adhesives, brake lining, confectionery, carbon black, ceramic powders, grease, magnetic tape coatings, silicone rubber, soap & detergent. Our mixers are designed and manufactured by the industry's leading talent right here at Ahmedabad. We develop technology that not only makes the mixing process more consistent, but also minimizes downtime through maintenance-free and enhanced sanitation designs.ABF advantage is that it delivers the special features and benefits that guarantee maximum production efficiencies, improved product and uniform processing-even with the stiffest of doughs. You can depend on us for complete turnkey service. We will get your mixing system to you on-time, when you need it, and install it quickly. Your personnel will quickly learn how to operate and maintain your new equipment for optimal efficiency. We stand behind you with quality customer service long after the sale is completed. All at a competitive price. To Sterilize Surgical Medical Device Products like I.V. Sets, Disposable Syringes, Disposable Surgical Set, catheter, Urin Bag, to reduce microbiological load; and increase life span of material. Modular construction of chamber. Model is available from 1/2 CU.MTR TO 20 CU.MTR. Easy to operate. Fully automatic operation based on PLC control (optional). Semi Automatic (Pneumatically Operated Ball Valave) Control Contact parts are SS 304 / 316. Process time about 8 hrs. IQ/OQ/DQ documentation(OPTIONAL). It is useful for prevention of micro biological contamination retairing flavour useful for treatment of spices, dried nuts, Foods Packed cereals etc.

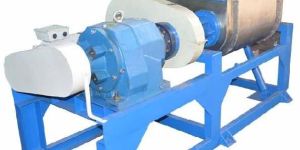

This machine comprises of a double 'U' shaped container welded and machined together inside which rotates two 'Z' shaped sigma blades in opposite directions. The clearances between the walls and the container are kept to a minimum to ensure maximum effciency in kneading and mixing. The shafts of the sigma blades are fitted in bearing blocks which are each provided with roller bearings, steel glands/teflon rubber seals for smooth and leakless operations. The kneader is mounted on a sturdy base frame fabricated out of ISMC sections and are free from vibrations. For cooling and heating jackets are provided.   These types of machines are available in M.S. And S.S.contruction. The kneader can be tilted by means of a mechanical system or manually and for bigger models beyond 250 Kgs we provided hydraulic tilting.Hydraulic tilting system is provided with complete power pack, electric motor, pressure valves, pipes, fittings, cylinders and hoses which makes the tilting mechanism quick, easy and simple to operate.   Range of Products  * Triple Roll Mills * Ribbon Blenders  * Hydraulic Dissolvers  * Pug Mixers  * High Speed Mixers  * Planetary Mixers  * Batch type Sigma Mixer Machines  * Conical Blenders  * Continuous Sigma Mixer Machine  * Resin Plants  * Bead Mills  * Turnkey Projects   Applications  * Varnishes & Paints  * Resins, Glues, Adhesives  * Polyurethanes  * Pharmaceuticals  * Inks  * Chemicals  * Foods  * Lacquers  * Colourants  * Cosmetics

Siliconizing through recycling pump. Sterilization at 121oC. Drying with filtered 130oC hot air. Cooling by sterilized air of 20oC. Chamber can be inspected through loading door). Fully automatic operation based on PLC control (optional). Semi Automatic (Pneumatically Operated Ball Valave) Control Contact parts are SS 304 316. Process time about 8 hrs. IQOQDQ documentation(OPTIONAL). It is useful for prevention of micro biological contamination retairing flavour useful for treatment of spices, dried nuts, Foods Packed cereals etc.

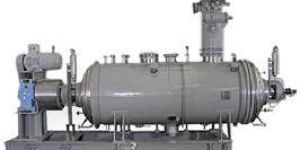

Rotary vacuum paddle dryer is a jacketed cylindrical vessel with a large diameter hollow shaft. Attached to the shaft are hollow paddles provided with specially designed scraper blades, which scrape the entire internal surface of the dryer and continuously move and rotate the material thereby precluding the possibility of material remaining in contact with hot surfaces for protracted periods of time. Slurrywet cake is charged through the charging door while keeping rotation of the agitator on. Vacuum is then applied to the dryer along with dust catcher (mounted on the dryer) condenser and receiver.

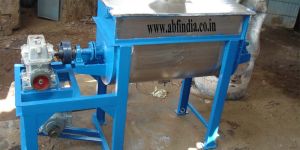

Ribbon blenders are widely used for homogeneous mixing of dry granules & powders. The blender comprises a 'U' shaft with two sets of spiral ribbons, one inside the other. Inner and outer ribbons are perfectly arranged, that during rotation, the material reaches each corner of the trough and imparts radial & linear motion to the whole of the material to be mixed. Our range of ribbon blenders are based on a proven agitator construction that provides a triple mixing action ensuring fast, efficient blending.

Suitable for homogenous mixing of dry powders of different bulk densities used in the Food, Mineral, Pharmaceutical, Paint & Chemical Industries. It is a simple versatile mixer which can also mix semi wet material. Ribbons of various designs are available to handle different materials. The mixer consists of a cylindrical shell inside which rotates a double helix shaft fitted with spiral inner and outer ribbons. During rotation of the shaft, the ribbons lift, convey and intermix the material to get a homogenous mass in short intervals. Discharge is from the bottom by a quick opening valve.  This type of Ribbon mixer is made up of S.S. or M.S. material. The sides of theRibbon blender are also made up of S.S. or M.S. material. It consists of a centre shaft of appropriate diameter and are either made of S.S. or M.S.material. The centre shaft is fitted with specially designed agitator blades in order to provide contraflow action. All the material in the mixer is constantly circulated from one end to the other. In larger mixer it is provided with inner and outer ribbons Sweeps maybe added to the outer ribbon to provide through clean out. The outer ribbons move ingredients towards the discharge while the inner ribbons contantly circulated material in opposite direction. The either ends of the vessel are provided with stuffing boxes on the shaft diameter. This stuffing box prevents leakage of material and also prevents material from entering into the bearings. The shaft is supported on heavy duty pedestals. The Ribbon Blender mixer is provided with a hopper and discharge. The drive consists of a suitable gear box coupled to the motor.     Range of PRODUCTs : Sigma Kneaders  * Ribbon Blenders Attritors  * Ball Mills Hydraulic Dissolver  * Planetary Mixers Batch type Sand Mills  * Conical Blenders Continuous Sand Mills Resin Plants Bead Mills Reaction Vessel ETO Sterilizer Reaction Vessel  Applications : * Varnishes & Paints  * Resins, Glues, Adhesives * Polyurethanes *  Pharmaceutical Products * Colourants * Chemicals * Inks * Lacquers * Foods * Cosmetics

Alkyd resins are manufactured from the condensation reaction between oil or polyols, acids, and alcohol. They are typically used as binders for coatings and printing inks. In particular, medium and long oil alkyd resins that contain high content of oilpolyols and modified alkyd resins undergo oxidation polymerization as air drying with the combined use of a dryer, and these are used in the coatings for industrial products.
