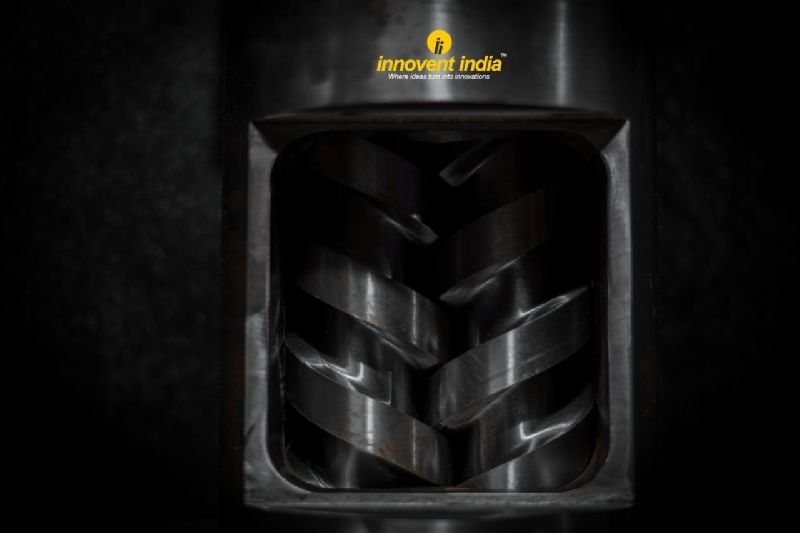

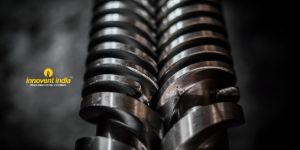

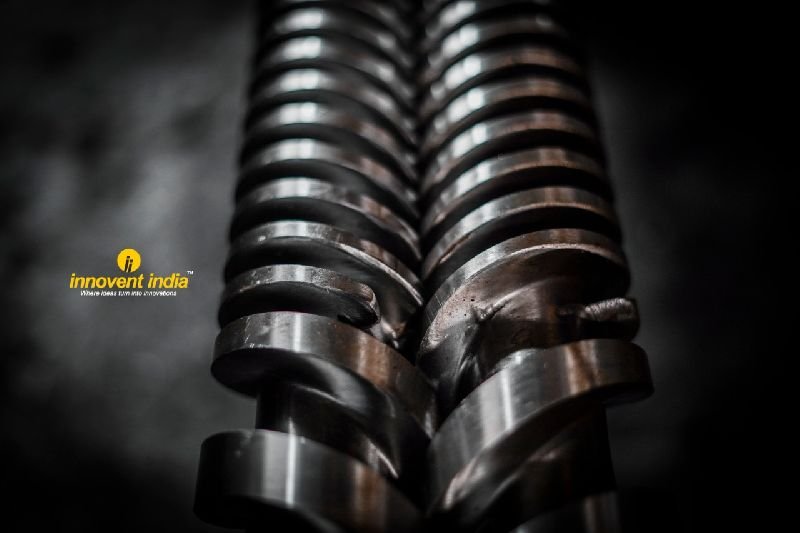

Twin Screw Barrel
Technical Specifications Accurate twin hole Dimension as per the requirement Corrosive Resistance Long Life & High Durability We can fulfill any kind of the twin Size code as per the requirement One piece Screw length up to 5000mm and Maximum of two pieces 9000mm Types of alloys we perform (bimetal) R121, R115, R215, R216, Nitride barrel AISI 4140, Nitralloy 135M, NS EN41B (TYPE MUSCO), DIN 41CrAlMo7, 38CrMoAIA, SKD11, Cr12MOV, 4Cr5MoSiV1, 42CrMo, 9Cr18MoV and many other types Processing Gas Nitriding Production timeline of within 4-6 weeks approx
Type : Twin
Material : Stainless Steel
Application : Fittings Use
Grade : AISI, ASTM, BS
Color : Grey
Feature : Durable, Non Breakable
Surface Finshing : Nitrided
...more

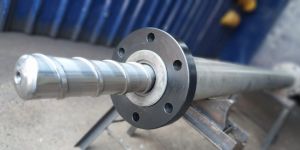

Single Screw Barrel
Technical Specifications : Accurate Dimension as per the requirement Corrosive Resistance Long Life & High Durability Capacity Barrel making of screw diameter 22 mm to 250 mm One piece Screw length up to 5000mm and Maximum of two pieces 9000mm Maximum Barrel OD performed up to 500mm Types of alloys we perform (bimetal) R121, R115, R215, R216, Nitride barrel AISI 4140, Nitralloy 135M, NS EN41B (TYPE MUSCO), DIN 41CrAlMo7, 38CrMoAIA, SKD11, Cr12MOV, 4Cr5MoSiV1, 42CrMo, 9Cr18MoV and many other types Processing Gas Nitriding Production timeline of within 2-3 weeks approx
Type : Single
Application : Fittings Use
Grade : AISI, ASTM, BS
Color : Grey
Feature : Durable, Non Breakable
Surface Finshing : Polished
...more

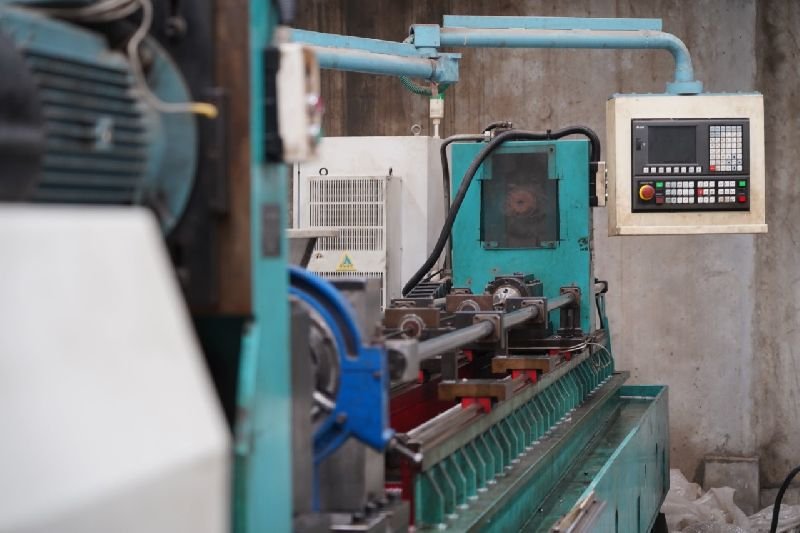

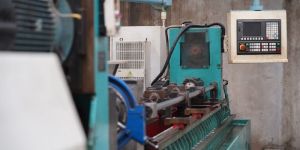

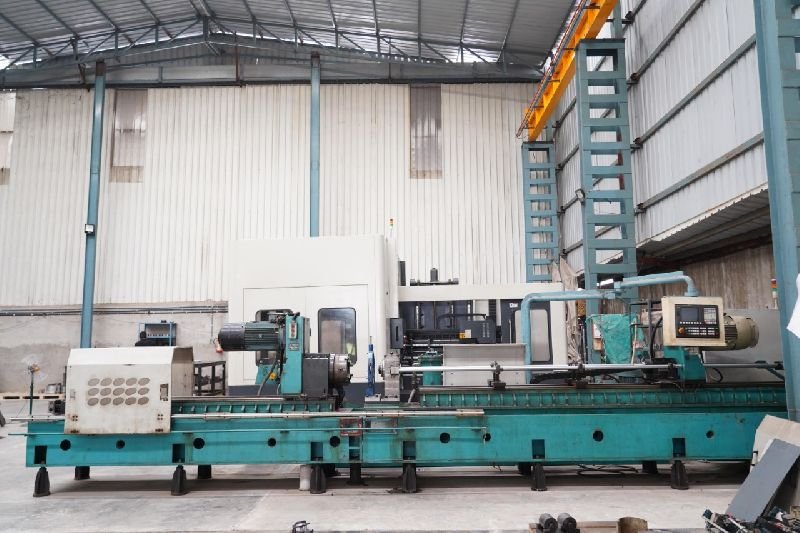

Gun Drilling Job Work
Gun drilling is a deep hole drilling procedure which is performed with the help of a long and thin cutting instrument to drill holes in the metal with higher diameter to length ratio. Gun drilling tools are differently abled to create deep hole which are generally not possible in ordinary lath drilling machine. This specialized system is capable to remove trimmed metal chips out of the tool even from the extreme depth with the help of liquid high pressure coolant oil.
...more

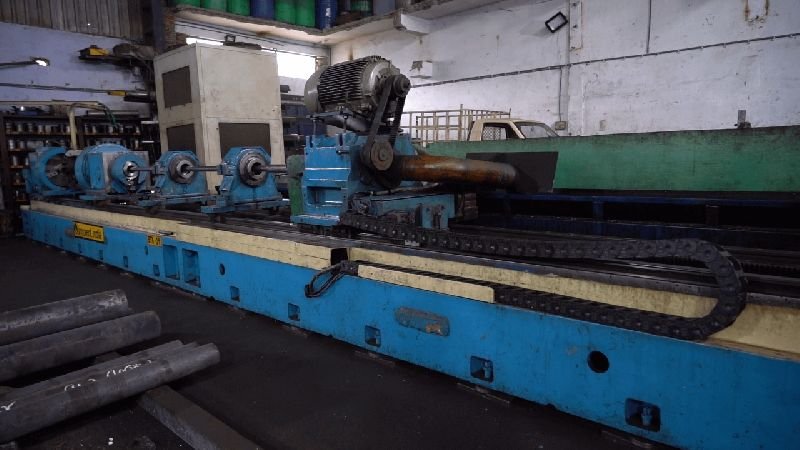

Deep Hole Honing Job Work
In Deep Hole Honing services, we are providing both, internal as well as external honing. Honing is nothing but an interior grinding process through which one can fabricate a standardized size and precise finish as required in hollow parts. We are capable for Deep Hole Honing, Size Capacity ID 25 to 300 mm & Length Up to 6000 mm. We have the set of perfect machineries to fulfill any kind of requirements related deep hole honing.
Inside Diameter Range : 40 to 400 MM
...more

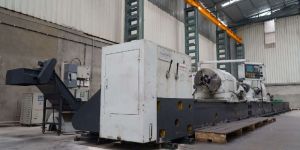

Deep Hole Drilling Job Work
Deep Hole Drilling is used to create holes in relatively large depth to diameter ratio. Normal drilling techniques only work where the depth is just more than five times the diameter. In this drilling technique, the ratio can be reached at 150:1, and any hole which is deeper than ten times the diameter must require a deep hole so for that, specialize deep hole drilling techniques require. We are specialized to perform Deep Hole Drilling of Size Capacity with ID 25 to 300 mm & Length Up to 7000 mm. By using a variety of deep hole drilling tools & techniques, we are proficient to satisfy our client's needs.
...more
Deep Hole Boring Job Work
Deep hole boring is the process of enlarging a hole that has already been drilled by deep hole drilling or deep hole gun drilling. The process of boring is performed to achieve the accuracy of the desired diameter. We have the capacity to deep hole boring of ID 25 to 300 mm, length up to 6000 mm. By using the on-going technologies in cutting and machine tools, we attain close tolerances, exceptional precision and surface finishes.
Feature : Cost Effective
Application : Industrial
...more
Cnc Turning Job Work
High precision CNC Turning is a manufacturing process in which bars of material are held in a chuck and rotated while a tool is fed to the piece to remove material to create the desired shape. Our precision CNC machining capabilities are driven by advanced CAD/CAM software for greater precision. We offer vertical machine centers and horizontal pallet changers with a table capacity ranging up to 78” wide by Whether the project is simple or complex, we are utilize three, four or five-axis machines to produce your parts in a fraction of the time at a high standard of quality.
...more
