Ridham Industries Vatva, Ahmedabad, Gujarat

Brand Name : WRI

Material : ALUMINUM,STAINLESS STEEL

Power Source : AC Three Phase

Voltage : 415V

Application Areas : Industrial Applications Food and Packaging Coating Analytical and Medical Technology Solar Cell Research and Development Semiconductor Technology Product and Application

Power : 0.37-5.5 kW

Number Of Stages : Double Stage

Material : Metal

Motor : 2-3 HP

Power Source : AC Single Phase

Details : All metal coil spring and wire rope isolatorsVibration isolation from 4.5 Hz upwards Interface - one fixture point to equipment and two fixture points to foundation (reversible) Exceptional reliability and lifetime Temperature range-290°F to +570°F Static loading per isolator: 1.1 lbf to 4.4 kipf Damping ratio - 5-10% (viscous equivalent)

Type : Spring Polycal

Material : ALUMINUM

Certification : ISO 9001;2008 Certified

Application : Industrial

Color : Brownish

Finishing : Polished

Dimension : 60-120 Mm

Height : 3-6 Inches

Load : 0-500 Kg

Tilting Type : Single Break / Double Break

Country of Origin : India

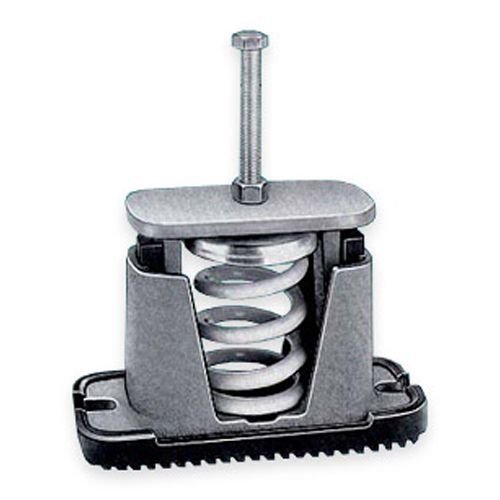

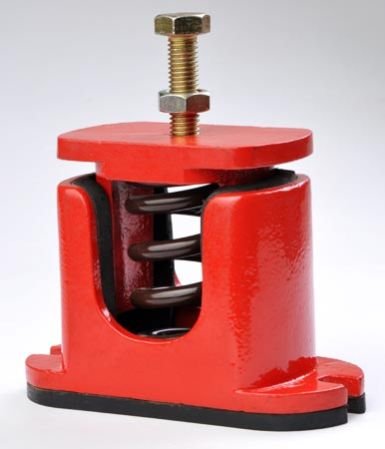

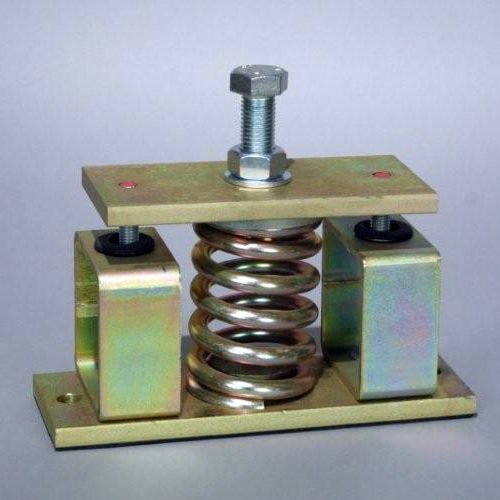

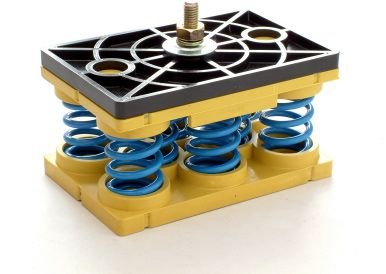

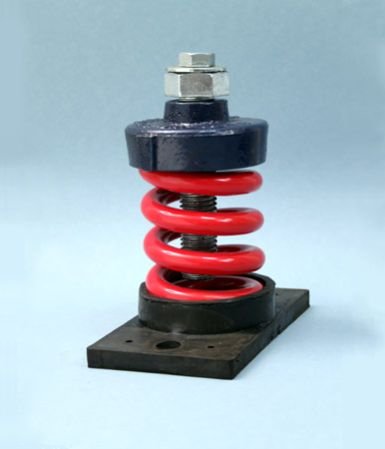

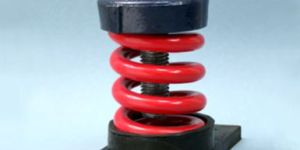

Function & Application of Spring Mounts/Vibration Isolators Floor Mounted : The function of Spring Mounts is to absorb vibration & vibration related noise of rotating machines like fan, Air handling units, Pump & generators etc. The function & Vibration Absorber by spring mounts will be better if you use higher deflection springs like 2″ or 3″. The efficiency goes upto 95%. The Restrained types of Spring Mounts are normally used for Chiller & Cooling towers for reducing the vibration. The function of restrained spring mounts is to restrained spring action during the maintenance of Chiller or Cooling Towers.Features of Spring Mounts/Vibration Isolators : Built in leveling device in all different types of Spring Mounts or Spring Vibration Isolators manufactured by RI. Anti skid elastomeric acoustical pad is standard with all RI Spring mounts. Vibration Isolators are provided with slotted mounting holes on base for bolting to floor. Cast Iron spring mounts can also be supplied with flattop or non skid neoprene top load surface in case of internal adjustment.

Application : Industrial

Material : Metal

Condition : New

Application : Fans, Fan coil Units, Ducts and Pipes

Material : MS and GI

Application Areas : Industrial Applications Food and Packaging Coating Analytical and Medical Technology Solar Cell Research and Development Semiconductor Technology Product and Application

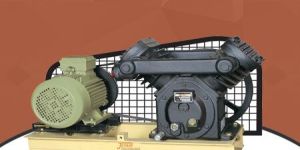

Number Of Stages : Single stage

Material : Metal

Power Source : AC Single Phase

Condition : New

Material : Isolated Rubber Mounted

Application : Industrial

Brand Name : RI

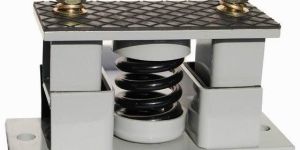

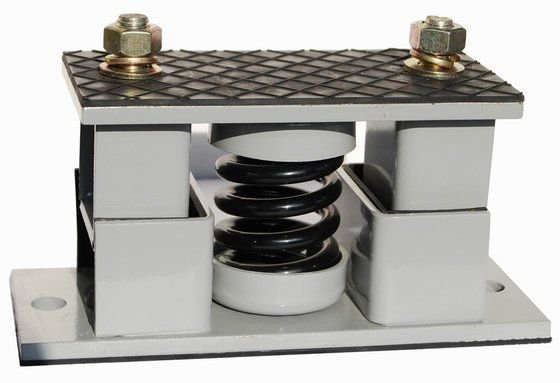

Application Of Seismic Restraints : Seismic vibration isolators are used for absorbing vibration & restraints seismic forces for air handling units, centrifugal fans, pumps & chillers etc when these units are installed near seismic zones.Function of Seismic Vibration Isolators : All seismic restraints are designed to withstand seismic forces of approximately 2G even at maximum rated load. All seismic vibration Isolators are suitable & safe for most critical applications (including Zone 4 areas). The function of Seismic Vibration Isolators is to absorb vibration of rotating machines & restraints Seismic forces from all direction during earthquakes Features Of Seismic Vibration Mounts : Built in leveling device in all different types of Seismic Isolators manufactured by RI. Anti skid elastomeric acoustical pad is standard with all seismic restraints. Can be supplied Seismic vibration mounts with shipping block for OEM companies. Seismic restraints prevent damages of equipment & building from seismic forces created because of earthquakes & there by save a lot.

Application : Industrial

Material : Metal

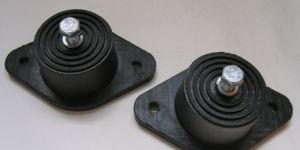

Function & Application of Rubber in Shear Mounts : The function & application of Rubber in Shear Mounts are to absorb vibration & noise of Fans, Fan Coil units, Fan Motor assembly of Air Handling units & Pumps etc. These rubber mounts are double deflection types which are having better efficiency comparing with single deflection rubber in shear mounts.Features of Double Deflection Rubber in Shear Mounts : The Rubber in Shear Mount is manufactured from high grade Neoprene. This material offers outstanding durability properties like Water/ Weather Resistance, Ozone Resistance & Oil resistance etc. Rubber in shear mount include top & bottom steel plates for uniform load distribution. Mounting holes furnished as standard.Features : Anti-skid top and bottom surfaces Mounting holes provided as standard Embedded steel plates for uniform loading Oil and water resistant High deflection Color coded for easy identification Notes : Models RSM-C and RSM-D have rectangular basesApplications : Air handling units Compressors Fans Pumps Equipments Generators Transformers RSM Series : RSM Series are elastomeric mounts which provide effective vibration control for all types of rotating machines.  The RSM Series double deflection rubber in shear mounts are color coded for identification of loading capacity and prevents installation errors.  The RSM Series have ribbed and non-skid bases.  No bolting of anchor bolts is required for machines that have no lateral motion.

Material : Rubber & Steel

Application : Ships, Power Packs, Blowers, Fans, Vibratory Feeders

Material : Rubber, Neoprene

Color : Black

Brand Name : RI

Shape : Rectangle,  Square

Features : Asymmetrical, 5 lobe 6 flutes rotor profile machined to the highest accuracy not only ensures reduced differential pressure between lobe and flute, but also assures lowest possible backflow. Adibatic efficiency is increased by 10912%. which translates into 25% energy saving as compared to the 4 lobel 6 flutes rotor profile.High Precision Machining Equipments : Highly specialized, most advanced machining and control equipments enable rotor macining/grinding accurancy to 0.005mm, with roughness allowance (Ra)) of 0.1~0.2 u m.Outstanding Design : Large in size , with low running rpm, Fusheng screw air-ends are more efficient and deliver more compressed air for the same driving power, Bearing design life can be assured by minimum vibration and bending stress of the air-end.Intelligent Control System : Consumable Parts Operating Hour Display Operating Conditions/Hour Display Warning/Trip Single Display Malfunction Recording 16 Compressor unit interlock control capability(Option) 1000 Control Unit functions/Capability

Voltage : 110 - 130 V

Power Source : AC Three Phase

Warranty : 12 months

Capacity : Upto 1500 CFM

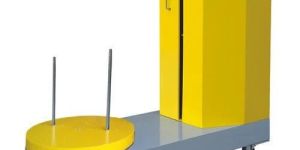

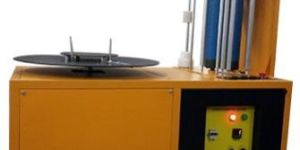

Description : Reel Stretch Wrapping Machine is a machine designed for packing Non-woven, coil, paper roils, rubber product and similar materials manufactured in small reels. This packing method can form a cocoon type packing. It is completely Moisture water & Dust proof packing and products the products.   Application : Reel Stretch Wrapping Machine is a machine designed for packing Non-woven, coil, paper roils, rubber product and similar materials manufactured in small reels.

Frequency : 50

Usage : Industrial

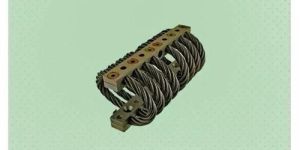

Details : All metal multidirectional wire rope isolators Combined shock and vibration isolation from 5 Hz upwards Interface - one fixture point to equipment and two fixture points to foundation (reversible) Exceptional reliability and lifetime Temperature range - -290°F to +570°F Static loading per isolator - 0.22 lbf to 1.1 kipf Damping ratio - 15-25% (viscous equivalent)

Mounting Type : Wire rope

Application : Garage,Industrial

Condition : New

Dimension : Standard

Accuracy : +-0.1% FS

Voltage : 260 V

Usage : Industrial

Power : 220 walt

Details : Compact metal multidirectional modular wire rope isolators Combined shock and vibration isolation from 5 Hz upwards Interface - two fixture points to equipment and foundation Exceptional reliability and lifetime • Temperature range - -290°F to +570°F Static loading per isolator - 0.22 lbf to 4.4 kipf Damping ratio - 15-25% (viscous equivalent)

Current : 1250A

Mounting Type : wire rope

Input Voltage : 33KV

Size : 33kv

Application : Electrical Isolators

Details : All metal multidirectional vibration/shock isolators Combined shock and vibration isolation from 5 Hz upwards Interface - two or four fixture points to equipment and foundation Exceptional reliability and lifetime Temperature range - -290°F to +570°F Static loading per isolator - 0.22 lbf to 11 kipf Damping ratio - 15-25% (viscous equivalent)

Application : Garage,Industrial

Mounting Type : Wire rope

Input Voltage : 4 - 20 mA

Condition : New

Dimension : Standard

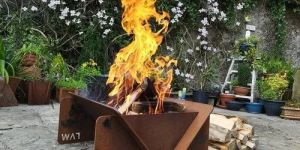

Material : Copper

Fuel Type : Wood

Size : 24\" 28\" 36\" inch

Brand Name : TWFP

Country of Origin : Made in India

Material : Iron, Stainless Steel

Condition : New

Size : 325X145X90mm, 250mm etc

Application : Engine Parts

Material : Steel, Plastic, PVC-U

Pressure : Medium Pressure, High

Application : Industrial

Condition : New
