Petrol Engine Test Rig Dealers in Ambala (10 products available)

Brand Name : ALPHA CHEM

Model Number : ALPHA CHEM-3974

4 Stroke 4/3 Cylinder Petrol Engine Motor Driven Alpha Chem is manufactures,exporter & suppliers of 4 Stroke 4/3 Cylinder Petrol Engine Motor Driven. 4 Stroke 4/3 Cylinder Petrol Engine - Motor Driven Actual Cut Section Working Model With Valve Timing Attachment.

Brand Name : KRISHNA

K : K

K : K

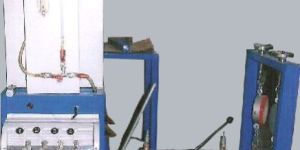

We are offering Multi/ four Cylinder Four Stroke Petrol Engine Test Setup. Td 103: multi/four cylinder four stroke petrol engine test setup description:- ic engines are widely used in automobile, domestic and industrial sector. they are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an ic engine. it consists of an ic engine, dynamometer, fuel measuring, air intake measuring and various other arrangements. Provision for mores test is done. experiments:- • to determine specific fuel consumption. • to determine brake horse power. • to determine brake thermal efficiency. • to determine mechanical efficiency • to determine indicated thermal efficiency utilities required:- • electric supply : single phase, 220 v, 5 amp. (required only for td-103b, td-103c) • continuous water supply : 10 lpm approx. • fuel : 10 liters. • floor area : 3m x 2m • tachometer : for rpm measurement technical specification: - engine a four stroke, multi cylinder, water cooled, self start, self lubricating petrol engine provided lubrication oil filter air cleaner, ignition coil, throttle control and clutch arrangement. type of loading td-103a - rope brake dynamometer rope brake arrangement fitted with the brake drum fitted on the engine shaft and provided with cooling water arrangement dial type spring balances in kg units. td-103b - electric brake dynamometer the engine is coupled with electrical alternator with resistance loading arrangement. Digital voltmeter and digital ammeter is provided. td-103c - hydraulic brake dynamometer it consists of weighing gear, control gear, a dead weight in kg unit suitable for testing the engine at different speeds. The engine and dynamometer are directly coupled on a substantial base plate. fuel measuring system 1 fuel measuring system consists of a fuel tank, a burette and a three way cock arrangement. air intake measuring system air tank fitted with orifice and water manometer. measurement of heat carried it consist of inlet outlet piping with flow control valve, water away by cooling water meter to measure the rate of flow of cooling water and thermometers for measuring inlet & outlet water temperature. panel board arrangement panel board arrangement consisting of, ignition & starting switch, a high voltage knife switch assembly for cutting off each cylinder for morse test. optional: exhaust gas calorimeter - made of stainless steel including the body & the tubes for cooling water circulation and designed to get maximum temperature difference. The body of the calorimeter is insulated on all sides to prevent heat losses due to radiation. Thermometers are provided to measure the temperature of water and gas.

IC engines are widely used in automobile, domestic and industrial sector. They are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an IC engine. It consists of an IC Engine, dynamometer, fuel measuring, air intake measuring and various other arrangements.

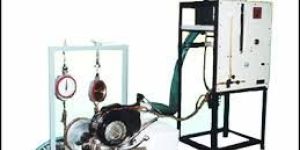

The setup consists of single cylinder, four stroke, petrol engine connected to rope brake type dynamometer for variable loading. The setup has stand-alone type independent panel box consisting of air box, fuel tank, manometer, fuel measuring unit. Experiments 1 Study of engine performance for power, efficiencies, fuel consumption, air fuel ratio Utilities Required Electric supply: Provide 230 +/- 10 VAC, 50 Hz, single phase electric supply with proper earthing. (Neutral – Earth voltage less than 5 VAC) Space: 3300Lx2900Wx1700H in mm Fuel, oil: Petrol: @ 10 liter, Lubricating oil: @ 1 liter (20W40)

Model : AMEL001

IC engines are widely used in automobile, domestic and industrial sector. They are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an IC engine. It consists of an IC Engine, dynamometer, fuel measuring, air intake measuring and various other arrangements.

IC engines are widely used in automobile, domestic and industrial sector. They are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an IC engine. It consists of an IC Engine, dynamometer, fuel measuring, air intake measuring and various other arrangements.

Offered engine is manufactured with utmost perfection by making use of optimum quality components and contemporary technology in tune with set market norms.
