PCC Panel
160,000 Per Piece
1 Piece (MOQ)
Type : Pcc Panel
Country of Origin : India
Phase : Three Phase
Automation Grade : Manual
Rated Voltage : 415 V
Rated Current : Upto 2000 Amps
3 Phase Submersible Pump Control Panels
Get Price Quote
10 Piece (MOQ)
Body Material : Metal
Power : 1-10 HP
Power Source : Electric
Application : Sub Pumps, Borwell
Voltage : 360V - 415V
Autoamatic Grade : Manual
Type : Submersible Pump Control Panels
Phase : Three Phase
Country of Origin : India
Features of PCP-1 Three Phase Panel for Submersible Pumps : It protects the motor from single phasing. It protects and guards the motor from over loading with its most accurate Thermal bimetallic over load relay. It also protects the submersible pump set motor by tripping instantly when the Water level decreases below the two dry run probe points. It is provided with an amps meter to read the exact current drawn by the motor and an volt meter with a push-to-on button. It is also provided with three individual phase indication neon lamps to make the user know which one of these phases have failed. A separate auto start can also be provided on demand, which is capable of restarting the panel automatically once the power in all the three phases resumes back. Features of PU-6 DOL controller : Upto 7.5HP Fitted with PE-1 relay & contactor with 380 V coil Single phasing preventer unit provides immediate protection Phase reversal protection for protecting motor from reverse running Auto restart (with 30-40 sec. delay) Pump ON and supply ON indicator Fitted with Volt-ammeter & Ammeter Indication of healthy supply connection : PU Contactor with molded coil Application : Reliable protection for three phase submersible pumps upto 7.5 HP Suitable for open well submersible pumps & Borewell submersible pumps Protection from : Single - Phasing Overload Conditions Phase Reversal
Best Deals from Control Panels
Mild Steel Automatic Mains Failure Control Panel
50,000 Per Piece
1 Piece (MOQ)
Material : Mild Steel
Certification : ISI Certified
Feature : Maintenance Free, Perfect Shape, Shock Proof
Frequency : 50Hz
Power : AC
Rated Voltage : 230 Watt (W)
MCMS Control Panel
40,000 - 50,000 Per Piece
Application : Control Panel
Color : Grey
Voltage : 380V
Body Material : Mild Steel
Power Source : Electric
Autoamatic Grade : Semi Automatic
Manufacturer : FCG Hi-Tech Pvt. Ltd
As per Requirement Machine Monitoring Control Panel Based On Bently 1900 / bently 3500 and Shinkawa System Instalation in Control Room or Purge Panel. Mainly for Compressor Control and Main Line Pump Application.
motor control center panels
1,000 - 1,500 Per Piece
1 Piece (MOQ)
Size : Multisizes
Type : Motor Control Panels
Color : White
Body Material : ABS
Power Source : Electric
Autoamatic Grade : Fully Automatic
Metering Panel
Get Price Quote
Type : Automatic
Material : Metal
Shape : Rectangle, Square
Certification : ISI Certified
Application : Industries, Power House
Frequency : 50Hz
Connection Type : 4 Way, 6way
Phase : Double Phase, Single Phase
We are actively engaged as Manufacturer and Supplier of hi-tech Metering Panels in India. Monitoring current voltage signal fluctuations, these Metering Panels are attributed with durable standards, easy functionality, matchless performance and high resistivity. Thanks to their precise construction, by our adroit engineers. We meticulously pack the quality-checked Metering Panels, for ensuring defect-free delivery. Also, our prices are budget-friendly. Further, we address bulk queries too!
Electrical Panel
Get Price Quote
Type : Electrical Panel
Material : Metal
Application : Industries
Feature : Dust Proof, Excellent Reliabiale
Warranty : 1 year
Conditon : New
Minimum Order Quantity (MOQ) : 1 Unit

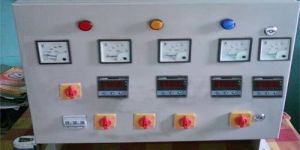

digital control panel
Get Price Quote
Application : Control Panel
Voltage : 220V
Body Material : Mild Steel
Power : 3-6kw
Power Source : Electric
Phase : Three Phase
Autoamatic Grade : Automatic
Electric Power Distribution Panels 1
Get Price Quote
With its client oriented service for past several years, our company has gained a renowned name and fame in the market for the manufacture and supply of a wide array of Electric Power Distribution Panels. These Electric Power Distribution Panels are one of the most required and necessary equipment for industrial purposes where there are provisions of complex electrical circuits and costly machinery. Electric Power Distribution Panels are generally connected to the main power source and are meant to control even and regulated power dissipation in the circuits. Electric Power Distribution Panels are available at a very convenient and exiting range of prices at our company.Features Cost effective Reliable work performance Smooth and hassle free functioning Equipped with easy controlling switches and regulators Provided with LED indicators and meters Robust and durable construction

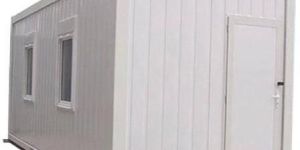

Cold Room Panel
Get Price Quote
Country of Origin : India
Panel Material : Metal
Shape : Rectangle
Usage/Application : Industrial
Coating : Powder Coated
Size : Customize
Cold Room PUF Panel
1,450 Per Square Meter
1000 Square Meter (MOQ)
Material : PUF
Color : White
Thickness : 60-80 Mm
Application : Coldrooms and chillers
Brand Name : Prince Global
Surface Treatment : Color Coated
Plc Control Panel
Get Price Quote
1 Piece (MOQ)
Material : Metal
Application : Factories,Industries
Phase : Double Phase
Solar Panel
Get Price Quote
The range we offer to the customers is stringently packed and delivered as per the customers' requirement and convenience. The offered lot is reckoned for its quality and reliability as it is prepared using the best available resources. Also, we make sure that the material is sourced from the certified places. Our Solar Panel has a sturdy body with a sleek design and a long service life.
Aluminium Composite Panel Cabin
Get Price Quote
Type : Control Panel Cabin
Application : Industrial use
Color : White, green
Condition : New
Feature : Durable, High Performance
We are a leading manufacturer and supplier of Aluminium Composite Panel Cabin from Karnataka, India. We make use of the latest technology and premium quality raw material to manufacture these cabins. Our product’s excellent design, durability and aesthetic looks are some of the attributes that helped us gain popularity across the country. Furthermore, we give priority to our customer’s requirements while designing the Aluminium Composite Panel Cabin. Our service and delivery is always on time.
Puf Insulated Panels
1,100 - 1,525 Per Square mtr
6.42 Square mtr (MOQ)
Finishing : Polished
Tolerance : : +/- 0.002
K value (Thermal conductivity of PU) : : 0.019 W/mK
Shear Strength : : 100
Compression Strength : : 100
Tensile Strength : : 150
A Flame Spread Property: B3 as per DIN 4102 (B2 & PIR upon request) Insulation Capacity
Mimic Panel
5,000 - 100,000 Per Piece
Warranty : 1 Year
Application : Industrial
Power : 10 - 20kw
Certification : CE Certified
IP Rating : IP 65
Light Source : Electric
Mcc Panel
Get Price Quote
We are documented as one of the leading manufacturers of (motor circuit control) MCC panels. Designed to perfection, these are widely renowned for simple operation and low maintenance. These have the capacity to feed larger loads and are designed as per the client’s specifications. The MCC panels are conventional to the international standards and are available with multiple power stabs that help in supporting high capacity industrial motors.Attributes : Simple operation Minimum maintenance Feeds larger loads Multiple power stabs Durable Rust resistant Applications : Power looms Steel plants Rice Mills Refinery Cement Plant
Sf6 Breaker Panels
5,000 - 10,000 Per Piece
Rated Current : 630A,800A,1250A,2000A,3150A
Dimension : W800 x D1350 x H2100 mm
Breaker : SF6 breaker (HPA)
Supply Voltage : 3.3kV,6.6kV and 11kV
Short Time Current Rating : 40 kA
Degree of protection of panel : IP4X,IP5X
Panel Model : SF6 Indoor Panel (Power + F)
Busbar : Electrical grade Aluminium or 99.9% Oxygen Free Copper
The Power +F are an Indoor SF6 Switchgear Panels. For compactness in panels rated up to 2000A special bus raiser panel is provided with bus coupler panel extended in the rear side. IP4X degree of protection is provided externally and IP2X between compartments. Panels shall have adequate space for terminating large cable sizes. Features: Modular & compact for better strength and flexibility in extension. Fully Compartmentalized construction for optimal safety and protection For compactness in panels rated upto 2000A special bus raiser panel is provided with bus coupler panel extended in the rear side. IP4X degree of protection is provided externally & IP2X between compartments. Our design enables adequate space for large cable sizes. Even larger cables and additional runs rear extension is provided for cost effectiveness. Independent exhaust vents for all HT compartment are provided for natural cooling and exit for any flue gasses. Dedicated Circuit breaker compartment as per internationally proven ABB design. Cassette mounted ABB Circuit Breaker with draw out feature for easy maintenance and fail-safe safety. Live parts covered by automatic metallic shutters when breaker is racked out. Electrical anti-pumping design avoids mishaps due to mishandling of the breaker. Additional feature includes a separate Racking in/out mechanism which is provided in the breaker which can change from test to service positions and vice versa with the cubicle door closed. Only Branded and type tested sub components are used in our panels. Current and Voltage transformers are placed in chamber below Circuit breaker to avoid any kind of flashovers which may damage the breaker. Wiring done with flexible copper cable affirming to IS 694 for Longitivity and Durability. Optional integral earth switch can be provided on the cable side for Earthing. We provide Foundation frame as standard supply All hinged doors are provided with gaskets to keep away dust and water from the electrical components. Multiple guides are provided for safe and sure engagement of fixed and moving contacts. Breaker trolley shall be given along with the breaker panel for maintenance. Our Design Standards: Breaker IEC 62271-100 Current transformer IS 2705/1992 and IEC 60044-1 Potential transformer IS 3156/1992 and IEC 60044-2 Busbar IS 5082 for Aluminium Sheet Steel: IS 513 Cables IS 694
Non Flameproof Panel Board
Get Price Quote
We are offering non flameproof panel board. the company holds specialization in providing to the esteemed clients non flameproof panel board. Sturdy and durable are some of the unique features of non flameproof panel board that we provide in the markets. specifications : longer service lifeimmersion proofresistance to harsh weather conditionsoil resistanthigh speed capacity : up till 32 amps
Load Tap Changer RTCC Panel
Get Price Quote
On Load Tap Changer (OLTC) – 13, 17, 19 tap positions. AVR (Automatic Voltage Regulator) Buchhozyl Relay Oil Temperature Dial Type Indicator Winding Temperature Indicator with CT & Sensing Device Marshalling Box Magnetic Oil Gauge
Control Panel
Get Price Quote
Voltage : 380V
Phase : Three Phase
Features : Corrosion resistant, Minimum Maintenance
Material : Metal
Frequency Range : 50/60Hz
Temperature Range : 10 To 70 Degree C
Battery Backup : 12 Hours
Condition : New
With substantial warehouse that is sprawling over large area, we have the capability to partner with management in performing the detail processes that require handling of the tasks such as sourcing, inspection, internal replenishment to picking positions, packing and shipping. Headquartered in Karnataka(India), we are acknowledged for providing excellent products domestically.
Power Control Panel
50,000 - 5,000,000 Per 1 unit
1 Piece (MOQ)
Product Name:PCC : Sheet metal 1.5 mm thick, powder coated to RAL 7032
Industrial use : 2500A 415V, 3phase system
Major components: Schneider Electric : Form -4 construction
Power control centre, 2500A 3phase customized as per requirement. As per IEC 61439, with incomer as ACB OR MCCB AND outgoings as MCCB,s. panel construction: compartmented type form-4 construction
kunal access panels
Get Price Quote
Brand Name : KUNAL
Material : Aluminum and Gypsum
Finishing : Polished
Shape : Rectangle, Square
Color : Green and White
Condition : New
Opening Style : Cluch
Application : Industrial Use
Size : 300mmx300mm, 600mmx600mm, 450mmx450mm
Grade : Commercial Grade
Type : Access Doors
Country of Origin : India
Fire Alarm Panel Board
5,200 - 22,000 Per Piece
1 Piece (MOQ)
Country of Origin : India
Type : Fire Alarm
Application : Industrial
Color : Red
Feature : Durable, Quality Assured
Programmable Logic Control Panel
Get Price Quote
PLC panel are designed to control electrical power supply using programmable Control Logic Processor. The processor fitted into the panel structure is connected through wires with reed switches, push buttons and proximity detectors to its input cards. And the same processor is also connected to motor contactors, indication lights and control relays which are the output field devices through wires. PLC panels are commonly called automation panels and are widely used in industrial automation process, commissioning and processing unit. Small to big manufacturing units use these PLC panels to control the production line. PLC panels are also popular in automobile and electronics manufacturing units. Keeping in mind the need of industries, we have fabricated a range of high quality PLC Panels with some salient features: We use optimum quality components for engineering this range, which are procured from authentic vendors of industry. Our range conforms to all the industry standards and is available in the specifications mentioned by our clients PLC panels are designed for easy monitoring and controlling which makes process error free PLC panel is fitted with high capacity processor which gives reliable performance Both the input and output connectors used in the PLC panels are of premium quality We manufacture a quality imbibed range of Control Panels as per the specifications and drawing provided by our customers. These are widely appreciated by our clients for its features such as durability and are robust to endure thermal and mechanical stress to ensure enhanced working efficiency. We ensure that our range of Control Panels meet quality norms of international standards and provide our clients with maximum satisfaction. Some of the striking features of our control panel fabrication are: Fabrication done with precise engineering and using advanced technology Available in required dimensions and mechanical plus electrical specifications Instrumentation Panels and Process Automation Systems Instrumentation panels are also manufactured complete with mimic diagrams, electrical wiring to the needs of large process industries. Instrument Panel using Process Control Equipment Desk Type Panel with Mimic, Touch Screen, MMI, SCADA System AC/DC Drive Panel PLC Systems PLC with MCC System with work station (SCADA) Pneumatic System Workstation Console Control Desk And Mimic Panels Custom-made control desks, with fiber glass or acrylic mimic diagrams, completely equipped with annunciation equipment, are designed and manufactured by us for all types of Process Control Industries. The mimic diagram is suitably housed on the front sloping vertical portion of the desk and the actuating pushbuttons and pilot lamps are housed on the horizontal sloping deck. Control gear equipment, like contactor, relays, and terminal blocks etc. are mounted both in the rear and in the front of the control desk. We also manufacture / supply special Panels like Alarm Control Panel Fire Alarm Control IP 55 Panels
Synchronisation Panel Boards.
Get Price Quote
Design of S-AMF panels as per installed Synchronised AMF panels, we undertake projects Synchronisation with GRID. We have designed for pojects paralelling Multiple Turbine generators. Further we have designed for paralleling DG sets with Multiple STG;s. The displayed Synchronisation panel was manufactured and installed for kerns Liebers Springs and Stampings. The Paralled sets were 625 - 625 - 125 KVA DG sets of Volvo,Kirloskar and Ashok Leyland makes respectively. We manufacture Acoustic(Sound proof canopy) for the DG set built in high quality steel and sound attenuating material reduces noise emissions to a minimum. It has easily accesible service and maintainance points through the large doors which contribute to the ease of service of the machine. Sound proof materials used are fire proof. Acoustic is detachable type and can be moved from one place to other. Acoustic frames are fitted using bolt/nuts. The Sound Level at distance of 1 meter is 75 Decibels. The Acoustic is generally powder coated, on request can be sent with only red oxide so that you can paint it as per your needs. The acoustic in the picture sent is Powder coated with Orange/black color. This acoustic is for 25 KVA Genset. DEEPANKURAM have a well-seasoned team, which has total experience of over 150 acoustics. Extreme Care is taken while Acoustics manufacturing not leaving behind any minor defects. The sound proof material used is Glass/Rock wool which are imported from Dubai. The Inner part of the frame is filled with Glass/Rock wool and perforator sheet on it and Punched GI sheets are covered on that. Rivets are used to fix GI Sheets to Frames. The Noise level at a distance of 3 meter is 75db in free field conditions. We also manufacture acoustics for other OEM's.Accoustics done at Deepankuram ranges from 25 kva to 500 kva. The acoustic costs are based on Engine capacity, make, and place available in the site, as these factors are contribute for manufacture of acoustic.
Meter Board
500,000 Per 0
Meter Board, distribution switchboards, Ac Drive Panel, Dc Drive Panel
single phase control panel
1,500 Per Piece
8 Piece(s) (MOQ)
Type : Single Phase Control Panel
Color : White
Voltage : 220V
Application : Submersible Motor
Body Material : Mild Steel
Power Source : Electric
Phase : Single Phase
Autoamatic Grade : Manual
Brand Name : PrakashMaruti
with the valuable assistance of skilled team of professionals, we are engaged in offering an extensive range of high quality single phase control panel..
Control Desk
60,000 - 80,000 Per UNIT
1 UNIT (MOQ)
Country of Origin : India
Type : Control Desk
Application : Industrial
Color : Silver, White
Voltage : 1 Yr
Condition : New
Control room console desk moc & bom modern consoles has rack mount capacity below the work space. Construction : -2mm thick crca framework. - front and rear shutters and lock. -shutters can be with clear acrylic window or with natural ventilation to forced cooling . aluminium profile slatwall work surface : surfaces are made of 25mm pre-laminated mdf/solid acrylic. Finish : all metal items are powder-coated mdf & solid acrylic can be selected from standard colours and finishes. Side panel;cosmetic dual coloured panel
Puf Panel
Get Price Quote
Size : Multisizes
Type : Sandwich Puf Panel
Material : Aluminium, Polyurethane, Steel
Shape : Sandwich
Thickness : 8.5-9mm, 25MM
Application : Roofing, Wall Insulations
Color : Green, Red, Sky Blue
Feature : Durable, Good Quality, Water Proof
Condition : New
Finishing : Polished
