Dynamic Air Engineering (india) Pvt. Ltd Keelakattalai, Chennai, Tamil Nadu

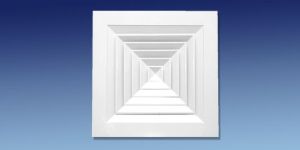

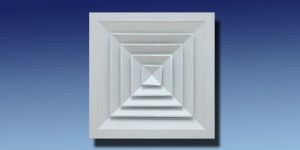

Manufactured in high grade aluminium sheet.  Core is easily removable to facilitate damper adjustments.  Available in 1-way, 2-way, 3-way and 4-way model.  To Suit Armstrong Board Tile (Modular Ceiling) of Size 600mm x 600mm. Diffuser have a flush face that provides an architecturally pleasing appearance. With or without VCD available.  Standard Finish: Natural anodized & Powder coated.

Manufactured in high quality aluminium sheet.   Swirl diffuser  designed for ceiling mounting and has fixed pattern of air diffusion. Swirl diffuser provides an excellent indoor climate, even when the temperature of the supply air is below the room air temperature.  Swirl diffuser composed with pre-rotation vanes which are vertically arranged. Standard finish : natural anodized & powder coated.

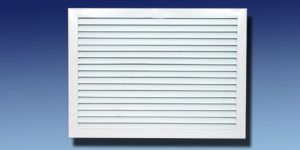

Manufactured in High Quality Aluminium extrusion profiles. Finned blades provide horizontal airflow pattern.  Air Flow Controlled by Volume dampers.  Standard Finish: Natural anodized & Powder Coated.

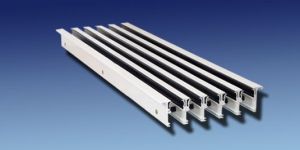

Manufactured in High Quality Aluminium extrusion profiles.  Attractive design Slot Diffuser made out of Extruded Aluminium mainly for the installation into ceiling and sill. Can be installed on walls also. Available for 1 to 8 slots additional on request.  Horizontal or Vertical air discharged by adjustment of air deflection blades. Fine control of air by means of integral air straightener and hit and miss damper.  Manufacture by mechanical assembly to assure rigidity and maintain straight line appearance.  On multi slot diffuser, each slot is individually adjustable. Standard Finish: Natural anodized & Powder coated.

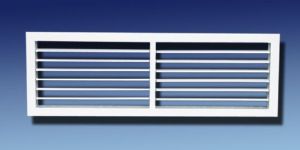

Manufactured in high quality aluminium extrusion profiles.  Grilles are suitable for duct ceiling, and side wall application.  Horizontal deflection blades are adjustable by manually.  Designed with nylon bushes for efficient and smooth operation.  With or without opposite blade damper. Standard Finish: Natural anodized & Powder coated.

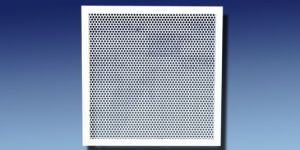

Manufactured in High Quality Aluminium Sheet and extrusion profiles.  Ideal for Supply / Return air Through False Ceiling. Accurately Punched perforations using CNC Machine.  To Suit Standard Tile Size of 600mm x600mm or 600mm x 300mm. Non Standard Size also Manufacture upon Request. Standard Finish: Natural anodized & Powder coated.

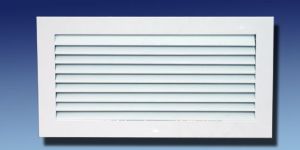

Manufactured in High Quality Aluminium extrusion profiles. Designed to ansure free air floor. Constructed out of extruded aluminium sections, comprising a front section with inverted 'V' Horizontal blades borders countersunk for screw fixing.  The grilles are made to withstand the heavy use to which door grilles are subjected.  Standard Finishes: Natural anodized & Powder Coated

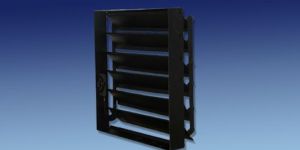

Manufactured in High Quality Mild Steel or Galvanized Iron. Designed to control air volume in all handling Accessories like grilles and diffusers. Opening Mechanism like Screw or handle types are available. Standard Finish: Natural anodized & Powder coated.

Jet diffuser is made up of high quality aluminium. Jet diffuser are designed for use in large areas long throw such as sport centres,theatres, airport,entertainment and industrial area. Jet diffuser suitable for air conditioning evaporative cooling or ventilation application. Jet diffuser can be rotated by 360 degree by adjusting the core. Jet diffuser  are available in with or without panel. Standard Finish: Natural anodized & Powder coated.

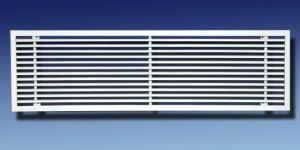

Manufactured in High Quality Aluminium extrusion profiles.  Grilles are available in 0°,15°,30° & 45° Deflection. Grilles are Designed for Supply and Return air. Distribution in any handling application and are Suitable for sidewall, Floor, Ceiling Mounting. Manufactured by a Mechanical Assembly to assure rigidity and Maintain Straight Line, Appearance.  Grilles are Supplied with spacer for fixing purpose. Standard Finish: Natural anodized & Powder coated.

Manufactured in High Quality of Heavy duty Aluminium extrusion profiles. Structure is Heavily Constructed with face bar position in frame.  Fine Solution for underfloor air distribution System.  Standard Deflection are 0 Degree only.  VCD as optional. Non-Standard Size also Manufacture upon Request.  Applicable for installation in computer room, Hospital, Sports Hall, Gymnasium & Textile Mills. Standard Finish: Natural anodized & Powder coated.

Manufactured in High Quality Mild Steel or Galvanized Iron. Designed to closed Automatically to seal of Draft of a incase of fire. Fire damper can be Operated by Fusible link. Standard Finish: Heat Resistance paint.

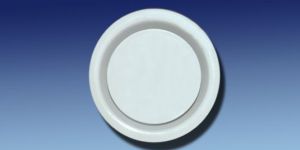

Manufactured in high quality galvanised steel. Supply and exhaust valves are designed for use in entertaiment and industrial and toilet areas. Disc valves suitable for air conditioning or ventilation applications. Air flow can be easily adjusted by rotating the centre cores.  Disc valve can be side wall mounted or directly on rectangular or round ducts. Standard Finish: Natural anodized & Powder coated.

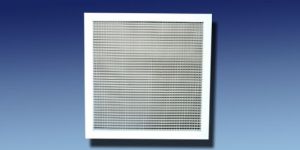

Egg crate is made up of high quality aluminium extrusion Egg crate have fixed core pattern Egg crate are used for return air ,exhaust air or fresh ventilation application Grilles are constructed from light weight corrosion resistant aluminium with opening free area of 90 % egg crate  Standard finish: natural anodized & powder coated

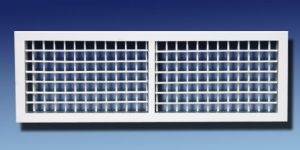

Manufactured in high quality aluminium extrusion profiles.  Grilles are suitable for duct ceiling, and side wall application.  Horizontal and vertical deflection blades are adjustable by manually.  Designed with nylon bushes for efficient and smooth operation.  With or without opposite blade damper. Standard Finish: Natural anodized & Powder coated.

Manufactured in high grade aluminium sheet.  Core is easily removable to facilitate damper adjustments.  Available in 1-way, 2-way, 3-way and 4-way model.  Diffuser have a flush face that provides an archiatecturally pleasing appearance. With or without VCD available.  Standard Finish: Natural anodized & Powder coated.

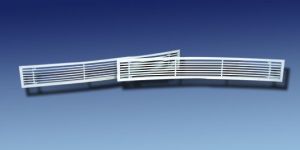

Manufactured in High Quality Aluminium extrusion profiles.  Grilles are available in 0°,15°,30° & 45° Deflection. Concave & Convex models are available. Supply and Return air Grille available upto a length of 3 meters with minimum Radius of curvature of 1 meter. For Perfect unborn appearance of continuous runs, alignment Strips are provided.  Grilles are Supplied with spacer for fixing purpose. Standard Finish: Natural anodized & Powder coated

Manufactured in High Quality of Aluminium extrusion profiles.  Grilles are available in 0°,15°,30° & 45° Deflection. With or Without VCD available. Standard Finish: Natural anodized & Powder Coated.

Manufactured in High Quality of Aluminium Sheet.  Draft Free 360 air distribution Pattern.  Flush, Half Step, Full Step Configuration Available.  With or Without VCD available. Standard Finish: Natural anodized & Powder Coated.

Manufactured in high grade aluminium sheet.  Core is easily removable to facilitate damper adjustments.  Available in 1-way, 2-way, 3-way and 4-way model.  To Suit Armstrong Board Tile (Modular Ceiling) of Size 600mm x 600mm. Diffuser have a flush face that provides an archiatecturally pleasing appearance. With or without VCD available.  Standard Finish: Natural anodized & Powder coated.

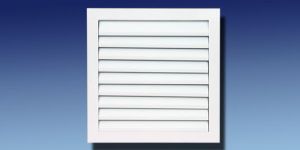

Manufactured in High Quality Aluminium extrusion profiles. Designed for both Fresh air intake and exhaust air applications.  Frames and Blades are Made out of Extruded Aluminium. Louver at angle of 45 Degree. Optional accessories - Bird Screen.  Standard Finish: Natural anodized & Powder Coated.

Designed with Nylon Bushes for efficient, Smooth and quiet operation & to avoid rattling noise. Opposed blade design to ensure proper regulation of air. Ideal for Diffusers, Grilles etc. Opening mechanism like Screw, Cam or Handle types are available.

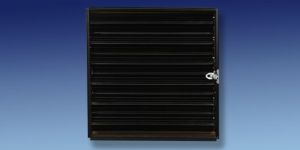

Manufactured in High Quality Aluminium extrusion profiles. Designed with Nylon Bushes for efficient, Smooth and quiet operation & to avoid rattling noise.  Opposed blade design to ensure proper regulation of air. Ideal for Diffusers, Grilles etc. Opening mechanism like Screw, Cam or Handle types are available.  Standard Finish: Natural anodized & Powder coated black matt.

Standard construction is galvanized steel Access door are suitable for high ,medium or low pressure system Frames is provided with lock and handle for air tight door closure Frame is provided with neoprene gasket to avoid air leakage and noise Access door are available in with (or) without insulation Standard finish: natural anodized & powder coated
