FlowZeal Controls Guindy, Chennai, Tamil Nadu

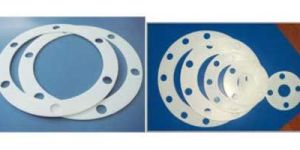

Filled PTFE (Teflon®) gaskets are made from PTFE which integrates additives and fillers in order to improve the performance of the gasket. This improves the gaskets ability to wear and enhances its unique combination of chemical, physical and electrical properties. Filled Teflon® is the most common type of PTFE gasket for industrial use as it exhibits improved mechanical strength compared to Virgin PTFE. Glass, carbon and fiber particles are typical fillers that are used to enhance the mechanical strength of the gasket depending on the application.

Type : 3/2 way, 5/2 way Body : Alluminium Pressure : 2.5 to 10 kg/cm2 Connection : 1⁄4”

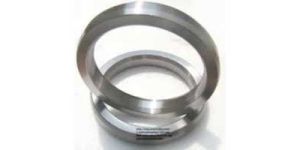

Ring Joint Gaskets are suitable for high pressure and high temperature applications. The Joint Gaskets are available in R, RX, BX styles and in oval/octagonal profiles. Ring Joint Gaskets fully comply with the ASME B16.20 standard and the API spec 6A requirements (where applicable).  Size: 1⁄2” to 36” Types: R Ovel, R Octagonal, RX, BX Material Of Construction: Soft Iron, SS 304, SS 316 ..etc.

Type : Air Filter + Regulator + Lubricator Connection : 1⁄4”, 1⁄2” and 1” BSP Body Material : Alluminium Alloy Die Cast Filter Element Material : Plastic Spring Range : 0.07 – 0.7 bar, 0.21 – 2.10 bar, 0.35 – 3.50 bar, 0.7 – 7.0 bar Gauge Range : 0 – 2.5 kg/cm2, 0.4 kg/cm2, 0 -6 Kg/cm2 Regulator Type : Relieving

We manufacture all grades of PTFE

Country of Origin : India

Type : Industrial Seals

Brand Name : FLowZEAL

Certification : ISO 9001:2008 Certified

Warranty : 2 Year

Sealing Type : Single Spring

Shape : Round

Material : PTFE

Usage : Arrest Leak

Condition : New

Finishing : Polished

Color : Black

Material Grade : PTFE

Suitable For : High Temperature

Automation Grade : Automatic

Outer Diameter : 5mm

Specialities : Good Quality

Packaging Type : Packet

Size (Inches) : 2Inch, 4Inch

Overall Dimension (LXBXH) : 390X170X360mm

Seal Width : 10mm

Thickness : 10-20mm

Seal Length : 100mm

Working Pressure : 40

Working Temperature : 180

Max Hardness : 90

Shaft Speed in RPM : 3000

Tensile Strength : 17

Temperature Range Deg C : 180

Tolerance : .01

Size : 1⁄2” to 4” Body : ASTM A351 Gr. CF8/ CF8M/ CF3M Seat : Buna-N (Water)/ PTFE (Steam) Diaphragm : Buna-N (Water)/ PTFE (Steam) O-Ring : Buna – N Spring : Spring steel Adjusting stem : SS 304 End Connection : Screwed / Flanged Pressure Range : 10 – 35 PSI (Low Level) Temperature Range : 80°C (for Water), 180°C (for Steam) : Max Inlet 40 Kg/cm2, Outlet 12 – 25Kg/cm2, 20 – 35Kg/cm2

Type : Electro Pneumatic/ Pneumatic Input Signal : 4 – 20 mA Output Characteristic : Linear/ Rotary Supply Air Pressure : 20 -100 Psi Material : Alluminium Die Cast

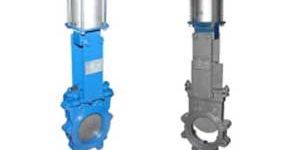

Size : 11⁄2” to 40” Body : CI/ SS 316/ SS 317L Knife Plate : SS 304/ SS 316/ SS 317L Yoke : Carbon Steel/ SS 304 Stem : SS 316 or SS 304 Packing Flange : SS 304 Seat : Resilient/ Metal to Metal Stem Nut : SS 304 Self Locking Gland Packing : Graphite and PTFE impregnated Synthetic yorn Hydraulic Test Pressure : Body: at 5 Kg/cm2, Seat: 2.8 kg/cm2 Pneumatic Cylinder Details Barrel : Stainless Steel End covers : Graded Cast Iron Piston : S. G. Iron/ CI Piston Rod : Stainless steel Seals : Nitrile Working Pressure : 4 to 12 bar Operating Pressure : upto 85°C

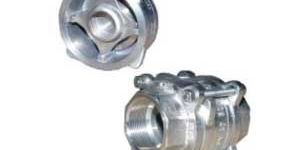

Size : 1⁄2” to 4” Screwed End, 1⁄2” to 10” Wafer type End Body : WCB/ CF8/ CF8M/ CF3M Disc : AISI 304/ AISI 316 Spring Retainer : AISI 304 or AISI 316 Disc Seat : Metal to Metal EPDM/ Nitrile – Soft Seated for water, PTFE/Viton – Soft   Seated for oil & Gases

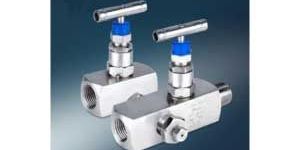

Size : 1⁄4” to 2” Screwed Body & Bonnet : CF8/ CF8M Seals : PTFE Pressure : 350 Kg/cm2 (5000 PSI) Temperature Range : 200°C Leakage : Bubble Tight Ends : Screwed (F) to BSP

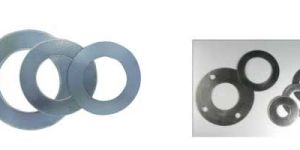

their high thermal conductivity ensures rapid heat dissipation and allows high temperature capability (except in oxidizing atmospheres). Our gaskets made from graphite flake material excel in extreme conditions, withstanding heat, pressure and aggressive/corrosive chemical environments to retain stability and sealing performance in high temperatures and pressure fluctuations. Graphite gaskets are often reinforced with a stainless steel insert.  Industries Refineries Chemical and Petrochemical Plants Paper Mills Industrial Fluid Sealing Vibration Dampening Steam Services Cryogenic Applications Thermal, Electronic and Electrochemical Applications

SIZE : 1/2” to 12” Type : 2 way, 3 way Body/ Bonnet : ASTM A216 Gr. WCB/ ASTM A351 Gr. CF8/ CF8M Internals : SS 304/ SS 316 [Hard facing other material on Request] Gland Packing : Teflon/ Grafoil Trim Design : Contoured Parabolic/ Cage Guided/ Pressure Balanced Characteristic : Linear/ Equal Percentage/ On-off (quick opening) End connections : Flanged end ASME B16.5 CL 150/300/600 Pressure Rating : ASME B16.5 CL 150/300/600 Temperature : upto 450°C Leakage : ASME B16.104 Class V & VI for Soft seating/ Class IV for Metal to Metal. ACTUATOR DETAILS Actuator : Diaphragm & Multi Spring type, Air to open / Air to close as a standard Pneumatic Pressure : 1.44 to 2.44 Kg/cm2 Positioner Details Type : Smart / Electro Pneumatic/ Pneumatic Input Signal : HART/ 4 – 20 mA/ 3 – 15 Psi

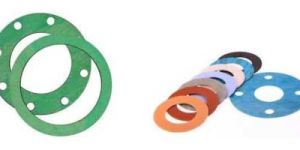

Compressed Asbestos Fibre is regarded as easy to use and very tolerant of abuse, for which it was recognized as very for givings it is used to seals almost all applications grades available with us, W1, W2, W3, B/S, O/1, O/2. A/1 metallic and non-metallic materials   Material – Compressed Asbestos, Jointing Sheets (CAF) Non Asbestos, Rubber and other jointing Sheets, Heat Exchangers, Pressure Vessels Stansard : ANSI B16.21 and as per Customer’s Drawing and specification

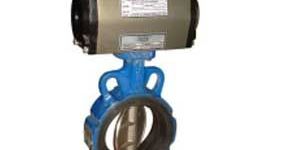

Size : 11⁄2” to 48” Valve Type : Centric Disc/ Double Flanged/ Damper/ Off –Set Disc Body : Cast Steel/ Ductile Iron/ Gry Iron/ CF8/ CF8M/ CF 3M Disc : CF8/ CF 8M/CF 3M/ SG Iron with Teflon/ Nylon Coated & Rubber Line Seat : Nitrile/ EPDM/ Viton/ Hypeion/ Silicon/ Neopren/ Metal to Metal for Double Flange Damper valve Shaft : AISI 410/ AISI 304/ AISI 316/ AISI 316 Body : Short Wafer type/ Double Flange for Double Flange Damper valve End connection : Wafer type End connection Operating : Hand Lever, Worm Gear, Pneumatic Actuated, Electrical Actuated Actuator Details Type : Rack and Pinion type Actuation : Double Acting/ Single Acting (Spring Return) Mounting Std : ISO 5211 An International Standard Pneumatic connections : NAMUR Standard

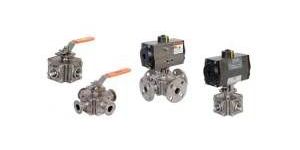

Size : 1⁄2” to 14” Type : 2 way/ 3 way/ 4 way/ 5 way Design : 2 Piece/ 3 Piece Body : ASTM A216 Gr. WCB/ ASTM A351 Gr. CF8/ CF8M/ CF3M/Polypropylene Ball : ASTM A351 Gr. CF8/ CF8M/ CF3M/ Polypropylene Stem : Stainless Steel AISI 304/ AISI 316/ AISI 410/ Carbon Steel with Nylon coated Seat Packing : PTFE/ Glass Filled/ Carbon filled Pressure : upto 10 kg/cm2 Temperature : upto 180°C/100°C for Polypropylene End connection : Screwed to – BSP/NPT/ Socket weld Ends to ASME B 16.11 Flanged to – ASME B 16.5 Class 150/300 Table – D, E, F/ Triclover End/ Socket Weld Operating : Hand Lever, Worm Gear, Pneumatic Actuated, Electrical Actuated Actuator Details Type : Rack and Pinion type Actuation : Double Acting/ Single Acting Mounting Std : ISO 5211 An International Standard Pneumatic connections : NAMUR Standard
