Meera Laser Solutions Ambattur, Chennai, Tamil Nadu

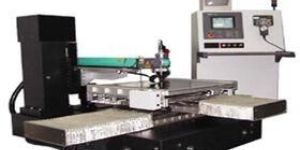

he StencilLaser cuts stencils at the push of a button. StencilLaser is a state-of-the-art production system for SMT solder paste stencils. It incorporates space saving design and ease of use. Its high cutting speed and very low operating cost makes the most affordable system on the market. The Lasersystem can cut both framed and frameless stencils, without requiring any changeover. Designed specifically for stainless steel stencil cutting for the solder paste stencil industry. The light weight motion system allows excellent positioning accuracy while maintaining cutting speeds that are the highest in its class. The StencilLaser uses a state-of-the-art fiber laser system with custom optics and beam delivery system, providing sidewall qualities that meet and exceed all industry standards. Main Features Efficient cutting of square and rectangular section with a slide way mounted cutting head. The cutting head construction with hardened and ground helical gears and automatic backlash compensation guarantees longer blade life and its full exploitation, low noise levels and the very best cut quality. The optimum working parameters for the best possible machine performance, from a complete and proven technological database covering blade speeds and feeds for differing materials, saw blade selection and material feed. The material feed system and vice geometry assure the most positive clamping of the material during the cutting cycle whether the material is thin wall delicate tube or tough thick wall tube. During the material feeding process, the material is lifted away from the vice bed and vice jaws to prevent the material surface being marked or scratched. Blade life, even under arduous cutting conditions, is much improved by micro-lubrication and by turbo-refrigeration. Cutting line has been designed to operate either as stand alone system or fully integrated in a complete automatic line controlled by one CNC programming unit integrating all additional de-burring, washing, drying and collecting operations.

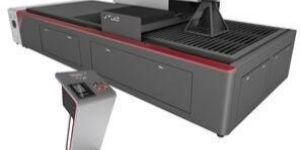

YAG 500W Sheet Metal Laser Cutting Machine integrates optical, mechanical, and electricity in one, which adopts laser, computer control technology and high-performance CNC laser power system. The cnc laser cutting machine is applied to cut stainless steel, carbon steel, alloy steel, spring steel, aluminum, silver, copper, titanium and some metal plate and pipe. Widely used in sheet-metal structure, high-low-voltage electrical cabinet production, hardware, knife-volume, production of advertising signs, metal crafts, decoration aviation, mechanical parts, electical meter, sawblades, spring-chip and other industries. Features The outside sliding guide ensures fast processing speed, which is especially suitable for the garment and leather industries. Being integrated with more concise frame, this machine is more economical but still have the same excellent cutting and engraving effects. Our three unique protection functions, i.e. anti-interference function, water-protective function and power cut-off function ensure longer working life, stability and effectiveness. The stainless steel honeycomb platform we adopt, which is breakage-proof, ensures stable focus distance thus good cutting and engraving quality. Original Singapore imported lens with molybdenum base makes the equipment produce smaller facula and stronger cutting force, greatly improving working efficiency and reducing cost. Exhausting, absorbing and assistant blowing systems solve the problem that troubles the laser equipments manufacturing industry for years, extending the life of the laser tube. This machine uses USB port to transmit data, equipped with large-capacity internal memory, improving working speed and efficiency greatly.

Adopt cantilever flying optics structure. It is available to load and unload from three directions. Very good operator-machine access ability. Sheet material over 3meter by 1.5meter can also be put on the table With fiber laser , the beam quality is great, the cutting efficiency is high with low consumption, the machine is stable and easy to maintain Adopt single drive to avoid the difference error caused by double drive, so the cantilever is stable and beam is stable, the cutting precision is high Adopt the high rigidity aluminum alloy crossbeam(Y axle) analyzed with self-owned intellectual property rights, the weight is light so the movement of y axle is great Adopt centralized lubricating device controlled by control system to automatically lubricate the transmission parts so that the living lives and the precision of the transmission parts are protected Used auto-focusing adjustment system to automatically reset the focusing point when cutting different sheet material, the efficiency is improved greatly It is available to cut high reflenctive material such as aluminum, and brass The machine is fully closed for protecting the safety of the operators Adopt FAGOR8070 control system with great stability and reliability.

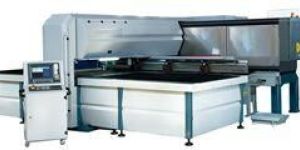

CO2 laser brings sophistication in high-speed laser cutting onto a new level, creating enhanced production with superior speed, accuracy, and part quality. CO2 lasers are designed by using innovative linear drive motor technology to allow maximum speeds, even in small notches or narrow contours. It provides previously unseen high-speed performance with regard to machining dynamics, contour accuracy, and process safety. Finn-Power L6 will process sheet sizes up to 1565 mm x 3074 mm. With 4 kW or even 5kW of laser power, it enhances laser cutting for various material thickness and material types . The rigid machine frame provides a solid base for stable beam delivery optics and the high-speed drive system. This unique frame design accommodates highest acceleration and deceleration rates without compromise.   HIGH POWER CO2 laser has a compact design with the resonator and CNC built into the structure. The positioning of the shuttle tables is possible on two sides of the machine. This is beneficial when plant layout or production flow require system layout flexibility. Main Features CadCam Software Laser source (Resonator) CE safety equipment High pressure cutting option (25 Bar) Central lubrication Tropical Level Cooling unit Scrap collector Shuttle table (Automatic pallet changer) Filter Special laser cutting options Sharp corner overheat protection (Speed-Power modulation) Fast follow property of the head for high precision Simple user interface parameter page (Power-speed-pressure combination) Sheet identification and detection system (Ref. Point) Two Cutting Heads: 5’’, 7,5’’ Exchangeable Lens Holder System for Different Focal lengths (1,5’’ lens) Under Table Small Part & Scrap Conveyor

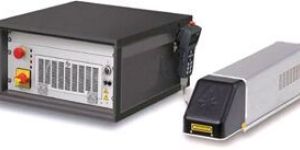

Semiconductor pump series laser marker uses Galvanometer laser marking technology and most advanced semiconductor pump laser technology, makes the YAG rod generates a mass of inverted population with 800nm wavelength semiconductor laser diode pump Nd:YAG crystal, forms 1064nm wavelength giant pulse laser beam output under the effect of 0 switch, through expanding and focusing of laser beam, and finally realizes marking through controlling the deflection of galvanometer. It is a revolution in laser marking field. This type of laser marker features low energy consumption, high electro-optic conversion efficiency, stable laser output mode, high reliability, small size, excellent marking effect and no consumables. The marker is designed according to ergonomics, providing beautiful appearance and simple operation. All the important optic parts are imported from Europe and America. The optics system is in fully sealed structure. It has optics preview and focus indication function and provides reliable security for the 24-hour continuous working of the machine. Features: Multilingual software based on English Full worldwide remote access via network Customized log file to store all commands, processes and laser parameter Separate modes for operators, supervisors and service Programming in Visual Basic Script or via data import Interfaces GDS II, STL, DXF Addressing of up to 32 NC axes Intuitive graphical operator interface with preview Marking with single or double density codes complying SEMI standards M12, M13 or according to customers definition Laser source DPSS laser source 1064 nm, 532 nm (SHG) Options Semi-automated or fully automated alignment with camera system Automated workpiece handling Vacuum chuck Workpieces mount for 300 mm wafer Purpose build mounts for masks Customer-specific workpiece mounts Fully air-conditioned processing chamber Mini environment up to ISO class 4 Beam analyser featuring software

Advantages High reliability Long service life High energy conversion efficiency High light beam quality Low power consumption Semiconductor fully solid and air cooling device Laser source and resonance cavity separated structure Easy maintenance Small size and convenient system integration

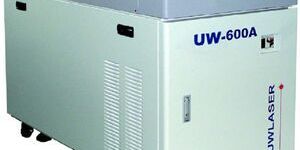

Laser welding is a new type of welding, laser welding mainly of thin-walled materials, precision components for welding, spot welding can be achieved, butt welding, overlap welding, seal welding, etc, Systems designed by MLS have been demonstrated time and time again to reduce production costs. Take advantage of robotic technology for laser welding or cutting of plastic, metal or other materials. For example, You could cut the expense of shipping your products overseas to try to get cheaper labor costs. Items such as a large appliance would be too bulky and expensive to ship to and from a labor force overseas. A robotic laser system designed by Control Micro Systems uses leading-edge technology that could give you an edge over your competition. Characteristics High degree of accuracy and control Easily automated Consistent, repeatable welds Small heat affected zone (HAZ) Narrow weld bead with good cosmetic appearance High strength welds Welding of high quality, non-porosity, can be reduced and the optimization of base metal impurities High-precision positioning can be achieved certain welding between dissimilar materials. v Applications & material Can be used for titanium, nickel, tin, zinc, chromium, gold, silver, copper, aluminum and other metals and their alloys welding or cutting, can also be used for copper-nickel, copper-titanium, brass-copper, nickel titanium, titanium-molybdenum and other welding between dissimilar metals.

 Pulse laser welders are electronically compatible and ideal for voltage sensitive applications. Precision automated or manual welding construction can be performed on electronic/industrial components with a high degree of accuracy, while eliminating the potential hazards of heat damage or thermal stress to complex manufacturing materials. Laser welding also ensures a longer life of the component parts.Common laser spot or laser seam welding applications include tool and die repair, complex electronic components, high-precision industrial assemblies, pressure-sensitive hermetic laser seals, and other unique applications.

This model will be equipped with Synrad laser tubefrom USA, which has working life up to 30,000 hours. Equiped with ballscrew guide and servo motor, this model can work more stably and in a higher precision. Its unique beam expanderis a special optic system that makes the beam wider to give better travel over long distances, which ensures that cutting performance is even in the corner furthest from the laser tube. The usage of an extractor with filtercan stop the poisonous gas and dust from polluting the environment.

The machine working area is 1250×1850mm The machine has sufficient rigidity and good reliability and efficient cutting performance. Machine layout is compact and reasonable ,small footprint Imported high precision ball screw drive system (X / Y axis) Contact induction servo system (laser die cutting only) Movement and optical protection system; unique exhaust system design, more effective smoke dust This system is made of Laser cutting machine bed, laser tube , and laser tube chiller and system Peripheral

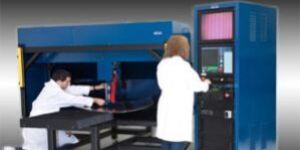

Important value-added features of our system integration include:   Onsite installation, commissioning and training Software, applications know-how, and power distribution drawer Technical consulting On-going technical after-sale and applications support   LPS Series of Laser System for Reliable Laser Machining A typical example of laser system integration is the LPS Series. . . easy to use and compact to conserve valuable floorspace. Typical applications include silicon wafer coring/resizing, solar cell micromachining and cutting/drilling/grooving thin metals and ceramics for all sorts of applications including medical.   IMPORTANT FEATURES OF THE LPS-300 SYSTEM   1. Through-the-Lens Viewing: The LPS-300 features video viewing for a magnified image of work in progress. A video camera looks through the laser focusing lens – a similar principle to an SLR camera or a rifle scope. It simplifies and speeds up alignment of each part, facilitates high yields, and targets laser impact. But most important – it provides both sharp visual human focus and sharp laser beam focus which otherwise would be at different places because of chromatic aberration. Magnification is 60X, twenty times more powerful than opera glasses.   2. Three-Axis Computer Controlled System Our standard design is 3-axis which increases the versatility of the laser machine. Parts having different thicknesses can be rapidly inserted in the machine.   3. Computer Controlled Focal Point A method of rapid and reliable control of laser spot size is by the computer driving the motorized beam expanding telescope. This works by placing the laser focus quickly at desired distances above and below the top surface of the part, which does not change the operator's visual plane of focus so the part remains in sharp focus to the human eye. LASEROD SYSTEM COMPONENTS & OPTIONS -OVERVIEW(STATEMENT OF CAPABILITIES) We integrate lasers, motion devices, computer hardware, power distribution drawer or box, software and optics into a fully functional laser machining tool. It goes without saying that "Know How" is our stock in trade.   We suggest you have us prototype first as proof of principle, then run lots to prove out performance, throughput, and quality.   Laser Engines Supplied:   fiber (solid-state) diode(solid-state) lamp (solid-state) sealed CO2 (gas) excimers (gas) Picosecond (ps) (solid-state) Laser Wavelengths: UV to IR, ranging from 0.355 to 10.6 microns   Beam Directing and Shaping Optics:   Galvanometer (galvo) or fixed beam or gantry O\overhead moving beam On-axis, in-line viewing is standard with fixed beam optics Off-axis viewing as galvo option Air bearing Z-follower for 3D random terrain following as option to fixed beam optics Dual beam-split beam optics as option to fixed beam optics   Motion Devices:   Galvo to move beam, 2- or 3-axis X-Y stage to move part X-Y-Z stage, X-Y for part, Z for beam Combination galvo and X-Y, a 4- or 5-axis motion system As X-Y stage options, crossed roller bearing, air-bearing, linear optical encoders, crossed roller bearings with linear motors, and air-bearings with linear motors and optical encoders Rotary parts motion Roll-to-Roll web converters   Structures: Supporting frames of welded steel and light weight extruded aluminum. Mounting plates of anodized aluminum or granite   Computer: PC with software optimized for your application. CADCAM as option   Function:   Production Prototype Robotics, machine vision, parts handling, automation controls for conveyor belt, parts loader, web, etc.   Note: We select components to optimize both application and budget.   List of Jobs Done by Solid-State Lasers:   IR medium power diode: all thin metals, some rubber and some plastics – also thin Low power diode: IR, green or UV for display patterning, resistor trimming, marking, UV for 10um holes or patterns etched on coatings on glass or plastic substrates. IR high power fiber: robust parts that the high pressure air won't blow away or damage such as silicon wafers, solar cells and ceramic substrate resizing at high speeds IR low power fiber: patterning thin coatings on glass or plastic substrates at high speed   Component Modules in a Typical Laser System:   The Laserod modular Work Station comprises laser + housing + optics (including motorized computer controlled telescope and Z) + XY table + PC + software + electronics cabinet + safety enclosure + options (fixtures, gas jet nozzle, vacuum exhaust, gas blanket, robotics, etc.)   Modules Include:   SOFTWARE – provides customized screen shot with G type code for your operator's convenience and optional Picture to Part dxf download direct to the laser machine. Optics head for fixed laser beam delivery with video viewing — includes beam bender, focuser, safety cover, and focuser with optional gas jet nozzle. Magnified TV viewing standard. Optics head for galvo beam delivery — includes beam bender, focuser, safety cover, focuser with gas jet option. Off-axis or frozen mirror video viewing optional Beam expanding laser telescope – zoom expansion ratio 3X to 5X. Larger expansion ratios and motorized feature are available. Historically, we have always chosen the expansion ratio. Laser head housing to contain your laser "engine", plus the telescope and optics head. Provides CDRH Class 1 light tight seal Gas jet nozzle — utilizes air pressure to assist laser cutting X-Y translating stage — move the part with fixed beam

Our precision manufactured lasers and laser systems deliver the highest possible laser engraving performance on a wide variety of materials including wood, glass, plastics, textiles and more. Laser engraving is a non-contact process that will not affect the integrity of the material. Accurately and quickly laser engrave intricate product designs or artwork from any graphics software program. Laser engraving can increase your productivity over traditional engraving methods. Universal laser systems are flexible and can adapt to your business needs based on material size and production expectations.   Features 65W - 220W output powers Excellent beam profile at all power levels High stability output 10,000+ hour lifetime Diffusion cooled design Sealed units with no need for a gas supply Long life, high vacuum technology Unique beam profiles Easy integration Laser tube only or fully cased system options HV power supply Alignment beam option

We are the main supplier of this product.

Type : Laser Welding Machines

Weight : 100-1000kg, 1000-2000kg, 2000-3000kg, 3000-4000kg, 4000-5000kg

Color : Black, Brown, Grey

Condition : New, Used

Automatic Grade : Automatic, Fully Automatic, Manual, Semi Automatic

Warranty : 1year, 2years

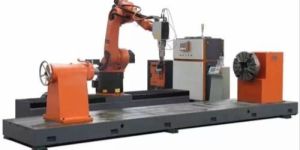

The working principle of this laser deposition welding system is to use laser high thermal energy and the melting technology in spot to process the welding and repairing of minute parts. It makes up the shortage of traditional hydrogen arc welding in repairing precision surfaces, avoids the two difficulties of thermal strain and after-treatment, and saves the production period of mould. Applicable Industries The laser deposition welding system (laser mould welder) is specially designed for the mould industry and used in repairing of precision moulds, such as mould manufacture for digital products, mobile phone, toy, automobile and motorcycle, and molding industry. Through the repairing of moulds, it is possible to reuse the moulds, save the production cost and improve the working efficiency significantly. This technology can also be used to modify the design or size of moulds to reduce the development period. Advantages With unique structure design, it is suitable for repairing of large, medium and small moulds. Ceramic converging cavity is imported from the Britain. It is corrosion resistant and high temperature resistant, and has 8-10 years service life. The life of xenon lamp is more than 8 million times. Use the most advanced light shielding system to eliminate the irritation to eyes by light during working. The laser head and optics part can be rotated for 360° upward/ downward lifting and forward/ backward pushing, suitable for repairing of large, medium and small moulds. The parameters are controlled by intelligent remote controller, which is simple and convenient. The work bench can be lifted, and moved in three dimensions. The size of light spot can be adjusted.

Productivity, flexibility and slick handling are fundamental characteristics of the new TC720 automatic cutting line with numerical control. Two length stops can be fitted for the best material optimization and yield and three unloading position are programmable and integrated with down flow de-burring, washing, and collecting operations. It has a capacity of O.D. 8mm to 80mm with a max. cutting length configuration of 1500 - 3000 - 4500 - 6090 mm. Designed specifically for stainless steel stencil cutting for the solder paste stencil industry. The light weight motion system allows excellent positioning accuracy while maintaining cutting speeds that are the highest in its class. The StencilLaser uses a state-of-the-art fiber laser system with custom optics and beam delivery system, providing sidewall qualities that meet and exceed all industry standards.   Product Features Simple Operation Controlled Flexibility Low Total Cost of Ownership (TCO) Excellent cutting quality is achieved with excellent surface finish. positional accuracy and assured repeatability and high production

Characteristics Free, compact design, super beam quality, high photoelectric conversion efficiency, can reach up to 30%. Robot arm, 6 axis moving together, easy to realize the space cutting with arbitrary curve. Robot also greatly save the labor cost, improving the cutting efficiency and production. It suits to cut kinds of complex, hard to approach and precision fields. Special laser cutting head, auto focusing, high precision capacitor sensor auto tracking system, anti-collision protection, high cutting precision with little deviation. 500W Robot fiber laser cutting machine adopts China famous SUNRISE chiller, refrigerating capacity is 2P, greatly saving the energy consumption cost. And chiller volume is 15L, saving the water cost for a long time. Wide application. Robot fiber laser cutting machine can be applied in 3D cutting, kinds of space complex fields, sheet metal cutting, pipes and tubes cutting (including various shapes). PS: We can design and manufacture fiber laser cutting machine as your specific requirements. And you can send us samples for free cutting.

The working principle of this laser deposition welding system is to use laser high thermal energy and the melting technology in spot to process the welding and repairing of minute parts. It makes up the shortage of traditional hydrogen arc welding in repairing precision surfaces, avoids the two difficulties of thermal strain and after-treatment, and saves the production period of mould. Applicable Industries The laser deposition welding system (laser mould welder) is specially designed for the mould industry and used in repairing of precision moulds, such as mould manufacture for digital products, mobile phone, toy, automobile and motorcycle, and molding industry. Through the repairing of moulds, it is possible to reuse the moulds, save the production cost and improve the working efficiency significantly. This technology can also be used to modify the design or size of moulds to reduce the development period. Advantages With unique structure design, it is suitable for repairing of large, medium and small moulds. Ceramic converging cavity is imported from the Britain. It is corrosion resistant and high temperature resistant, and has 8-10 years service life. The life of xenon lamp is more than 8 million times. Use the most advanced light shielding system to eliminate the irritation to eyes by light during working. The laser head and optics part can be rotated for 360° upward/ downward lifting and forward/ backward pushing, suitable for repairing of large, medium and small moulds. The parameters are controlled by intelligent remote controller, which is simple and convenient. The work bench can be lifted, and moved in three dimensions. The size of light spot can be adjusted.

Laser marking systems provide a galvo-steered beam designed for marking. The CO-Series laser marking systems are excellent for marking substrates like wood, glass, Plexiglas®, quartz, ceramics, fabrics, and other organic materials. Mark-On-The-Fly versions are available for application dependent line speeds up to 2700 ft/min. (900 meters per minute). Also available are embedded controller versions requiring no separate PC   The core optic components of the CO2 series laser marker are imported from America. The CO2 radio frequency laser and high speed scanning galvanometer imported from America provide reliable guarantee for the long time, continuous, high speed and stable work of the machine. The CO2 radio frequency laser is a kind of gas laser and the laser wavelength is 10.64μm, which is in medium infrared frequency. The CO2 laser has big power and high electro optic conversion efficiency. It uses CO2 as the working substance, and fills the CO2 and other gases into the discharge tube. When high voltage is added to the electrode, glow discharge generates in the discharge tube and makes the gas molecules release laser. After expanding and focusing the released laser energy, the laser process is realized through deflection with scanning galvanometer. The marking software runs in WINDOWS platform and Chinese interface. It is compatible with the file formats of AUTOCAD, CORELDRAW and PHOTOSHOP, such as PLT, PCW, DIF, BMP, etc. It also can use SHK and TTF character libraries. Design graphs through computer. The operation is simple. The power is controlled by the software and adjustable. Perfect for high resolution operations for the specialist marking of wood, plastics, paper, glass, foils and composite substrates In-built 4 axis control, which is easily integrated into automated production systems or into one of Electrox's stand-alone workstations Extremely low operational cost and virtually maintenance free Easy to use with minimum training and set-up requirements utilising user-friendly Windows™ software for guaranteed optimum marking performance

The optical fiber laser marker is the third generation laser marker system developed by our company with the most advanced technology in the world. It uses optical fiber laser to output laser and realizes marking function through high speed scanning galvanometer system. The optical fiber laser marker features high electro optic conversion efficiency, air cooling, small size, high quality output beam, high reliability, long service life and energy saving. It can carve metal materials and certain nonmetal materials and is widely used in fields that have high requirement on depth, smoothness and fine, such as stainless steel mobile phone overlay, clock and watch, mould, IC, mobile phone keypad, etc. Bit map marking can carve beautiful pictures on the surfaces of metal and plastic, and the marking speed is 3-12 times of the speed of traditional first generation lamp pump marker and second generation semiconductor marker.   10W Air DPSS OEM in a new Nd:YVO4 laser marker system which can work on any type of metal and almost all industrial use plastics. The system consists of two parts: resonator unit-scnaeer head and power supply box and control. A 3 m optical fivre and signeal cable allow the power supply box to operate remotely. A notebook with the customs interface card and SLC (MLS LASER CONTROLLER).  Features Control: PC Windows with PCI or USB card, RS232 Software MLS Laser Controller Interfaces: PLC, data network (ethernet), I/O digital, axis control, other auxiliary devices Software: developed completely by MLS. Elaborates data or images to be marker and manages laser and all connected devices. Files can be imported in SVG, BMP, JPG, HTML, PLT.

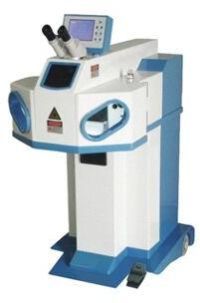

The laser spot welding is an important aspect of laser process technology application. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of its unique advantage, it is widely used in the process of gold and silver jewelry and welding of mini and small parts.   Advantages: Very suitable to repair molds in all sizes. The adjustable range of power, pulse width, frequency and spot size is wide. The technical data were adjusted by the controlling bar in the hermetic cavity Easy to operate and high working efficiency Keep on working up to 24 hrs, the performance of the whole machine is very stable Prevent corrosion, the lifespan of the cavity can up to 8-10 years, and the lifespan of the xenon lamp can up to 8 million times. Protection shelter can protect your eyes from the hurt of laser, with a humanistic design, comfortable for working. All data can be adjusted by an intellectualized controller, easy and fast to operate.

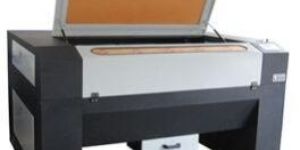

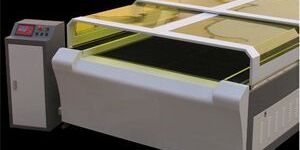

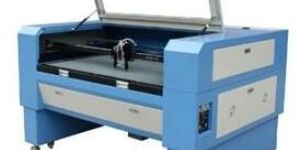

APPLICABLE INDUSTRIES: Garments, shoes, bags and luggage, computerized embroidery and clipping, template cutting, toys, furniture, advertisement decoration, handicraft, packaging, printing and so on.Nonmetal materials such as leather, cloth, acrylic, plexiglass, rubber, plastic, wood, bamboo, ceramic, marble, granite, etc. ADVANTAGE: We designed this series of machines especially for many uses of garment industries and leather industries, which can save a lot of cost. Special double heads design is good for bulk production needs.

Color : Black, Brown, Grey

Condition : New, Used

Automatic Grade : Automatic, Semi Automatic
