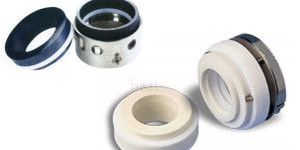

Multi Spring Unbalanced Seal
Secondary Seals : Viton / PTFE / FEP / GFT
Shaft Dia : 12…..100mm 0.5"…..4.0"
Pressure : 25bar (max)
Temprature : -20 TO 180'C
Velocity : 10-15m/s
Generally used high pressure pumps,for handling Slurry, corrosive chemicals, hydrocarbons, general & light chemicals.

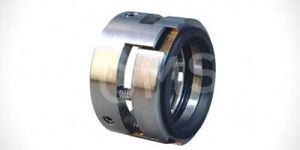

Multi Spring Mechanical Seal
1,000 Per Unit
Shaft Diameter : 15 mm to 150 mm
Pressure : 20 Bar (Max)
Temperature : -100 to 250 degree C
Face Material : Carbon, Ceramic, Silicon carbide, Tungsten carbide
Hardware Material : SS 316, SS 304, Hastelloy-C, Hastelloy-B, Monel, Alloy-20
Secondary Seal Material : Elestomer, PTFE, FEP, TTV
Application : Light Abrasive slurry, light sewage water, General & Light Chemicals, Hydrocarbons
Conical Spring Mechanical Seal
Temperature : .-20 to 200 deg C
Series CS is a single conical helical spring, unbalanced seal with ’0′ ring as secondary sealing member. Various seal face materials and elastomers can be offered for wide service application. As the torque transmission is done by conical helical spring these seals are dependent of the direction of rotation. Direction of rotation is seen from the drive end of the shaft. Clockwise rotating shaft requires right handed spring and anticlockwise rotating shaft requires left-handed spring. For easier fitting, the conical helical spring should be pushed on the shaft with a twisting motion in the sense of the spring unwinding. This movement enlarges the diameter of the spring, enabling easy fitment.
