Aysu Pharma Tech Kondur, Cuddalore, Tamil Nadu

Vibro Seperator is a screening unit Vibrating in three planes along the vertical axis. A specially designed Vibratory Motor having eccentric weights at the top accomplishes this and bottom ends of the motor shaft. The motor is mounted vertically at the center of the screening assembly, on a circular base by means of springs, which allow the unit to vibrate freely. The springs absorb the vibrations and prevent them to be transmitted to the floor. Simple & Compact construction.Faster SeparationDouble & Triple deck screens with outlet and hopper for bottom deck available on request.Lesser Maintenance and Power Consumption than the Conventional Sifter.Easy dismantling and cleaning facility

This machine is specially developed for blending different types of powders with liquids or semi solids with out lump formation or spillage loss to the liquid ingredients. Turbo jet blender is provided with a high speed turbine and a pressure vessel for blending liquids/semi solids evenly to the powder ingredients. SpecificationsCapacity: 10-3000 kg/batchPower: 0.25- 20 HPPurpose: Blending of powders with liquids or semi solids.Applications: Food,spices,ayurvedic and chemical industryMaterials of construction: Contact parts in SS, remaining in MS

Manual paste filling machine is widely used for food Paste Filling, Cream Filling, Cosmetic Cream Filling, Medicine Filling, Viscous Paste Filling, Semi-Liquid Filling etc. Suitable to fill 0.5 Gm-300gm of Ointments, Liquids, Pastes, Creams, Honey, Adhesives, Lotions, Balms, Cosmetics etc. Hopper capacity of tube filling machine is 5kg -10kg. Tube filling machine is available in Single Head Drip Free Filling Nozzles. Available in Single Nozzle. SS304/316 Contact Parts. Speed : 10 Tubes/Minute

We present quality based Triturators Machine that has been approved by our professionals for its impressive performance. We ensure functional properties that will add to the free flow of the work. The electronics used have been tested at various parameters. Our products are known for their durability and are proven to be immensely hard wearing. The prices we offer are very reasonable

Construction : External : 2MM Thk, Internal : 2MM THKMOC: cGMP Surface Finish: External:Buffed to 150 grit matt finish, INTERNAL: Buffed to 220 grit mirror finish. Inlet & Outlet : All dryers have a 5 micron prefilter at the inlet and a manually infinite adjustable damper at the outlet. Door : Door is provided at the front and / or rear side of the tray dryer. Door lips are lined with silicon rubber gasket to prevent any leakages. Suitable locking is provided for the doors. Air Circulation : Air circulation is done by specially designed recirculation blowers inside the tray dryer. The blower capacity , static & design depends on the size and model of dryer. Heating : Dryers are normally supplied with either steam/ electric/ thermic fluid / hot water heating system. Suitable heating coils / caloriefiers are provided in the dryers. Temprature Control : Temp control system is done by electronic digital temp controller fitted in the control panel. The temp control in the dryer is fully automatic. Trays : Trays are available in S.S. 304/ 316 q. All trays are fully die pressed and with cooved corners. Trays are buffed to mirror finish. Trays are also available in aluminium / Polypropelene / Frp/ M.S. galvanized as per clients reqiuirements. Trolley : Trolley is provided in the dryers to accommodate trays in it. Trolley truck are used to load and unload the trays into the dryer. Control Panel : Automatic Control panel is fitted on the side of the dryer. If consists of starters, contactors, safety relays, ckt breakers, indicating lamps, push buttons , timers, controllers etc.

The tea packaging machines are meant for special packaging of variety of tea products. These require accuracy in weighing and packaging. ApplicationThe machine is used for filling different types of tea and other granuled items Features Constructed from SS 304Precise speed using digital sensor that also support anti-jammingHighly accurate weighing and packagingAdvanced digital signal processing Technical SpecificationsLinear Weigher 4HeadModel L30Hopper 75 litFilling Range 1 to 10 KgsFilling speed 4 to 20 Bags/minAir Required 6 BarPower used 220 V 1 ØDimensions 1060L X 1000W X 2500 H (mm).Net Weight 200 Kg Approx

MODEL NO. APT-200-TBP (Cup Filler)Application: Tea, Green Tea, Herbal Tea etc.TECHNICAL SPECIFICATIONSProduct Application Powder, GranutesSealing Type : 3/4 Side SealRoll Width Width : 90mm, 150mmMachine Motor :½ HP, Single Phase, 50 hz.Feeding System Volumetric Cup FillerElectrical Supply :220 V, AC, Single Phase, 50 HzPacking Film Any heat seal able laminated rollMachine control Through PLC (Programmable Logic Control)Photocell registration system YesContact Part Stainless SteelHeater Load 150 W x 2 Nos.; 300 W x 2 Nos.Packing film pulling Through electromagnetic clutch and brakeTemperature Controller PID BasedMachine Speed (approx) 25-50 Pouches per Min (With Paper) (Depends upon quantity and product)Power Consumption 2 Kw approx.Machine Motion IntermittentMachine Weight 300 Kg approx.Optional Features (At an extra cost) Batch Coding Device Nitrogen Flushing System Batch Cutting Features Advantages BenefitsIntermittent Motion Machine Efficient, effective packing Savings on wastageMachine is mechanically cam operated. Machine is centrally controlled, Has digital display System runs in SynchronizationOperator Friendly / Low Easy to Operate/Less Servicing High Run Time / IncreasedMaintenance Machine Required ProductivityStainless steel contact parts No rusting Long LifeMachine is castor mounted Ease of installation and shifting Savings On laborBatch Coding Device To print M.R.P, Month of packing, Lot No. Etc. Helps in detecting manufacturing and expiry date.Machine is equipped with PID Displays / controls Sealing Temperature of Sealers Optimum Temperature for Sealing / Better SealingPhoto cell registration Unit (Reads the photocell mark) To seal and perforate the pouch at right length Pouch printed layout in place, consistency in pouch size, OUTSTANDING FEATURESLow Cost Simple operation.Mounted on movable castor wheelsAvailable fully clad with stainless steel aisi 304, and complete stainless steel aisi 304 contact partsElectrical / mechanical protections as per European / American standards.Available for 220 volts / 110 volts AC power supplyAccurate filling and easy weight adjustment with a high precision volumetric cup fillerSelf contained, ready to use machine. Does not require any compressorAll contact parts made of stainless steel constructionTECHNICAL SPECIFICATIONSealing Type .... 3-side sealPacking Size .... Repeat Length : 62 mm , Film Width : 62 mmString And Tag .... String Length 160 mm , Tag Dimensions : 28 mm x 24 mmPacked Weight .... 1 gram to 3 gramsPacking Speed .... Single track: 30 to 60 sachets per minute.Packing Material .... Heat Sealable Tea Bag Paper.Electricals .... AC 220V 50Hz / 110V 60 Hz Single Phase, Available with electronic speed control, PID Digital Temperature Controllers, Safety :Features available to comply with international safety norms.Machine Dimensions .... L x W x H : 750 x 560 x 1800 (mm)Crate Dimensions .... L x W x H 965 x 760 x 1900 (mm)Machine Weight .... 350 Kg. Net. 430 Kg. Gross

Silent Features: To count 1 to 1000 Capsules/Tablets 36" Dia Disc providing highest filling capacity Custom Designed disc to match specific needs Special Dust Extractor to remove Dust Particles from the passage of the Container Fitted with Heavy Duty Gear Box   Technical Details : Motor 440 Volts 3 Phase - 50 C/S 1 HP with Starter Speed Control Variable - Speed Drive 1440 RPM   Output: To count 1000 Tablets/Capsules in Bottles and Polybags 1000 Tablets/Capsules 5/6 Fills/Min 500 Tablets/Capsules 5/10 Fills/Min 250 Tablets/Capsules 10/15 Fills/Min 100 Tablets/Capsules 25/30 Fills/Min

This container has standard color white and natural. This container is made up of HDPE (High Density Polyethylene) polymer. Lable container is manufactured by the process of EBM (Extrusion Blow Molding). This container is most suited for tablet & powder. Decoration option is also available such as Labeling and Printing. Recently Viewed Products Security Tablet Container (Category: Tablet Containers)Round Tablet Container (Category: Tablet Containers)Brut(A) (Category: Pharma Bottles)

Sell Offer Details:Offering Capsule Printing Machine   Features: Fully Automatic printing machine for capsule/tablet of any size. 100% feeding gives higher output depending upon the size of capsule/tablet. smaller the size, higher the output Prints on any shape-Round, Oval, Hexagonal, and Triangular etc. -Wax, Sugar or film coated tablets. Provides sharp printing on both capsule and tablets. Minimum air requirement 10 p. s. i to 75 p. s. i. only. Imported pneumatic components used for better performance. Hardened gears and shafts give longer life span. A versatile, trouble free, easy to operate machine. Prints on two sides on a vast range of products. Almost any size and shape like Round, Oval, Football, Pumpkin seed, Coffin, Triangular or Hexagonal tablets, Wax, Sugar and Film coated tablets, soft / Hard gelatin capsules Polished and Sealed compressed products all are handled on Trade Mark Printers. Edible Ink 45-50 Lakh/Kg. on continual usage. IPA 20% of Edible Ink for Capsule. IBA 20% of Edible Ink for Tablet. Scrapper Blade - 48 HR Span/ Each. (May break on higher tighten). Air Pressure Max. 75 psi.

Coating Machine ideal for film and sugar coating. The machine is available with 12,24,30,36,42 OR 72 Inch size stainless steel coating pan. The machine is designed with fabricated structure fitted with SS enclosure and drive unit of motor and reduction gear box. Machine has variable speed drive to achieve 8 to 15 RPM by variable speed pulley. The machine is mounted on dynamounts which avoids foundation and vibration. A hot air blower system is provided separately on trolley for easy cleaning and setting. The system has thermostat controller to selected temperatures between 40º C to 100º C by electric Heater. The complete systems fitted suitable motor, blower, piping and nozzle for hot air flow.   Salient Features:  Design as per stringent cGMP requirements  All Contact parts of AISI Stainless Steel 316 Quality  All Non contact parts of AISI Stainless Stele 304 Quality  Easy to replace polishing pan and other size coating pan   Optional Features: Fixed or detachable type baffle. Spraying system with peristaltic pump and air atomizing nozzle. Polishing Pan.

The APT160 Strip Packing Machine is designed to pack capsules, tablets or similar products.Features:• Feeding, sealing, slitting and cutting are done automatically. reducing labor coasts and therefore, reducing production costs.• The exterior of the machine is made of high grade stainless steel, in conformity with “GMP.”• Compact and simple construction allow for easy maintenance and straightforward operation.• The format changeover can be easily done within 40 minutes.Main Technical Parameters:Output ( variable according to packing size): ≤800 pcs/minMax. Machine Speed: 60 punches/minMax. Width of Packaging Material: ≤160mmMachine Power: 2.2kwMachine Dimension (L×W×H): 1200×850×1700mmMachine Weight: 450kg More Strip Packaging Machines:APT260 Strip Packaging MachineRecommended products:1.Cartoner2.Cartoning Machine3.Blister Packing Machine4.Blister Packaging Machine

We are leading manufacturers and suppliers of various kinds of Stainless Steel Vessels used in pharmaceutical industry. Stainless Steel Vessels are fabricated from SS 316/ SS 304 grade and conform to CGMP standards.

Milk Kettle Prominent & Leading Manufacturer from cuddalore we offer Milk Kettle such as Soya Milk Kettle, Milk Boiling Machine and Soya Milk Heating Kettle.Soya Milk KettleMachine Available in Electric as well as Gas heating Options Cap. Of the Vessel 80 lts Power Required 6 kw single phase Equipment uses the technology of thermo fluid heat transfer. Machine can be used to heat Soya Milk, Amla Aloevera & Kerala Juices. Also available in digital control model with agitator.

Semi-Auto : Single head-Manual feeding of tubes, filling, crimping and batch coding designed and build for, low production requirements,. Simple and portable the SLE APT – 300- meets the needs of Lab, R&D production. Covers and claddings made in 304 stainless, confirm GMP standard Contact parts in SS 316L filling accuracy _+0.1% Positive filling nozzle. pneumatic cut off system.No-tube No-fill by mechanical clutch system First fold and second fold crimping at the same station " N " type batch coding 10 character Male type Rotary 8 stn tube holders turret with adjustable height. Fill volume from 3ml up to 200 ml. with interchangeable pumps 3ml to 30ml, 30ml to 100ml, & 100ml to 200ml Tube dia: min 10mm - max.40mm. (Optional 50mm & special sizes) Output up 1,800 to 2,000 tubes per hour. Ancillary / Optional equipment Tube Cleaning by diving system (dust collector) Jacketed hopper with electrical heater. Agitator with single speed.20RPM  " M " type or saddle type    SLEAPT600- Semi-Auto : Double head. Manual feeding of tubes, filling, crimping and batch coding, is the most preferred and the fastest selling tube filler Trade Mark has to offer. Simple compact rotary designed, for versatile batch production in small and mid sized companies,   Main Features: Rotary 8 stn tube holders turret with adjustable height. Fill volume from 3ml up to 50 ml. with interchangeable pumps.3ml to 20ml,20ml to 50ml Tube dia: min 10mm - max.25mm. Output up 3,600 to 4,000 tubes per hour.

Semi Solid Dozer is simple, user friendly in design, highly accurate and easily operatable. It is an innovated product for filling technology. The machine is tested under various parameters to ensure that it is free from flaws. This is suitable for packing Semi Solids,Pickles,Creams,Leham, Curry Pastes from 5 gm 2 kg. Accuracy of dozing is guaranteed up to maximum 1 gram error irrespective of volume. It can be freely integrated to the fully automatic type also.SpecificationsCapacity: 5-2000gm/dozePower: 0.5-2 HPPurpose: Filling of Semi Solids, Pickles, Creams,paint, Putty, Thick oils etcApplications: This machine is used for filling of semi solid materials like pickle, jam, sauce, cake batter, creams, curry paste, Lehyam etc. to bottles/pouches/containers.Materials of construction: Contact parts in SS,remaining in MS

Semi Automatic Liquid Filling Machine Model No-APT-100 H for Semi automatic volumetric liquid filling machines are two head, table top, fully GMP model used to fill variety of liquids. These filling machines work on volumetric principle and is fitted with two syringes on the sides. The desired volume of the machine can be easily adjusted by increasing or decreasing the eccentricity. Motor and gearbox of the liquid filling machines are covered in a SS cabinet.Operations:Semi automatic volumetric liquid filling machine can be used for different types of glass, plastic and metal containersOutput 8 / 16 / 24 bottles per minute depending on type liquid and fill size with the help of three speed pulley arrangementFour head machine can also be providedBottles are kept bellow the nozzles manuallyThese liquid filling machines have two head, tabletop, fully GMP model used to fill variety of liquidFeatureFilling syringes are available in SS 304 / SS 316 qualityFilling syringes capacity: 200, 550, 1000 mlSpecially designed valve to avoid any drip ageMachine can be provided with diving nozzles for foamy liquidsSpecification:CAPACITY:10-16 Bottle per minute (480 to 1440 bottles per hour)FULL SIZE:15 ml to 1000 ml. Higher fills possible with multiple strokesELECTRICALS:0.5 or 1 hp x 1440 rpm x 3 phase motor with DOL starter.DIMENSION:920 mm (L) x 480 mm (W) x 700 mm Ht.)SYRINGE MINIMUM CAPACITY IN ML:10MAXIMUM CAPACITY IN ml.:1000

TheAPT -311 Machine is the latest in our range of high speed capsule filling machines. It is comparable to the best because of its outstanding features both functional and mechanical with an output of 35,000-40,000 capsules per hours. It is suitable for filling capsules of all sizes with powder /pellets.It's advanced design precision manufacture and flawless performance comply with the requirements of modern pharmaceutical production procedures coupled with its price. APTSACF-SLN makes the most ideal capsule filling machine today.   Outstanding Features:     Automatic declutching of loader when loading rings are full minimizes operator attention and ensures maximum     Infinitely variable filling table- speed ensure dosage accuracy     Automatic drug hopper in feed mechanism eliminates weight variation, reduces operator fatigue and enhances productivity     A choice of four auger speeds enables the machine to handle a wide variety of powders from highly hygroscopic to the very free-flowing     Improved design of the drug hopper drive ensures unloading of powder and quick dismanting of hopper for dealing and eliminates any possibilities of contamination of the product with traces of contamination of the product with traces of oil or metal     Automatic capsule dosing system ensures faster and safer dosing and ejection of filled capsules     Each row of 12 Holes on Loading ring     Light weight Magnesium Loading ring

Double screw juice expeller is used for continuous extraction of juice from leaves, roots, stem, coconut and fruits. The raw material fed between two screws rotates in opposite directions which results in the extraction of juice.

Screw elevator is used for carrying raw materials from a lower level to an elevated level.Bulk quantity of materials are handled in this machine. SpecificationsCapacity: 100– 5000kg/hrPower: 0.25- 5 HP.Purpose: Lifting of raw materials or productsApplications: Food, ayurvedic, spices, feed and chemical industriesMaterials of construction: Contacts parts in SS, remaining in MS

APT300  is a simplified compact rotary designed, single-headed filling & sealing machine. Suitable for an output upto 30 tubes per minute, handles Plastic - Polyethylene, Polyfoil and Laminated type of tubes. Manual lodging/in feeding of tubes, filling sealing-coding and trimming operation are performed prior to tube discharge similar to the automated version. Minimal maintenance intervention, accommodating in less then 1/2 square meter space. A perfect blend between quality components and economical cost, thus rightly meets the needs of a Lab, R&D or Promotional production of an entrepreneur to a mid sized companies.   Main Features:  Rotary 8 stn turret with adjustable height. Covers and claddings, Contact parts in SS 316L built to meet the cGMP Standards Filling accuracy ±1% with the help of Positive filling nozzle & Pneumatic cut off system No tube No fill Mechanism Easy dismantable of parts, enabling faster changeover with few size parts. Basic controls Production speed : Upto 1,800 tubes /hr. Filling Range : 3cc to 250cc Tube dia : 10 – 50mm (Min – Max) Closures System Energy efficient, compressed Hot Air Sealing with Water Cooling System Sealing – Mechanical & pneumatic combination sealing unit Ancillary / Optional equipment Variant seal design, half moon seal and more Photo registering of ‘I” mark positioning Tube Cleaning by compressed air & vacuum suction Jacketed hopper and fill level controls Agitator Both side coding Pre and post gas flushing Dry air and chiller unit Quick release handles and position indicators for faster change over Acrylic guarding

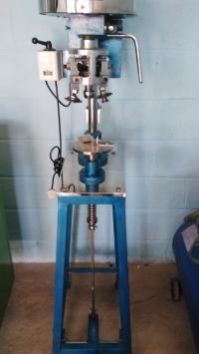

We manufacture a wide range of ropp cap sealing machines, Screw Cap Sealing Machine, automatic cap sealing machines and screw cap sealing machines are highly in demand in various industries owing to its capability of tightening most type of caps such as plastic caps, LDPE, HDPE, PET, and glass packaging. We also offer change parts for different sizes and bottles as per the client requirement. We follow stringent quality control procedures in order to avoid discrepancies at clients end.   Ropp Cap Sealing Machine Technical Specification: Speed 10 - 20 Container / min Weight 90 Kg Motor 1/4 HP , 1 Phase , 1440 RPM Capping Size 22,25,28 mm (as required) Dimension B 40 x L 55 x H 180 cms

Dome Shaped bowl which helps the products in to whirling motion with the help of impeller for the better mixing. Inclination of the impeller gives the rising and tumbling motion of the product in the bowl due to the impeller blades of two full and two half solid blades. Specially designed chopper blade with high speed and uniform granulation through out the product inside the bowl. For the easy discharge of the product auto discharge with pneumatic system is provided which can be directly discharge in to the FBD bowl.   Salient Features : Unit is designed to meet the requirement of cGMP System Precision engineering to minimize clearance between bowl and the impeller Safety measures has be taken care for easy operation Discharge can be give any side to suit the requirements   Optional Features: Machine can be supplied with FLP on request Material handling device can be provide for loading of the material CIP system can be provided In compliance with cGMP guidelinesModular DesignMixing of substances uniformly and homogeneously with special design Mixer & Chopper blades.Electro-Pneumatic Operated DischargeEffective sealingEasy to clean machineFully Automatic Operation through Programmable Logic Controller (Optional)Binder addition system (Optional)Inline co-mill for uniform granuals. (Optional)Flameproof Construction (Optional)

Types of Dies and Punches:- Dies and Punches for Round Shape Tablet Dies and Punches for Tablet with Hole- Polo Type Tablet Dies and Punches for Odd Shape Tablet Multi Tip Punches and Dies Dies and Punches for Bolus / Slug Tablet Types:- "D", "B","BB" and "DB" Tooling Dies and Punches can be supplied with NICKLE PLATING, PLASMA COATING on Request   Outstanding Features: Punches and Dies are Made of OHNS - Oil Hardened Non-shrinking Steel/ HCHC - High carbon High chromium steel/ SS440C Carefully matching of Material and Hardness Ease in Fitting and Removal Manufactured to the smallest tolerances. High precision finish   Benefits: Longer life of Tooling hence less downtime for the machine Punches and dies for continuous production A better cost to output ratio   Standard: Dies and Punches as per Euro Standard/ TSM / IPT Standard   Individual Engravings: Bisects Flat Convex Beveled Logos
