Cable Float Switch
Get Price Quote
Brand Name : DWYER USA
Material : PVC Cable
Certification : YAS
Application : SPST
Voltage : Resistive.
Operating Temperature : 140 Degree F (60 Degree C).
Type : Series CFS Cable Float Switch
Temperature : 140 Degree F (60 Degree C).
Max. Voltage : 10 A 250 VAC, Resistive.
series cfs cable float switch no hazardous mercury, adjustable counterweight cable float switch control the level of liquids in filling or draining reservoirs and tanks with the series cfs. The mercury-free switch is designed with an inverter microswitch housed in a polypropylene cover. The unit includes a counterweight to adjust the stop and start levels of pump up/pump down application. installation instructions: the installation is very easy by holding the cable with a small clamp in the reservoir or container. by fixing the counterweight to the cable, at a closer or farther from position float, the desired differential between the highest and lowest level can be freely adjusted. Several differentials between levels, against counterweight-to-float distance are given: installation of counterweight: insert the cable in the counterweight, from the conical part and rotate it, thus causing the plastic ring inserted in the opening to become detached (if necessary this operation can be facilitated with the use of a screwdriver). The ring should then be positioned in the point where it is desired to block the counterweight. force the counterweight on the ring by rotating it, using a slight pressure. if the counterweight position is to be changed, the counterweight should be retracted, the ring position changed and secured once again. other details: modelcable length cfs-26.5 ft (2 m) cfs-10 32.8 ft (10 m) related products model fpc-1200 duplex pump controller model fpc-1200 duplex pump controller series qpc quadraplex pump controller series qpc quadraplex pump controller series sld single channel leak detection relay series sld single channel leak detection relay series dpc duplexing pump controller series dpc duplexing pump controller series dld dual channel leak detection relay series dld dual channel leak detection relay
Cable Float Switch
Get Price Quote
Media Type : Liquid
Mounting Options : Top Mount
Float Diameter : 91mm Dia X 50mm Thick
Cable insulation : Pvc Material
Material/Body : Plastic
Power/Voltage : 230 Vac
We offer superior quality Cable Float Switch, made from high-grade material in our advanced precision manufacturing facility. These cable float switches are heat resistant, strong, easy to install and dimensionally accurate. All our cable float switches have to pass through our stringent quality checks for their accuracy and performance. We also offer customisation of these cable float switches based on the application they are needed for. We are a reputed manufacturer, exporter and supplier of cable float switches from New Delhi, India. Product Code : JKI-CFS-3M Product Specification : Leveraging on our rich industry experience, we are manufacturing, exporting and supplying the best quality Cable Float Switch. This switch is precisely manufactured by our highly skilled team of professionals using the progressive technology and superior grade raw materials in sync with international quality standards. Our quality controllers check this switch on well-defined quality parameters in order deliver the best quality products at clients' end. Further, we offer this Cable Float Switch at market leading rates to the clients. Features : Thermal resistance Sturdy construction Easy to fit Precise dimension Details : Level Switch for drinking water to sewerage. Switch differential is set with the help of a counterweight that can be adjusted alongside the cable of the switch. Our Level switches are non-toxic body materials and mercury free operated micro switch enable its use in drinking water applications. Maximum load - 15 A at 250 V AC, Contact Type - Micro Switch with NO and NC contact, Process temperature- -20°C to 80°C, Liquid density- min. 0.8, Housing material- Non-Toxic Polypropylene, Switch angle- +/-45°, Cable Length- 5 Meters (Extra cable length on request)
Best Deals from Cable Switch

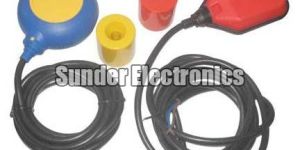

Cable Float Switches
Get Price Quote
Brand Name : Sunder Electronics
Material : NBR, Nylon
Certification : CE Certified
Application : Cable Float Levelling
Voltage : 200VDC
Type : Switches
Frequency : 60Hz
Power : 0-5Amp, 10-15Amp
Temperature : 0Dig C To + 60Dig C
Hole Diameter : 0-20mm, 20-40mm
Setting Range : 0-1500pF
Cable Float Level Switch
500 - 20,000 Per Piece
1 piece (MOQ)
Cable Length : IP 68
Float Material : P.P.
Cable : Neoprene, 0.75mm2 X 3C
Contact Rating : 15A, 230 V AC
Switch : NO or NC or SPDT
Operating Temp. : 0 C – 50 C
Pressure : 1kg/cm2
Actuation Angle : 28 + 2
Cable Float Switch
Get Price Quote
Operation Mode : Omnidirectional
Allowed Fluid Density : 0,70a 1,15
Maximum Pressure : 3,5 Bars
Maximum Temperature : 85oC
Protection Index : IP 68
Electric Characteristics : 250 VAC- 50/60 Hz
Cut-out Power : 20 (8)A (20 A resistive- 8 A inductive)
Microswitch : Silver / Cd oxide reverser contacts
Biconical Shell : Copolymer Polypropylene
Cable : Neoprene or HR HY (hypalon) HO7RN8-F
Cable Type : 2 or 3 conductors 1 mm2 (with or without T, according to versions)
Float Weight Without Cable : 105 g
Cable weight : Neoprene 115 g/m - HR HY110g/m
Adjustable Ballast On : Loaded resin 175 g or 250g - Plastic 200g -ecological
Standard Cable Length : 0,40; 0,50; 1; 3; 5; 10 and 20 m (other lengths on request)
Cable Float Level Switch
Get Price Quote
Housing Material : Diecast Aluminium
Ingress Protection : IP-65 (IP66 for Flameproof Enclosures)
Max Temperature : 100 deg C
Max Pressure : 10 bar
Length of Probe : 200 mm to 2000 mm
Min Specific Gravity : 0.8
Switch Rating : 1 Amp / 250 VAC
Cable Float Level Switch
2,000 - 50,000 Per Piece
Brand Name : V Automate
Media Type : Liquid
Temp/Pres : 0-80degreeC/5 bar max
Series : H And Y
Output : 1NO/1NC, 5 amp/230 VAC
Cable Float Switch
599 Per Piece
500 Piece (MOQ)
Country of Origin : India
Specialities : Non Breakable, High Tensile, High Quality
Mounting Options : Top Mount
Cable Length : 2m
Temperature Range : 40-125 Degree
Brand Name : Orikeet
Current Rating (Amps) : 1
Cable Float Level Switch
Get Price Quote
Maximum Load 16 A 250 V AC CABLE MATERIAL PVC or Neoprene CONTACT TYPE Microswitch with NO and NC contact CONTACT LIFE 10 million switches SWITCH ANGLE ±45° SWITCHING SPEED max. 600min. PROCESS TEMPERATURE 0°C to 70°C PROCESS PRESSURE max. 5 Bar LIQUID DENSITY min. 0.8 gcm3 HOUSING MATERIAL non-toxic polypropylene PROTECTION IP 68 CABLE SPECIFICATION Ø 9 mm 3x1.5 mm2
Cable Float Level Switch
Get Price Quote
Cirrus – CLS1 – Cable float level switch – Is one of the versatile used Level switch for Level controlling in tanks & pits, easy to install, maintenance free and reliable designed for trouble free operation. Its double chamber hermetic sealed non-toxic Polypropylene body makes it suitable for drinking water to sewage applications. The switching “ON” & “Off” differential is adjusted by a counterweight on the cable & by simply lengthening or shortening the free cable fixation point. Requires no special mounting arrangement, it is hanged by its cable in the tanks and can control both emptying and filling operations. It is used for controlling of pumps in all type of tanks & pits with greater depths.
cable switches
Get Price Quote
Features : durable, need not maintain
Cable Float Switch
Get Price Quote
Cable Length : 2 Meter
Body Material : Plastic
Cable Float Switch (Series CFS)
Get Price Quote
Brand Name : Dwyer
Material : NBR, Nylon, PVDF
Certification : Yes
Application : Cable Float Levelling
Voltage : 230VAC
Operating Temperature : 140 Degree F (60 Degree C)
Application : SPST
Material : PVC Cable
Type : Cable Float Level Switch
Frequency : 60Hz
Power : 10-15Amp
Temperature : 0Dig C To + 60Dig C
Hole Diameter : 20-40mm
Setting Range : 0-1500pF
Max. Voltage : 10 A 250 VAC, Resistive.
Temperature : 140 Degree F (60 Degree C)
Type : Series CFS Cable Float Switch
Cable Float Level Switch
750 Per Piece
Material : Plastic
Media Type : Liquid
Working Pressure : 1 Bar
Temperature Range : 50 Deg C
Measuring Range : 5 M Cable Length
Current Rating : 220 V AC
Switch Type : Cable Float micro switch
Switch Positions : 1
Mounting Options : Top Mount
Pole And Throw Specification : SPDT
Meter Technology : Controlling
Application : Water, Sewage
Brand Name : Haxella
Model Name/Number : Haxelpro-06
Switching Current : 8 A
AC Voltage : 220 VAC / 24 VDC
Operating Temperature Range : 60 deg C
Cable Float Switch
170 Per Piece
500 Piece (MOQ)
Operating Temperature : 50 DEG
Brand Name : CEYONE/ATOM/HACK/PRIDE
Material : Plastic
Pole And Throw Specification : DPDT
Current Rating : 16A
Mounting Options : Top Mount
Model Name/Number : M15
15 Ampere Top Mount M-15-2 Cable Float Switch , P
150 Per piece
15 Ampere Top Mount M-15-2 Cable Float Switch, P, Solenoids
Cable Float Level Switch
Get Price Quote
It is one of the versatile used Level switch for Level controlling in tanks & pits, easy to install, maintenance free and reliable designed for troubl...
cable switches
Get Price Quote
cable switches, Heavy Duty Limit Switch, Volume Control Switches
Cable Float Switch
Get Price Quote
Cable float switch is a control device forfilling and discharging pumps, motor and magnetic valves. It is also an alarm device at certain predetermined surface levels. It is simple, rugged and reliable.
