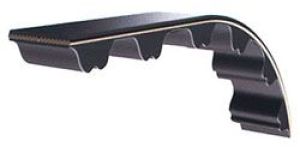

A timing belt is a type of cogged belt, usually made of reinforced rubber. Timing belts are used for power transmission or to interchange rotary motion and linear motion. In such cases, either high loads or maintaining a specific drive ratio are very important. A common non-automotive application of rubber timing belt is in linear positioning systems. Thus, the basic purpose of timing belt is to transfer driving force by connecting wheel transmission, chain transmission and belt transmission. Rubber belts are quieter in their operation, are less expensive and are mechanically more efficient. We have timing & polyflex V-belts in different nomenclature like: T5, T10, T20, AT5, AT10, AT20, H, L, XL, XH, XXH, MXL, 3M, 5M, 8M, 14M, etc. Advantages  ¤ Anti-wearing out ¤ Small elongation rate ¤ Strong ¤ Cost effective ¤ Anti-oil ¤ Anti-heat ¤ Anti-ageing ¤ Anti-ozone ¤ Simple transmission mechanism ¤ Light weight ¤ No Lubrication ¤ Less noise while running ¤ Easy for maintenance Types of rubber timing belts ¤ Rubber synchronous driving belt: This is a special kind of rubber driving belt to transmit the mechanical driving force. ¤ Circular arc tooth belt: Used in sewing machinery, food processing equipment and small household electrical appliances. Composed of closed round rubber, teeth and attached belt or pulley. ¤ T-Type Belt etc. Applications: Automobile Industry, Chemical fiber, Needlework equipment, Spinning equipment, Cigarette marking machines, Printing machines, Office equipment, Communication equipment, Foodstuff machines, Chemical machines, Light industrial machines and Various precision machine tools and instruments.

IBC Steel cord conveyor belts are widely used in high strength, long distance and heavy load transportation of materials, and they are also used in high strength and short distance transportation of materials on special occasions.CHARACTERISTICS: 1. High tensile strength: The belts are suitable for large span, long distance transportation Of materials 2. Small elongation in use: The belts need only a very short take-up stroke distance. 3. Small diameter of drive pulley: The belt body has a layer of longitudinally arranged Steel cords as its skeleton, and thus is resistant to flex fatigue. Therefore, drive pulley Of smaller diameter can be used to make the equipment smaller. 4. High adhesion between rubber and steel cord: The cords are coated with zinc on there Surface, and also the rubber used have the property of good adhesion with steel cords. Therefore, the rubber is tightly adhered to the steel cords and is resistant to shock and Difficult to drop, so the rubber belts are long in life. 5. Even tension of steel cords: Out of our advanced techniques in manufacturing, the steel Cords are very evenly arranged and have the same tension, so the belts are well balanced in running and difficult to run awry. 6. Good trough ability: As the belt body has no transverse skeleton, it is easy to form a deep trough, so the belts can load more materials and prevent the materials from escaping. 7. Inspection of the belt X-rays: Users can use X-rays to inspect damages of the skeleton Steel cords on the conveyor machines to prevent accidents from happening.

This is a 7x7 (7 strands of 7 wires) open type steel cord (or cable) with four different wire diameters. The advantage of open type steel cords is the high rubberization of the cord gaps - for higher steel cord pull-out strength and better corrosion prevention. The cable diameter is measured as per DIN 3051.   In a steel cord conveyor belt, Z and S lay steel cords are used alternately to ensure a straight running behaviour of the belt. The illustration shows a regular lay. The lay length of the sheath is the length along the strand in order for a wire to make one complete revolution around the king wire.

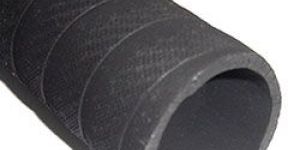

Reinforced with high strength synthetic yarn braided in premium quality Natural rubber tubing, this hose is used in thermal power plants, steel mills & in many other industries for passing on saturated steam at a specified pressure. Super Spray Hose Made with the blend of Natural & Synthetic Rubber Tubing Braided with Dipped Rayon Yarn, this hose is used for spraying liquid formulation of insecticides, funguses and weeding. All the above hoses are available in red, blue & black colors with smooth, wrapped or lining outer surface options. Inner Diameter is available up to 4 inches in single to triple braid.

  IBC nylon sandwich belts are manufactured from specially tanned flexible chrome leather/ imported synthetic rubber and high tensile uniaxially oriented polyamide sheets. The uniaxially oriented polyamide sheets which form the core layer provide very high tensile strength coupled with high elasticity and high flexibility to IBC belts. The friction cover of chrome leather or synthetic rubber ensures high coefficient of friction and abrasion resistance endowed with these qualities IBC nylon sandwich belts naturally become superior substitutes of conventional belts providing much more freedom in drive, design and ensuring unparalleled advantages. Unmatched characteristics  ¤ Higher load carrying capacity. ¤ Higher elasticity without permanent stretch. ¤ Low flex resistance. ¤ High coefficient of friction.

High speed tangential drives of modern textile industry rank among the most critical drives and pose a formidable challenge to belt manufacturers, demanding high degree of accuracy of tangential belts. Due to high quality synthetics & other raw materials used by us, our IBC tangential belts have passed this acid test with distinction. Unmatched characteristics ¤ High elasticity & resilience. ¤ High coefficient of friction. ¤ High abrasion resistance. ¤ High flexibility, low flex resistance.

Made out of Natural, Neoprene, Synthetic textures to suit different applications in industries, power houses, agriculture and other general purposes. These are manufactured as per various IS Specification. GENERAL RUBBER SHEETS Manufactured out of natural rubber are unhardened solid rubber sheets, Recommended for general purposes. PURE RUBBER SHEETS Manufactured out of natural pure rubber. Recommended for steam & Water pressures.

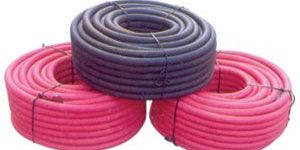

Water & Air Hose Manufactured out of natural rubber based tube & reinforced with dipped polyester or rayon braiding, this hose is used for water & air delivery purpose in Railways, Mines, Dams, and Gardening etc. Welding Hose  This hose is specially manufactured for gas welding purpose with Natural/Synthetic rubber compounding which is resistant to non combustible gases and oxygen gas. Pneumatic Tool Hose Made with high quality natural rubber tubing reinforced with dipped rayon yarn. This hose is basically used with compressors and other equipments as pneumatic tools for engineering purpose, etc. Rock Drill Hose Manufactured with specially formulated Natural & SBR rubber based tube reinforced with double or triple braid options of Dipped polyester or rayon yarn as per the requirement for drilling purpose in deep excavations operations & mines.

Length: Open or endless up to 400 meters in single length provided the diameter does not exceed 10 feet. Plies: 1 plies to 8 plies. Type of Fabrics & their features: Nylon/Nylon (NN) Carcass: NN 100, NN 125, NN 150, NN 200, NN 250, NN 300, NN 350, NN 400 and NN 450.  ¤ Lower longitudinal elongation ¤ Higher tensile strength ¤ Good flexibility and trough ability ¤ Good resistance to mildew, moisture and rotting ¤ Good resistance to edge wear ¤ Excellent impact resistance ¤ Unaffected by alkalis and weak acids ¤ Suitable for conveying material over long distances Polyestor/Nylon (EP) Carcass: 100, EP 125, EP 150, EP 200, EP 250, EP 300, EP 350, EP 400 and EP 450 ¤ Besides having the advantages as listed for NN carcass belts, EP belts have the additional advantage of lower longitudinal elongation. Cotton/ Cotton (CC) Carcass: 28 OZ, 32 OZ, 36 OZ, 42 OZ, 48 OZ and 34 OZ. ¤ Suitable for most applications ¤ Good bonding for rubber ¤ Good fastener holding properties Cotton/ Nylon (CN) Carcass: ¤ Good troughability ¤ Resistance to longitudinal tearing and damage due to edge turn up ¤ Improved resistance to impact damage ¤ Lighter in weight ¤ Better mechanical fastener holding properties GRADES: GRADE M-24: Compounded from premium quality natural rubber to provide excellent resistance to cutting gouging, wear & tear and confirms to the maximum abrasion loss value & minimum tensile strength. GRADE N-17: Recommended for medium duty services to handle sized materials like woodchips, lime, fine stones, gravel's etc. GRADE HR(T1): Manufactured with specially formulated rubber compound for handling materials like ash, hot lime, foundry sand etc. having temperature up to 125°C for coarse and 100°C for fines. GRADE SHR(T2): This cover grade is specially formulated with synthetic & natural rubber to provide superior heat & abrasion resistance. Recommended for temperature up to 180°C for coarse and 160°C for fines material. GRADE UHR: Specially made with formulation of S.B.R rubber for providing ultra heat & abrasion resistance. Recommended for temperature up to 180°C for coarse and 160°C for fines material. GRADE FR: This belt is widely used in coal & such type of mines where the ambient temperature may not be high but there is distinct hazard of belts being enveloped in fire. GRADE OR: specially compounded synthetic rubber cover grade is specially designed to give the best possible resistance to mineral, vegetable and animal oils.

It is designed for transporting light weight goods, either being inclined or being horizontal, also suitable for transporting fragile or deformed materials and packed goods, such as glass, papers, bags, boxes or cartons at angle from 15 to 35 degree. The bareback Rough Top belt makes less friction coefficient, suitable for running over table and flat panel. The design of mesh-like pattern on the top surface cover can generate the relief effect, absorbing any vibrations and impacts exerted on the materials conveyed and simultaneously preventing the material from slip. Type of Edges: Available in cut edges and moulded (protected) edges. Skim Coated: The belts are processed with all its fabric plies skim coated with superior quality rubber compounds Mildew Inhibition: The rubber compounds used in the belts are designed such as to have full protection against mildew Breaker Ply: To with stand extra impact during service the belts are provided with breaker ply on demand. Belt Designation: Available in three types i.e. General Duty (GD), Heavy Duty (HD) and Extra Heavy Duty (EHD). National and International Standards followed:  ¤ Bureau of Indian Standards (BIS) ¤ British Standards (BS) ¤ International Organization for Standardization (ISO) ¤ German Standards (DIN) ¤ Canadian Standards (CAN / CSA) ¤ Australian Standards (ASS) ¤ France Standards (NF-T47-100/101)

  The product consists of solid woven fabric & PVC combined together by dipping and coating with PVC paste. The belt has good flame resistant and anti-static properties, with high tensile strength in proportion to weight, good integrity and no delimitation, excellent impact and rip resistance. The belt is much suitable to service in the conditions needing fire resistant and antistatic properties as coal mines, power stations, chemical and metallurgy industries. Features: ¤ Low stretch. ¤ Low maintenance. ¤ Anti-static.   ¤ Flexible. ¤ Lightweight. ¤ Impervious to moisture, acids, oils,    gases, sunlight. ¤ Excellent fastener holding. ¤ Edge of the belt is abrasion resistant. ¤ Defect of ply separation cannot occur. ¤ Endless belt splicing. Standards Followed: 1. DIN22109 2. AS4606 3. BS3289 4. BC158

IBC conveyor and process belts are specially made for light and medium duty industrial and service sectors. These belts are suitable for all types of Conveyors, whether horizontal, roller supported, troughed, inclined, with suction, curved, etc.   Our belts are manufactured by using specially developed fabrics, with covers made of PVC, PU, PE, polyester or silicone rubber. Our standard range comprises of more than 60 belt types and a large number of accessories. The vast range of IBC products offer a choice of belts with many features including: ¤ Anti-static and non-conductive ¤ Food quality types to FDA and HACCP standards ¤ Resistance to abrasion, oils, fats and chemicals ¤ Surfaces with low, medium or high coefficient of friction ¤ High transverse rigidity and dimensional stability ¤ Low noise (LdB belts) Special belts can also be manufactured complete with: ¤ Guides, profiles and sidewalls fitted by means of high     frequency or hot air welding machines. ¤ Curved or Corner conveyor belts it allows the solving of logistic problems through the deviation    of the conveying system from a few degrees to a 180 ° turn. ¤ Belts can be supplied endless spliced or with prepared ends for on-site splicing to be done with    dedicated solutions.

1.Unique Carcass Design & Assembly. 2. Superior Adhesion Levels. 3. Higher Longitudinal Flexibility. 4. Improved Transverse Flexibility. 5. Higher Tensile Strength. 6. Low Belt Stretch. 7. Outstanding Impact Resistance. 8. Improved resistance to mechanical damages. 9. Higher carrying capacity with low conveyor belt weight. 10. Rot Resistance. 11. Hot & cold splice proven. 12. Superior joint efficiency & increased life. 13. Universal applications.   Note: The above chart indicates our standard range of Nylon / EP Conveyor Belts. Other constructions can be designed and manufactured by us against specific requirements. Data provided in this catalogues is indicative only and specifications may be changed by the Company due to continuous and ongoing developments in our products.

HYGIENIC: This grade is specially manufactured from suitable non-toxic elastomers & is odorless. Recommended for handling foodstuff like tea, bakery, medicines, confectionery etc.

We have full range of v- belts, harvester combine belts, space saver wedge & narrow v- belts, hexagonal v-belts, profile top v-belts & automotive wrapped belts. These belts have exceptional length stability and drive uniformity, “set free” provides assured belt length and easy inventory control. Heat & oil resistant plus static conductive.

Common flat rubber belt, also called transmission belt, commonly uses high quality cotton canvas as its skeleton layers. The surface of the canvas is scrubbed or coated with appropriate rubber, and then several layers of rubber canvas adhere together to form the flat rubber belt.  On the longitudinal seam of the belt, enclosing rubber is used to make the seam firmer and better adhered together. The flat rubber belt has the characteristics of high strength, good flexibility, and small elongation in use. It is mainly used in factories, mines, docks, metallurgical industry and etc, and also widely used in ordinary mechanical power transmission, great power processing of grains of rice and wheat, irrigation equipment, wood cutting and other power transmitting equipment for industry and agriculture. Therefore it plays more and more important role in various types of power transmitting equipment.

Natural rubber based electric resistance sheets are used in power houses, sub-stations, factories & industrial set ups, as an essential device against possible accidental power leakage. SYNTHETIC RUBBER SHEETS Manufactured out of Neoprene, Nitrile, Butyle or as per the requirement of the end user. These are used as essential device against corrosive affects of Acids, oils, chemicals, petrol & Heat.

Cut edge flat rubber belt is manufactured by adhering several layers of full width canvas together, the sides of the belt are flat surfaces formed by cutting, the belt edge surfaces are coated with rubber paste. 2. Fold edge flat rubber belt Fold edge flat rubber belt is folded by the outer ply or plies of canvas, and the sides of the belts are curved surfaces. 3. Balata packing belt Available in 2mm to 15mm thicknesses in cotton or jute reinforcement compounded with natural rubber, these belts are used extensively in automobile industries for packing purpose. The major application sectors for these belts are listed below: Agriculture, floor mills, stone crusher, carton box folding industry,

conveyor belt joints Faster curing it is Reduces down time it is Ease of application Adequate tack retention time and it is a Longer shelf life

When conveyor belt is working, safety is paramount, so don't put you or your workers at risk anymore. Using our Super Grip Belt Fasteners you can rest assure a tight joint to clamp the conveyor belt ends to form a continuous loop & get the safer atmosphere to work. Product classification: 1. Made of zinc coated carbon steel or wear resistant (WR) steel, dichromate ( Top and Bottom plates). 2. Four type of sizes to meet the requirement of most applications. 3. Each fastener set contains 1 top plate, 1 bottom plate, and 2 bolts.

  FEVICOL SR CBR7 & CBA7 FEVICOL brand adhesives are the largest selling brand of adhesives in India. Professionals all over rely only on FEVICOL for a perfect job. Jointing of Rubber Conveyor Belts, Rubber Flat Belts, Rubber Sheets etc., is done quicker and better with FEVICOL SR CBR7 & CBA7. Product features: ¤ Faster curing ¤ Reduces down time ¤ Ease of application ¤ Adequate tack retention time ¤ Longer shelf life

Appearance : Yellowish brown viscous liquid
