Number Of FlowerFlattening of Plastic Film Capacitor Elements
Country of OriginAs Per Customer
ConditionNew
Power15
Driven TypeServo-hydraulic
PhaseThree Phase
Total Carbohydrate1 Year
Country of OriginChina
General information:
Machine designed to apply pressure and heat to wound capacitive elements which are wound with metallized film. Through pressing and heating process, capacitive elements will get stable capacitance value, overall shape and dimensions.
Features:
•Vertical pressing by oil hydraulic system, easy operation, stable process quality.
•Higher output capacity.
•The pressure in oil hydraulic cylinder is controlled by sensing unit, servo dynamic management, higher pressure stability with German digital pressure gauge.
•Temperature module control, uniform temperature, and high precision.
•Pressing in the space of constant temperature, elements are baked more uniformly and energy saving.
•Insulated hot zone for better energy efficiency.
•Auto closing & opening of front doors for improved thermal efficiency.
•Adopting Mitsubishi PLC control, stable and reliable.
•99 recipes can be stored.
•Inbuilt software for calculating time & pressure of the press.
General information:
Machine designed to apply pressure and heat to wound capacitive elements which are wound with metallized film. Through pressing and heating process, capacitive elements will get stable capacitance value, overall shape and dimensions.
Features:
•Vertical pressing by oil hydraulic system, easy operation, stable process quality.
•Higher output capacity.
•The pressure in oil hydraulic cylinder is controlled by sensing unit, servo dynamic management, higher pressure stability with German digital pressure gauge.
•Temperature module control, uniform temperature, and high precision.
•Pressing in the space of constant temperature, elements are baked more uniformly and energy saving.
•Insulated hot zone for better energy efficiency.
•Auto closing & opening of front doors for improved thermal efficiency.
•Adopting Mitsubishi PLC control, stable and reliable.
•99 recipes can be stored.
•Inbuilt software for calculating time & pressure of the press.
Number Of Flower : Flattening of Plastic Film Capacitor Elements
Round Metal Top Assembly with Explosion Proof Device (Burst Proof Device). Aluminium Plate with 2 of 3 Terminals. As per UL design. High Quality for Exports
Round Metal Top Assembly with Explosion Proof Device (Burst Proof Device). Aluminium Plate with 2 of 3 Terminals. As per UL design. High Quality for Exports
Number Of FlowerLead Wire Welding on Metal Sprayed Capacitor Elements
Country of OriginAs Per Customer
ConditionNew
Automatic GradeAutomatic
Power5-10kw
Driven TypeElectro-pneumatic Mechanical
Total Carbohydrate1year
Country of OriginChina
General information:
The machine is designed to attach PVC insulated multi-strand copper lead wire on the Zn sprayed ends of the capacitor elements.
Material specification:
1.Element dimensions: Ø 16~35mm; length 26~45mm; length:Ø ≥ 1.5 (subject to core being flushed with the sprayed ends). Metal spray thickness: Min. 0.4mm at each end
2.PVC multi-strand lead wire O/D: 1.8~3.0mm (Cu: strand Ø0.18x16 ~ 0.18x35mm)
3.PVC multi-strand lead wire length: 50~350mm
4.Length of PVC multi-strand lead wire stripping & twisting for spot welding: Max. 12mm
Machine key units:
1.Welding power supply unit: Inverter type with air-cooling of welding tips
2.Element feeding unit: vibration bowl
3.PLC control. The manufacturer can access machine PLC via Team Viewer for diagnosis.
General information:
The machine is designed to attach PVC insulated multi-strand copper lead wire on the Zn sprayed ends of the capacitor elements.
Material specification:
1.Element dimensions: Ø 16~35mm; length 26~45mm; length:Ø ≥ 1.5 (subject to core being flushed with the sprayed ends). Metal spray thickness: Min. 0.4mm at each end
2.PVC multi-strand lead wire O/D: 1.8~3.0mm (Cu: strand Ø0.18x16 ~ 0.18x35mm)
3.PVC multi-strand lead wire length: 50~350mm
4.Length of PVC multi-strand lead wire stripping & twisting for spot welding: Max. 12mm
Machine key units:
1.Welding power supply unit: Inverter type with air-cooling of welding tips
2.Element feeding unit: vibration bowl
3.PLC control. The manufacturer can access machine PLC via Team Viewer for diagnosis.
Number Of Flower : Lead Wire Welding on Metal Sprayed Capacitor Elements
Automatic Winding Machines used for winding metallized Plastic film on cores to make capacitor elements for AC Capacitors.
Customized machinery. Prices shall vary accordingly.
...more
Automatic Winding Machines for Plastic Film Capacitors
Automatic Winding Machines used for winding metallized Plastic film on cores to make capacitor elements for AC Capacitors.
Customized machinery. Prices shall vary accordingly.

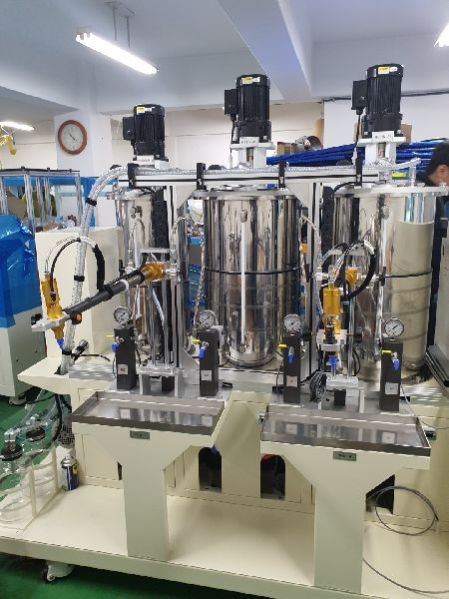

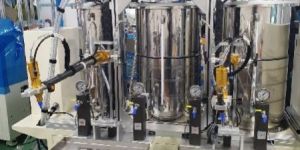

This is an Automatic Meter + Mix + Dispensing System for multi-components like Epoxy, Silicone, Polyurethane, etc.
It is a custom-made production system which is used in Automotive Electronics, filters, electronic/electrical industry.
This is an Automatic Meter + Mix + Dispensing System for multi-components like Epoxy, Silicone, Polyurethane, etc.
It is a custom-made production system which is used in Automotive Electronics, filters, electronic/electrical industry.
Power : 6-9kw
Packaging Type : Wooden Box
Usage : Auto Electronics Industry
Number Of Flower : Automatic Resin Potting Machine
Number Of FlowerEnd Metal Spray on Capacitor Elements
Country of OriginAs Per Customer
ConditionNew
Power10
Packaging TypeWooden Box
Driven TypeElectro-mechanical
PhaseThree Phase
Total Carbohydrate1 Year
Country of OriginChina
Operating ModeAutomatic
UsagePlastic Film Capacitor Industry
The machine is designed for electric arc spraying of Zinc metal layers on the top of capacitor elements wound with metallized film. Due to the metal spray, the capacitor plates (within the element) are short-circuited on each side, hence, the capacitor is made non-inductive. Further, the Zinc deposit serves as a base for connecting the leads. Prior to spraying, the capacitor elements must be assembled into a reel of max. 600mm diameter. The capacitor elements are placed on the net support which rotates during metal spray process. The machine has three electric arc guns mounted on the shaft driven by the servo motor system for moving in radial direction of the rotating net. With three guns, it is possible e.g. to spray the first fine layer of zinc, then the second & third rough layer of zinc building the apt thickness of metal spray. The time interval between the different spraying operations is kept minimum to prevent oxidation and assures perfect cohesion of the layers. The spraying plant design assures a uniform thickness of the metal layer. The machine is controlled by PLC and fully automatic. The only manual job requested are loading capacitor elements, reverse side and unloading.
The machine is designed for electric arc spraying of Zinc metal layers on the top of capacitor elements wound with metallized film. Due to the metal spray, the capacitor plates (within the element) are short-circuited on each side, hence, the capacitor is made non-inductive. Further, the Zinc deposit serves as a base for connecting the leads. Prior to spraying, the capacitor elements must be assembled into a reel of max. 600mm diameter. The capacitor elements are placed on the net support which rotates during metal spray process. The machine has three electric arc guns mounted on the shaft driven by the servo motor system for moving in radial direction of the rotating net. With three guns, it is possible e.g. to spray the first fine layer of zinc, then the second & third rough layer of zinc building the apt thickness of metal spray. The time interval between the different spraying operations is kept minimum to prevent oxidation and assures perfect cohesion of the layers. The spraying plant design assures a uniform thickness of the metal layer. The machine is controlled by PLC and fully automatic. The only manual job requested are loading capacitor elements, reverse side and unloading.
Number Of Flower : End Metal Spray on Capacitor Elements
Secondary Business TypeManufacturer / Exporters / Wholesale Suppliers
Year of Establishment1997
No. of Employees6 - 20
Annual TurnoverRs. 0.5 to 2.5 Crore Approx.
Ownership TypeCorporation/Limited Liability Company
Opening Hours
SUN : Closed
MON : 9:30 AM - 6:30 PM
TUE : 9:30 AM - 6:30 PM
WED : 9:30 AM - 6:30 PM
THU : 9:30 AM - 6:30 PM
FRI : 9:30 AM - 6:30 PM
SAT : 9:30 AM - 6:30 PM

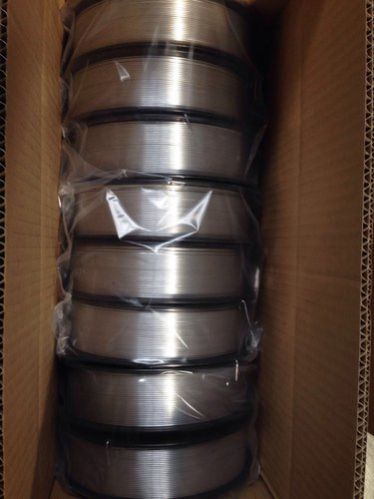

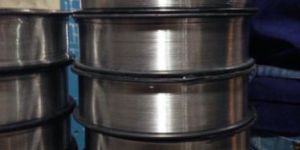

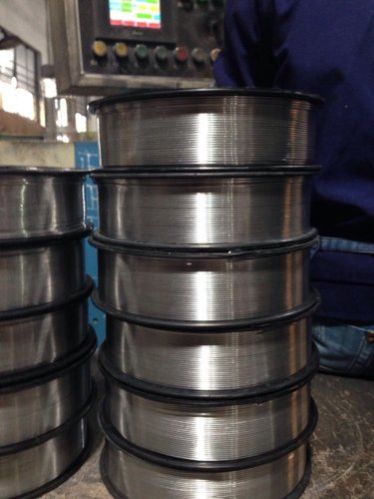

We are Manufacturers’ Exclusive Representatives and Marketing Agents: I. Slitting machines for Capacitors Films II. Special Machines for: a) Resin & Adhesive Meter Mix Dispensing b) Soldering, Welding & Assembly for Electronic/Electrical Components & Assemblies III. Consumables / Materials for Vacuum Coating a) Aluminum & Aluminum Alloy Wire for Vacuum Metallizing IV. Raw Materials, Consumables and Process Aids for Plastic Film capacitors a) UL & RoHS approved Fusible Thermal Cut-offs b) UL & RoHS approved Resettable Thermal Cut-offs c) Aluminum Cans, Containers and Terminal Plate assemblies for Power and AC Capacitors (with Explosion Proof Device) d) UL & RoHS Bakelite Cans & Terminal Plates for MPP & Electrolytic Capacitors e) Capacitor Impregnation Oils – Wax + Oil, PXE, PEPE, MBT, etc. V. Machines for Plastic Film capacitor manufacturing a) Winding Machines b) Metal Spray Machines c) Automatic Slitting Machines d) De-burring Machines e) Automatic Soldering Machines f) Automatic Clearing & Self Healing Machines g) Automatic Testing Machines h) Automatic Vacuum Oil Filling Machines VI. Circuit Protection Components for Over Temperature, Voltage & Current a) Thermal Fuses / Cut-offs / Links b) Metal Oxide Varistor (MOV) c) Thermally Protected MOV d) Surge Protection Device (SPD) & its Modules e) Fuse f) Fusible Wirewound Resistor (RXF) g) Thermally Protected RXF h) Active Protectors i) Multiple Protectors
