Telescopic Pneumatic Cylinder
We manufacture top notch quality single and double acting types hydraulicpneumatic cylinders. There are variety of mounting types to choose from. The stroke length is up to 6000mm in conventional types and up to 24000mm in telescopic type. Maximum working pressure from 10 kgcm2 to 250 kgcm2 with maximum bore diameter of 800mm for hydraulic cylinders. For pneumatic cylinders pressure ranging from 2 kgcm2 to 15 kgcm2. Cylinder body Made from alloy steel tubing with micro finish bore. Cylinder head Through bored and grooved to provide concentricity to common center line for the body, rod and gland.Provide unobstructed flow without interference from the gland, Also machined for concentricity, All dynamic seals and elastromeric design to seal with minimum friction, With wide surface contacting cylinder barrel to reduce bearing loads during mechanical deflection.
...more

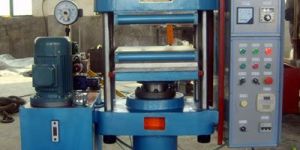

Hydraulic Workshop Press
Quality array of hydraulic presses since 1976. The application of the machine includes pressing, assembling, punching, straightening, broaching, riveting and bending. We supply our machine that can be used in automobile parts, electrical parts, telecommunication plastic parts and house-hold items.
...more

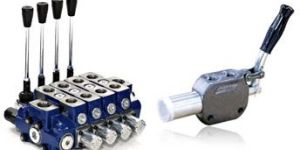

Hydraulic Spool Valve
Mainly direction valve directs the flow (usually oil) through the system. Flow is given by hydraulic pumps to direction valve, that further distributes oil medium into the system. The route of the liquid medium i.e. oil, is decided by the position of the spool (GIF example as below). Hydraulic system can function as per the requirements by using different design of spools example, all port lock, P-T connected, A-B-T connected, P-A connected etc. Hence, end user should select the correct type of direction valve to serve studied purpose. Direction hydraulic valves can be selected from variety of sizes. In order to select the direction valve, it is essential to know the oil flow and pressure in the hydraulic system. Different sizes are available by manufacturers like mounting in pipelines, subplate mounting and threaded connection like cartridges. Hydraulic valves are subdivided into three essential categories, hydraulic direction, flow control and direction control valves.
...more
hydraulic pressure pipe
We manufacture highlow pressure hose with end fittings consisting of several sizes and shapes example: Female Swivel ‘D’ Nipple, Female Swivel ‘S’ Nipple, Male – Fix Cone Taper, Male – Fix Outer Taper, Male – Fix Taper Thread, BE Nipple, Hydraulic Split Flange and Elbow – 90 degrees. It could be used for hydraulic, Pneumatic, Fuel, Gasoline, Air, Water & Steam applications. High Pressure Hose, Low Pressure Hose.
...more
Hydraulic Press
With vast experience in hydraulics, our company have procured market integrity by manufacturing quality array of hydraulic presses since 1976. The application of the machine includes pressing, assembling, punching, straightening, broaching, riveting and bending. We supply our machine that can be used in automobile parts, electrical parts, telecommunication plastic parts and house-hold items. Our hydraulic Presses are all custom made as per customer’s requirements. We manufacture hydraulic presses as follows: JCO Pipe Forming Press Deep Draw Moulding Presses Metal Forming Scrap Bailing Presses Broaching Machines (Horizontal & Vertical) Brake & Shearing Presses ASSEMBLY PROCESS OF PRESS: The presses capacity vary from 5 Tonnes to 1000 Tonnes with various Bed Sizes, Daylight size & other specifications. The presses are equipped with latest PLC and HMI (Human Machine Interface) Controls for Auto Operation. Our expert team including engineers/inspectors, design and manufacture the hydraulic machine as per the existing set industry policies using high grade materials. We also manufacture the customized hydraulic machine in order to meet exact requirement of our customer.
...more

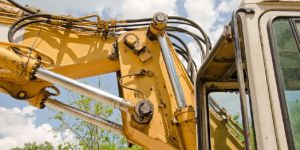

Hydraulic & Pneumatic Cylinders
We manufacture top notch quality single and double acting types hydraulic/pneumatic cylinders. There are variety of mounting types to choose from. The stroke length is up to 6000mm in conventional types and up to 24000mm in telescopic type. – Maximum working pressure from 10 kg/cm2 to 250 kg/cm2 with maximum bore diameter of 800mm for hydraulic cylinders. – For pneumatic cylinders pressure ranging from 2 kg/cm2 to 15 kg/cm2. Cylinder body – Made from alloy steel tubing with micro finish bore. Cylinder head – Through bored and grooved to provide concentricity to common center line for the body, rod and gland. Ports – Provide unobstructed flow without interference from the gland. The Cap – Also machined for concentricity Piston Rod – Made from special alloy steel and induction case hardening up to 54 RC . Seals – All dynamic seals and elastromeric design to seal with minimum friction. Piston – With wide surface contacting cylinder barrel to reduce bearing loads during mechanical deflection.
...more
Hydraulic Motors
Hydraulic motor is used to transform hydraulic fluid energy into mechanical energy (electrical motor rotating shaft). In order to generate enough torque and rotation of shaft, hydraulic pressure and flow is required. You can use hydraulic motors for many applications, such as winches, crane drives, self-driven cranes, excavators, mixer and agitator drives, roll mills, etc. Uses of hydraulic motors as follows: Rolling mills Concrete mixers Winches Crane drive Manual (self driven) cranes Excavators Agitator drives Hydraulic pump and motors have very similar designs. Therefore, some of the fixed displacement pumps can also be used as hydraulic motors. Different types of hydraulic motors as follows:
...more
Hydraulic Hose Pipes
We manufacture highlow pressure hose with end fittings consisting of several sizes and shapes example: Female Swivel ‘D’ Nipple, Female Swivel ‘S’ Nipple, Male – Fix Cone Taper, Male – Fix Outer Taper, Male – Fix Taper Thread, BE Nipple, Hydraulic Split Flange and Elbow – 90 degrees. It could be used for hydraulic, Pneumatic, Fuel, Gasoline, Air, Water & Steam applications.
...more

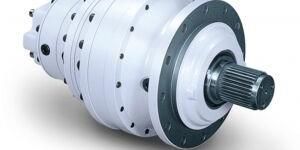

Hydraulic Drive Motor
Hydraulic motor is used to transform hydraulic fluid energy into mechanical energy (electrical motor rotating shaft). In order to generate enough torque and rotation of shaft, hydraulic pressure and flow is required. Hydraulic motors for many applications, such as winches, crane drives, self-driven cranes, excavators, mixer and agitator drives, roll mills, etc.
...more
Hydraulic Direction Control Valves
We supply two types of hydraulic direction control valves as follows: Solenoid Operated – AC 120/240 V or DC 24/48V Manual Hand Operated Valves In our stock, we use most reputable brands for direction control valves as follow: Yuken Polyhydron Rexroth Parker Hydrocontrol Walvoil What are Hydraulic Direction Control Valves? Mainly direction valve directs the flow (usually oil) through the system. Flow is given by hydraulic pumps to direction valve, that further distributes oil medium into the system. The route of the liquid medium i.e. oil, is decided by the position of the spool (GIF example as below). Hydraulic system can function as per the requirements by using different design of spools example, all port lock, P-T connected, A-B-T connected, P-A connected etc. Hence, end user should select the correct type of direction valve to serve studied purpose. Direction hydraulic valves can be selected from variety of sizes. In order to select the direction valve, it is essential to know the oil flow and pressure in the hydraulic system. Different sizes are available by manufacturers like mounting in pipelines, subplate mounting and threaded connection like cartridges. Hydraulic valves are subdivided into three essential categories, hydraulic direction, flow control and direction control valves. – Directional control valves Hydraulic Check valves Directional spool valves Directional poppet valves – Pressure control valves – Flow control valves Throttle valves Control valves – Electronic hydraulic valves Servo valves Proportional valves Every valve operated differently from one another. Like check valve allow free flow in one direction and block flow in other direction. The direction control valves allows pressured oil is either direction, depends upon the spool position. The pressure control valve shift at a certain pressure, the shifting/switching pressure can be adjusted on the valve. By adjusting the bore size or orifice, the flow can be regulated in flow control valve. The servo and proportional valve can be used to execute as a direction, pressure or flow control function.
...more

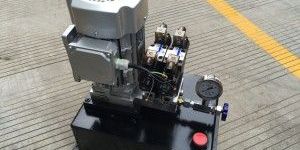

hot pack
The Power Packs are customized Built according to Flow, Pressure, Electrical or Manual Operated. Hydraulic Power Units apply the pressure that Drives Motors, Cylinders and other complementary parts of a hydraulic system. Major hydraulic components like Pumps, Valves, Motors, Filters, Blocks, Pipelines & Fittings are of reputed company make like Yuken, Polyhydron, Danfoss, Dynamatic, ABB, Rexroth, Hydroline.
...more

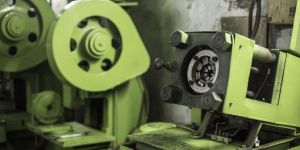

hose pipe crimping machine
highlow pressure hose with end fittings consisting of several sizes and shapes example: Female Swivel ‘D’ Nipple, Female Swivel ‘S’ Nipple, Male – Fix Cone Taper, Male – Fix Outer Taper, Male – Fix Taper Thread, BE Nipple, Hydraulic Split Flange and Elbow – 90 degrees. It could be used for hydraulic, Pneumatic, Fuel, Gasoline, Air, Water & Steam applications.
...more
high speed motor
The power produced by a hydraulic motor is determined by the flow and pressure drop of the motor. The displacement and pressure drop of the motor determines the torque it generates. The power output is thus directly proportional to the speed. The motors range from high speed motors of up to 10,000 rpm to low speed motors with a minimum of 0.5 rpm.The power of hydraulic motors can easily be calculated by the pressure drop and flow of motor. Also, the torque can be calculated by the displacement and pressure drop of the hydraulic motor.Note that low speed hydraulic motors are designed in such a way that large torques are generated at low speeds. High speed motors have better operational characteristics at speeds that are at least higher than 500 rpm.
...more
Hand Operated Hydraulic Pumps
The power delivered in dynamic machines is due hydraulic pumps and its function is to turn mechanical energy i.e. electrical AC or DC motor into hydraulic energy. This is attained by causing an increased volume intake and reduced volume during delivery.
...more

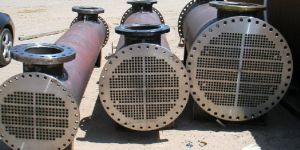

DynaTech Heat Exchangers
This system is to make oil cooler by using water as a contact agent. Oil, which is to be cooled is passed into the shell around dense copper tubes, having baffles, that makes oil to pass in a sinuous manner. Oil transfer the heat to water that is flowing through the copper tubes (different internal diameter of tubes are used depending on pressure and flow) having number of paths. This supplement the contact time of oil with water for efficient heat transfer. This type of DynaTech Heat Exchangers gives high efficiency i.e. ΔT (T2-T1). T2= Output Temperature of Oil T1= Input Temperature of Oil Working Pressure upto 10 bars Water is cooling medium/agent in a shell type DynaTech Heat Exchanger, having various copper tubes. Easily accessible tubes by opening end covers. Copper tubes can easily be accessible (for cleaning, repairing or even replacing) by opening end covers. Cooper tubes, if choked, can be cleaned/replaced in case of leakage in heat exchanger
...more

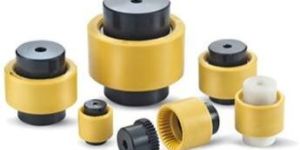

DynaTech Drive Coupling
DynaTech Drive Coupling has two steel gears which engage in a sleeve of high grade plastic which has got very good strength over a wide range of temperature. The steel gears have curved top surface to allow for axial and angular misalignment.
...more

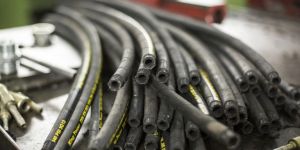

DynaFlex Hydraulic Hose Pipes
We manufacture high/low pressure hose with end fittings consisting of several sizes and shapes example: Female Swivel ‘D’ Nipple, Female Swivel ‘S’ Nipple, Male – Fix Cone Taper, Male – Fix Outer Taper, Male – Fix Taper Thread, BE Nipple, Hydraulic Split Flange and Elbow – 90 degrees. It could be used for hydraulic, Pneumatic, Fuel, Gasoline, Air, Water & Steam applications. Types of Automobile Hoses available as follows: 1. Power Steering Hose – High Pressure Hose – Low Pressure Hose 2. Radiator Hose – Accordion Hose – Molded Hose – Common Hose 3. Fuel Hose 4. Brake Hose They are available by the part number or sizes and various types of end fitting required. We owe in house lathe machines, crimping machines/tools, hydro-tester, air-tester and chemical testing equipment Our product range: Medium high pressure hose (27 kg/cm2 – 230 kg/cm2) High pressure hose (30 kg/cm2 – 210 kg/cm2) High temperature hose (80 kg/cm2 – 350 kg/cm2) Teflon hose (Steam pressure – 11 kg/cm2) Max pressure hose also available upto 1000 kg/cm2
...more
Drive Shaft Coupling

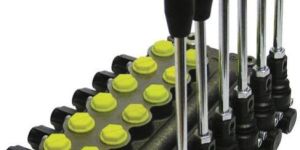

hydraulic control valve
Mainly direction valve directs the flow (usually oil) through the system. Flow is given by hydraulic pumps to direction valve, that further distributes oil medium into the system.The route of the liquid medium i.e. oil, is decided by the position of the spool (GIF example as below). Hydraulic system can function as per the requirements by using different design of spools example, all port lock, P-T connected, A-B-T connected, P-A connected etc. Hence, end user should select the correct type of direction valve to serve studied purpose.Direction hydraulic valves can be selected from variety of sizes. In order to select the direction valve, it is essential to know the oil flow and pressure in the hydraulic system. Different sizes are available by manufacturers like mounting in pipelines, subplate mounting and threaded connection like cartridges.
...more
