bag slitting machine
Get Price Quote
The Machine is a versatile automatic emptying machine and earns it’s name owing to its ability to empty any type of bag be it paper, or HDPE of 25 - 50 kgs capacity. It is ideally suited to Indian conditions where the raw materials in bags are not properly sealed.
bag slitting machine
Get Price Quote
Different types of Plastic Materials are used for different type of applications like, PVC, LDPE, HDPE, BOPP Film, etc. After Printing in Rotogravure or Flexo Machine or Extruded materials, our Plastic Slitting Rewinding Machine comes in use for Slitting of all types of material.KEW manufacturers, exports & supplies highest number of Slitting Rewinding Machine since last 25 years from Ahmedabad, Gujarat, India. With more than 1400 installations all over India and overseas like Saudi Arabia, UAE, Dubai, Sharjah, South Africa, Nigeria, Ghana, Congo, Kenya, Zambia, Sri Lanka, Bangladesh, Malaysia, Pakistan, Nepal, Russia, Thailand, Indonesia, Brazil, Colombia, Venezuela, Argentina, Mexico, Canada, etc.
Best Deals from Bag Slitting Machine
bag slitting machine
Get Price Quote
Added by a team of eminent engineers, we are chiefly engrossed in bringing forth wide range of Bag Slitting Machines for environment-friendly users. These machines handle range of different sizes of bags containing industrial materials such as powder or granular materials. These Machines are motor-driven and automatic conveyors, dust control unit as well as waste bag disposal unit. We can make available these Bag Slitting Machines at affordable rates.
bag slitting machine
Get Price Quote
bag slitting machine
Get Price Quote
These are ideally suited for large scale packaging. These Bag Slitting Machines are designed by the experts to be used for long period of time. To conclude, these Bag Slitting Machines would not just meet your expectation even go beyond them.
Automatic Bag Slitting Machine
1,400,000 Per Piece

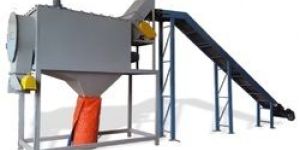

The Automatic Bag Slitting Machine is a versatile automatic emptying machine and earns it’s name owing to its ability to empty any type of bag be it paper, or HDPE of 25 - 50 kgs capacity. It is ideally suited to Indian conditions where the raw materials in bags are not properly sealed.The overall system comprises of : Feeding Conveyor Bag Emptying Machine Built-in Dust Extraction System Empty Bag Compactor Pneumatic Conveying System Technical Specifications : Construction material - Carbon steel (Other MOC Availavle on Special Request) Qmax – 200-400 Bags /Hr (25- 50 kg Bags). Application Areas : The Automatic Bag Splitter is used for splitting and emptying of Woven, Paper and Extruded Bags.Advantages : Compact and robust design Available with dust collector or pre-equipped for centralized de-dusting system Low Maintenance Easy access to all parts Easy and quick replacement of filter elements Low product retention rate Favourable price-performance ratio.
bag slitting machine
Get Price Quote
bag slitting machine
Get Price Quote
These machines are fully automatic and are very popular with Environment – friendly users. Our Automatic Bag Slitting Machines have been designed to handle a wide range of different sizes of bags containing powder or granular materials. The fully automatic machines are compact with automatic infeed conveyors, bag emptying unit , dust control unit and waste bag disposal unit.
bag slitting machine
Get Price Quote
The Automatic Bag Slitting Machine is a versatile automatic emptying machine and earns it’s name owing to its ability to empty any type of bag be it paper, or HDPE of 25 - 50 kgs capacity. It is ideally suite
Automatic Bag Emptying Machine
Get Price Quote
Automatic Bag Slitting Machine
Get Price Quote
The Automatic Bag Slitting Machine is a versatile automatic emptying machine and earns it’s name owing to its ability to empty any type of bag be it paper, or HDPE of 25 - 50 kgs capacity. It is ideally suited to Indian conditions where the raw materials in bags are not properly sealed. The overall system comprises of : Feeding Conveyor Bag Emptying Machine Built-in Dust Extraction System Empty Bag Compactor Pneumatic Conveying System Salient Features The system can be supplied in modular form. Capacity 20TPHe Saves labour Totally dust free operation Easy handling of empty bags Space required - 9m x 3m x 6m Power requirement - 15kw approx. (with conveyormachine properDE systemempty bag compactor) Cleanly Cut Bags No Threads Negligible Residual Material
bag slitting machine
Get Price Quote
Motor Power 3 kw, Cutting Size 15 - 1800 mm, Dimension 2200 x 700 x 1100 mm, Specially designed to make nonwovenpe cap, One operator can run 2 machines at the same time, Advanced ultrasonic welding technology.
bag slitting machine
300,000 Per Piece
BAG SLITTING MACHINES
Get Price Quote
Scorpio Bag Slitting Machine (Model: Multicut) is a versatile automatic slitter and earns its name owing to its ability to cut any type of bag be it paper or HDPE. It is ideally suited to Indian conditions where the raw materials in bags are not properly sealed. In the Multicut, the bags are impaled on to a high-speed cutting knife. To impale the bags against the knife the machine literally "drops " the bag from a height of about 1 meter on to the blade. The moment the bag is slit, the material spills out. After this, the cut bag is tumbled in an inclined wire mesh drum in which the bag is repeatedly lifted and dropped as it moves forward to the exit. Material falls through the mesh to a collection hopper while the cut bag pieces find their way to a bag compactor. An integral dust extraction system ensures dust free operation while the bags are being cut and tumbled. MOC: MS construction / SS contact parts (Optional) Capacity: 300 to 600 bags/hour of 25 to 50 kg. Type of bag: HDPE / Paper bags Bag dimension: (L x B x H) 900 x 770 x 250 mm Max. Lump size: Powder and pellets ( special design avilable for lumps application) In-built dust filter: Provided Vibro sieve: Optional Empty Bag compactor: Provided Structural Platform: Optional Bag feed conveyor: Additional based on requirement Control Voltage: 24V DC / 110V AC / 220V AC Filter Cleaning: Sequential reverse pulse jet cleaning mechanism Dust collector outlet dust Emission level - 10 to 15ppm. Noise level - 85dBA at 1 mtr distance. Material retention alongwith empty bag : 0.2 % Max. (Based on feedback from customers) Connected Power: 11kW approx. (Please contact us for specific application) Control Panel: Provided Paint: Synthetic enamel paint - 100 DFT (Optional: Epoxy paint)
Automatic Bag Slitting Machine
Get Price Quote
Automatic Bag Emptying Machine
Get Price Quote
Automatic bag emptying machine automatic cutting and emptying of all standard sacks, sack contents, sack sizes and sack types.
bag slitting machine
Get Price Quote
Automatic cutting and emptying of all standard sacks, sack contents, sack sizes and sack types. Depending on machine size and sack, contents from 100 sacks hour up to 1200, The sacks to be emptied are fed by a conveyer belt to the sack emptying machine. The sacks fall through a cutting device where they are opened on each side.The open sacks slide into a rotating emptying drum where the sack contents are discharged. The sack contents fall into the product outlet and at the end of the drum the emptied sacks are transferred into a disposal housing which is attached to a empty sack disposal system. The empty bag disposal is then partially or fully automated.
Automatic Bag Emptying Machine
Get Price Quote
bag slitting machine
Get Price Quote
Bag slitting machine Flexible Conveyor Rotary Valve Rotary valves Flow Diverter Valve Screw Conveyor Belt Conveyor Feed Bindischarge Silo Safety Valve Bag Dump Station Long Radius Bend
bag slitting machine
Get Price Quote
bag slitting machine, Pneumatic Conveying Equipment, Cutting Machine
bag slitting machine
Get Price Quote
bag slitting machine, bag loading machine, dense flow vessel
Automatic Bag Slitting Machine
Get Price Quote
Automatic Bag Slitting Machine, dense phase conveying systems
bag slitting machine
Get Price Quote
bag slitting machine, Erection Commissioning Services, Suction Device
bag slitting machine
Get Price Quote
bag slitting machine, Erection Commissioning Services
Automatic Bag Slitting Machine
Get Price Quote
Automatic Bag Slitting Machine, Big Bag Unloading System
bag slitting machine
Get Price Quote
bag slitting machine, bulk material handling system, Hydraulic Hoses
Automatic Bag Slitting Machine
Get Price Quote
Automatic Bag Slitting Machine, Telescopic Loading Spouts, Weigh Hoppers
bag slitting machine
Get Price Quote
bag slitting machine, Bin Vent Filter, Rotary Air Valves
Automatic Bag Slitting Machine
Get Price Quote
Automatic Bag Slitting Machine, Micro Batch Feeder
