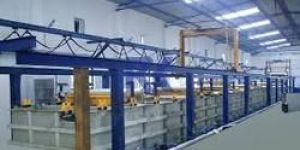

CED Coating Plant Dealers

We are offering ced coating plant, located in mumbai. Our range of ced coating plants is extensively demanded in various industries owing to its qualitative features. We fabricate ced coating plant using quality components and the plant conforms to set industrial standards. Further, we provide ced coating plant at market leading prices. known for high efficiencylonger working lifesturdy construction

We are a trustworthy Supplier offering a wide assortment of CED Coating Plant Spares in the market. We are capable of delivering the orders in a safe manner at customer's end and for this; we have a capacious warehouse that is installed with all required amenities required for safe storage.   Features: Reliable Rugged High strength

Electrocoating, which is also referred to as electro deposition, electrophoretic deposition, CED Coating, CED Painting or electropainting, is an organic finishing process that uniformly applies thin-film primers and one-coat finishes to metallic substrates. Electrocoating resembles electroplating in that it utilizes an electrical current to deposit a coating onto substrates. However, electrocoating deposits water born paint onto substrates rather than metal ions. The overall process consists of four main process steps: Pre-treating, Electrocoating, Rinsing, and Baking. The electrocoating process may be anodic or cathodic, depending on the charge applied the substrate. Although the processes are virtually the same, properties of the resultant coating are dissimilar. Anodic systems, which were the first to be used for electrocoating, apply paint to positively charged substrates. The negatively charged pigment and resin particles deposit onto the substrate (anode). One disadvantage of this process is that substrate metals dissolve and become incorporated into the coating, which affects surface properties. Cathodic electrocoating deposits paint onto negatively charged substrates and offers several advantages over anodic electrocoating. For example, metal dissolution of the substrate does not occur, cathodic electrocoating has the ability to deposit over contaminants, corrosion resistance is improved, and a better color consistency occurs over welded areas.

Cathodic Electro Deposition (CED) is a process of organic coating of an object having a conductive surface connected to a circuit as the cathode, by positively charged paint particles suspended in aqueous medium, under direct current. CED coating is most widely used for automobile components.

We are offering ced plants. Cathode electro deposition is a wet coating system to provide perfect corrosion protection for all metals. Ced is a deposition of layer of primer coat on pre-treated metal parts by dipping the components inside the positively charged paint bath. The coating is applied via electrodes. Later, the components leave the tank. The loosely adhering material is washed away with the filtrate recovered from the catho dip coating paint. This process is suitable for dip or continuous conveyor type production widely used in automobile, radiators and other bulk manufacturing industries.

Extremely high corrosion protection. A 20 micron dry film thickness can withstand as much as 1000 hours salt spray test ASTM B117. Able to coat highly recessed areas. Able to coat complex shapes with a very high degree of accuracy and repeatability.

Electro coating is a form of painting which gives a metal an organic finish by using electrical current to deposit the paint on the surface of the component to be painted. The process work on the simple principle of “OPPOSITE’S ATTRACT”. The Paint particles are drawn to the metal part and paint is made to deposit on the component, forming an evencontinuous film over the surface, in every nook and corner, until the coating reaches the desired thickness. At the thickness the film insulates the component and the attraction of paint particle stops and electro coating is complete.

CED coating plant CED process is industrially used for applying coatings to metal fabricated products. It has been widely used to coat automobile bodies and parts, tractors and heavy equipment, electrical switch gear, appliances, metal furniture, beverage containers, fasteners, and many other industrial products. The first patent for a cathodic ED product was issued in 1965 and assigned to BASF AG. PPG Industries, Inc. was the first to introduce commercially cathodic EPD in 1970. The first cathodic EPD use in the automotive industry was in 1975. Today, around 70% of the volume of EPD in use in the world today is the cathodic EPD type, largely due to the high usage of the technology in the automotive industry. It is probably the best system ever developed and has resulted in great extension of body life in the automotive industry

Ced Coating Plant, PVC Coating Machine, Vacuum Coating Machin

Ced Coating Plant, Powder Coating Plants, Phosphating Plan

Ced Coating Plants, Powder Coating, Painting Plant

Ced Coating Plant, Enamelled Rectangular Copper, Nozzles, Control Panel

Acralic & epoxy ced coating with pt line . Indexing type sync with plc or skada.converised liquid painting & powder coating lines .

Ced Coating Plant, Ced Coating Services, Automatic Ced Coating Plan

Ced Coating Plant, DOWN DRAFT TYPE SPRAY PAINTING BOOTH, Pre Treatment Plan

We are offering Ced Coating Plant. This main process to prevent the Corrosion. it will be used for Domestic,submersible pump,Automobile sector

CED Coating Applications, Ced Coating Plant, Nickel Chrome Platin

Ced Coating Plant, Material Handling Conveyor, Powder Coating Plan

We are offering automatic ced coating plant.
