Drum Screens Dealers (33 products available)

• Material: Stainless steel
• Brand Name: CCP
• Production Capacity: 2 to 100 m3/hr

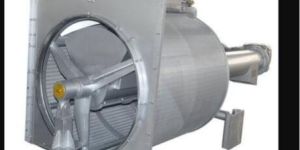

the rotating drum fine screen is used for filtration in etp /stp rotating drum fine screen consist of filtration media available from 2 mm to 5 mm which rotates. Rotating drum is supported by suitable shaft and is operated by geared motor.the effluent entered in the drum consist screw flight which helps solid to move from one end to other. Filtration takes from inside to outside, and also provide brush arrangement from cleaning filtration media also provide the backwash flushing arrangement from outside for cleaning filtration media. Provided bottom tank with nozzle to collect filtrate.provided hopper to guide the solid to fall down on floor/ bin.equipment is completely clos

• Design Type: Customised
• I Deal In: New Only

Trommel Screen   Applications & Salient Features To lessen the contaminant load on Fiber Saver(PFS), the light rejects normally directed to Trommel Screen. Special heavy-duty perforated drum with hole size in ascending order and aided by the suitable shower inside & outside allowing the recovery of fibers. The coarse contaminants getting rejected and accept returned to the Pulper. The Advantages Are Easy Installation The perforated drum of SS-304, drive arrangement, inside helical screw, outlet chute of SS-304, and Supporting Structure of M.S Drum is driven through Geared Motor, Pulleys, and Belts C-I drive and driven pulleys properly machined Shower pipe with nozzles of SS-304       Main Specifications:   TSRMOTOR RPM=1500 MODELTPDPOWER(Kw) 1 8–15 3.7 2 15–20 5.5 3 20–25 7.5 4 25–30 9.5 7 35–40 11 Photos:

• Brand Name: HYDRO TREAT
• Material: SS
• Color: ANY
• Country of Origin: Made in India
• Size: REFER TECHNICAL DATASHEET

• Material: Stainless Steel
• Color: Grey
• Usage: Industrial
• Driven Type: Electric
• Phase: Three Phase
• Frequency: 50 Hz

• sizes: 1000 mm to 2400 mm, 1000 mm to 5600 mm

"High Performance way of Removing Suspended Solids from Liquids” this “Jagtap” principle introduces liquid under minimum head loss conditions and rotates the screen in the opposite direction so that maximum shear velocity is achieved. This is used for fast separation of solids from liquid. This principle not only carries the operation at reduced cost, but also increases substantially the quantity of raw juice handled on a specific screen size. Screening efficiency is also improved as, in all cases; the raw juice is introduced tangentially on to the contra-rotating face. Because of the shallow approach, this system also increases the percentage of Bagacillo capture off the screen surface. Drums rotating in same direction as that of the juice flow, causes flooding of the juice adversely affecting screening efficiency. Rotary screen sizes range from 1000 mm to 2400 mm ID and from 1000 mm to 5600 mm long. Flow rates are dependent on Rotary Screen’s open area and size.

An innovative, rotary drum type fine bar screen for sewage and effluent treatment plants.APPLICATIONIs the most advanced fine rotary drum screen now available in India. Screens are highly recommended as primary screening equipment in municipal sewage treatment plant and effluent treatment plants of various industries like Food processing, Rayon and textiles, Paper and pulp, Pharmaceuticals, Tanneries, Slaughter houses and so on. WORKING Is installed at an inclination of 35° with the horizontal in to the channel of treatment plant. The wastewater flows in to the open end of the wedge wire drum. While the filtered wastewater comes out from the sides of the drum passing though the wedge wire, the solids of the size more than the bar spacing are retained on the surface of the drum itself. Owing to the blockage by the retained solids, the water level increases on the upstream of the screen. When the water level reaches to the pre-determined level, by virtue of the signal transmitted to the drive, the raking arm mounted on the drive shaft starts rotating. The comb mounted on the raking arm sweeps the drum and deposits the solids on to the collection trough at the center of the drum. The high-pressure water jet assists the deposition. From the trough the solids are conveyed to the washing and compaction zone where high-pressure water jet washes the solids and removes the soluble component. The water used for washing containing soluble components is sent back to the wastewater stream though the pipe.The washed solids free of faces are dewatered by squeezing in the compaction zone before the solids are finally discharged in the container or on to the belt conveyor from the discharge point.SLOT WIDTH : Slot width range from 1 to 6 mm. MATERIAL OF CONSTRUCTION To prevent from corrosion and to provide longer life fine screens are completely made from stainless steel AISI 304 grade as standard. Other grades of stainless steels are available up on request. ADVANTAGES. Rugged mechanical construction - Very long life.. Compact design-Low space requirement. Inclined at 35 Deg- Increased operational efficiency.. Completely made of stainless steel- Very long life. Higher capture rate - Ability to handle diverse waste. Self cleaning- No entrapment of solids.. Minimum moving parts-Lower wear and tear, minimum maintenance, Long life. Simple installation and operation... Factory assembled and movement tested- Faster erection.. Usage of V- wedge wire- Efficient removal of waste, low head loss. In built washing and compaction-Very hygienic and reduced weight of waste

• WIRE SPACING: 1 mm to 6 mm (0.04” to 0.24”)
• DRUM DIAMETER: 600 mm to 2,000 mm (24” to 80”)

“Rotoclean” is a mechanically cleaned fine screening equipment used to prevent fine sized floating wastes from travelling further in to waste water treatment plants. “Rotoclean” screen is designed to screen out almost all the fine floating wastes such as plastic bags, pouches, sachets, paper wastes cloths, condoms, weeds, and various other fine fibrous wastes coming with wastewater or effluents.

Drum screen is widely used for screening and classifying mineral materials. Such as metallurgy, mining, chemical,coal, building materials, abrasives and other industries. After the crushed stone is fed into drum, the stone was classified, While the bigger stone flows forward along the inclination of drum and was classified through different mesh screeches gradually. Classified small stone fell into respective bunker, and then were delivered into finished product stack through manpower or automatic flow way. —————Introduction To Main Unit Structure—————-   1. Feeding End 2. Supporting Roller 3. Speed Reducer 4. Motor 5. Motor Seat 6. Hopper Under Screen 7. Stand 8. Gear Ring 9. Water Pipe Rack 10. Side Board 11. Water Pipe 12. Sieve 13. Screen Fixed Rack 14. Discharging End

MetalFab also design and provides our clients with rotating screens, which are specially developed for efficient and economical removing of striped solids. Higher flow capacities can be used due to continuous and self cleaning effect of the rotating screens. Reckoned for low operational cost, these precisely engineered rotating screens are study. We offer multiple cages for separation of material as per clients requirement The machine has a heavy duty shaft which made from EN8 material, fitted with heavy duty bearing at both end. Main cage is made from heavy duty flats and square bars. The screens are making from spring steel material with MS or SS grade, as suitable with client application. The machine design with top cover and bottom discharge chute for prevent low dusting. The rotary screen is widely useful in mineral industry, agro products, stone industry etc.

• Application: To remove debris from Industrial Waste water
• Material: SS
• Capacity: 300 m3/Hr
• Phase: Single
• Bar Spacing: 0.5mm, 1 mm, 2 mm, 3 mm, 4 mm, 5 mm
• Material Grade: SS 304, SS 304L, SS 316, SS 316 L
