Kyoritsu 5kV High Voltage Insulation Tester
68,550 Per Piece
1 Piece (MOQ)
AC-DC High Voltage Tester
Get Price Quote
1 Piece (MOQ)
Features : Portable, easy to carry and use on field. Safety Protections like zero voltage interlock and automatic discharge incorporated Mounted on castors for ease of transport. Continuous, stepless adjustable AC /DC Voltage Tests can be performed in accordance with relevant regulations and standards Allows easy intergration for van mounted operation and installation into small vehicles.
Best Deals from High Voltage Testers
HVT-530A High Voltage Tester
11,500 - 14,500 Per Piece
1 Piece(s) (MOQ)
High Voltage Tester
11,500 Per piece
1 piece (MOQ)
SI/KPV-HV7 Knee Point Voltage Test Kit
Get Price Quote
1 Piece (MOQ)
high voltage test set
25,000 - 5,000,000 Per Piece
1 Piece(s) (MOQ)
Every electrical apparatus or machine Is provided with insulation between live part and earth or between two different sections of live parts. This insulation is required to be tested at high voltage values recommended by applicable relevant standards. The standard Specification for various electrical apparatus specifies Power Frequency Voltage withstand test at different levels depending upon working voltage of electrical apparatus. It is observed from the various standards for electrical equipments that the minimum power frequency voltage withstand test level for electrical insulation is 2kV for one minute. We have, therefore, standardized on manufacture of’AE’ High Voltage Breakdown Testers with rated voltage of 5kV. High Voltage Tests Sets of higher voltage upto 600kV are also manufactured against specific requirement. The standard voltages are 10kV, 15kV, 20kV, 25kV, 30kV, 50kV,100kV, 150kV, 200kV & 300kV. The test sets uplo 30kV are manufactured in Air Cooled design while the sets of 50kV & above are manufactured in Oil Cooled design. The output of these high voltage testers is single phase 50/60Hz. The standard H.T. current rating of air-cooled design as also of oil cooled design upto 150kV is 100mA for 30 minutes. For voltages ranges above ‘AE’ make 5kV A.C. (with 2.5kV tap) High Voltage Breakdown Tester is portable, sturdy & plug in to start type construction & requires minium table space. It broadly consists of 3 main sections. High Voltage Transformer : The High voltage transformer is single phase, single pole type & is of double wound resin moulded construction. The H.T. winding is provided with graded insulation such that one end is insulated for 2kV insulation and is earthed through a current sensing transformer & miiliammeter whereas other end isinsulated for full rated voltage & the same brought out through H.T. Cable & spring loaded Prod. Variable Voltage Source : Variable Voltage supply is provided through a Dimmerslat (Variable auto-transformer) havingasuitable rating corresponding to the rating of H.V. Transformer. Dimmerstat Is rated for 230Volts A.C. input & 0-270V output. Limit switch at zero position end of Dimmerstat winding is provided to facilitate the H.T. winding to. Control Circuit & Other Features : ManuaIly operated control transformer (VariabIe auto-transformer) with zero interlock facility. 72mm sq. double range (0-2kV / 0-5kV) moving coil rectifier type voltmeter of class 1.5, provided to read NO LOAD H.T. Voltage. 72mm sq. double range (0-100mA) moving coil rectifier type A.C. Milliammeter of class 1.5, provided in the earth end of the H.T. winding to read H.T. Current. Automatic tripping circuit is provided for isolation of supply, in the event of failure of the object under test. Rotary switch with four different settings of 5,10, 50 & 100mA is provided on front panel with LED indication M.C.B. for short circuit protection of H.T. transformer & auto transformer H.T. ON push button, Mains ON & H.T ON LED indication. Range selection switch to select 2.5kV or 5kV range with LED indication. Two spring loaded test prods with 1 metre long cable for safe & easy connection of high voltage to test object, (upto 5kV.)

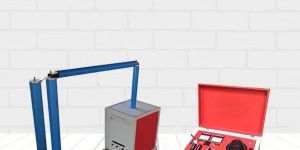

DC High Voltage Test Set
Get Price Quote
1 Piece (MOQ)
High Voltage Breakdown Tester
Get Price Quote
1 Piece (MOQ)
Every electrical apparatus or machine is provided with insulation between live part and earth or between two different sections of live parts. This insulation is required to be tested at high voltage values recommended by applicable relevant standards. The standard Specification for various electrical apparatus specifies Power Frequency Voltage withstand test at different levels depending upon working voltage of electrical apparatus. It is observed from the various standards for electrical equipment’s that the minimum power frequency voltage withstand test level for electrical insulation is 2kV for one minute. We have, therefore, standardized on manufacture of’ MARSZ High Voltage Breakdown Testers with rated voltage of 5kV. High Voltage Tests Sets of higher voltage upto 600kV are also manufactured against specific requirement. The standard voltages are 10kV, 15kV, 20kV, 25kV, 30kV, 50kV, 100kV, 150kV, 200kV & 300kV. The test sets upto 30kV are manufactured in Air Cooled design while the sets of 50kV & above are manufactured in Oil Cooled design. The output of these high voltage testers is single phase 50/60Hz. The standard H.T. current rating of air-cooled design as also of oil cooled design upto 150kV is 100mA for 30 minutes. For voltages ranges above ‘MARSZ’ make 5kV A.C. (with 2.5kV tap) High Voltage Breakdown Tester is portable, sturdy & plug in to start type construction & requires minimum table space. It broadly consists of 3 main sections. High Voltage Transformer: The High voltage transformer is single phase, single pole type & is of double wound resin moulded construction. The H.T. winding is provided with graded insulation such that one end is insulated for 2kV insulation and is earthed through a current sensing transformer & mill ammeter whereas other end is insulated for full rated voltage & the same brought out through H.T. Cable & spring loaded Prod. Variable Voltage Source: Variable Voltage supply is provided through a “VARIVOLT” (Variable auto-transformer) having a suitable rating corresponding to the rating of H.V. Transformer. Dimmerstat Is rated for 230Volts A.C. input & 0-270V output. Limit switch at zero position end of Dimmerstat winding is provided to facilitate the H.T. winding to Control Circuit & Other Features: Manual operated control transformer (Variable auto-transformer) with zero interlock facility. 72mm sq. double range (0-2kV / 0-5kV) moving coil rectifier type voltmeter of class 1.5, provided to read NO LOAD H.T. Voltage. 72mm sq. double range (0-100mA) moving coil rectifier type A.C. Mill ammeter of class 1.5, provided in the earth end of the H.T. winding to read H.T. Current. Automatic tripping circuit is provided for isolation of supply, in the event of failure of the object under test. Rotary switch with four different settings of 5,10, 50 & 100mA is provided on front panel with LED indication M.C.B. for short circuit protection of H.T. transformer & auto transformer H.T. ON push button, Mains ON & H.T ON LED indication. Range selection switch to select 2.5kV or 5kV range with LED indication. Two spring loaded test prods with 1 meter long cable for safe & easy connection of high voltage to test object, (upto 5kV.)
High Voltage Cable Tester
Get Price Quote
We offer High Voltage Cable Tester that is fully computer controlled. It is used as a pass or fail test for cables. Small size, lightweight, large screen LCD, test report, and easy usage are the prime highlights of our High Voltage Cable Tester. Available at very feasible prices, High Voltage Cable Tester comes in different specifications to suit all the requirements of our customers. Highlighting Features : Data of current and voltage are obtained directly through the sampling of High-Voltage side and it is true and accurate. Over-voltage protection: the instrument will shut down to protection within 20 ms when the output voltage is exceeding limiting values of setting. Over-current protection: designed for dual protection of high and low voltage, downtime protection can be accurately set in high-voltage side. Shut down to protection times is within 20 ms when the current of low-voltage sides exceeds reacted current. High-voltage output protection resistor design in inbuilt and there is no need of additional external resistor.
High Voltage Insulation Tester
Get Price Quote
10 Piece (MOQ)

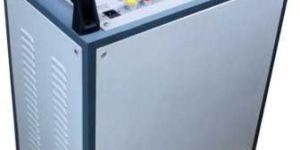

High Voltage Tester
Get Price Quote
APPLICATIONS For High Voltage withstand, breakdown testing of electrical insulating systems. For Dielectric Strength testing of electrical / electronic components, small appliances, tools, motors, machines etc. FEATURES Compact & Simple to Operate Zero Interlock for H.V. Output Analog or Digital read outs Adjustable, selectable leakage current. Audio visual indication for presence of high voltage Continuosly variable test voltage Highly sensitive electronics circuit for tripping Avaliabe in AC,DC as well as AC & DC Combined Outputs upto 100KV. Available with built - in printer and or /RS 232 interface. H.V. Test sets of other specifications as per requirement can be supplied. AUTOMATIC VERSIONFollowing parameters can be set by 4x4 matrix keypadA) Output Test VoltageB) Leakage / Trip Current LimitC) Test Duration (Time)HV built in printer, with Rs232 interface & with both the feature are considered as Automatic version HV test set. In Automatic HV Test Set both types like with AC output & with DC output instruments are available.SEMI AUTOMATIC VERSIONFollowing parameters can be set by push button with potentiometer / thumb wheel switch.A) Output Test VoltageB) Leakage / Trip Current LimitC) Test Duration (Time) Once above parameters set and the high voltage is started the instrument will automatically raise the voltage. On reaching of the test voltage, control circuit will start to command to timer. After completion of duration motor will come back. Object Test Fail Indication is given.
High Voltage Pinhole Tester
Get Price Quote
The covering of the enamel film on the conductor may or may not be continuous. Certain number of discontinuities or pinholes in this enamel film are allowed as per the relevant standard as a completely defect free processing is always not possible. This instrument is designed to detect and count these discontinuities. When the number of these discontinuities or pinholes exceeds those specified in the standard, the wire is said to be not complying with the requirements of the standard and hence rejected as far as this particular test is concerned. When it is less, the wire is said to pass this test successfully. Details : Our instrument possesses the ability of sensing these electrical flaws in wires and cables. We are named among the eminent Manufacturers, Exporters and Suppliers of High Voltage Pinhole Tester from Maharashtra, India. The High Voltage Pinhole Tester that we offer is manufactured in adherence with the Indian Standard-13778 and IES Standard-851. Our High Voltage Pinhole Tester is stringently tested at various stages of its production in order to ensure its consistency in performance.
High Voltage Breakdown Tester
Get Price Quote
Model: cie / 5050a  application 'cie' a.c. High voltage breakdown test set is ideal for fast accurate & reliable testing of withstand/breakdown test of electrical & electronic materials, components, equipments, panel boards, etc.  salient features robust powder coated sheet metal case elegant look kv meter to read the output voltage millimeter to show leakage current speedy and accurate testing of breakdown/withstand test of electrical & electronic components, materials, equipments, panel board etc.   technical specifications input voltage : 230v, +/- 10%, 50hz, 1 phase a.c. output voltage : continiously variable from (i) 0 to 3 kv ac for 3 kv test set (ii) 0 to 5 kv ac for 5 kv test set
10KV ACDC High Voltage Tester
Get Price Quote
0 to 10KV DC & 0 to 10KV AC 3 Digit LED display for KV & mA Timer 0 to 5 minutes variable Leakage current selectable 100 m A HT buzzer indication Selection of DC / AC output Suitable HT Probe
Digital High Voltage Insulation Tester
5,000 Per Piece
Buyers can stay rest assured for damage-free products from our end as we make use of quality packing material. We also fulfill different packing requirements of the clients such as customized or standard. Our company has all the necessary logistic resources and connection to make on time delivery of order(s). Product Details : Easy and Simple Operation Automatic range,indicated by different Leds Safety standard IEC 61010-1CAT IV 300V 1Ohm 100GOhm
high voltage testers
Get Price Quote
1 Piece (MOQ)
high voltage testers
Digital High Voltage Insulation Tester
Get Price Quote
We are the leading supplier of this products.
A.C High Voltage Breakdownvtest Set
Get Price Quote
A.C High Voltage Breakdownvtest Set, 1 PH Meter Test Bench
AC High Voltage Test Sets - Cascaded
Get Price Quote
AC High Voltage High capacity testers are specially designed for testing cables, Generators, transformers and other high capacitive equipments as per National and International Standards.The units have been made up to 800kV and up to 3000kVA.The units have type of tests such as dry withstand, wet withstand, breakdown voltage in airoil, oil insulation, and pollution Test.
AC high voltage Break Down tester
Get Price Quote
ac high voltage breakdown tester
Get Price Quote
UDEY AC HIPOT TESTERS-US SERIES are AC High voltage break down withstand voltage testers with digital displays, count-down timer and set trip current facility. These are accurate, durable instruments designed to perform high voltage withstand breakdown tests on various types of electrical electronic products, systems and components.
High Voltage Breakdown Tester
Get Price Quote
Suitable for both AC and DC volt breakdown Digital Voltage Current Display Zero Start, Over Load Tripping Protection Built-in timer Robust design, easy to operate Insulation, Cables, Transformers etc Industries Electricity Distribution substations Component Manufacturers Panel Manufacturers Electrical test Calibration Labs
ac high voltage test set
10,000 - 50,000 Per Piece
High Voltage Breakdown Tester
6,700 - 6,800 Per Piece
High Voltage Tester
13,500 Per Piece
5 Piece (MOQ)
high voltage test set
Get Price Quote
High Voltage Test Sets
Get Price Quote
The ac dc high voltage test set that we offer to our clients is widely used at electrical maintenance departments and workshops. It is chiefly used to perform routine maintenance of numerous electrical devices and equipment. Apart from that, this product is used to check the quality of insulation provided in any electrical device. the technical specifications of these products are as follows: capacity : 102550100150200m250 ma spelnput : 230v 1ph. 50hz. Ac output: 0-3510255075100 kv one end earthed indication: main"on" & h.t."on" indicating lamps protection: electronic fast acting over current tripping device, sensing h.t. Current directly safety features: zero interlocking is provided for all units metering : 7296 sq. Mm size, voltmetermill ammeter with linear scale to monitor output voltagecurrent.
100KV High Voltage Tester
Get Price Quote
Since, we have collaborated with numerous distributors; we can cater to buyers all over Vadodara(India) and other markets. We have hired a team of professionals who take care of the entire lot and make sure that it remains protected from air, dust, water and other damaging factors.
High Voltage Breakdown Tester
Get Price Quote
"Delta" H.V. Flash Tester are made heavy duty, keeping in mind long term reliability. Rating are 0 - 5 kV @ 100 mA. Trip current settings can be provided as 25 mA - 50 mA - 75 mA - 100 mA OR 10 mA - 25 mA - 50mA- 75 mA. As an option, a timer can be provided to test an object for a preset time. Most of the capacitors used in the lighting industry are hand made, esp. the metallization of electrodes . The qualitiy of these capacitors change from batch to batch." Delta" has developed a test panel with high discharge currents (up to 10 kA pulse) to test the capacitors samples cyclically for a specified duration. If during this test, any capacitor short-circuits; a lamp- inside the panel will light up. After the test capacitors have to be tested for their impedance by passing the current at rated voltage This is a destructive test; all the capacitors tested on this panel have to be destroyed afterwards & not to be used.
High Voltage Measuring System
Get Price Quote
Place orders with us, timely deliveries of the same are our prime responsibility! Deeply ingrained in Kolkata(India), we have marked our presence in the industry by offering world-class products at the best prices.
