Horizontal Clamp Dealers

Low height design of these hold down toggle clamps requires less overhead clearance as the handle remains in horizontal position while clamping. Standard Accessories provided with Clamp: Standard Hex, Head Clamping Spindle assembly is provided as standard accessory with all above clamps. U-Arm models are provided with 2 nos. U-Flanged Washers also along with clamping spindle assembly and BR-arm models are provided with bolt retainers along with clamping spindle assembly..

Our company has earned accolades in the wholesaling, retailing and trading Vertical And Horizontal Pallet Lifting Clamps. Widely acclaimed by our customer due to their outstanding quality and hassle free performance, these clamps are extensively used in various industries. These are available in variegated sizes, designs and colors. To add on, these are tested under well defined parameters which ensure their long life and high efficiency. Features: High usability Accurate design Affordable prices

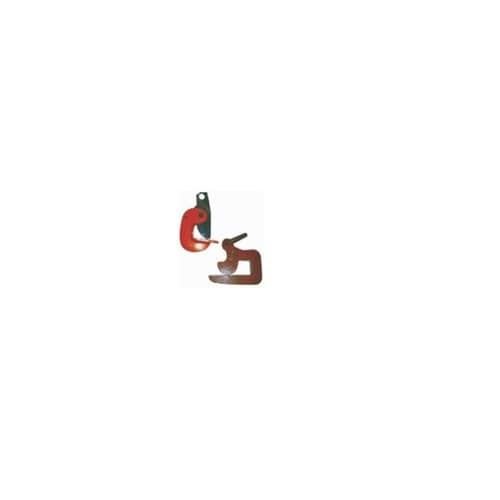

lightweight heavy duty clamp for horizontal lifting Application:  For horizontal lifting and transporting of steel plates and other non-deflecting materials Terrier FHX / FHSX lifting clamps must always be used in pairs (or multiple pairs) Jaw openings available from: 0 to 150 mm FHSX types are supplied with enlarged jaw opening Working load limit (WLL) 1000 - 25000kg per pair (Higher WLL available upon request) Features and benefits:  Compact design and high lifting capacity Lightweight design for easy handling Tough quality heavy duty welded body

Working load limit (WLL) 1500 - 5000kgs This range of horizontal plate clamps has been designed, to be used in pairs, for the horizontal transporting of individual and bundled plate. Whilst the basic design and function is the same, there are four options available. OPTION 1 - RH. This range is fitted with a steel roller for reduced marking of the plates. OPTION 2 - WH. The jaw on this range has hardened steel teeth for applications where the marking of plates is not an issue. OPTION 3 - WHL. With a protective rubber lining on the jaw and the toe plate, this range totally eliminates any risk of marking. OPTION 4 - WHP. With a protective polyurethane coating completely encasing the jaw and the toe plate.

This model is for applications where heavy duty Latch type clamping is required. Clamp base and Latch plate are fabricated out of Solid Steel. Pulling pin is housed in carbon steel bush for extra rigidity. Also available TR model with an added advantage of trigger lock which enables the clamp to remain locked even in conditions of high vibration unless the trigger is pulled.

Our company is a well-known Supplier of Horizontal Toggle Clamps in Mumbai. Our company provides high-quality Horizontal Toggle Clamps to our clientele. We ensure timely deliveries of Horizontal Toggle Clamps so as to meet the client needs effectively. Our Horizontal Toggle Clamps come with numerous attractive features with some of them being as follows: Features of Horizontal Toggle Clamps Low Height design of hold down toogle clamp requires less overhead clearance as the handle remains in horizontal position while clamping.Standard Accessories provided with clamp : Standard Hex. Head clamping spindle assembly is provided as standard accessories with all above clamps, models are provided with 2 nos. U-Flanged washers also along with clamping spindle assemblyThe SF series have a solid Hold down bar which has a fixed guide bush its end for the spindle assembly.The UB series have a 'U' Bar arm which enables one or more spindles to be moved onto any desired position along the arm SpecificationsItem CodeModelsABMounting BaseEGLMounting DimensionsHolding capacityWt. In kgsCDMNØS1250112502PH – 1525 UBPH – 1525 SF15252724M588517134.550 kg.0.041250312504PH – 2555 UBPH – 2555 SF25553335M61215021214.5150 kg.0.151250512506PH – 3565 UBPH – 3565 SF35653738M81317523256.5250 kg.0.261250712508PH – 45105 UBPH – 46105 SF461056457M102129037418.5350 kg.0.561250912510PH – 56125 UBPH – 56125 SF561256065M122531044418.5500 kg.0.88

Horizontal latch type toggle clamps When closing the spanner, a safety hook positively locks onto the body. This prevents the inadvertent or vibration-induced release from the clamping position. To open the safety hook it is unlocked per one-hand operation. The stroke of the U-bolt latch can be adjusted within its range.

Using For Lifting Steel Plate Levelly Wll Refers To The Hanging Clamp When Used In Pairs To Allow Lifting Of The Maximum Load. Please Add Balance Beam When The Steel Plate Is More Longen The Proof Load Is 2 Times Working Load Limit, The Breaking Load Is 4 Times Working Load Limit. Please Read The Product Specification Carefully Before Using It.

Low height design of these hold down toggle clamps requires less overhead clearance as the handle remains in horizontal position while clamping.Standard Accessories provided with Clamp: Standard Hex, Head Clamping Spindle assembly is provided as standard accessory with all above clamps. U-Arm models are provided with 2 nos. U-Flanged Washers also along with clamping spindle assembly and BR-arm models are provided with bolt retainers along with clamping spindle assembly..

Combining technology with innovation, we are actively engaged in offering a wide array of Horizontal Lifting Clamp to our respected clientele. Our offered clamps are highly recognized by our important clientele for its efficient and long lasting performance. These offered clamps are presented to our clientele in various sizes and variety of noticeable designs.

For lifting and transporting single steel plate. Capacity Range : 2-10 tons. The working load limit is the maximum load that the clamps are authorized to support when used in pairs with a lift angle 60 deg. In lifting operation, four clamps must always be used. When the steel plate is too long, use an equalizing beam to prevent overloading the clamps. 2 times WLL - Proof load, 4 times WLL - minimum breaking point.

The ACH horizontal plate clamps offer superb flexibility because of the large adjustable jaw opening. The jaw is adjusted using a simple ratchet mechanism. These clamps are to be used in pairs and are especially suited to the transportation of large plate bundles.

Salient Features   Transfer the plate horizontally only Both locking and non-locking models are available Customized lifting hook Is easy to use Has a great working limit of loads

Features: Load Range: 1 ton to 6 tons. Safelift's Horizontal Plate Lifting Clamp is made of Low Carbon alloy Steel. Two pieces of clamp is used for testing but two or four pieces are recommended for lifting operation. Durable enduring, easy to operate.
