Instrumentation Amplifier
6,500 Per Piece
Brand Name : ADTRON
Country of Origin : Made in India
Payment Terms : T/T (Bank Transfer)
Usage/Application : LABORATORY
Material : MS BODY
Model Name/Number : 3033
Shape : Rectangular
Automation Type : MANUAL

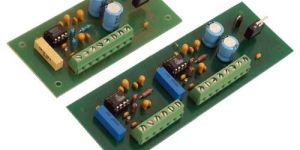

instrument amplifiers
Brand Name : Bhairav Electronics
Condition : Good
Product Name : Instrument amplifiers
Material : Superior grade material
Usage : Used at the initial stages.
Place Of Origin : Mumbai
Min. Order Quantity : As per client requirement
We follow strict quality strategy, guidelines and thus, to sustain good quality standards, we carry out stern examination of the raw inputs used at the initial stages. The offered lot is precisely manufactured using superior grade material and in conformity with the industry standards. Our cutting edge instrument amplifires have gain set with one external resistor and available in a wide range of the power supply.

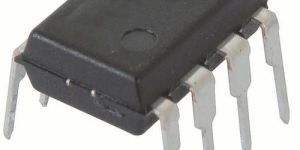

Instrumentation Amplifier
5 Piece(s) (MOQ)
Brand Name : Texas Instrument
Model Number : INA114AP
Package : 8 PIN DIP
Number of Pins : 8
Instrumentation Amplifier
Application : Avionics, Aerospace, ATE, Data Acquisition System.
Operating Temperature : -40°C to +75°C
Storage Temperature : -40°C to +85°C
Relative Humidity : 90% (Non-condensing)
Output : 1 Watt to 20 Watt
Form Factor : Stand Alone
Instrumentation Amplifier
35,000 Per Piece
1 Piece(s) (MOQ)
Brand Name : KYOWA
Model Number : WGA
Instruments Operational Amplifier
Instrumentation Amplifier using IC 741 SA-513
This has Built-In DC ±12V/500mA regulated fixed and two variable DC +12V Power supply, facility to apply Variable +12V DC inputs, Resistive bridge with LDR coupled to variable light intensity source to provide the corresponding electrical signal for measurement, Three OP-AMPs IC 741 as buffer amplifier, differential amplifier with gain control and 10K load resistor provides the output for the corresponding applied light input or DC inputs, facility to select and control different input source, components bank for gain control, maximum Test Points to observe all corners of experiment. Objectives : To Study the Circuit of Instrumentation Amplifier using three OP-AMP. To observe and note the change in output for the variable light intensity inputs. To Observe & Note O/P Voltage Vo for the applied differential Inputs. Accessories Included : Set of Patch Cords, Operating Manual.
Study of Instrumentation Amplifier
We are offering electrical educational equipment for study of instrumentation amplifier item code: pi-372 objective: calculate the voltage gain of instrumentation amplifier and draw a curve between v & r. Features: instrument comprises of the following: • one ± 15 vdc regulated power supply • 2 dc regulated short circuit and overload protected continuously variable power supplies • 3 no. Ic 741 placed inside & connections brought out at sockets. • one potentiometer and combination of resistances placed on the front panel. • one onoff switch with jewel light is provided on the front panel. • made of heavy duty metal box construction accessories supplied: • required number of patch chords • instruction manual
Study of Instrumentation Amplifier
Instrumentation amplifiers
Instrumentation Amplifier
Instrumentation Amplifier
Instrumentation amplifiers
