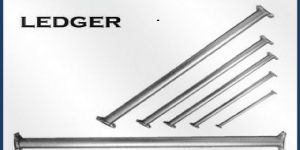

Ledger Blade Scaffolding
13 Per Piece
2000 Piece(s) (MOQ)
We offered different kinds of Formwork & Scaffolding Accessories including Ledger Blade. It is used with Cuplock parts Top & Bottom Cup. Suitable for the pipe of 48.3 MM. Load Bearing Capacity is 9 KN.
ledger scaffolding
Get Price Quote
Ledgers can be either fixed or adjustable in length, depending on the scaffold design. A ledger is a horizontal scaffold tube or beam that runs parallel to the length of a scaffold structure. it connects multiple vertical standards (uprights) and helps distribute the load across the scaffold.
Best Deals from Ledger Scaffolding

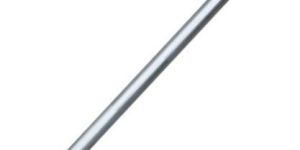

ledger scaffolding
60 Per kg
1 piece (MOQ)
ledger scaffolding
66 Per Kilogram
ledger scaffolding
Get Price Quote
Our manufacturing units involved in offering the wide range of Ledger Scaffolding.Our manufactured horizontal scaffolding used for various purposes in the construction industry. Our products manufactured and designed at our fully equipped manufacturing unit using high-grade raw materials and latest machines under the supervision of experienced professionals. Horizontal scaffolding quality manufactured by us is widely used in construction industry and highly appreciated by our prestigious clients. Features: First of all very easy to install Heavy load resistance High ability to stand due to strong structure Good-finish and long lasting durability Simple rugged design. Ledgers or even horizontals want no maintenance. Ledger Scaffolding Specification The Horizontal Ledger Scaffolding produced from 48.3-48.5millimeter O.D. B’ class Pipe conforming to IS:1161/1239 with cast steel blade endings which identity into bottom cups of their specifications and secured in place by the corresponding top cups. Ledgers are available in various lengths to provide the desired grid dimension for scaffolding or formwork.

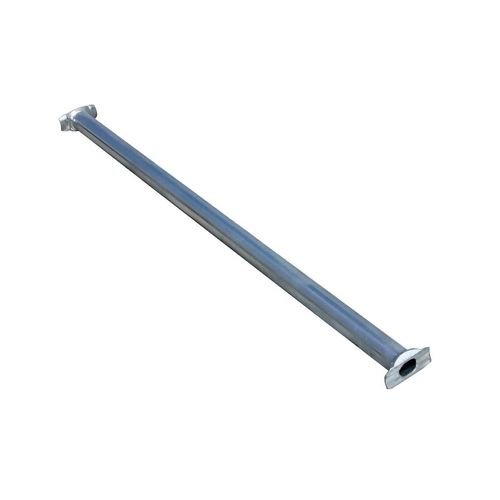

Ledger
Get Price Quote
Horizontals are available in a range of Various sizes or can be made to a special length if required. The forged blade end fits in the cup of the Verticals. The simple robust design ensures that Horizontals need no maintenance.
Ledger Kwikstage Scaffolding
Get Price Quote
Our 100% compliant Ledger Kwikstage Scaffolding is designed and developed in line with the standards. The ledger is made of high-quality materials and is finished to perfection with the aid of long-lasting paints. It is doled out in all sizes, giving freedom to the buyers to choose the product as per their requirement and not as per the availability. We are emerging as the promising Manufacturer, Exporter, and Supplier of Ledger Kwikstage Scaffolding from Delhi, India.
Ledger
Get Price Quote
Only the highest quality steel tubes are used for the Cuplock System ledgers. To avoid any potential damage they have identical forged ends with a minimum of projection. Ledgers are available in sizes ranging from 0.60 mtr. up to 2.50 mtr. SIZES (mtr.) 2.5, 1.8, 1.6, 1.3, 1.2, 1.0, 0.9 & 0.6

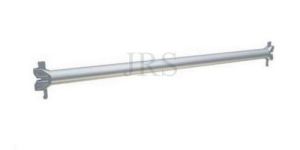

Ledger O-Type Scaffolding
400 Per Piece
Scaffolding Vertical Ledger
Get Price Quote
The Scaffolding Vertical Ledgers, provided by us, have robust structure and long service life. We do not have to worry about stock-out situations or meeting bulk requirements, as we have an equipped warehouse facility. It has the latest inventory control and management software and helps us maintain continuous product availability. Our procedures of payment are lawful, simple, and secure. We do not levy concealed charges while presenting the invoice and make sure payment is carried out securely from you to us.
Ledger
Get Price Quote
The Ledgers used in general support of framework, carefully selected range of sizes to meet the varied demands of grids system framework. Many of these can also be used for access structure. Each has forged blade ends with the minimum projection to resist site damage. Specifications Pipe : 48.3 mm O.D. , 3.00 to 3.10 mm Wall Thickness Ledger Blade : 210 Grms (malleable castings) The Ledgers have forged blade ends which fit in the cup joint on the standard. They can be used in variety of Ledger size combinations to suit required bay size & loading conditions. Code No." L" Length (mm) centre to centre of standards10892.5 M10902.4 M10912.0 M10921.8 M10931.5 M10941.25 M10951.0 M10960.9 M10970.6 M
Ledger
Get Price Quote
Ledger Ledgers are designed to be inserted into the pressings on the standard spaces to the required grid sizes in regular scaffolding or for providing support slab system.

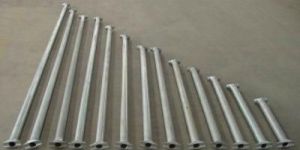

ledger scaffolding
Get Price Quote
Scaffolding adjustable props are used for support all kinds of form work, slabs, beams, wall & columns. On one side Base plate are there and on other end U-head plate or Base plate is welded.
ledger scaffolding
Get Price Quote
These are the horizontal tubes which run parallel to the building and are fixed to the standards. A row of ledgers is called a lift. The Ledgers are manufactured from 48.3mm O.D. tube with forged steel blade ends which locate into bottom cups of the standards and are locked in place by the corresponding top cups. Ledgers are available in various lengths to provide the desired grid dimension for scaffolding or formwork.
Horizontals / Ledgers Scaffholdings
Get Price Quote
Just like Verticals,Horizontals are also available in varied sizes of 2.00,1.80,1.50,1.25,1.20,1.00,0.915,0.60 and 0.50 Mtrs. The horizontal members welded forged ends are fabricated out of 40 NB ‘B-Class’ ERW Steel Tubes.
ledger scaffolding
Get Price Quote
All Ledgers or horizontals have identical forged blade ends, with the minimum of projection to avoid damage. Each component locates in the cup joint on the Vertical. 2.5 m Horizontals provide the basic bay length in CUPLOCK. This is a suitable bay size for all common access loading conditions. 1.8 m Horizontals provide a make-up bay size for maximum flexibility. 1.3 M Horizontals provide a 5-board wide platform. Ledger Rental in Cuplock scaffolding is the most popular scaffolding system in the world. In common with other ‘system scaffolding’ such as wedge-lock, Galv-Lock and Kwikstage, Cuplock has a number of benefits over conventional scaffolding.[fusion_text]
Ledger
Get Price Quote
LEDGER Ledgers are made of 40 NB "B class pipe" with forged ledger blades that are welded at the ends which locate into bottom cups of the Vertical and are locked in place by the corresponding top cups. Length of the ledger is calculated between center to center of two vertical. Ledger are available in the following sizes:- 0.9 Meter 1 Meter 1.2 Meter 1.5 Meter 2 Meter
ledger scaffolding
Get Price Quote
ledger scaffolding
Ledger
Get Price Quote
Ledger, prop, Universal Jack, Sleeve Coupler, drop forged coupler
ledger scaffolding
Get Price Quote
ledger scaffolding, Mild Steel Square Pipes, Sleeve Coupler
