Fixed Base Pin Type Baby Vice
Get Price Quote
We are amongst the most reputed Manufacturers, Suppliers and Exporters of Fixed Base Pin Type Baby Vice in India and rest of the world. Made out of high-quality cast iron, our Fixed Base Pin Type Baby Vice is hugely demanded for its qualitative features like superior quality, dependable design, abrasion resistance, long service life and cost effective prices. We make them available in custom designs to match the clients’ exacting needs. Also we have a well developed logistics network worldwide helping us to deliver the orders before deadlines.
Double Ended four mouth Pin Vice
35 Per Piece
100 Piece(s) (MOQ)
Best Deals from Pin Vice
HARDENED AND GROUND PIN TYPE GRINDING VICE
2,500 - 15,000 Per PC
1 Piece (MOQ)
KEY FEATURES These vices are mainly used with precision grinding, milling machines, engraving and jig boring operations. All surfaces are hardened and precision ground square and parallel to an accuracy of .0004” The moving jaw has two vees ground into it's face, one vertical the other horizontal to aid gripping round components. The rapid positioning holes allow the vice to be locked in any position by means on an alien key provided with the vice. Available in both alloy steel and carbon steel. It holds work piece securely and accurately. Hardness : 55 to 60 hrc. Available in both quick clamp and pin design
Swivel Base Pin Type Baby Vice
Get Price Quote
Body Made from Cast Iron with guide Pins. Painted
Heavy Duty Adjustable Pin Vice
Get Price Quote
Unbreakable plastic handle With brass fitting Used for holding small wires and miniature tools Can also be used as needle file handle Total length - 4.1/2" (115mm) Capacity - 3/32" (2.38mm) to 1/8" (3.17mm)
Pin Type Precision Sine Vice
Get Price Quote
We are among the reckoned manufacturers and suppliers of an exquisite collection of precision sine vice - pin type. These products are manufactured with the finest quality basic raw material, in strict adherence with the international quality norms. Our catered products are extensively used on milling and grinding machines and are appreciated due to their reliability and durability. Due to their usage in multiple applications, we offer these products according to the demands of our valued customers. Specifications: hardened & tempered to 52 -56 hrc angle setting accuracy within ± 5 seconds. All side parallelism and squareness within ± 0.015 mm. Center distance of rollers within ±0.005 mm. A recess of exactly 2mm depth is provided on rest plate for setting up of very small angles with standard gauge blocks.
Baby Vice Pin Type - Swivel Base
Get Price Quote
Cast Iron Body, Available with clamp provided for Firm on table.
4 Mouth Brass Cross Pattern 4 Inch Pin Vice
Get Price Quote
Tool Makers Pin Vice
Get Price Quote
Manufactured from selected tool steel. Fully tempered, Hardened & precision ground as per industry's standards. We give hardness 58+/-2 HRC & We keep hardness to 58 +/-2 HRC & commit accuracy for squareness , flatness & parallelism within 0.005 mm. Designed to provide maximum holding power & highly repeatable positioning due to their forward & downward clamping action. "V" on moveable jaw for better gripping of round jobs
pin vice
Get Price Quote
Precision Sine Vice Pin Type Griding Vices
Get Price Quote
Fabricated with high quality En31 alloy steel body, our Precision Sine Vices are widely appreciated for their extensive usage. In order to provide them with high strength, vice hardened to 54-56 HRC. Further, to enhance the job tilting and lifting of elements, the movable jaw pushes the job at 45 degree to maximize the clamping force. Further, these vices are provided with end pockets for convenient clamping and are supplied with side support to hold the object. Features: En31 alloy steel body and jaw hardened to 55-60 HRC. Movable jaw pushes the job at45degree therefore, ensure maximum clamping force thus elements job tilting and lifting. End pockets for convenient clamping. Supplied with side support to work as a job locater for repeat operation. Item Code Jaw Width Jaw Depth Jaw Opening Overall-Length Overall-Height Parallelism & Perpendicularity SEI 151 75 40 80 200 70 ±0.005 Max SEI 152 95 45 105 235 90 ±0.005 Max
pin vice
Get Price Quote
Product Description : Pin vices are used for holding small taps, drills, reamers, scribers, wire, small files etc. These are available in following type: 1. Pin Vices - Regular The handles have a hole extending through the entire length which permit holding wires of any length or diameter upto the full size of the tool. These are available as individuals or as a set of 4. 2. Master Pin Vice It has a single collet made of hardened steel, suitable for holding small drills, miniature tools etc. The opposite end has a large free wheeling swivel head. 3. Pin Vice - Double Ended This double ended pin vice has reversible collets at each end. 4. Adjustable Pin Vice This pin vice is especially useful for holding small drills, burrs, wires, files, reamers etc. Product Description : Category Capacity Overall Length Body Diameter inch mm inch mm inch mm Pin Vices 0-3/64 0-1 3.25/64 85 13/64 5 1-32 - 1/16 0.75 - 1.5 3.15/32 87 15/64 6 1-16 - 1/8 1.5 - 3 3.33/64 88 9/32 7 1/8 - 11/64 3 - 4.5 4.3/32 102.5 5/16 8 Pin Vices - Double Ended 0-1/8 0-3.2 4 100 3/8 9 Master Pin Vice 0-1/8 0-3.2 3-21/32 92.5 3/8 9 Adjustable Pin Vice 3-16 - 1/4 1 - 6.4 6.7/8 175 1 25
Square Head Brass Pin Vise
Get Price Quote
Pin Vise Hobby Jewelers Tool Pin Vises
Get Price Quote

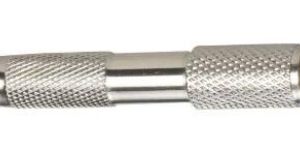

pin vise sliding
Get Price Quote
Sliding Knurled Ring to close Steel Jaws making it easy to operate..Collet Holds: 0 – 1.20mm.

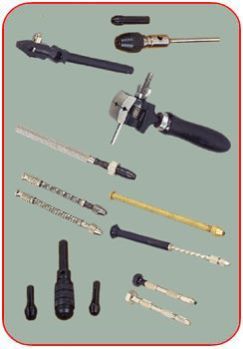

Pin Vices
Get Price Quote
Pin Vices, Pin Chuck Set With 3 Collets To hold small Twist Drills from 0 to 2.5mm. The chuck body incorporates a 2.5mm diameter cross hole. Shank .
Baby Vice (Pin Type) Fix Base - 6505
Get Price Quote
We specialize in manufacturing wide variety of Vices like wood working vice, bench vice fix base, baby vice, hand vice and many more. These vices are extensively used for grasping or holding something and find their usage in aerospace industry, automotive industry, mechanical labs, machine tool application etc.
Hand Wise Double Side
Get Price Quote
We are leading distributor of Hand Wise: Double Side in Jaipur, Rajasthan(India).
Hobby Jewelers Tool Pin Vises
Get Price Quote
We are the main supplier of this product.
Pin Vice Single Ended Watchmakers Tool
Get Price Quote
Pin Vice Single Ended Watchmakers Tool, Ideal vice for holding small Tools, Wires, Taps etc. Collets grip firmly when screw chuck is tightened. Heavy knurled body. Black Shiny finish. Available in individual sizes and also in a set of four in attractive pouch.
