Plano Miller Dealers

• Width: 1200, 1500

HPSM’ offer Plano miller machines that are dimensionally accurate and have functionally superior operational standards. We manufacture these Plano miller machines under the close surveillance of expert professionals to ensure delivery of zero defect products to our clients. These machines are resistant to corrosion & abrasion and perfectly meet the application demands of different industries.   Standard Accessories   One Milling Head on Cross Saddle Complete with Motor Standard Universal Side Facing Attachment Table Feed Drive Gear Box to Drive the Table Complete with Motor Cross Feed Drive Gear Box For The cross feed of Milling Head Liffting Drive Motor for The Rapid Lifting Feed of Cross Saddle Centralized Electrical Control Panel   Extra or Optional Accessories   Extra Milling Head on Cross saddle With Motor Extra Milling Head on Side Column with Motor Extra Long Universal for Depth Machining A.C Variable Drives Arrangement Lifting Drive Gear Box For Side Milling Head Lifting Drive Gear Box Rapid & Feeds of Cross Saddle Electrical Control Panel For Optional Accessories

machine is designed as a table moving Double Column Plano Miller with elevating cross rail.The Bed, Table, Cross rail, Cross slide and Ram Housing are all made of cast iron FG 260/300.The table moves on LM guide ways, with re-circulating roller blocks for heavy load carrying capacity up to 6 tons/sq.m. The cross rail positioning is controlled by a servo motor through a pair of ball screws and worm gear box. The cross rail is clamped automatically after positioning by hydraulic assisted failsafe brakes. The cross slide is also mounted on LM guide ways with re-circulating roller blocks for precise movements and is moved by a

• Machine Type: Plano Miller
• Machine Make: Mecof
• Machine Model: CS 8
• Features: Easy Installation, Pocket friendly prices, Minimum Maintenance.

• GREEN: BLUE

We are a well known manufacturer, supplier and exporter of plano miller machine. Our offered product is highly demanded in the market. Being a maker we get crude material from trusted sellers with the goal that we can produce the standard nature of organizers. We have established ourselves as one of plano miller machines manufacturers in the global market. Our plano miller machines are designed keeping in mind the requirements of the clients. These machines are available in various shapes and sizes and we also provide it in large or any other specific size as per the request of the clients.plano milling machine is widely used in industries for precise shaping of metals & various solid materials. These entire machines are ideal for various processes such as slot cutting, routing, welding & turning in metallurgy industry. We make the range of machines available to the clients in various configurations as per their application requirements.

We present a wide range of inexplicable quality Plano Miller Machines that is available in various specifications. Our Double Column Plano Miller Machine is extensively used in heavy industries for various purposes.Our plano milling machine is a user friendly machine that needs low maintenance and helps us to be leaders among Lathe Plano Miller Machine Suppliers in Punjab, India.we welcome customization of our machines as per clients requirements. We offer these machines at lucrative prices.Our machines are widely appreciated world wide for their high performance, sturdy construction and high tensile strength. Further, manufactured using high grade material, our range of Two Side Planner Machine is offered in various technical specifications to our clients.

• Type: Plano Miller Machine
• Certification: CE Certified, ISO 9001:2008
• Weight: 2000-3000kg
• Color: Brown, Green, Grey, Light White, White
• Voltage: 440V
• Condition: New
• Application: Aluminum Die Cutting, Shaping Of Metals, Slot Cutting
• Automatic Grade: Semi Automatic
• Driven Type: Electric
• Feature: Easy To Operate, Good Capacity, High Performance, Long Life, Low Maintainance
• Brand Name: Habricus
• Length of stroke: 1800 to 15000 As per requirement
• Width between column: 1200 / 1500 / 1800 / 2100 / 2500 / 3000 mm
• Height under cross rail: 1200 - 1500 mm
• Face of cross rail: 450 -700 mm
• Face of column: 325 -500 mm
• Width of table: 875-1800 mm
• No of table feeds: Stepless infinitely variable speed with AC variable frequency drive
• Table feed for milling: 40 to 200 mm/min
• Table rapid feed: 750 mm/min
• Milling head feed: 40 to 200 mm/min
• Milling head rapid feed: 600 mm/min

We are engaged in providing a wide range of heavy duty Plano Miller that finds extensive usage in various industries. These Plano Millers have rugged construction which makes these durable in nature. This range of Plano Miller is highly appreciated for features like superior performance, corrosion resistant finish and optimum functionality. AttributesExcellent finishDimensional accuracyCorrosion resistantAbrasion resistantCompetitive prices Used ToPrepare machine surfaceHelps in removal of elements related to laps, finishes etc. » Specifications Size8x4x410'x4'x4'12'x4'x4'8x5'x5'10'x5'x5'12'x5'x5'12'x5.5'x5.5'12'x6'x6'16'x5'x5'16'x5.5'x5.5'16'x6'x6'20'x6'x6'22'x6'x6'14'x7'x6'16'x8'x6'Working Stoke 8'10'12'8'10'10'12'12'16'16'16'20'22'14'16'Admit in Columns X Job Height 48"x48"48"x48"48"x48"60"x60"60"x60"60"x60"66"x66"72"x72"60"x60"66"x66"72"x72"72"x72"72"x72"84"x72"96"x72"Cross Slide Face16"16"16"18"18"18"18"18"18"18"18"18"18"18"24"Piller Face 14"14"14"16"16"16"16"16"16"16"16"16"16"16"20"V to V Centre (in Bed)24"24"24"30"30"30"30"30"30"30"30"30"30"30"48"Bed Width 30"30"30"36"36"36"36"36"36"36"36"36"36"36"56"Table Width 36"36"36"42"42"42"42"42"42"42"42"42"42"42"62"Tools Down Feed 10"10"10"12"12"12"12"12"12"12"12"14"14"14"16"Drive Motor H.P. Recommended5 H.P.5 H.P.5 H.P.7.5 H.P.7.5 H.P.7.5 H.P.7.5 H.P.7.5 H.P.7.5 H.P.7.5 H.P.10 H.P.10 HP.10 HP.10 HP.15 HP.Gross Weight of Machine 7.5 M.T.8.5 M.T.11 M.T.8.5 M.T.11 M.T.12.5 M.T.13 M.T.13.5 M.T.16.5 M.T.16 M.T.17 M.T.20 M.T23 M.T17 M.T26 M.T

• Automatic Grade: Automatic
• Power: 20 HP
• Width: 1500
• Main Motor: 3.7-7.5 kW
• High level of accuracy: 800 mm
• Height: 600 to 700 mm

• Driven Type: Electric
• Material: Mild Steel

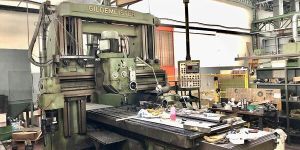

• Make: GILDEMEISTER
• Table size: 1300 x 3000 mm.
• Distance between columns: 1400 mm.
• Vertical: 600 mm

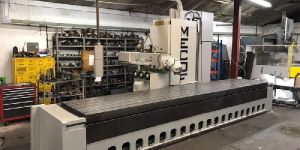

CONTROL CONVENTIONAL LOCATION MUMBAI COUNTRY OF ORIGIN ITALIAN TIME OF DELIVERY IMMEDIATE AGAINST PAYMENT TABLE SIZE 1000MM X 4000MM TABLE STROKE 4000MM MAXI. DISTANCE BETWEEN MILLING HEAD TABLE 1440MM MILLING HEAD VERTICAL STROKE 690MM TOTAL POWER REQUIREMENT 25KW WEIGHT OF THE MACHINE 28000KG DIMENSIONS OF THE MACHINE CA. 8200MM X 2600MM X 2900MM

We offer Plano Miller - 02

• Type: PLANO MILLER MACHINE
• Brand Name: ASHU
• Condition: NEW
• Warranty: 1 YEAR
• After-Sales Service Provided: YES

We are offering plano miller machine double tool post with milling head, reduction gear box and feed gear box and lifting motor with double bed.

• Type: Plano Miller
• Certification: ISO 9001:2008
• Weight: 100-1000kg, 1000-2000kg
• Color: Brown, Green, Grey, Light White, White
• Voltage: 380V, 440V
• Condition: New, Used
• Automatic Grade: Automatic
• Driven Type: Electric
• Warranty: 1year, 2years

Special Features: Robust Construction Resistance to Corrosion Excellent Durability All Pervasive Applications High Withstanding Power Energy Efficiency   Sturdily constructed to perfection, our Plano Millers are synonymous with uncompromising quality and high performance. These machines are ideally designed for precise shaping, routing, slot cutting, turning and welding of metal and other solid materials

• height: 600 to 700 mm
• Daylight: 500 mm

We specialize in custom-built machines in metal cutting. We offer CNC controlled SGPMs (Special Purpose General Machines). The machine that is being showcased is a custom-built machine, but is capable of doing all milling, drilling operations, apart from rigid tapping. It has a stationary bed, on which the table moves longitudinally (to and fro).LMhardened & ground guide way strips for male sliding surfaces, turcite for female sliding surfaces.Metallic, collapsible guide way covers for the table; bellows for the cross and vertical axes. The machine is suitable for milling and drilling upto Ø 50 mm in 2250 mm long x 1250 mm wide x 25 mm thick plate with in-built rigid tapping capability. Working height: 600 to 700 mm Ram type drilling head with ISO-50 spindle; ram stroke to form the vertical axis. Ram: 250 mm square, having 350 mm vertical stroke Daylight: 500 mm Powered arbor clamping, declamping system Provision for external or thru- coolant (with geared pump), capacity: 40 bar/40LPM LM/hardened & ground guide way strips for male sliding surfaces, turcite for female sliding surfaces. Ball screws & nut for all the 3 axes Metallic, collapsible guide way covers for the table; bellows for the cross and vertical axes. Machine enclosure, if ordered T slots provided on the table to facilitate mounting of any type of fixture. Lapp cables Screw type chip conveyor Drag chain for cables Coolant filtration for 15 microns Spindle speeds: 30 to 3000 RPM Angular contact bearings for spindle support Positioning accuracy: 10 microns The Siemens CNC package for the 3 axes drive, spindle drive, PLC & HMI to contain the following: 1) Servo motor 1FK7 27 Nm / 2000 RPM with Natural cooling for 3 axes drive2) Compact Induction motor of 17 KW / 1000 RPM / 162.3 Nm with 43 Amps capacity3) CNC System Sinumeric 802D SL with Machine control panel & Full CNC keyboard3) Sinumeric module of PP 72 / 48 I/O4) Line Filter as well as Line Reactor for the Power module5) Sinamic Smartline Power module for 36 KW / 600 VDC6) Sinamic S120 Single motor module, Double motor module & Spindle module7) Profibus connectivity for the above8) Electronic Hand wheel

The Plano Miller Machine we manufacture is one of the primary choices in the market. Owing to its sturdy construct and high resistance to corrosion, it has a longer functional life. The performance it provides and its speed is highly acclaimed in the market. In addition, we offer this machine to our clients in several specifications and at a market-leading rate.   Features Variety of sizes and dimension Corrosion resistance Durable

Cat. No. : WM-018HEAVY DUTY PLANO MILLERFOR BETTER ACCURACY, FINISH AND PRODUCTIVITY, AVALIABLE IN THREE MODLES (a) PLANO MILLER GEAR TYPE(b) PLANO MILLER BELT TYPE(c) PLANO MILLER ELECTRO MAGNETIC DRIVE TYPESPECIFICATIONS L in the Model indicates any length of stroke required between 6' to 40' Width between columns L 3ft. L 4ft. L 4.5ft. L 5ft. L 5.5ft. L 6ft. L 7ft. Length of Stroke in feet 6 ft. to 40 ft. as per order / requirement Length of Stroke in Meters 1.8m to 12m as per order / requirement . CAPACITY Width between colums 900 1220 1372 1524 1676 1828 2133 Height under Cross Rail 900 2300 1372 1524 1676 1828 2133 . TABLE Working Surface Length EQUAL TO LENGTH OF STROKE L No. of T-Slots 5 5 5 6 6 6 7 Width of T-Slots 19 19 19 19 19 19 19 Distance between T-Slots 127 127 148 148 148 190 190 . MILLING HEADS No. of Milling Heads ONE, TWO OR THREE AS PER ORDER Horizontal Traverse of Milling Head on Cross Rail 760 900 950 1200 1350 1500 1760 Max. swivel of Milling Head to either side 50 60 60 60 60 60 60 . CROSS RAIL Vertical Traverse of Cross rail mm (elevating) 750 1200 1330 1500 1650 1800 2060 Elevating Traverse of side Milling Head 600 850 100 1150 1300 1400 1750 . MILLING HEADS GENERAL DUTY OR HEAVY DUTY as per order No. of speeds 6 6 Range of speeds in RPM 55,80,100,130,170,260 50 to 270 rpm Motor 3 phase 440 volts 3 HP/1440 RPM 5 HP/1440 RPM Spindle dia at Nose 85mm 125mm Vertical traverse of quill 70mm 100MM Vertical Traverse operation Hand operated Hand operated Micro Feed Hand operated 1 small division = 0.1 mm One small Division = 0.1mm Feed of Trolly for Milling 32mm to 100mm per minute 32mm to 100mm per minute Cutter Dia 80mm to 10mm 120mm to 150mm Spindle Nose Taper ISO-40 ISO-50 Holding of cutter By Draw Bolt Either by draw bolt / bar or bolts on spindle nose Extra heavy duty milling head with 7.5 / 10 HP also available on request
