Rapper Coil Dealers (20 products available)

Rapper Systems enable the dislodging of the dust collected on the surface of the Collecting Plates and Emitting Electrodes. Sometimes these are also used for the GD Screens and Hopper Walls. They hit the Collecting Plates and the Electrodes as per a pre-set time interval, which leads to the dust getting dislodged and falling into the hoppers below.Rapping System Spares : Rapping Panel PLC HMI Row Cards & Column Cards Diodes Hammers Boot Seals We are the Manufacturer & Supplier of Rapper Systems & Its Spares for all most all ESPs.

The Migi Rapper Coils, offered by us, are capable of delivering strong shearing forces to remove even the most tenacious of dusts from collecting plates and discharge electrodes. As dust accumulates on the discharge electrodes of an electrostatic precipitator, the clearance between the discharge electrodes and the grounded collecting electrodes will diminish. Our Migi Rapper Coils are used to clean of the discharge electrodes to maintain clearances. We offer shaft Insulators, Pin Insulators, Bust Duct Insulators, Wall Thourgh Bushing Insulators, Antis way insulators. For All type of Esp like thermax, Botliboi, Alstom, Acc. VT Corp etc. Attributes : Compact design Smooth finish Precisely engineered High strength Durability

production techniques and materials, these electric rappers offer consistent high performance and long service life. Available with either cord or terminal box connection. Coils are wound from class h (180? C) Copper wire. This not only provides optimum heat transfer but also improves dielectric and mechanical strength.

The MIGI rapper is a general use rapper that is ideal for most applications. The MIGI is capable of delivering strong shearing forces to remove even the most tenacious of dusts from collecting curtains and rigid mast designed high voltage systems

Rapper coils are used to dislodge the particulate from the collecting plates. Some basic types of rappers are mechanical, pneumatic and the migi rapper coils

• Brand Name: OMKAR
• Country of Origin: Made in India
• Warranty: 1 Year
• Protection: IP 65
• Paint Shade: RAL 7032 / RAL 7035/ Blue
• Cover Material: MS / SS

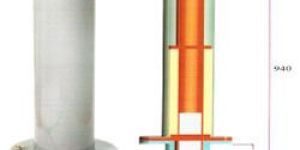

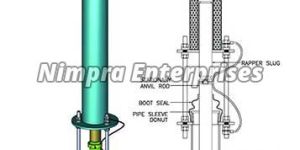

For the rapping of the CE and DE, Magnetic-Impulse Rapper (MIGI Rapper) are installed in many designs of ESP's. A current pulse in a coil raises a steel plunger inside the MIGI Rappers. Then by the effect of gravity, the plunger drops back and strikes a rod which is connected to many plates inside the ESP. Frequency and intensity of the rapper are controlled by an electrical controlling system. Therappers for the collecting plates and discharge electrodes are generally mounted on thepenthouse roof for easy maintenance.The collecting plate rappers are mounted at the leading and trailing edge of thecollecting plates.The rapper assembly consists of a 2" diameter solid rod plunger, with a stainless steel tip to eliminate magnetization, which is free to move within a smooth phenolic guide tube around which is wound a copper solenoid type coil. The windings are epoxy encapsulated. A weatherproof metal casingprotects all the components.

rapper coil, Induction Furnace Coils, ppgi steel coil

rapper coil, Economiser Coils, GI Coils

rapper coil, shaft insulators, Sequential Timer

rapper coil, Air Core Coils, Hr Slit Coil, dx cooling coils

Migi Rapper Coils, frp insulator rod, Piston, ground stick

rapper coil, bag filters spare parts, wrapper, Low Temperature Filter Bags

Rappers are utilized to dislodge material from the collecting surfaces, discharge electrodes and gas distribution plates. Improper rapping can lead to spark-over and a reduction in power levels, high resistance grounds and dead short conditions, reentrainment of collected material, damage to esp internal components and distortion of gas flow.

migi rapper coil, rapper control panel, Rapper Diodes, ESP Commissioning

migi rapper coil, Mechanical Safety Key Interlock

rapper coil

rapper coil, ESP Spare, Collecting Plates, Discharge Electrode
