Rotary Dryers Dealers

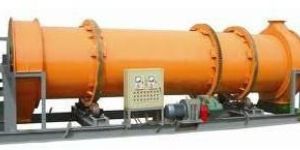

We are manufacturer & supplier of this product. Rotary drum dryer is designed to dry the wet content of different raw materials which contain moisture up-to 50% or more than that. The dryer is in the shape of a large rotating cylindrical tube. Furthermore, the discharge end is lower than the material feed end in order to convey the material through the dryer under gravity. Moreover, it’s vernacular names are: rotary kiln, tube dryer, pipe dryer, drum dryer, saw dust dryer, spin dryer and so on. Various types of raw material can be dried which contain moisture, such as saw dust, bagasse, coffee beans, press mud, wood chips, peddy straw, groundnut shells and almonds shells etc. Rotary dryers are widely used for reducing moisture from any type of agro waste, forest waste, chemicals, filter cakes, sewage sludge, drying sands, limestone, stones etc. Rotary drum dryer (reduce moisture up to 50%) model no. production power requirements rd5 5,000 kgh 71.5 hp rd4 3,000 kgh 49 hp rd3 2,000 kgh 35 hp rd2 1,300 kgh 25.5 hp rd1 750 kgh 20.5 hp

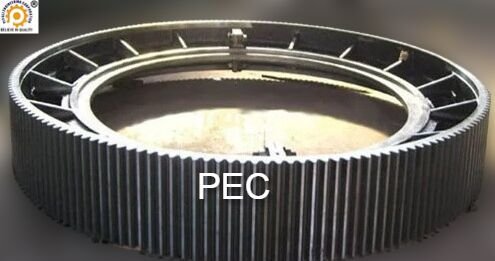

We are a leading rotary dryer manufacturer and exporter, brings to you its wide range, which is classified as direct or indirect (air heating method), current or counter current (material air contact). While the rotary dryer is in use, the material should be dried and uniformly dispersed over the entire cross-section. Widely used in various industrial purposes, our rotary dryer can also be customized based on the properties of the material. salient featuresmaterial is passed through heated airdryer is operated through a girth gear and tyre arrangementleast air leakagelow operating and maintenance costsperfectly suited for high volumeshigh thermal proficiency these dryers are used to handle following materialclaysmaize germscoaloresandindustrial sludges

Ours is a name to reckon upon whenever seeking performance-oriented Rotary Dryer. We are bracketed with the preeminent Manufacturers and Suppliers of Rotary Dryer in Manglore, Karnataka. The high-quality dryer that we offer is efficient enough to perform way beyond the expectations. As far as the quality of the dryer is concerned, we do not leave any scope for doubts as we conduct various tests to warrant it.   Specifications : Uniform drying of products. Low maintenance, long life. Easy and quick loading and unloading. Fuel option of coffee husk, firewood, burners-LPG or diesel. Easy control of air volume & direction of air. Auto temperature cut-out with burner fuel system. Easy adjustment of air volume and quantity Quality and sturdy construction Easy to operate and maintain.

Kilburn is a world leader in design and manufacture of rotary dryers, coolers and calciners. Kilburn has several installations of rotary dryers worldwide. Kilburn rotary dryers are well known in the industries.

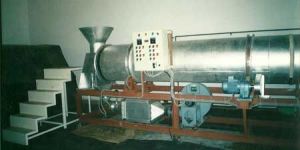

The set-up is designed to demonstrate and stimulate the moisture removal by heat under forced draft action created by hot air stream and shower of moist solid due to rotary action of dryer drum. The set-up consists of a long cylindrical shell slightly inclined towards the outlet rotating at low RPM. Counter current hot air from blower passes through heating chamber to produce hot air works as the drying agent entered from one side of the rotating shell and leave from other side removes the moisture from the moist solids. High moisture content feed enters from one end of the shell and low moisture content product discharges from the other end of shell. As the shell rotates internal flights lift the solids and shower them down through the interior of the shell. This action increases the contact of wet solid against hot-air making the dryer very effective. An arrangement is made to vary and measure the airflow rate. A digital temperature controller is used to control and measure the temperature of air stream Experiments To study the operation of a Rotary Dryer To study the drying characteristics of a solid material under batch drying condition in a rotary dryer Features Superb Painted structure Simple to operate & maintain Compact & stand alone set up Utilities Required Electric supplyProvide 230 +/- 10 VAC, 50 Hz, single phase electric supply with proper earthing. 5A, three pin socket with switch for weighing scale, 15A, three pin socket with switch for heater MaterialSaw dust @ 1Kg. Granular and free flowing solid of size I - 2 mm Anemometer Air flow measurement

Voice Engineers batch type Rotary Vacuum Dryer is a jacketed cylindrical vessel, wet feed is charged as a batch and is subjected to indirect heating while undergoing agitation due to the action of paddle mixing. These dryers have specially designed scraper blades which scrap the entire internal surface of the dryer and continuously move and rotate the material, thereby precluding the possibility of material remaining in contact with hot surfaces for protracted periods of time. The operation is normally carried out in vacuum. Recovery of solvent is possible by condensing the vapors generated during the drying operation.Special Features of Rotary Vacuum Dryer Granular / pasty wet materials can be handled. Low temperature operation is possible. Solvent recovery can be carried out System is batch High energy efficient Mode of heating is indirect Conduction drying Closed operation. Rotary vacuum dryer has some typical applications in pharmaceuticals, organic chemicals, pasty materials, insecticides, pesticides, solvent recovery, dye intermediates, dyestuffs, etc.Rotary Vacuum Dryers also known as Vanuleuth Dryer, is a cylindrical jacketed vessel with a central agitator having specially designed blades. The blades of this Rotary Vacuum Paddle Dryer are so designed that they sweep the entire internal surface and at the same time turn the material so that all the particles are come in contact with the heated surface.The central agitator shaft is supported on the two end bearings housed in bearing housing in such a way that the alignment remains always intact. This central agitator is driven by means of a Motor & Gear box through the bull Gear.Cooling could also be provided by cold water / brine refrigerant through the jacket. The horizontal shell is jacketed to heat the shell with steam / hot water or any other thermal fluid. Limpet coil is provided instead of jacket if the heating media is fluid.A Dust Catcher consisting of bag filter is provided on the top to prevent the losses of material particles after the drying process. A Condenser of adequate heating surface area is provided wherein the evaporated vapors are condensed and these condensed vapors are then collected in the receiver of suitable capacity, placed beneath the condenser.

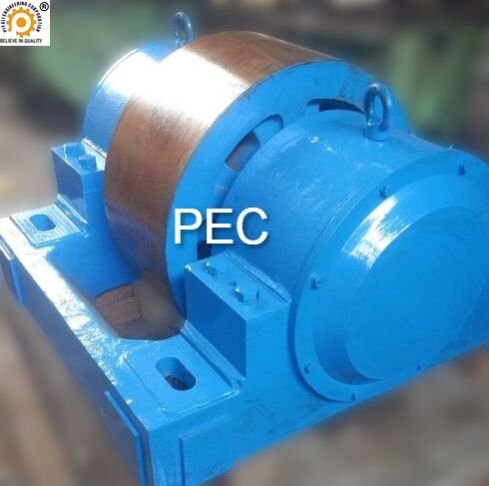

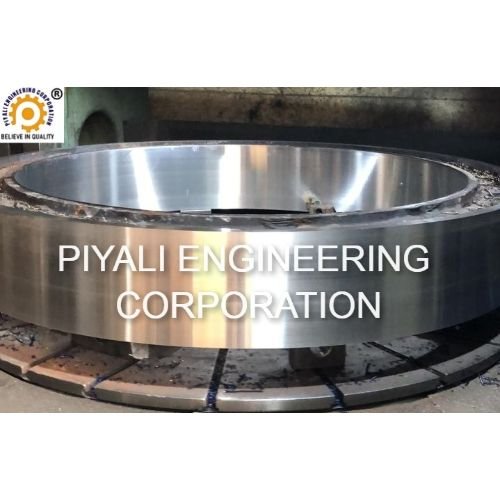

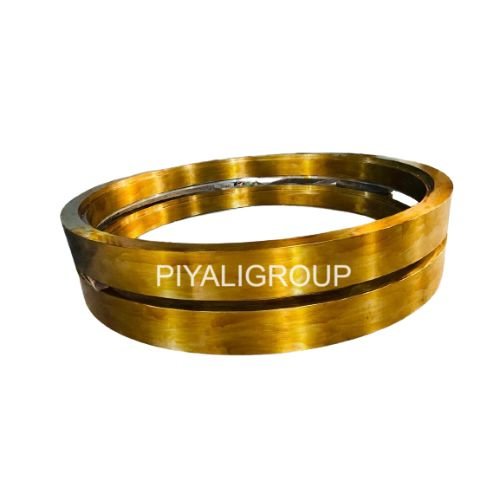

We offer rotary dryer operated at almost atmospheric pressure consists of a m.s.cylindrical shell, ranging in length from four to ten times its diameter, into which the wet charge is fed continuously at one end and is discharged at the other, the movement of the material being due usually to the combined effect of inclination of the shell to the horizontal and the action of internal lifting flights during the rotation of the shell. The latter is usually provided with machined girth rings supported on suitable designed bearings. Rotation of the shell is secured by the action of suitable gearing. Hot air produced from hot air generator (direct or indirect ) is injected into the dryer to achieve the required dryness of the material . The discharge end of the rotary dryer consists of sealing arrangement , cyclone and dust collector.

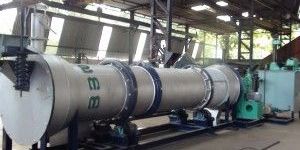

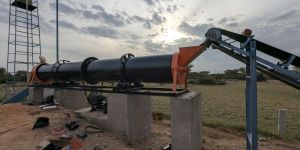

Rotary Sand Drier of BMM  make is made specially to dry the FOUNDRY sand in the most economic way.  it saves the fuel / energy when compared with the other (make) types of driers. The DOUBLE PASS type Sand dryer design makes it compact & occupies  less ground space for higher capacities. Available with OIL fuel burner GAS fuel burner HOT Air Recuperator/Generator
