FEATURES : 1. Sphere in Sphere arrangement fo radial undirectional heat flow.2. Ten thermocouples to measure surface temperatures of spheres.3. Digital Temperature Iindicator.4. Illustrative Instruction Manual. DESCRIPTION : Insulating powder apparatus is designed to determine the thermal conductivity of insulating powerders. The apparatus consists of two thin walled concentric copper spheres. Inner sphere houses nichrome hetaing coil. Insulating powder is filled between the spherres. Heat flows radially outwards. Surface temperature of sprehers & heat input are measured by panelised instruments. SPECIFICATION :1)  Inner sphere dia - 100mm.2)  Outer sphere dia-200mm3)  Heater-Nichrome wire sandwithched between mica sheets.4)  Control Panel comprisising of a)  Voltmeter : 0 - 100 / 200 voltsb)  Ammeter : 0 - 2 Ac)  Dimmerstat : 0 - 2 Ad)  Digital Temperature Indicator, 0-300-0C with 10 Leastcount using chromel alumel thermocouples. Provided with cold junction compensation.  EXPERIMENTATION :1)  Determination of thermal conductivity of Insulating powder2)  Comparison of thermal Dconductivities at various temperatures. SERVICE REQUIRED :1)  A.C. 230 V single phase stabilised supply with earthig connection2)  Floor of 0.75 m x 1.5m at working height. Almost  care is taken for preparing this literature, but still if there are any mistakes,  those may be excused.  We reserve our right to change or modify the equipement without notice.

Product Code: EKE 2320Thermal conductivity of is an important engineering property. The apparatus uses guarded hot plate method for determining thermal conductivity. It consists of hot plate i.e. an electrical heater sandwiched between two plates. The heat loss from hot plate is prevented by using two guard heaters and heat of removes heat from liquid by circulation of water. Input to heaters the temperatures.Specifications: Guarded hot plate assembly comprising of main heater, ring guard heater and top guard heater, mounted over the liquid test cavity. Cold plate assembly provided with water connections. The assembly is housed in an enclosure box with glass wool insulation. Instruments panel consisting of : Digital voltmeter and ammeter of suitable range. Dimmerstat for controlling input to the heaters (2 amp. 3 Nos.) Multichannel digital temperature indicator. Services Required : Floor space of about 0.75m. x 1.5m. at working height. 230v. AC electrical supply with earthling connection. Water flow rate of about 10- 15 lit/min. at constant head.

• Weight: 100-200gm
• Voltage: 3-6VDC
• Application: Indsustrial Usage
• Power Source: Electric
• Warranty: 1Year
• Water Supply: 3 Liters./Minute (approx.) Drain
• Electricity Supply: 1 Phase, 220 V AC, 2 Amps. Table for set-up support.

Our Thermal Conductivity Apparatus are also known as Thermal Conductivity Of Metal Rod. The product is available at an affordable market price for our customers. Our Thermal Conductivity Apparatus consists of metal bar, one end of which is heated by an electric heater while the other end of the bar projects inside the cooling water jacket. We supply the product world wide to fulfill the requirements of our customers. The product includes : A cylindrical shell filled with the asbestos insulating powder surrounds the middle portion of the bar The temperature of the bar is measured at different sections Heat input to the heater is given through Variac and measured by Digital Voltmeter & Digital Ammeter By varying the heat input rates, wide range of experiments can be performed rise is noted Experiments : To plot the temperature distribution along the length of Bar. To determine the thermal conductivity of given bar at various temperatures.

Range of Experiments to be Carried Out• To determine the thermal conductivity of the Insulating Material• The experiments can be conducted at various values of input & calculation can be made accordingly• To plot Heat flux Vs thermal conductivity of Insulating Powder

• Material: Mild Steel, Stainless Steel
• Color: Brown, Grey, Light White, Off White, Silver, White
• Voltage: 110V, 220V, 380V, 440V
• Condition: New, Used
• Power: 1KV, 2KV, 500W, 750W
• Driven Type: Electric
• Phase: Double Phase, Single Phase, Triple Phase
• Warranty: 1yrs, 2yrs
• Vacuum range: 150-300mm, 300-600mm, 600-900mm

To demonstrate thermal conductivities of different metals. A cylindrical metal container approx 100 x 90mm (H x D) with five rods 230 x 3mm dia of copper, aluminium, brass, mild steel and stainless steel. Each rod has captive slider which releases from a spot of wax when heat travels along the rod.

• Country of Origin: India
• Material: Stainless Steel
• Certification: ISO 9001:2008
• Color: Light White, Off White
• Voltage: 220V
• Condition: New
• Dimension: 300mmx320mmx425mm
• Power: 1KV
• Driven Type: Electric
• Phase: Single Phase
• Warranty: 1yrs
• Temperature: 0-50°C
• Vacuum range: 150-300mm

• Material: Wood & Copper
• Warranty: 1yrs
• Rod Length: 300mm
• Rod Diameter: 25mm
• Model: GWL957

Consists of a cylindrical copper rod about 300 mm long & 25 mm diameter with its one end surrounded by a steam jacket for heating it from a boiler & the other end is kept cool by a system of water flowing through a spiral tube soldered to that end. Through two sockets, two thermometers are inserted in the rods for finding the temperature at two points. Two more thermometers are inserted in the other end which is kept cool by the stream of water. Through this apparatus, the difference of temperature between the inflowing & outflowing water is determined. Fitted in teak wood case, packed with felt with removable front; with thermometers.

Comprising strips of copper, iron, aluminium and brass fixed on wooden ring meeting in the centre, outer ends of the strips formed with small cups.

• Features: High tensile strength, Supreme functionality, Longer service life

• Inner Sphere: 100 mm dia.
• Heater: Nichrome Wire
• Outer Sphere: 200 mm dia.
• Variac: 0-230 V / 2 Amps.
• Temperature Sensors: RTD PT-100 Type (10 Nos.)
• Control Panel: Digital Voltmeter
• Digital Ammeter: 0-2 Amp.
• Digital Temperature Indicator: 0-300oC

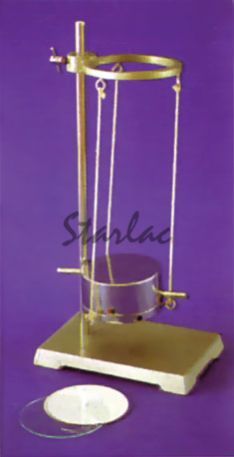

For determining the relative conductivity of bad conductor material consists of cylindrical slab of brass 11.5cms. In dia and 12mm thick drilled to take thermometer. On this rests a 5cms deep steam chest of the same dia, with inlet and outlet tubes of steam. The apparatus is suspended by strings attached to the lower cylinder with thermometer. On retort stand with rectangular base 200 x 125mm, and rod 600mm long. Complete with one each disc specimens, glass and plastic 3mm and 1.5mm thick respectively, for determining the conductivity of liquids.

We are instrumental in supplying a comprehensive range of Thermal Conductivity Apparatus (GHP) (TLF004). Thermal Conductivity Apparatus, offered by us, is designed according to the international standards. Thermal Conductivity Apparatus is highly appreciated for its high performance, easy installation, low running cost and ability to withstand adverse conditions. Features : Determination of Thermal Conductivity of Insulating material in the form of Slab Variation of Thermal Conductivity of the material with Temperature Comparison of Thermal Conductivity of various Insulating material Complete Panelized Electrical Controls & Measurement Digital Temperature Indicator

• Material: Mild Steel, Stainless Steel
• Color: Brown, Grey, Light White, Off White, Silver, White
• Voltage: 110V, 220V, 380V, 440V
• Condition: New, Used
• Dimension: 300mmx320mmx425mm, 320mmx325mmx450mm
• Power: 1KV, 2KV, 500W, 750W
• Driven Type: Electric
• Phase: Double Phase, Single Phase, Triple Phase
• Warranty: 1yrs, 2yrs
• Temperature: 0-50°C, 50-100°C
• Vacuum range: 150-300mm, 300-600mm

Inner sphere diameter 100mm. Outer sphere diameter 200mm Heater-Nichrome wire sandwiched between mica sheets. Control Panel consisting of Voltmeter, Ammeter, Dimmerstat, Digital Temperature Indicator with chromel alumel thermocouples.

Design concept is according to Indian Standard (IS : 3346-1966). The dimensions are not exact as per standard.. • Complete panelized electrical controls and measurement. • Digital Voltmeter, Ammeter & Temperature Indicator. • Determination of thermal conductivity of insulating material in the form of slab. • Study of variation of Thermal Conductivity of the material with temperature. • Comparison of Thermal Conductivities of various insulating material. Space Required : 1m. x 1m.

The apparatus consists of a copper sphere in which a mica heater is fitted. This small sphere is surrounded by another copper sphere and the insulating powder to be tested is filled in between these two spheres. The heat produced by heater is radially flows outwards in all directions through insulating powder. A digital temperature indicator is used to measure temperatures of Inner & Outer sphere. An ammeter & voltmeter is provided to measure heater input. By knowing heat input and temperatures, thermal conductivity of powder can be calculated. The unit is provided with asbestos powder, however any other powder can be tested with this unit. Specifications: Inner sphere - copper - 100 mm. dia. Outer sphere - copper - 200 mm dia. Heater – Mica heater placed in inner sphere. Thermocouples on outer surface of inner sphere and inner surface of outer sphere. Instrumentation & Controls : Digital Voltmeter - 0 - 199.9 Volts. Digital Ammeter - 0 - 1.999 Amp. Multy channel Digital Temperature Indicator. Heater Control. Service Required : 230 V.A.C. stabilised supply with earthing. Floor space - 1.5m X 1.5 m at working height.

We are chiefly engaged in manufacturing, exporting and supplying Thermal Conductivity Apparatus of the best quality. Our Thermal Conductivity Apparatus is specially designed and developed to measure and display the thermal conductivity of insulating materials. This apparatus uses guarded hot plate method as per guidelines of latest Indian Standards IS-3346 & broadly confirms to British standard ASTM177 as well. This Thermal Conductivity Apparatus is automatic, programmable and designed with latest integrated circuit technology. Further adding, our Thermal Conductivity Apparatus displays the �K� value directly in engineering units without much of expertise and adjustments. Made available in different specifications, our Thermal Conductivity Apparatus is very affordable. Comprises Of Data logger cum differential temperature controllerHigh performance D.C. power suppliesAuxiliary cold plate temperature controllerCold plateGuarded hot plate chamberWindow based software to collect all data and compute K-Value
