Tube Settler Media Dealers

• Color: BLACK

We are offering tube settler media (hexagonal type).model veetsm120 plan settling area of media 60 slope 11.0 m2m3 plan settling area of media 55 slope 13.0m2m3 cross sectional size 120mm x 44mm shape hexagonal chevron moc of media pvc thickness 1 mm (appx.) fitting arrangement tongue & groove max. Continuous operating temperature 55 c colour black

• Type: Tube Settler Media
• Thickness: 1.5-2 Mm
• Certification: ISO 9001:2008
• Weight: 55-60 Kg/m3
• Feature: High Performance, Long Life
• Condition: New
• Automatic Grade: Automatic
• Production Capacity: 300 M3 / Month
• Warranty: 1year
• Country of Origin: India
• Brand Name: Envifab
• Material: PVC
• Length: 750 Mm & 1000 Mm
• Application: Water Treatment
• Color: Black
• Cross Sectional Area:  120 mm X 44 mm
• DESIGN DATA: Model
•  BI-TSM-120: SETTLING AREA
•  60 Degree Slope : 11.0 m2 / m3:  55 Degree Slope:  13.0 m2 / m3
• SHAPE:  HEXAGONAL CHEVRON
• HYDRAULIC RADIUS:  1.5 cm
• PRODUCT DATA: MOC OF MEDIA
•  PVC: THICKNESS
•  1.0 mm - 1.1 mm: FITTING ARRANGMENT
•  TONGUE & GROOVE: MAX CONTINIUOUS OPRATING TEMPERATURE
•  55 DEGREE CELSIUS: COLOUR
•  BLACK: DISCTANCE BETWEEN ADJACENT TUBES
• HORIZONTAL : 120 mm: VERTICAL:  44 mm
• SEPERATOR HEIGHT: 500 mm : 5.5M2 Settling Area/m2
• 750 mm : 8.25 m2 SETTLING AREA/m2: 1000 mm : 11 m2 SETTLING AREA/m2

• Country of Origin: India
• Type: Tube Settler Media
• Feature: Easy To Operate, Good Capacity, Low Maintainance
• Condition: New
• Automatic Grade: Automatic
• Brand Name: BHARAT
• Material: PVC
• Length: 750MM
• Color: BLACK

Backed with industrious professionals, we keep a stern check on the products to ensure that the range is commensurate to international norms. With the assistance of our packaging experts and advanced machines, we became capable of meeting the standard as well as customized packaging requirements of the clients.

• AS PER REQUIREMENT: AS PER REQUIREMENT

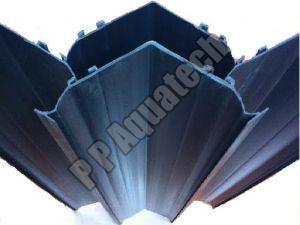

Lamella settler is designed for removal of sludge content from sludge free water efficiently, it provide appropriate condition which are necessary for separation of sludge.

• Application: SOLID WASTE SEPRATION
• Brand Name: SDM
• Material: UPVC
• Driven Type: Mechanical
• Color: Black
• Condition: New
• Shape of Tube:   V - TYPE TUBE SETTLER MEDIA
• Application: SOLID WASTE SEPRATION
• Certification: ISO 9001:2008
• Length: AS PER CUSTOMER REQUIREMENT
• Feature: Easy To Operate,High Performance,Long Life,Low Maintainance,Rust Proof
• Type: Tube Settler Media
• Thickness: 1.0mm( + 0.1mm)
• Warranty: 5years
• Country of Origin: India
• Packaging Details: 100 PIECES IN ONE PACKET
• Cross Sectional Area: 60MMX44MM
• Moc of Media: UPVC
• Tube Fitting: Tongue And Groove
• Max Continuous Operating Temp: 50
• Plan Settling Area: 11M2/M3
• Height of Media: AS PER CUSTOMER REQUIRMENT
• Model :   TSM-60
• MOC of Media  : UV Stabilized Virgin PVC Base
• Tube Fitting    :    Tongue and Groove
• Maximum Continuous : 55 Deg.C
• Storage : Media Must Be Stored In a Covered Place With Adequate Ventilation
• Plan Setting Area: 11M2/M3 (At 60 Deg. Slope)
• Height of Media : 1150MM,1000MM,  750MM, As Per Requirements

• Country of Origin: India
• Type: Tube Settler Media
• Feature: Easy To Operate, Good Capacity
• Material: PVC
• Color: Black
• Application: Industrial Water Plant
• Capacity: 500 M3/MONTH

Tube settler media is a type of water treatment equipment that uses inclined tubes to separate solids from liquids in a process called sedimentation. The tube settler media is designed to increase the settling capacity of the sedimentation tank, and it consists of a series of closely spaced tubes or plates that are inclined at an angle of 60 degrees. Tube settler media can be made of various materials such as PVC, PP, FRP, or stainless steel, and they are widely used in municipal and industrial wastewater treatment plants, drinking water treatment plants, and other industrial processes that require solid-liquid separation.

• Type: Lamella
• Treated Water Quality: Sewage Trratment Plant
• Treatment Capacity: 500 m3/hr
• Bridge Width: 0.5 m
• Automation Grade: Semi-Automatic
• Tank Diameter: 10 m

• Moc of Media: PVC
• Thickness: 1.0mm
• Cross Sectional Area: 44mm*120mm
• Max Continuous Operating Temp: 55°C
• Color: Black
• Height of Media: 750 mm,1000 mm& any Required
• Fitting arrangement: Tongue &Groove
• Settling velocity: 0.50 m/sec
• Angle correction: 0.44 m
• No. of Pieces per Cubic Meter: 200 Pc in 750 mm &6%SIDE LOCK
• Plan setting area: 11 m2/m3 (At 60 Deg. Slope)

We offer excellent quality Tube Settler Media that is widely applied in areas such as primary settling in wastewater treatment plants (suspended and flocculated solids), secondary (biological solids) settling in wastewater treatment plants, solid-liquid separation in potable and industrial process water treatment plants, anaerobic digesters (restrict loss of solids), ash handling units in thermal power plants, process industry (material recovery from wash/storm water) and oil-water separation. Tube Settler Media that we offer gives a wide cross section area per tube. Even though it provides a slightly lower surface area than Ts60, the profile has advantages when it comes to tube blockage or support constraints. On the other hand, TS120 gives a wide cross section area per tube. Even though it provides a slightly lower surface area than Ts60, the profile has advantages when it comes to tube blockage or support constraints.   Specifications : Model TS60 Plan Settling Area : 12 m2/m3 (at 60 slope) Cross Sectional Area : 74 x 84.5 mm Hydraulic Radius : 1.28 cm Model : TS120 Plan Settling Area : 11 m2/m3 ( at 60 slope) Cross Sectional Area : 120 x 44 mm Hydraulic Radius : 1.5 cm

The packaging of our products is done using high-grade packaging material. Moreover, we are assisted with advanced machines and packaging experts for safe packaging of the products. The check on quality has been kept by our experts who ensure that the inputs we source are free from any sort of impurities. Thus, we ensure quality products at buyer's end.

• Driven Type: Mechanical
• Color: Black
• Condition: New
• Automatic Grade: Automatic
• Power: 12-15kw

Features & Advantages :  Most widely used and accepted tube settler design Can be transported in the form of loose tubes and hence saves transportation cost Wide tongue and groove mechanism causes minimum fuss during site assembly  High specific settling area provided Needs a bottom support structure

• Automatic Grade: Semi Automatic
• Voltage: 440V
• Type: Square Tube Type.
• Weight: From 500 Kg To 3000 Kg Depending On The Size
• Warranty: 2years
• Country of Origin: India
• Treatment Capacity: 1 M3/hr to 30 M3/hr
• Number Of Flocculators: 1
• Sizes: 1 M3 to 50 M3

We offer tube settler media in circular tank. By adding tube settler media in a existing circular tank, plant capacity can be increased by 25 - 30 %

• Condition: New
• Color: Black
• Material: Pure Pvc Resin
• Brand Name: Nitesh Industries
• Application: Settling Tank In STP/ETP

sizes: 500 mm | 750 mm | 1000 mm | customizable  type: hexagonal chevron  moc: pure pvc resin (uv stabilized)   application  settling tanks in stp/ etp

• Production Capacity: 200-250Tube/Minute
• Country of Origin: India

• Brand Name: Water 2
• Condition: Good
• Feature: Increase Capacity of Clarifier,Enhance Particle agglomeration & Growth,Installation is Fast & Easy
• Country of Origin: Delhi
• Product Name: Tube Settler Media
• Min. Order Quantity: As per client requirement

Tube Settler Media that we offer has high settling surface area whilst maintaining a small structure. It has a chevron shaped self-supporting structure in a tubular form with six sides. Tube Settler Media finds wide usage in water treatment, primary and secondary clarifiers in waste water treatment. We are one of the pioneering Manufacturers and Suppliers of Tube Settler Media from Delhi, India.   Tube Settler Systems for ClarificationTube settlers and parallel plates increase the settling capacity of circular clarifiers and/or rectangular sedimentation basins by reducing the vertical distance a floc particle must settle before agglomerating to form larger particles. Tube settlers 60 and adjacent to each other, which combine to form an increased effective setting area. This provides for a particle settling depth of a conventional clarifier, reducing settling times. Tube settlers capture the settleable fine floc that escapes the clarification zone beneath the tube settlers and allows the larger floc to travel to the tank bottom in a more settleable form. The tube settler’s channel collects solids into a compact mass which promotes the solids to slide down the tube channel.Where can we use Tube Set Tube SettlerResidential and industrial waste water treatment plants, Potable water treatment plants, Oil separators,In rectangular or circular section reinforced concrete pools or sheet construction tanks, Tube Settler Lamella can be used, Shortly in all treatment plants where a good settling efficiency is expected. For some waste waters, a settling system using TUBE SET can become a stand-alone solution. Water parameters can be reduced to required criteria without needing to a chemical dosing, fast or slow mixing.Advantages : Increase Capacity of Clarifier Enhance Particle agglomeration & Growth Enhance Suspended Solids Concentration Installation is Fast & Easy   Technical Specifications : Plain Settling Area of Media : 60o Slope – 11.0 m2/m3, 55o Slope – 13.0 m2/m3 Cross Sectional Area : 120 mm x 44 mm Shape : Hexagonal Chevron Hydraulic Radius : 1.5 cm MOC of Media : PVC Thickness : 1.1 mm (+/- 0.1 mm) Filling Arrangement : Tongue & Groove Maximum Cont. Op. Temp :  55oC Color : Black Distance Between Tubes : Horizontal - 120 mm & Vertical – 44 mm Separator Height : 500 mm – 5.5 m2 Settling Area / m2, 750 mm – 8.25 m2 Settling Area / m2, 1000 mm – 11.0 m2 Settling Area / m2 Features : Increase Capacity of Clarifier Enhance Particle agglomeration & Growth Enhance Suspended Solids Concentration Installation is Fast & Easy

• Packaging Details: Poly Bags
• Moc of Media: PVC
• Shape of Tube: Hexagonal Chevron
• Plan Settling Area: 13 M2/m3
• Height of Media: 1000 Mm
• Thickness: 1.1 Mm
• Country of Origin: Made In India
• Brand Name: Chasten
• Application: Sugar Industry
• Driving Principle: Centre Driven
• Capacity: 80 cum/day
• Distance Between Adjacent Tubes: Horizontal- 120mm, Vertical- 44 mm
• Tube Fitting Type: Tongue And Groove
• Maximum Continuous Working Temperature: 55 Degree C
• Features: Increases capacity of clarifier. Enhances particle agglomeration and growth. Enhances suspended solids concentration. Installation is fast and easy.
• Colors Available: Blue
