Ultrasonic Proximity Sensors Dealers

Ultrasonic Distance Sensor is a high performance ultrasonic range finder. Ultrasonic Distance Sensor is compact and measures an amazingly wide range from 2cm to 2m. This ranger is a perfect for any robotic application, or any other projects requiring accurate ranging information. This Ultrasonic Distance Sensor can be connected directly to the digital IO lines of your microcontroller and distance can be measured in time required for traveling of sound signal using simple formula as below. The module works on 5VDC input and also gives a output signal directly for detection of any obstacle up to 2M. Features 40KHz Ultrasonic Transducer Transmitter and Receiver Pair. These transducers are very useful in making various sensors for detecting obstacles and measuring distances. Frequency : 40kHz 1.0kHz Aluminum case Capacitance : 2000pF 20% Transmitter : bandwidth 5.0kHz100dB, sound pressure level 112dB40 1.0kHz Receiver : bandwidth 5.0kHz @ -75dB, min. sensitivity 67dB40 1.0kHz (0dB vs. 1V bar) R=3.9k.

We are offering ultrasonic level sensor , tspc sensors and senixview software put the power of ultrasonics in your hands yet retain the simplicity of pushbutton teach setup. You can quickly adjust, optimize, save and clone your applications without calibration! long range, short dead band unaffected by optical factors like color and transparency pc or button “teachable” setup narrow beam with adjustments to optimize performance temperature compensated upper or lower thread mount durable sealed housing for wet or dirty applications short & overload protected io multi-sensor synchronization adjustable sensitivity rear status indicators (3).

The raw material used in the manufacturing of products are tested stringently by the experts to make certain that the final product is of premium quality and free from any kind of defect. With us, payment transactions will always remain secured, as we have adopted modern payment procedures that guarantee instant and hassle-free transactions. Main features : M18 and M30 housings Sensing distance up to 8000 mm Analogue models with 0-10 VDC or 4-20 mA outputs Teach functions on advanced models to configure set-pointsApplications : Carlo Gavazzi's Series Ultrasonic Sensors are designed for both distance measurement and object detection in tough environments. Discrete output types are available for presence and absence detection, and are ideally suited for detecting objects,such as transparent objects, that cannot be reliably detected by other sensors. Among our sensors range, analogue output types are available for applications requiring a measurement of the target object, such as detecting the level of fluid in a tank. The Windows version also allows settings to be saved and downloaded to multiple devices.

This is an amplifier built-in type sensor that uses micro ultrasonic elements. The "T"(Trns & Rcvr) type can easily detect food wrapping cling film. plastic containers, etc.The reflection type is suitable for detecting black rubber sheet that has low reflection ratio and transparent objects.

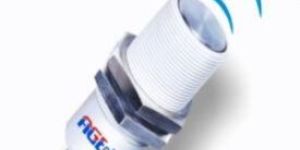

Ultrasonic level sensors measure the distance or presence of target objects by sending a pulsed ultrasound wave at the object and then measuring the time for the sound echo to return. Knowing the speed of sound, the sensor can determine the distance of the object. Agecho ultrasonic sensors salient features: • agecho ultrasonic sensors are available with output options such as analog current 4-20ma,analogue voltage 0-5v,onoff signal, trigger output for multi-sensor application, pulse width ,serial ttl ,serial rs 232c. • agecho sensing range: 200mm to 1000mm … up to … 6000mm. (19.7feet) (0-200mm is dead band). • agecho accuracy is 1% of the full scale. • agecho operating voltage 12v dc, with reverse polarity protection.(24v dc optional) • agecho is very useful non-contact type of sensing or presence or counting of object. Onoff type signal is also available. • agecho is self-calibrated. Microcontroller is present in each sensor. This provides direct distancedepth reading with better calibration and communication with the controller module. • agecho is very easy to install, rugged design for use in dusty and humid conditions, suitable for outdoor as well as indoor use. • agecho very useful for non-contact distancelevel measurement. The distance of the target is measured, not just its presence, but gives directly 4-20ma, serial or pulse width data proportional to the distance of the target. • agecho operating temperature 0 to 65 degree celsius. • agecho temperature compensated measurement for better accuracy (optional). • agecho unaffected by ambient light, object color or any other optical characteristic. Works with hard materials like metal sheet, plywood, or soft materials like cloth and paper, rubber etc.

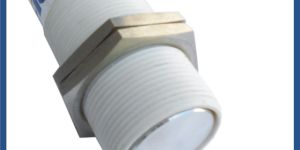

A Family of Multi Function Diffuses Ultrasonic Sensors with a Sensing Range of 60 to 3500 Mm. the Analog Output is Easily Set Up in 2 Set Points (pos./neg. Slope) and Adjusted By Teach-in - Makes It Ideal for Level Control Tasks in a Wide Variety of Vessels. a Sturdy One-piece Pbt Housing Provides the Perfect Packaging for the Sophisticated Microprocessor Controlled and Digitally Filtered Sensor Electronics. Excellent Emc Performance and Precision are Typical Features of this Sensor Based On True Distance Measurement. features: • M18 and M30 Pbt Housing • Sensing Distance: 60 - 3500 Mm • Remote Teach By Wire • Outputs: Analog 0-10 V or 4-20 Ma • Setup of Positive or Negative Slope • Power Supply: 15 to 30 Vdc • 8° Beam Angle • Protection: Short-circuit, Reverse Polarity, Transients • Protection Degree Ip 67 • M12 Plug, 5 Pin.

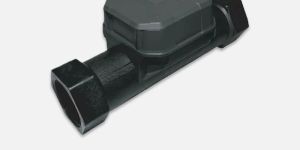

With a simple design, the RS-900w Polymer Ultrasonic flow sensor is well suited as a long-term replacement for mechanical impeller meters in cold water applications

Ultrasonic Sensors are available in cylindrical and cubic, with double threshold digital outputs and analogical voltage or current outputs.

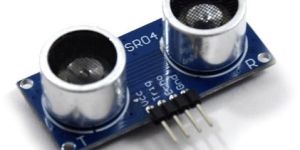

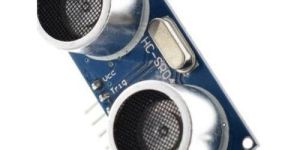

  Ultrasonic Sensor-HC-SR04   Product ID: 1304 This is the HC-SR04 ultrasonic ranging sensor. This economical sensor provides 2cm to 400cm of non-contact measurement functionality with a ranging accuracy that can reach up to 3mm. Each HC-SR04 module includes an ultrasonic transmitter, a receiver and a control circuit. Supply voltage: 5 VDC Current consumption: 15mA Working Frequency: 40Hz Max Range: 4m Min Range: 0.02m (2cm) Measuring Angle: 15 degree Trigger Input Signal: 10uS TTL pulse Echo Output Signal: Input TTL lever signal and the range in proportion Operating Recommendation Smooth surface area to reflect signal should be 0.5 square meters or more. Distance computation Distance (cm) = Measured Echo Time (in µsec)/58 Distance (inch) = Measured Echo Time (in µsec)/148

Ultrasonic waves are used to enable stable detection of transparent objects, such as transparent films, glass bottles, plastic bottles, and plate glass, using Through-beam or Reflective Sensors

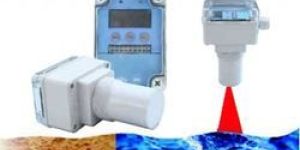

 Ultrasonic Level Sensors Measure The Distance Or Presence Of Target Objects By Sending A Pulsed Ultrasound Wave At The Object And Then Measuring The Time For The Sound Echo To Return. Knowing The Speed Of Sound, The Sensor Can Determine The Distance Of The Object.  Ultrasonic Level Sensor Module Provides Range Detection And Ranging From 200mm To XXXX Mm (Where XXXX = 1000, 2000, 3000, 4000, 5000, 6000), In A PVC Housing. It Is Designed For Indoor And Outdoor Use. The Sensor Provides Sonar Range Information With High Resolution. There Are Multiple Sensor Options Available To The User. The Users Should Clearly Specify What Options Are Required In Their Application. The Table I Below Shows The Various Types Of Sensor Options That Are Available. The Signal Lines TX, RX And TRG/OUT Can Be Configured In Various Possible Combinations As Shown In The Table I. It Should Be Noted That +12VDC And GND Are Common In All Cases. The User Is Cautioned To Only Specify The Options That Are Really Necessary, Because Multiple Options Increase The Sensor Cost. User Specified Options Not Mentioned In Table I Can Be Considered For Bulk Orders. The Controller Is A General‐Purpose Ultrasonic Level Controller That Provides The End User The Ability To Control Up To Three Unique Devices (Pumps, Valves And/Or Alarms) Through Three Relays, Namely – Relay1 (DPDT, 2 Form C), Relay2 (SPDT, 1 Form C) And Relay3 (SPDT, 1 Form C). The Controller Uses Three Push-Buttons, SET, UP And DOWN For Configuring The Relay Operation(S). All Of The Relays Can Be Used For Controlling Valves, Pumps Or Alarms.  Ultrasonic Level Sensor Which Provides Accurate Range Detection, Automatic Calibration And Adaptive Noise Cancellation In Software Provide Reliable And Record Measurement. All Sensor Used 4- Stage Op-Amp Based Low Noise Amplifier, Second Order Narrow Band Pass Filter, Peak-Detector And Low-Pass Filter Circuit For Detecting Even The Weakest Of The Reflected Sonar Signals. Various Output Options Like Pulses Width, Serial Analogue 4 To 20 MA, 0 To 5 Volt Etc. Are Available. Interface Circuit Options Provide RS 232, 4 To 20 MA Loop, 0 To 5 V DC, Buzzer/Relay And Seven Segment LED Display. Accessories Like Mounting Bracket Rubber Washer/Nut Faster Etc. Provide Quick Design And Installation Support.
