Vane Type Flow Switch Dealers

(7 products available)
  • In-line Type Flow Switch

    In-line Type Flow Switch

    5,500 / Piece
    • MaterialMetal & Plastic
    • ApplicationIndustrial
    • CertificationISI Certified
    • Number Of FlowerIn-line
    • Country of OriginIndia
    • Brand NameTeleflo
    • Flow Rate40 Kg/Cm 2
    • We have gained immense expertise in bringing forth an excellent gamut of Flow Switches to the trusted customers. These offered switches are perfectly designed and developed using best-in-class raw material in tandem with the industry laid parameters to attain maximum level of client satisfaction. In order to meet the specific needs and preferences of the clients, we make offer these products in multifarious sizes and grades as per their requirements.Features : Longer service life Low maintenance Smooth edges Easy to mount
    ...more

    Teleflo Instruments & Controls

    Ramapuram, Chennai
    16 yrs 5.0 (1)
  • Bar Vane Type Flow Switch

    Bar Vane Type Flow Switch

    750 / Piece
    • Operating Pressure0 to 10 bar
    • MODEL NOHLS - 1001
    • Material of constructionBRASS

    Kalyani Industries

    Manewada, Nagpur
    13 yrs
  • Vane Type Flow Switch

    Vane Type Flow Switch

    4,500 / Piece
    • Usesused to detect flow condition in the fluid line
    • FeaturesWhen the calibrated flow plug receives an increase in fluid flow, it moves upwards

    Dag Process Instruments Private Limited

    Raheja Garden, Thane
    9 yrs
  • Vane Type Flow Switch

    Vane Type Flow Switch

    Get Price Quote
    • Brand NameNXG Multi-Tech Devices
    • MaterialStainless Steel
    • Temperature10-100 Degree C
    • FeaturesDurable finish, Leakage proof, Shock resistant
    • MediaLiquid
    • Pressure DropLess than 150mbar at qmax.
    • Contact Rating1A 230VAC SPDT Reed switch 50VA
    • Item CodeMFSPT-15XXXXC2
    ...more

    NXG Multi - Tech Devices Pvt. Ltd.

    Vartak Nagar, Thane
    GST 18 yrs

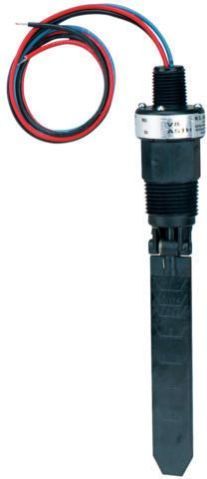

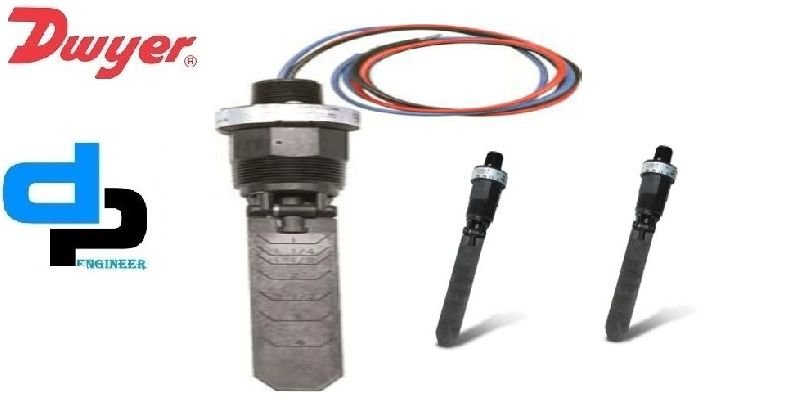

  • V8 Flotect Vane Operated Flow Switch (SERIES V8)

    V8 Flotect Vane Operated Flow Switch (SERIES V8)

    3,000 / Piece
    • MOQ10 Piece(s)
    • Number Of FlowerVane Type Flow Switch
    • Brand NameDwyer
    • MaterialNBR, Nylon, PVDF
    • CertificationYes
    • ApplicationWater Levelling
    • Country of Origin200VDC, 230VDC
    • Frequency50HZ
    • Power0-5Amp, 10-15Amp
    • Temperature0Dig C To + 60Dig C
    • Hole Diameter0-20mm
    • Setting Range0-1500pF, 1500-3000pF
    • MaterialVane And Body: Polyphenylene Sulfide (PPS); Pin And Spring: 316 SS On Inconel®; Magnet: Ceramic 8.
    • ApplicationBoiler Flow Proving
    • Number Of FlowerVane Type Flow Switch
    • v8 flotect vane operated flow switch (series v8) the series v8 flotect® vane operated flow switches is ideal for protecting unattended equipment from damage or loss of production. features: ul recognized as an industrial motor controller per ul standard 508, suitable for mounting in a protected environment magnetically actuated switching design gives superior performance with free-swinging vane which attracts a magnet within the switch body, actuating a snap switch with no bellows, springs, or seals to fail leak proof body and vane constructed of tough durable polyphenylene sulfide which has excellent chemical resistance a full size trimmable vane is provided with molded-in graduations specification: service : compatible gases or liquids. wetted materials : vane and body: polyphenylene sulfide (pps); pin and spring: 316 ss on inconel®; magnet: ceramic 8. enclosure rating : general purpose; wp/wp2 option is weatherproof. switch type : spdt snap switch; mv option: spdt gold contact snap switch. electrical rating : 5 a @ 125/250 vac, 5 a resistive, 3 a inductive @ 30 vdc. Mv option: 1 a @ 125 vac, 1 a resistive, 0.5 a inductive @ 30 vdc. mounting orientation : actuation/deactuation flow rates are based on horizontal pipe run and are nominal values. Unit cannot be used with vertical down flow. applications: boiler flow proving,hot water heaters,chillers,cooling lines,machinery,liquid transfer systems options: gold plated contacts, for dry circuits. Rated 1a @ 125 vac; 1a resistive, 0.5a inductive @ 30 vdc. To order add suffix -mv. Example: v8-mv.inconel® alloy option. Inconel® alloy replaces standard 316 ss wetted parts. Wetted parts are inconel® alloy, ceramic 8, and polyphenylene sulfide. To order add suffix -inc. Example: v8-inc.weatherproof enclosure (not ul approved). Optional housing provides weatherproof protection for electrical wiring. To order add suffix -wp (phenylpolioxide) or -wp2 (aluminum). Example: v8-wp or v8-wp2 installation: the model v8 flow switch is intended for use in clean, compatible process media free from scale, debris and other foreign matter which might collect on the vane an impede its movement. Buildup from such materials will prevent proper operation.carefully unpack the switch being certain to remove any packing material which might have become lodged between the switch housing and the vane assembly. Note the pipe size indicators molded into the vane. By trimming at the mark corresponding to the pipe size being used, approximate actuation/deactuation flows will be as shown in the charts at right. These values apply to installations with a thred-o-let, branch connection or plastic fitting. If using standard 125-250 lb. Bronze, iron or steel fittings, trim the vane 0.125  above the mark. Due to variations in fittings and amount of thread engagement, vane must be checked for proper operation.the flow switch must be properly indexed during installation. The arrow on the side must point in the direction of flow.use teflon® thread tape or other suitable pipe joint compound to seal the 1 ¿¿ npt mounting connection. Avoid excess sealant which could interfere with vane movement and prevent proper operation. Do not exceed 50 ft/lbs (40 n/m) torque on the switch housing. Damage can result.wire in accordance with local electrical codes. Lead wire colors are as follows: black - common, red - normally open, blue - normally closed. Normal is the contact condition with no flow in the system. Closed contacts open and open contacts close when increasing flow reaches the actuation point.material : vane and body: polyphenylene sulfide (pps); pin and spring: 316 ss on inconel®; magnet: ceramic 8. application : boiler flow proving,type : vane type flow switch,brand name : dwyer usa certification : yes
    ...more

    Dp Engineers

    Pandav Nagar, Delhi
    GST 15 yrs

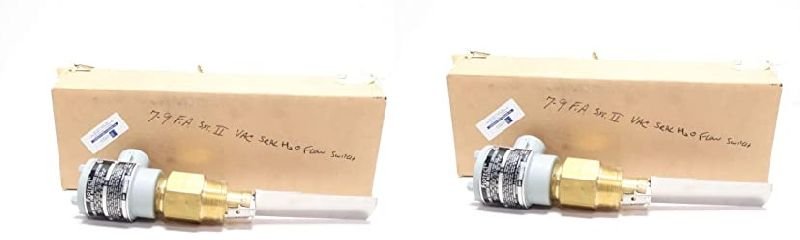

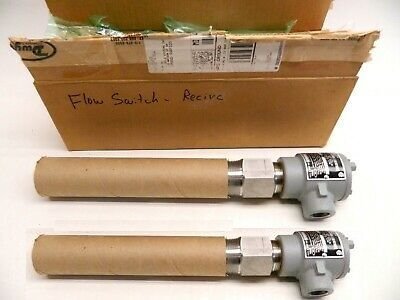

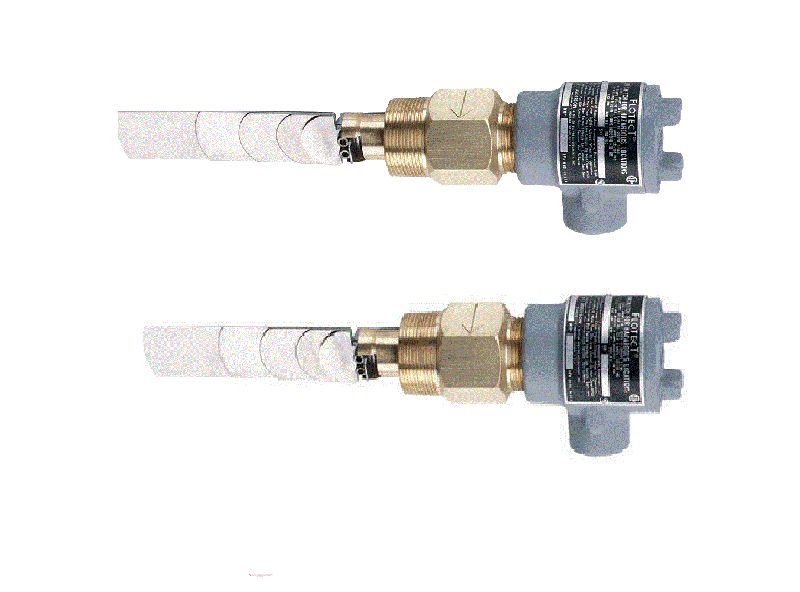

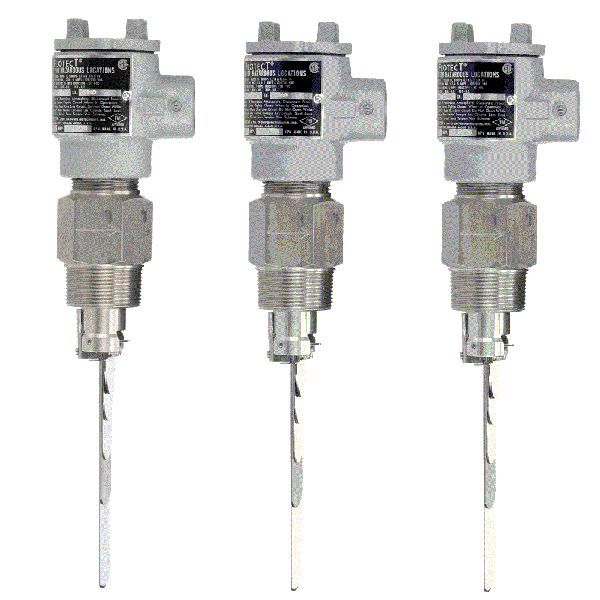

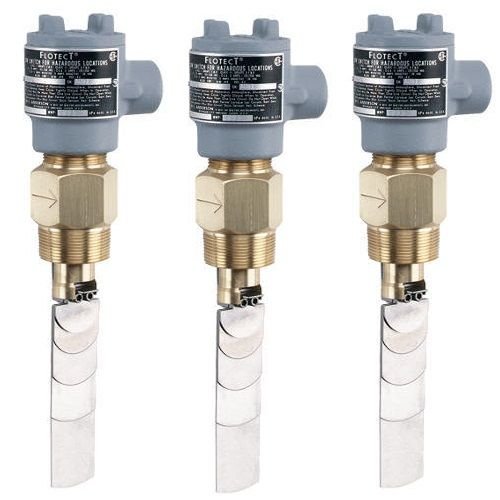

  • Flotect Vane Operated Flow Switch

    Flotect Vane Operated Flow Switch

    Get Price Quote
    • Number Of FlowerVane Type Flow Switch
    • Brand NameDWYER USA
    • Material316 SS Standard
    • CertificationYAS
    • ApplicationGases Or Liquids Compatible With Wetted Materials.
    • Flotect Vane Operated Flow Switch Series V4 Flotect® Vane-Operated Flow Switch Field Adjustable – Dependable Protection Against Flow Variation or Stopping in Pipelines for Fluids, Gases and Flowing Solids The Series V4 Flotect® Flow Switches are rugged and reliable, ideal for automatically protecting equipment and pipeline systems against damage from reduction or loss of flow. Time tested in thousands of pipeline installations and processing plants around the world this Series is Weatherproof, designed to meet NEMA 4 and Explosion-proof (listing included in specifications). This series can be used in pipes 1-1/2" (38.10 mm) and up. Product Applications Protects pumps,  motors and other equipment against low or no flow Controls sequential operation of pumps Automatically starts auxiliary pumps and engines Stops liquid cooled engines,  machines and processing when coolant flow is interrupted Shuts down burner when air flow through heating coil fails Controls dampers according to flow ModelDescription V4-2-D-UVane operated flow switch, brass body, universal vane. V4-2-UVane operated flow switch, brass body, universal vane. V4-SS-2-D-UVane operated flow switch, 316SS body, universal vane. V4-SS-2-UVane operated flow switch, 316SS body, universal vane Specifications Service:Gases or liquids compatible with wetted materials. Wetted Materials:Vane: 316 SS; Body: Brass or 316 SS standard; Magnet Keeper: 430 SS standard, 316 SS optional; Options: Other materials also available, consult factory (e.g. PVC, Hastelloy, Nickel, Monel, Titanium). Temperature Limit:-4 to 275°F (-20 to 135°C) standard, MT high temperature option 400°F (205°C) [MT option not UL, CSA, ATEX or IECEx] ATEX and IECEx options, ambient temperature -4 to 163°F (-20 to 73°C); Process temperature -4 to 163°F (-20 to 73°C). Pressure Limit:Brass body 1000 psig (69 bar), 316 SS body 2000 psig (138 bar), optional 5000 psig (345 bar) available with 316 SS body and SPDT switch only. Enclosure Rating:Weatherproof and Explosion-proof. **Listed with UL and CSA for Class I, Groups C and D; Class II, Groups E, F, and G. ATEX CE 0344 EX II 2 G Ex d IIB T6 Gb -20°C≤Tamb≤73°C. -20°C≤Process Temp≤73°C. EC-Type Certificate No.: KEMA 03 ATEX 2383. ATEX Standards: EN60079-0: 2009; EN60079-1: 2007. IECEx Certified: For Ex d IIB T6 Gb - 20°C≤Tamb≤73°C. -20°C≤Process Temp≤73°C. IECEx Certificate of Conformity: IECEx DEK 11.0071. IECEx Standards: IEC 60079-0: 2007; IEC 60079-1: 2007. Zone I. Also FM approved. Switch Type:SPDT snap switch standard, DPDT snap switch optional. Electrical Rating:UL, FM, ATEX and IECEx models 10 A @ 125/250 VAC. CSA models: 5 A @ 125/250 VAC; 5 A res., 3 A ind. @ 30 VDC . MV option: 1 A @125 VAC; 1 A res., .5 A ind. @ 30 VDC. MT option: 5 A @ 125/250 VAC. [MT and MV option not UL, CSA, FM or ATEX or IECEx]. Electrical Connections:UL and CSA models: 16 AWG, 6" (152 mm) long. ATEX and IECEx unit: Terminal block. Conduit Connection:3/4" female NPT or 19.05 mm standard or M25 with -BSPT option. Process Connection:1-1/2" male NPT or 1-1/2" male BSPT or 38.10 mm. Mounting Orientation:Within 5° of vertical for proper operation. Units for horizontal installation (vertical pipe with up flow) available. Set Point Adjustment:For universal vane: five vane combinations. Weight:4 lb 8 oz (1.9 kg). Agency Approvals:ATEX, CE, CSA, FM, IECEx, UL**.**No housing option (-NH) has no approvals
    ...more
    www

    Enviro Tech Industrial Products

    Gandhi Nagar, Delhi
    GST 16 yrs 4.4 (30)
  • Vane Operated Flow Switch

    Vane Operated Flow Switch

    Get Price Quote
    • Brand NameDwyer
    • Model Name/NumberSeries V4
    • Weight4 lb 8 oz (1.9 kg)
    • ServiceGases or liquids compatible with wetted materials.
    • Process Connection1-1/2" male NPT or 1-1/2" male BSPT or 38.10 mm
    • Electrical RatingUL, FM, ATEX and IECEx models 10 A @ 125/250 VAC
    • Switch TypeSPDT snap switch standard, DPDT snap switch optional.
    • Pressure LimitBrass body 1000 psig (69 bar), 316 SS body 2000 psig (138 bar), optional 5000 psig (345 bar) availab
    ...more

    Streamline Refrigeration Pvt Ltd

    Sudhama Nagar, Bengaluru
    6 yrs
