Weigh Belt Feeder
200,000 - 250,000 Per Piece
1 NO (MOQ)
Application : Industrial
Voltage : 220 V, 240 V, 380 V, 440 V
Condition : New, Old
Frequency : 60 Hz
Warranty : 1 Yr, 2 Yrs
Material : Metal, Stainless Steel, Mild Steel
Finishing : Color Coated, Polished
Power Source : Electric
Automation Grade : Fully Automatic,Automatic
Phase : Single Phase,Three Phase
Weigh Belt Feeder
300,000 Per Unit
Frequency : 50/60 Hz
Voltage : 380 V
Material : Stainless Steel
Surface Finish : Color Coated
Power Source : Electric
Usage/Application : Industrial
Phase : Three Phase
Mass Weigh Feeder
430,000 - 750,000 Per Set
1 Set (MOQ)
Accuracy : – +/- 0.25 t 2%
Features : Fully Electronic weigh module, Compact Controller with only 3 PCBs, Least Complicated design, Simple to maintain, Open & Closed Modules, Any belt width & feed rate, Mass Weigh Feeders uses Side walled belt to prevent spillage
Weigh Feeder
Brand Name : Concept Electronics
Country of Origin : Made in India
Product Type : Gravimetric Feeder
Material : Coal,Gypsum,Fly Ash,Cement,Fertilizar,Urea,Phosphate,Mineral
Principle of OperationA weigh belt feeder enables a continuous, controlled product flow. The bulk material is transported over a weighing section, placed in the feeder frame. The federate is calculated and the speed of the belt adjusted to maintain a constant feed rate.If the purpose of the belt feeder is to register the throughput only, the speed of the belt remains constant and the mass flow and cumulative weight is registered.ApplicationsWeigh Feeders are widely used in Coal feeding Steel plant Cement plant Chemicals & fertilizers Open mines Tobacco industry
Weigh Feeder
Type : Microprocessor based
Capacity : 1 to 2000 TPH
Accuracy : +/- 0.5% on the set point in control range
Model : VEC - W
Housing : Cast Aluminium
Display : 4 lines, 20 characters alpha-numeric LCD with LED
Front Keypad : Membrane foil with pressure sensitive keypad
Operating Temperature : 0° C to 50° C
Digital Inputs : 8 Nos. Expandable to 16
Digital Outputs : 8 Nos. Expandable to 16 optically isolated
Analog Inputs : 2 No. galvanically isolatelo(4 – 20 mA optically isolated)
Analog Output : 2 Nos. Galvanically isolated
Serial Inerface : RS 232/RS 485
Belt Width : 600 to 2400 mm wide
Pulley Centres : 1800 to 2400 mm
Control Range : 1 : 10
Type of material handled : Lumpy, Granular, Sticky & fine
Infeed Hopper : Designed as per material characteristics
Liners : Optional
Weight Sensing : By Dual Loadcell weighing Mechanism
Speed Sensing : Digital Contact less tacho
Belt Cleaning Mechanism : Internal & External Scrappers
Type of Motors : AC 3 Phase
Drive Mechanism : Direct coupled shaft mounted drives
Speed Control : AC variable speed drive / DC thyristor drive
Electronic Controller : Dedicated controller
Weigh Feeder
Demech has entered into technical collaboration with Hitachi Power Europe GmbH (HPE), Duisburg, Germany; to manufacture Gravimetric Coal Feeders. This gives Demech the unique advantage to supply Gravimetric Coal Feeders using the proven and reliable designs of Hitachi Power Europe GmbH.
Weigh Belt Feeder
399,000 - 400,000 Per Piece
Voltage : 240-380 V
Capacity : 10 Kg/Hour to 500 Tonnes/Hour
Material : SS,MS,etc
Automation Grade : Semi Automatic
Usage/Application : Chemical,Pharmaceutical,Food,Refractories,Ceramic,Zinc,Alum Industries,etc
Communication : RS232/485 serial
We are the leading supplier of this products.
Weigh Feeder
1 Piece(s) (MOQ)
Type : Weigh Feeder
Certification : IIR REPORT
Application : Batching, Dosing, Mixing
Weight : 600-800kg
Color : Grey-silver
Condition : New
• it can be operated from any location viz: local panel, main panel or control room. • very sturdy and rugged frame design • quick belt change mechanism ensures very low down time. • designed for capacities from 1 to 2000 tph • microprocessor based dedicated weigh feeder controller. • accuracy as high as + 0.5% on the set point .
Weigh Feeder
Type : : Gravimetric belt weigh feeder
Belt Width : : 500mm to 2000mm
Control Range : : 1 : 10
Temperature Limit : 0'C to 100'C
AMSTEL offers Weigh Feeders to feed bulk solids continuously to the process In a Weigh Feeder, product is fed as a continuous band onto a conveyor belt, through an inlet slide gate or automatic pre-feeder. Load cells under the belt continuously measures the weight of the product over a defined length of belt. The Weigh Feeders are suitable for installation in industrialized environment with light & heavy duty conditions respectively. They are specifically designed to provide dependable service with minimum maintenance and care. Heavy duty, Long life components are selected to assure a stable and distortion free compact assembly capable of withstanding tough industrial conditions.High quality measurement and control electronics allow both convenient operation and extensive monitoring, assuring high accuracies of feed. Weigh Feeders are able to control in continuous mode, the flow of the discharged material maintaining the instantaneous flow rate constant with respect to the set rate. The weight is measured directly at the weighing zone sensed by a centrally placed weighing idler which is placed on two numbers of high precision load cells. A digital tachometer detector generates the signal in proportion to the speed of the belt. The AMSTEL DATAWEIGH series controller continuously compares the actual weight with the set point weight, and automatically adjusts the motor speed to either increase or decrease belt speed, in order to maintain a constant feed rate. Any variation in the density of the material is reflected as a change in belt loading, which is compensated for by adjusting the belt speed
weigh feeders
SITRANS weighfeeders from Siemens can improve the accuracy of processing, blend consistencies, accountability, and record keeping. All weighfeeders come standard with a belt weigh bridge and speed sensor. An integrator is required to complete the system. The weigh feeder is used to deliver an accurate mass flow rate of material. In the majority of applications, material is profiled by an adjustable mechanical shear gate, which fixes the correct material bed depth for a given particle size. SITRANS WW100: High-accuracy, low-capacity for minor ingredient additives SITRANS WW200: Low- to medium-capacity for minor ingredient additives SITRANS WW300: Medium- to high-capacity for macro ingredient additives SITRANS WW350: Medium- to high-capacity for macro ingredient additives The feed rate is then maintained and adjusted by varying the speed of the belt. However, in some cases the belt speed is constant with rate control (if any) done by a pre-feeding device.

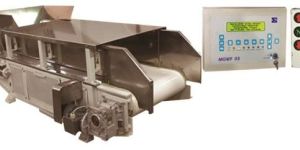

Gravimetric Weigh Feeder (MGWF)
Uniform feeding helps to reduce the maintenance cost of machines and power consumption as well : Online display of mass delivered, total operation time, set rate and average feed rate
Audio Visual annunciation is provided for easy to understand for the person, who is feeding the leaves into MGWF -03 : USB port facility to retrieve the History data (optional)
Computer interface for remote monitoring of the feeder operation (optional) : All the parts come in contact with tea leaves are food grade stainless steel
Presently, Rotorvane Feeding is being done manually, which does not ensure even 70% accuracy in the uniformity of feed rate continuously for the whole operational period. Even combined with the highest intensity of applied supervisory control it cannot ensure the uniformity. TO OVERCOME this problem, Stesalit has designed and developed the Gravimetric Weigh Feeder (MGWF - 03) for uniform feed of withered leaves into Rotorvane. System Overview Uniform rate of feed to Rotorvane is very much important to achieve the proper preconditioning of leaf and better cut in CTC machine. Our Gravimetric Weigh Feeder (MGWF-03) is an uniquely designed equipment, to achieve this objective of uniform feed rate to Rotorvane within an accuracy limits of around 95% of the uniformity of feed rate. The irregular or uneven feeding of leaf by the workers into MGWF does not affect the uniformity of feed rate from MGWF to the Rotorvane. This results in better and uniform quality of tea made and also saving in energy and reduction in the maintenance costs of Rotorvane. The uniform feeding in Rotorvane, through MGWF, is achieved by automatically changing the conveyor�s belt speed according to the leaves fed into MGWF-03. (If leaves are fed less than the speed of conveyor will increase and if leaves are fed more, then speed of conveyor will decrease, based on preset feed rate ensuring uniform feed rate to Rotorvane. Stesalit has installed more than 500 units of MGWF-03, in many leading tea factories in India and abroad, which are working satisfactory, some of them for over 8-9 years.
Weigh Feeder
To ensure distribution of orders within undertook period, our organization has an outstanding supply chain system in place. Now purchase Weigh Feeder at highly affordable prices from us. We are its well-known supplier in the country.
Automatic Weigh Feeder
We are offering weigh feeder indicator the d2 weigh feeder controller is a compact and rugged instrument specifically designed to operate under tough operating conditions normally occurred in conveyor belt installations. It is very simple to use, and is very user friendly. It has many user selectable options, so that it can be used for any application, for any capacity, simply by selecting the desired units and full scales. The alarms can also be set by user at desired values, which activate a relay, whose contacts can be used for further annunciator or motor control actions. The most important feature of this weigh feeder controller is that this set of 2 compact panels (belt weigher indicator & motor control panel) display the flow rate, totalized flow and the set flow rate, as well as control the flow rate locally. Of course, if required, the flow control panel can also be fixed at a remote location (say a control room). Also, in case of any fault in the belt weighter indicator, the same can be disconnected from the motor control panel, while still keeping the conveyor operational in manual mode!. Some of its salient features are salient features: full software calibration stainless steel weatherproof housing user selectable units for flow rate (tph or kgs) user selectable units for total flow (kg or t) provision for high weight, low flow & out of range alarms provision for 4-20 ma or 0ã¢â�¬â��510 vdc output, proportional to flow rate provision for remote display andor control
Weigh Belt Feeder
500,000 Per Piece
Type : Weigh Belt Feeder
Weight : 10-100kg, 100-200kg, 200-400kg, 400-600kg, 600-800kg
Color : Brown, Grey, Grey-silver, Light White, Shiny Silver, Silver
Voltage : 110V, 220V, 380V, 440V
Frequency : 50Hz, 60Hz
Driven Type : Electric, Hydraulic, Mechanical, Pneumatic
Warranty : 1yrs, 2yrs, 5yrs
Weigh Belt Feeder
Power Source : Electric
Voltage : 220-380 V
Frequency : 50 Hz
Power Source : Electronic
Marerial : Stainless Steel
Weigh Feeder
We make Weigh Feeder which has been designed to feed the right quantity of material as per the process requirement. It is custom designed to suit the material conveyed, process and the working conditions. Using a time proven technique, which involves high precision weighing and speed measuring principles coupled with a PLC and VFD. It provides a reliable closed loop control system for the feeder.
belt weigh feeder
300,000 Per Piece
Voltage : 230vac
Automation Grade : Semi Automatic
Finished Type : Paint Coated
Belt Width : 500mm
Weighing Accuracy : +- 0.5%
Speed Range : 1.5m/s
Belt Material : Rubber
Body Material : Stainless Steel
Weigh Feeder
We are offering weigh feeder applications in cement, steel, fertliser, chemical, pharmaceutical, food, refractories, ceramic, zinc, alum industries. Capacity 10 kghour to 500 tonneshour accuracy 0.5 % or better depending upon material characteristics. Micro controller based systems ensures highest possible reliability. Large size ( 8 mm) backlit lcd display for parameter values. Access to program mode through pass word. 4-20 ma signal proportional to flow rate is available. Rs232485 serial communication.
Weigh Feeder
The Weigh Screw Feeder is rugged, mechanically simple, has only several moving parts and requires an absolute minimal amount of maintenance. The weigh screw and its housing are constructed of all MS SS; continuously seal welded and ground smooth. The auger is then polished, plated and polished again to achieve an extremely hard and smooth surface capable of resisting adhesion and wear. Screw Weigh Feeders utilize a specially designed screw conveyor as the weighingconveying means that not only provides total product confinement, but also, eliminates the typical problematic environmental difficulties usually experienced with the common variety of weigh belt type weigh feeders.
Weigh Feeder
Inline Weigh Feeders of bulk material flow is able to weight various material like green tea leaf, rice, wheat, rock phosphate, soya bean`s, cement plant raw material & chemical plant raw material etc. It shows precise weight of Belt Feeder material and is able to accumulate a large amount of material at a time. Moreover, it is reckoned amongst the clients for its sturdiness and durability.To weigh and control bulk flow of various materials in food and other industries., In process related application the flow of material in various departmentssections can be controlled and monitored, Designed, Developed and manufactured such systems for Tea leaf, Soya bean, Soya flakes, Pine wood chips etc.
Weigh Feeder
Movement of bulk material is an essential feature in modern industrial processes. The simplest and fastest mode of transportation of such material is to convey them over a moving belt. In this operation the precise weighing of material, as it moves, has assumed a key role in process industries. Hence weigh feeder is a closed loop control system in which a precise control can be had over the flow of materials, which has indicating, totalizing and controlling instruments and circuits. The Weigh Feeder is a custom engineered equipment that finds application in continuous bulk proportioning of solids. This gravimetric feeder is operated by a closed loop control system enabling feeding at a controlled rate and exercises precise control over rate of flow based on a micro controller. The system is capable of accepting external signals from other controllers or from the process computer, depending on the extent of plant instrumentation. These gravimetric feeders are in operation in steel, cement, fertilizer and chemical industries. Each system consists of control and local panels, load cells to measure the instantaneous load, a digital tacho to sense the speed of the belt and a belt feeder conveyor shaft is driven by an AC motor coupled through the gear box.
Weigh Feeder
Movement of bulk material is an essential feature in modern industrial processes. The simplest and fastest mode of transportation of such material is to convey them over a moving belt. In this operation the precise weighing of material, as it moves, has assumed a key role in process industries. Hence weigh feeder is a closed loop control system in which a precise control can be had over the flow of materials, which has indicating, totalizing and controlling instruments and circuits. The Weigh Feeder is a custom engineered equipment that finds application in continuous bulk proportioning of solids. This gravimetric feeder is operated by a closed loop control system enabling feeding at a controlled rate and exercises precise control over rate of flow based on a micro controller. The system is capable of accepting external signals from other controllers or from the process computer, depending on the extent of plant instrumentation. These gravimetric feeders are in operation in steel, cement, fertilizer and chemical industries. Each system consists of control and local panels, load cells to measure the instantaneous load, a digital tacho to sense the speed of the belt and a belt feeder conveyor shaft is driven by an AC motor coupled through the gear box.
Smart Weigh Belt Feeder
Smart Weigh Belt Feeder weigh belt feeders for gravimetric feeding at higher feed rates or where low headroom is a problem. Especially at high feed rates, a weigh belt feeder offers lower initial cost than a loss-in-weight feeder with equal throughput.
weigh feeders
Weigh‐feeders are used to feed bulk solids at a controlled rate into the process. Rugged design makes them ideally suited for use under adverse conditions. As the variable speedpre‐feeder feeds product onto the synchronous speed weigh belt, the weight of this material is instantaneously sensed and transmitted to the feeder& controller. In turn, the controller modulates the variable speed drive of the pre‐feeder to maintain the precise feed rate as selected. A closed-loop PID control system ensures precise control over the rate of flow of material. The system consists of a Control Panel, Load Cells, and an Optical Encoder. The weigh‐feeder is a programmable electronic system, which interfaces to Load Cell and Encoder. It calculates the rate of the measured belt load and belt speed. Material conveying system (beltconveyor) Belt speed calculation system (Encoder) Speed Controller VFD ‐ VariableFrequency Drive) Load Cell-based weighing mechanism PID controller maintains the feed rateof the material into the process
belt weigh feeders
The Belt Weigh Feeders are designed for accurately blending the bulk solid and thus overcome the problem encountered in continuous bulk proportioning of solids in the most hazardous conditions. This model is proven for application in Cement, Steel & power industries. Features: System accuracy of +.05% or better of Full Scale. Multiload cell weighing mechanism for higher consistency and accuracy. Controller with isolated Modules for added safety. Modular construction for future expandability of features. Monitoring of I/O signals and sensor status through controller in electrical engineering values. OIML-C3 approved and IP 68 protected Load cells. Highly precise non-contact type optical encoder with I.P.613 protection. WVF Drive with sensorless vector control and IP-20 Protection.
Weigh Belt Feeder

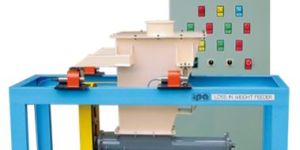

Indus continuous loss in weight feeder provides unparallel versatility in handling wide range of feeding requirements. Feed rate from 50kgs to 1000 kgs per hour can be accomplished with high accuracies. Control of the feeder is through a highly reliable PLC based controller equipped with noise/Vibration elimination technology. Weight measurement is done through highly accurate/sensitive Loadcells. Various models of loss in weight Feeders are available based on the material Characteristics (Flow Properties).a. Twin screw loss in weight feeder.b. Single screw loss in weight feeder.c. Vibratory loss in weight feeder.
Weigh Feeder
We are a top-notch Manufacturer, Exporter and Supplier of Weigh Feeder from Maharashtra, India. We are backed by a team of sincere personnel who makes use of non-corrosive and durable metal for its production so as to lift up its quality and performance. It is designed strictly keeping in mind the industry specified norms. You can get the Weigh Feeder from us at the cost-effective prices. Salient Features :Design : Very Sturdy and Rugged Frame Design Quick Belt change mechanism ensures very low down time. Designed for capacities from 1 to 2000 TPH Unique Dual Load cell design for accurate weighing Feed control inputs from Driving as well as Driven pulleys to ensure Precise feed rate. Accuracy as high as + 0.5% on the set point Electronics Our Electronic controller ensures trouble free interface with the plants processes and control system. Specially developed Software offers seamless integration with PLC or PC Service Support of the customer does not end once the equipment is sold. It is the beginning. With after-sales support being the cornerstone of our business philosophy, we offer prompt and efficient after sales service.
Low Capacity Belt Weigh Feeder
TTFM-NLC Low Capacity Belt Weigh Feeders for Chemicals, Food, Pharma, Ceremic, Mineral Industries. Capacities range from 100 Kgs to 1000 Kgs/Hour
Weigh Screw Feeder
These machines are very useful in batching systems, flow rate control systems. It is a compactly designed and precise construction machine. It provides the user with the option of monitoring or flow rate control. The materials used for manufacturing mainly stainless steel.
Screw Type Weigh Feeder
202,000 Per Units
Brand Name : Feaster India
Accuracy : 0.1 kg, 0.2%
Power Supply : 380 V AC
Rated Load : 500 L/h
