Liquid Flow Meter
20,000 - 50,000 Per Unit
1 Set (MOQ)
Country of Origin : India
Type : Automatic
Material : Stainless Steel
Voltage : 220V
Driven Type : Electric
Certificate : CE Certified
Warrenty : 1 Year
Usage : Industrial, Laboratory, Water And Chemicals, Hospital
Specialities : Spiral Water Meter, Multi Jet, Digital Water Meter Display, Accuracy
Packaging Type : Carton Box
Pressure : Low Pressure, Medium Pressure, High Pressure

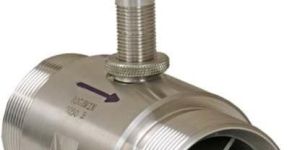

Liquid Turbine Flow Meter
Flow Range : upto 7000 M³/Hr
Accuracy : Linearity: +/- 0.5% over 10% to 100% Flow Range. : +/- 0.25% for 50 mm and above Repeatability: +/- 0.02% (95% confidence level)
Max. Pressure : Threaded Meters: 250 kg/cm²(4000 p.s.i.). Higher rating meters available on request. Flanged meters: According to flange rating
Pressure Drop : Approx. 0.28 kg/cm² (4 psi) at maximum flow (Specific Gravity 1, Viscosity 1 cst)
Temperature Range : Tungsten Carbide/Stellite: -50°C to +250°C Shielded Ball Bearings: -50°C to +250°C
Electrical Connections : MS type Amphenol connector supplied with matting connector or conduit box with terminal block connections (conduit box specification dependent on certification requirements).
Field Electronics : A range of Pre-amplifiers, F/I converters and local display electronics are available.
We are offering liquid turbine flowmeter. Rockwin turbine flowmeters are designed to provide a high order of accuracy & reliability under the severest conditions encountered in oil, gas, petrochemical, aerospace and other industries. These flowmeters are precise, reliable, rugged and built to international standards. Sizes range from 5 to 500 mm with flanged end connections and 5 to 50 mm with threaded end connections. All flowmeters are individually calibrated on rockwin's in-house certified calibration laboratory.
