Comptek Computer Systems Private Limited L. B. Nagar, Hyderabad, Telangana

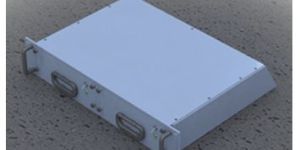

2 x 8 ports of 10100 Base Tx. Copper Ports: 14 Fibre Ports: 2 All the copper ports are terminated in 6 pin MIL Circular connector (D38999 20WA 35SN). All fiber ports are terminated in single mode ST connectors. Fiber specifications (single mode) 9125 μm 1310 nm wavelength ST connector Link Budget (i.e. minimum transmitted power – receiver sensitivity) : 29 Db The basic switch module is the back side of the rugged switch assembly with an SC to ST fiber patch cable.

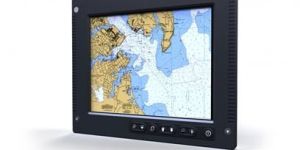

Display Size : 10.4" Contrast Ratio : 1000:1 Brightness : 400 cdm2 Backlight : White LED Resolution Max : 1024x768 Panel Type : TFT Active Matrix Input Connectors : VGA, C-Video Input Voltage : 12VDC, 230VAC (Optional) Environmental Specifications : As per JSS 55555 EMIEMC : As per MIL-STD-461E

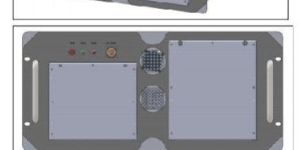

Intel LGA1150 XEON ATX Server Board (ASMB-784G4-00A1E) Intel Xeon E3-1275V3 3.5GHz Processor 2 x 8 GB (16GB) 1600MHz DDR3 ECC RAM 2 x 1 TB 2.5" SATA SSD Drives 1 x Nvidia Quadro K2200 Graphic Card with 4GB GDDR5 GPU Memory 1 x DVD RW (Front Panel) 3 x Gigabit LAN Ports (Rear Panel) 1 x eSATA Port (Front Panel) 1 x RS-232 Serial Port (Rear Panel) 2 x USB 3.0 Ports (Front Panel) 2 x USB 2.0 Ports (Front Panel) 2 x USB 2.0 Ports (Rear Panel) 1 x Keyboard Mouse Port (Rear Panel) 1 x Audio -In, 1 x Audio - Out (Front Panel)
