South Eastern Equipment Co. Nacharam, Hyderabad, Telangana

We are the manufacturer and supplier of Variable Voltage Auto Transformer which is a technologically advanced device supplies 0 to 270 volts voltage in single phase and 0 to 470 in three phases. Our transformers deliver continuous voltage without any fluctuation. This output is accomplished through turning the knob in less than a full circular rotation. unit range single phase unitthree phase unit availability enclosed motor driven open ministat soil cooled technical specifications capacity : 2amps, 4amps, 8amps, 10amps, 15amps, 28amps, 40amps, 50amps, 60amps, 100amps, 150amps and 200amps. salient features compact in sizeanti-corrosive resistant to heat withst and operational temperatureeconomical ideal for getting variable dc voltage for electroplating setsvarying the speed of dc motorsmanufacture of voltage stabilizer up to 600 k varegulate and control the temperature of furnaces and ovens developing high capacity floating rectifiers for telephone exchanges fabricating h.v. Test sets, meter test benches, oil test sets, etc.

We supply high quality Power Transformer appropriate for three phases, 50/60 c/s power frequency. Our power transformers are extremely perfect for both outdoor and indoor applications. We fabricate transformers as per the is 1180 & 2026 standards. Ranges double wound transformerssingle & three phase 50 / 60 c/s upto 2 mva )inductive reactors auto wound transformers dry type transformers furnace transformers impedance transformers test conducted as per is standards measurement of insulation strength measurement of resistance / windingturns ratio on all tap positionsmeasurement of impedance / load loss impulse test withst and test induced over voltage withstand testtemperature rise test features three winding transformers in customized designs high quality insulating material used such as polyester, fiber, paper, board, glass tape, etc.extra tappings available tank constructed from mild steel surfaces coated with epoxy based paints applications railways construction industry engineering industry.

We provide High Voltage Insulation Tester that can easily detect the insulation value between Earth and Live Points. We have technically advanced models of 0-3 KV and 0-5 KV test units. The testers have to be connected with earth point and live point that are under rest. The system consists of Variable Auto Transformer to decrease or increase the high voltage through Calibrated High Voltage Voltmeter & Millimeter. It is available in AC/DC H.V. ranging from 5 KV to 300 KV. Also, our units consist of H.T. 'On', H.T. 'Off', H.T. Trip Indicators, Timer and Zero Position. Technical Specifications Input 230 volts / 415 volts, 50 c/s 1PhaseOutput 0 – 50kV @ 100 mA AC0 - 100 KV @ 250 mA AC0 - 300KV @ 1000 mA AC Safety Features Zero Start interlockInstantaneous Electronic relaySurge limiting resistor in series with HV outputOutput shorting relaySurge protectorsCompact sizeEasy to operate Application : Testing of dielectric strength of insulating bushes, transformers & insulating materials. Models Available 0 - 50 KV. @ 100mA0 - 100 KV @ 200mA0 – 200 KV @ 250mA0 – 300 KV @ 1000mA Benefits Both hand operated and motor operated units that ensure safety operation.High voltage Transformer for neat operation.An over load circuit instantaneously shuts off the voltage at the moment of arc over.Manual over ride provides safety factorInterlocked test cell for safety

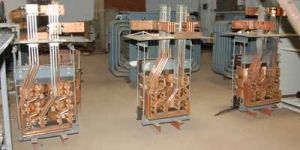

We are engaged in the manufacturing of High Current Transformers [current injection kits] that are uniquely designed to meet the requirements of various industries. Using optimum quality raw material, we have developed our Transformers in industry-specific shapes and sizes. It is suitable for all types of lab tests. Salient Features Rugged ConstructionLong Functional LifeResistant to corrosionCompetitive pricing Rating : Available from 1kA to 40kA Ideal For Switch gear testingEngineering IndustryTransformer plantsTest labs

We manufacture and supply Electroplating Anodizing Rectifier that is available in various ranges and other technical specifications. Fabricated from high quality raw materials, our Electroplating Anodizing Rectifier has long functional life and renders consistent performance for longer period of time. Operating Conditions Operate from 380 to 440 voltsEnsure wide input fluctuationsMaximum ambient temperature of 45 degrees C Range of Silicon Plating Rectifiers D.C. Current : 100 amps, 200 amps, 250 amps, 300 amps, 500 amps, 750 amps, 1000 amps, 1500 amps, 2000 amps, 3000 amps, 5000 amps, and 7500 amps.Standard DC voltages : 6V, 8V, 12V, 16V, 20V, 24V etc. Our Strength We also can supply non-standard voltage and current as per the requirement of the clients. Salient Features Diode assemblyStep less motor operated regulatorDouble wound transformerMetering Ideal For ElectroplatingAnodizingElectro deposition processHydrogenation

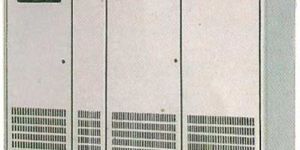

We are engaged in manufacturing high quality Electronic Voltage Stabilizer that quickly response for fluctuation in line and load. Our Stabilizer takes approximately 5 cycles for change in load and 10 cycles in the change of line. Operating Principle Our regulators ensure controlled firing through inverse parallel pair of SCR’s measured in shunt leg of auto transformers. The approximate voltage obtained when auto-transformer increases or decreases from the input voltage, which depends on the phase angle from where the SCR is fired. Output folds back when current exceeds. Technical Specifications Single Phase 1kVA – 50kVAThree Phase 3kVA – 300kVA Models in Three Phase Models Have Line to Neutral Voltage control for UN-balance LoadsHave Line to Line Voltage control for Balanced Loads Features Robust ConstructionPerfect handling of voltage fluctuationsWithstand operational temperatureLow maintenance requiredLong functional lifeCost effective Applicable in NC MachinesComputersXerox MachinesMedical EquipmentOil and Gas PipelinesDefense Lab EquipmentNavigationsX Ray UnitTelecommunication Test Instrument

We manufacture D.C. Motor Controller that is specially designed to provide a speed adjustment ranging from zero to full rated speed. Our D.C. Motor Controller functions with D.C. Motors Shunts or compound type through supplying two rectified main supplies to field circuit and armature. The supply of field is carried to ZZ(±) and Z(-) which is at fixed voltage. Afterwards, the armature supply is carried out both the terminals A and AA. This supply varies from 0-80% from the supreme supply voltage through the means of wave controlled system. The SCR’s (Thyristors) is fired by a trigger circuit controlled by a superior quality amplifier. This amplifier works from a small D.C. voltage input. As the result, the speed of the motor remains constant. Salient Features Our D.C. Motor Controllers are grounded on the basis of Thytristors (SCR) having conduction angle managed by completely encapsulated trigger circuits that deliver wave rectification on Armature and Field.Light in weight and easy to maintain transformersTechnically advanced Field Rectifier, SCR, DIODE Unit and Triggering CircuitTerminals are fixed on the lower portion of the rackConsist of current limiting circuits that ensure protection to silicon devicesHave high rupturing capacity fuses thereby ensuring prevention from short circuit conditionsArmature Circuit with interlocking system Capacities Available Single Phase : 1, 2, 3, 5, 10, 15 H.P. and above.Three Phase : 5, 7, 5, 10, 15, 20, 25, 50, 75, 100, 150, 200, 250, 350, 500 H.P. & above Speed Regulation Feedback systems are standardAccuracy 1% of +10% mains voltage variationArmature IR CompensationTachometer GeneratorArmature voltage D.C. Output Voltages Armature 180 Volts D.C. variables from zero in Single phase360 Volts D.C. variables from zero in three phase. Field 200 Volts D.C. fixed. / 400 Volts D.C. Standard Models Available Forward and stop push buttons with no volt releaseForward stop and reveres push buttonsForward and stop push buttons plus dynamic braking Applications Sugar MillsCoil winding machinesRotary Printing MachinesTextileCementSteel Plants

We are engaged in manufacturing of high grade Batter Charger with 1% to 2% ripple and alarm function. Our Battery Charger is made up of hi-tech components that influence long functional life and consistent performance. Range SCR Controlled Automatic ChargersDOT Power PlantsRedundant ChargersTransductor Controlled ChargersFloat-Cum-Auto Chargers & Boost ChargersManual Operated Chargers for railway application Alarm Functions High VoltageLow VoltageGround (-) FaultGround (+) FaultRectifier Failure ( each Diode or SCR )Hi-TempSingle PhasingLine FailureFan Failure ( in Forced Cooling System ) Components SCR controlManual tap SwitchSwitch controlDimmerstat controlTransductor control Salient Features Rugged ConstructionEnsure uninterrupted power supplyUseful for any volts and desired currentsResistant against moisture with IP-41 enclosureEconomical Our Strength We have developed 650 kW ( 7500 Amp. 0-70 Volts ) Transductor Control d.c.source for BARC for vacuum ARC Furnace that demands the short circuit conditions to create d.c. ARC.

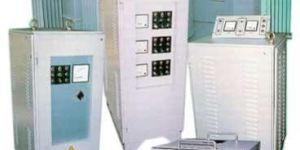

We manufacture technically advanced Automatic Voltage Stabilizer meant for having steady A.C. voltage supply. We have used Servo-controlled units that consist of electro-mechanical arrangements. Components Solid-state control devicesMotor operated power-o-statDouble wound series buck - boost transformer Technical Specifications Capacity : 1 KVA to 25 KVA for air cooled construction and25KVA to 100 KVA in oil cooled Construction (single phase), 5 kVA to 50 kVA air cooled construction and from 50 kVA to 1000 kVA in oil cooled construction (three phase) Main Accessories Power-O-Stat (cont. variable auto-transformer) Stepper Synchronous MotorsBuck – boost transformerControl card Features Sturdy ConstructionResistant to corrosionConsistent performanceCost effective Applications Computer CentersT.V. Receiving CentersRadar DivisionsCentralized Air Conditioning Packaged UnitsHeavy IndustriesResearch InstitutionsLaboratoriesAirports
