ABR Enviro Systems Kanadia Road, Indore, Madhya Pradesh

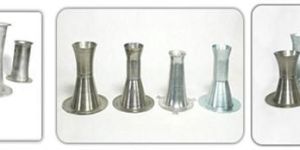

Venturies add to the cleaning efficiency of pulse jet bag filters. ABR enviro systems offers a wide variety of venturies for both top & bottom removal cages. We can supply venturies manufactured from Carbon steel, Stainless steel, Cast aluminum, Spun Aluminum and cast iron.

Ferrite core based high frequency transformer rectifier (hftr) unit is a high voltage switch mode power supply (smps) unit for electro static precipitator (esp). It supplies a smooth and ripple free high voltage dc into the esp field using the small internal capacitance of the fields. It improves the efficiency of esp than the conventional thyristor controlled tr set. The hftr is powered by a micro-controller based igbt controlled panel. The supply voltage of the panel is 3 phase 415 v 50 / 60 hz. Schematic diagram of the operation as below fine particles emissions are much more dangerous to health than the larger ones. Collecting of fine particles below 10 micro meter (pm10 ) in electro-static precipitators has not been very efficient with conventional system. A new high frequency tr set was developed with a pulse duration below 50 micro-second to used it with existing precipitators the current capability had to be in the ka range. It is possible to generate a high charge density in the electrode area, which leads increase charging of the fine particles. Flash over / sparks are mainly avoided due to the short pulse duration. Data can be recorded on a real time precipitation in any esp     Common sensor technologies include:   Bimetallic mechanical or electrical sensors Expanding wax pellets Electronic thermistors and semiconductor devices Electrical thermocouples Thermostatic Radiator Valve (TRV).

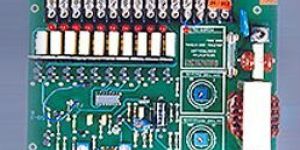

The sequential controller provides the time sequential energization of pilot valve used on the dust collector equipment. The number of sequenced steps is adjustable from 2 to 40. Controls are provided to adjust the length of time between valves being energized (Pulse Frequency) and the length of time that the next valve is energized (Pulse Duration) Two independent method of starting and stopping the controller are provided The first method will automatically stop the sequence and reset the controller to the first valve position whenever AC power is removed and then reconnected .The second method is by a remote control contact connected to the terminals provided .   Product Details When the remote contact is opened the sequence stops .When the remote contact is re-closed ,the sequence continues from the previous position eliminating repeated cleaning of same rows of filter bags . These features are unique and meet demands of all kind of applications .The card is protected in steel coated. The fire proof enclosure can be provided upon request.. The differential pressure switch can work with this sequential timer to operate the system in demand mode from a remote location. An unique combination of DP switch controlled sequential timer can be provided for processes with variable load during operation .The cleaning is initiated upon reaching high DP and stopped upon achieving low DP .This arrangement saves compressed air and also enhances filter bags life. DP switch is not a part of this system.

Thermostat is a device for regulating the temperature of a system so that the system's temperature is maintained near a desired set point temperature. The name is derived from the Greek words thermos "hot" and statos "a standing". The thermostat does this by switching heating or cooling devices on or off, or regulating the flow of a heat transfer fluid as needed, to maintain the correct temperature. A thermostat may be a control unit for a heating or cooling system or a component part of a heater or air conditioner. Thermostats can be constructed in many ways and may use a variety of sensors to measure the temperature. The output of the sensor then controls the heating or cooling apparatus.   Common sensor technologies include:     Bimetallic mechanical or electrical sensors Expanding wax pellets Electronic thermistors and semiconductor devices Electrical thermocouples Thermostatic Radiator Valve (TRV).

A thermocouple consists of two dissimilar metals, joined together at one end, and produce a small unique voltage at a given temperature. This voltage is measured and interpreted by a thermocouple thermometer. The thermoelectric voltage resulting from the temperature difference from one end of the wire to the other is actually the sum of all the voltage differences along the wire from end to end Thermocouples can be made from a variety of metals and cover a temperature range 200 oC to 2,600 oC.

The dust being separated inside the filter is continuously returned into the product stream thus preventing a mixing of different types of dust. Spot filter delivers the cleaned air where the dust-laden air was removed. In this way, no pressure differentials will occur between the production rooms. The amount of aspiration air is automatically adjusted by the built-on fan, depending on the extent of leakiness. The large suction intake involves a very low admission speed, thus minimizing turbulence and dust circulation. In the event of fire in a machine with built-on spot filter, the filter will not act as a connecting link to other machines. Spot filters are just as suitable for extension of existing central aspiration plants as they are for building up complete plants, only based on spot filters. With spot filters, existing plants are easily extended. New machines calling for dust aspirations are equipped with separate spot filters, and thus do not interfere with existing aspiration systems.

Solenoid valve ABR Environ Systems can provide dust collector Solenoid valves/diaphragm valves in a range of configurations to suit all types of pulse jet cleaning baghouse designs. These sophisticated diaphragm valves utilize a flexible molded diaphragm to regulate airflow through the filters for optimal cleaning. The diaphragm valve creates a pulse of air that shakes through the bag, shaking off any dirt from the outside of the bag, cleaning the filter. Brand name/ original manufacturer of the diaphragm valve to be replaced.     Product Details Pulse valve has just one moving part that is the diaphragm. The unique spring-less construction provides fast opening and closing of valve. The high speed operation saves compressed air, helps to provide shock air wave for dislodging of dust from filter bags .High flow, long life and fast diaphragm action produce reliable and economical operation .IFF offers both integral and remote solenoid valves. Remote solenoid valves are mounted in a separate enclosure. We can provide pulse valves of 3/4”, 1”, 1.5”and 2” sizes, based on your requirements. Double diaphragm offers some advantages over single diaphragm valves. Valves are available with various control voltages rating 24V DC/110V AC/230V AV etc.

The RALV series valve are used or volumetitric feeding of pulverized product from hoppers for injecting materials into high pressure pneumatic systems and/or hopper discharge from industrial gas cleaning equipment. We manufacture RALV of various MOC such as C.I/304SS/316SS/SG iron and aluminum body.

production techniques and materials, these electric rappers offer consistent high performance and long service life. Available with either cord or terminal box connection. Coils are wound from class h (180? C) Copper wire. This not only provides optimum heat transfer but also improves dielectric and mechanical strength.

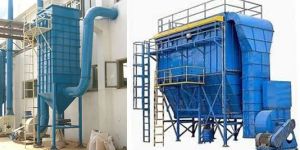

High Filtration efficiency of Bag Filter system (upto 99.5%) thus superior emission norms (15-50mg/Nm3). Low pressure drop across Bag Filter system (80-150 mmWC). Low power consumption of ID Fan due to low DP across Bag Filter system. Use of double diaphragm solenoid valves ensure effective cleaning of Filter Bags. Proper design of Bag Filter system, Hopper Angle and other critical aspects results in effective dust collection and removes possibilities of dust re-entrapment.     Product Details   Longer life of Filter Bags, Cages and other accessories thus lower cost of operation. Efficient working of Bag Filter system reduces requirement of maintenance. Bag Filter systems designed for use in sub micron particle collection. We use Filter Media with suitable chemical and mechanical finish to enhance performance of Filter Bags thus better & easy particulate collection from hopper. Ultra modern electronic devices are used to measure and control various process parameters (pressure, temperature, flow, accumulation etc) of Bag Filter system thus assist in easy control during operation. We can design Pulse Jet Bag Filter system upto 100000 m3/hr suitable for upto 260 Deg C for dust/fumes with acid/alkali content and fine micron sticky dust. Bag Filter systems can be supplied in MS/SS-304/SS-316-L to meet application requirement.

A pressure responsive switch senses a change in pressure and responds to such changes by alternately making and breaking an electrical connection. Pressure-sensitive switches are used in a variety of applications where it is desired to switch apparatus on or off at predetermined pressures. These switches are utilized in a wide variety of applications, as environmental applications. Pressure switches include set-point pressure switches that actuate when a specified pressure is reached and pressure measuring switches that are capable of measuring the ambient pressure and reacting accordingly.   A pressure responsive switch generally comprises a diaphragm responsive to a pressure change, a rigid ring for securing the diaphragm, and a pair of electrically conductive contacts that break contact based on movement of the diaphragm. Mechanical pressure switches typically provide an output signal in the form of a switch closure in response to application of mechanical or atmospheric pressure. A differential pressure switch is a device which utilizes differential fluid pressure from low and high pressure sources to actuate an electric switch at a pre-set actuation point. Differential pressure switches are commonly employed to control the operation of snap action switches.

Tensioning plays an important role in successful operation of filter bags in reverse air bag house. Improper tensioning is one of the main causes of bag failure. Excessive tensioning of the bag results in unnecessary stress to the fabric and sewing thread of the bags, and typically failures occur around the cuff and anti collapsible rings. Insufficient tension causes excessive horizontal movements causing bag to bag abrasion. Pneumatic Tensioning Tool is a precision tensioning device that provides accurate and consistent bag tensioning. Equal and adequate tension is applied to all bags maintaining uniformity. Tensioning of filter bags vary from 50 to 75 pounds depending on the diameter of filter bags.

  We are offering a comprehensive range of Pneumatic FRL units, appreciated for long lasting and quality attributes. These frl units have semi-auto-drain function and the body is made of die casting aluminum alloy, thus making them sturdy to operate in industrial environments. These FRL units are used in various industries such as food processing, paper and packaging, pharmaceutical and textile. Offered at economical prices, our frl units are robust in design, construction and are ideal to be used in tough working conditions.   Specifications:   Medium: Compressed air Mounting position: Vertical ± 5° Pressure range max.: 10 Bar Temperature nominal: -10 to + 60°

There are many reasons why a dust collecting system fails to operate properly. Sometimes the solution may require brand new system or a complete re-construction of the existing system. These different ways are some time very costly in terms of capital to spend and downtime. But fortunately, we have another option, and that is Pleated Dust collecting element. The filter elements are manufactured to fit directly into your existing bag house tube sheet, replacing traditional filter bags and cages. This technology is a combination of filtration media with an inner support core into a one-piece element that can directly reduce installation time and costs.. Each filter element is custom manufactured with the right top , media , core , and bottom to fit your existing dust collector and provide maximum benefit to your product and organization.

We put all kinds of holes in all kinds of materials . . . and we do it to precision tolerances. Holes, in patterns with staggered centers or straight centers; in sheets, plates or coils - we do it all. We can perforate up to 1250mm wide coils and 8.00mm thick in steel, aluminum, stainless, most alloys, plastics and P.V.C.

Specifications:   Custom Made UL Listed B, F & H Insulation Systems and Open Insulation Systems Thermoplastic and Thermoset Molding Available Epoxy Transfer Molding for Complete Encapsulation Injection Molding Liquid Molding Potting High-Capacity Shuttle Presses and Multi-Cavity Molds for Lowest Cost Production

By combining state of the art production techniques and materials, these electric rappers offer consistent high performance and long service life. Available with either cord or terminal box connection. Coils are wound from class h (180? C) Copper wire. This not only provides optimum heat transfer but also improves dielectric and mechanical strength.

Ferrite core based high frequency transformer rectifier (hftr) unit is a high voltage switch mode power supply (smps) unit for electro static precipitator (esp). It supplies a smooth and ripple free high voltage dc into the esp field using the small internal capacitance of the fields. It improves the efficiency of esp than the conventional thyristor controlled tr set. The hftr is powered by a micro-controller based igbt controlled panel. The supply voltage of the panel is 3 phase 415 v 50 / 60 hz. Schematic diagram of the operation as below: efficiencies that are particularly important for applications involving toxic dusts or where air is being re-circulated. A cartridge collector is quite compact relative to the amount of airflow passing through them because of the large amount of media contained in each cartridge.

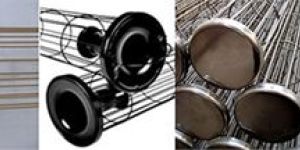

ABR ENVIRO SYSTEMS manufactures filter bag cages for all major air pollution control systems manufacturer, OEM’s and End users markets both in India and across the world. Today we are India’s leading filter cage manufacturer. In times, we have invested heavily in automated machinery, QA/QC procedures. We provide a wide range of configurations to best fulfill your needs. Cages are produced in a variety of metals, coatings and techniques.   Our objective is to provide a fully integrated design, manufacture supply filter product & services allowing customers to shop from a single source. Products range & Manufacturing Capabilities ABR Enviro manufactures a complete range of standard & non-standard cage designs to suit the customer’s requirements and all types of filter bags. Cage configuration for circular, diamond, oval, flat and star shaped can be designed and worked in a variety of metal-grades of mild steel, stainless steel and other specialist alloys.

The discharge electrode is the heart of any electrostatic precipitator and its characteristics are the key to the ESP performance. Its annealed copper nails ensure sharp corona point over along time. Most advantage of D.E is higher corona generation and lower corona onset voltage.ABR enviro systems offers for many Precipitator designs. The standard Emitting Electrode is designed for longer life with a high tensile strength. For Discharge Electrodes of all type ESP’s, the shrouded hook ends of Electrodes are manufactured with the Electrode wire inserted through the shroud prior to forming the hook, thus eliminating the requirement for crimping. We manufacture different designs of Discharge Electrodes to OEM standards, using varieties of raw materials. There are many more designs & shapes of Discharge Electrodes, which are part of our product range, but not displayed below. Please contact us for all your requirements of Discharge Emitting Electrodes.
