Watt Kacheripady, Kochi, Kerala

ZERO OHM RESISTOR JUMPER WIRE, A single black band indicates that the resistor is Zero ohm. The WJ jumper wires are manufactured using high grade tin plated electrolytic copper wire. This is provided in taped form having 5mm pitch.

WIRE WOUND RESISTORS - HIGH SURGE IMMUNITY, The resistors are coated using layers of Flame Proof Silicon Epoxy with axial lead wires. These resistors have high surge voltage immunity. In WWHS series, for resistors up to 5W, the resistance value is color coded with 3 bands plus a tolerance band. An additional black band indicates that the resistor is wire wound. For resistors 6W and above, the value is printed on the resistor.

WIRE WOUND CERAMIC ENCASED RESISTORS, The WWV series resistors are wire wound resistors encased in ceramic boat with leads set for vertical mounting. WATTS offers these resistors ranging from 100mΩ to 10KΩ, with power ratings of 1W to 10W.

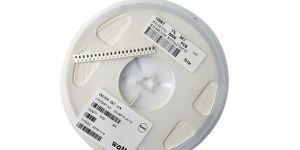

THICK FILM CHIP RESISTORS, The CR series offer a wide range of power ratings from 120W to IW and are available in tolerance ranges of ± 1 % and ±5%. The miniature size, the excellent mechanical strength and electrical stability ensures reduced costs and enhances dependability.

The WWN series wire wound resistors - non inductive have very low inductance (less than 1µH), high heat dissipation and low TCR. The resistors are coated using layers of Flame Proof Epoxy with axial lead wire. In WWN series, resistors up to 5W, the resistance value is color coded with 3 bands plus a tolerance band. An additional yellow band indicates that the resistor is Non Inductive. For resistors 6W and above, the value is printed on the resistor.

The WMF series Metal Film Resistors are manufactured using the latest Magnetron Vacuum Sputtering System. This ensures a very stable resistive medium having a very low temperature coefficient.

The WMF series Metal Film Resistors are manufactured using the latest Magnetron Vacuum Sputtering System. This ensures a very stable resistive medium having a very low temperature coefficient. The resistors are insulated with layers of light blue lacquer. The WMF series offer a wide range of power rating (0.125W, 0.25W, 0.40W, 0.50W, 1W, 2W & 3W), tolerances (0.1%, 0.5%, 1%, 2%, 5%) and TCRs (15, 25,50 & 100 ppmºC)

LOW OHM METAL ALLOY CHIP RESISTORS, The LR series metal allow low ohm chip resistors are manufactured with tight tolerance, low TCR, high power density and low thermal EMF capability.

LOW OHM CURRENT SENSING RESISTORS OPEN FRAME, high purity Ni-CrCu-Ni element. These are open type resistors. WATTS offers these resistors ranging from 2mΩ to 20mΩ, having power rating from 2W to 10W.

LOW OHM CURRENT SENSING RESISTORS CERAMIC ENCASED, These are ceramic encased resistors. WATTS offers these resistors ranging from 2mΩ to 50mΩ, having power rating from 2W to 10W. WCSB is axial type ceramic boat encased resistor. WCSV is vertical type ceramic boat encased resistor. WCST is axial type ceramic tube encased resistor.

Wattage : 1,2,3

LED TUBE LIGHT, BIS approved LED Tube sets, Mushroom and Square design for better light, Suitable for all kind of ceilings & walls, Elegant design, Easy installation (Clamp based).

Power Factor : >0.95

LED SURFACE PANELS, BIS approved LED drivers and surface panels, Suitable for all kind of ceilings & walls, Durable Aluminium housing for effective thermal management, Suitable for all Domestic & Commercial.

LED STREET LIGHT, Elegant design to satisfy both domestic and commercial customers, Suitable for Warehouses, Yards, Commercial Buildings, Road and Streets, Pressure die-cast aluminium alloy for housing for effective thermal management.

LED SPOT LIGHTS, BIS approved LED drivers, Flicker free instant bright, Durable Aluminium housing for effective thermal management, Suitable for all Domestic, Commercial and Industrial applications.

LED SLIM PANELS, BIS approved LED drivers and slim panels, Flicker free instant bright, Space saving design and Ultra slim construction, Durable Aluminium housing for effective thermal management, Suitable for all Domestic, Commercial and Industrial applications.

Wattage : 3W

HIGH BEAM BULBS - PLATINUM, Flicker free instant bright, Constant Light output, No UV & IR radiation, No Mercury, In-built heat sink for longer life, Thermoplastic and Aluminium housing for effective thermal management.

The WWF series wire wound fusible resistors are manufactured to perform as a regular resistor under normal conditions and as a fuse under excessive load. In WWF series, resistors up to 5W, the resistance value is colour coded with 3 bands plus a tolerance band. An additional white band indicates that the resistor is fusible. For resistors 6W and above, the value is printed on the resistor.

FLOOD LIGHTS, Elegant design to satisfy both domestic and commercial customers, Flicker free instant light output, Suitable for Warehouses, Yards, Commercial Buildings, Road and Streets, IP65 for excellent Water, Dust and Moisture resistant.

The WMF series Metal Film Resistors are manufactured using the latest Magnetron Vacuum Sputtering System. This ensures a very stable resistive medium having a very low temperature coefficient. The resistors are insulated with layers of light blue lacquer. The WMF series offer a wide range of power rating (0.125W, 0.25W, 0.40W, 0.50W, 1W, 2W & 3W), tolerances (0.1%, 0.5%, 1%, 2%, 5%) and TCRs (15, 25,50 & 100 ppmºC)

DIODE,The 1N40071N4007S series diodes are manufactured to give high current low forward voltage drop capability. 1N4007 has a lead diameter of 0.7 ± 0.05mm and 1N4007S has a lead diameter of 0.6 ± 0.05mm.

TThe WWB series resistors are wire wound resistors encased in ceramic boat with leads set for axial mounting. WWB series offer a wide range of resistors in the range 100mΩ to 10KΩ, with power ratings 1W to 10W.

CARBON FILM RESISTORS, The resistors are insulated with layers of light brown lacquer. The WCF series offer a wide range of power ratings (0.125 W, 0.25W, 0.4W, 0.5W, 1W, 2W & 3W) with a tolerance of ± 5%. and TCR ±1000 ppmºC.
