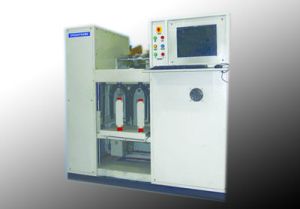

Trytex Computer numerically controlled one sided miniature Roving Machine having 4 spindles, 110mm gauge, 250mm lift, 3 over 3 spring loaded drafting system, draft up-to 12. Individual AC variable speeds motors with microprocessor control system to control the speeds of front roller, back roller, spindles and bobbins. Use menu driven software to ease man/machine interaction with possibility to enter and optimize parameters, while machine is t rest. PLC, Computer and UPS as per the machine requirement.

Circot-Trytex Computer Numerically Controlled single sided Lab Model Rotor Spinning Machine having 4 Rotors, 230mm gauge arrangement, having 43mm rotor diameters with OK37/40 opening rollers, R10 Navels. Built in automatic indicators & quick response sensors to monitor yarn continuity & feeding sliver, trash separator & discharge tunnel for better cleaning. Feeding can size of 14 by 42” & take up package size of 150 by 250mm with individual AC variable speed motors with User-friendly menu driven software to ease man/machine dialogue with a possibility to enter and optimize parameters while the machine is running or at rest; with motors, electrical, PLC, Computer, UPS, control system & other accessories

Description :   Production rate / hr : 100 % Micro dust, 720 gms / min ie 43 kg /hr, 20% Fibre + 80% Microdust, 360 gms/min 21.6 kg/hr approx depending upon the density of the material, Manpower required : 1 – for material feed and removal of Briquettes, Installation space required : 2500 x 1400 x 2500 mm (L x B x H), Density of Briquette : 1000 – 1200 kg / cu.m (Approx. Depends on Density of Material).    Specification :

Power : 20 HP for Main Motor

Ergonomically designed table top model having rugged steel body construction. Detachable state-of-art microcomputer controlled navigation control unit. Results in alphanumeric LCD display and strength units in lbf kgf Nf. Comprises numerous RoHS compliant & safety components, ensures CE norms. Constant rate of extension (CRE) principle. Strength measurement upto 500 lbf with 0.1 readability. Fully computerized operations with enhanced report options. (Optional)

Trytex Computer Numerically controlled single sided Lab Model Fancy Doubling machine having 6 spindles, 3” gauge, 2” ring diameter, 8” lift, having6 spindles suitable for standard dry doubling & fancy doubling arrangement having two rows of calendar roller with back roller having individual motor for fancy effect with necessary drives and controls for fancy doubling, suspended type ring rail lifting arrangement, creel suitable for cheese, with individual AC variable speed motors with control system to control the speeds of Spindle and Take up roller. User-friendly menu driven software to ease man/machine dialogue with a possibility to enter and optimize parameters while the machine is running or at rest; with motors, electrical, PLC, Computer, UPS, control system & other accessories

Circot– Trytex Lab Model Drawing Machine having 3 over 3 drafting arrangement to process the slivers from miniature carding machine with individual AC variable speed motors with control system to vary the speeds of Front roller, middle and back roller inclusive of motors, invertors, electrical, rpm indicators, potentiometers, control system & other accessories

Circot– Trytex Lab Model Carding Machine having 250mm working width, 250mm cylinder, doffer, feed roller, opening roller, stripping roller, crush roller, under casing, take up drum, trumpet with individual AC variable speed motors with control system to control the speeds of Feed roller. Cylinder and Doffer, motors, electrical, control system & other accessories.

Description :   This machine is designed with storage facility and can bale varieties of material in a single press. The materials will be stored in different silos and once the storage capacity reaches the upper limit the material is loaded to the machine through a condensor. The silos are placed in the floor level.    Specification

Description :   This machine is designed with storage facility and can bale varieties of material in a single press. The silos are placed above the conveyor and the materials will be stored in different silos, once the storage capacity reaches the upper limit the material falls directly into the conveyor and in turn loaded to the machine. NO CONDENSOR IS REQUIRED    Specification :

Circot– Trytex Computer numerically controlled Lab Model Ring Spinning Machine with 6 Spindles, 70 mm gauge, 38 mm ring dia., 180 mm lift, SKF PK 2025, 3 roller drafting arrangement with short cradles for processing fibers up-to 38mm, with Slub, Multi count, Multi twist, Core yarn attachment with individual AC variable motors with control system to control the speeds of front, middle, back roller & spindle. User friendly menu driven software to ease man/machine dialogue with a possibility to enter and optimize parameters while the machine is running or at rest; with motors, electrical, control system, PLC, Computer, UPS, & other accessories.
