R. K. Traders Bara Bazar, Kolkata, West Bengal

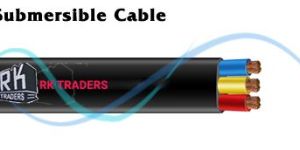

PVC Insulated & Sheathed Three Core Flat Cables as per IS 694/2010 are used to connect submersible pump motor with supply lines, these cables are made keeping in mind the severe operating conditions. The slot available in the tube well being narrow the shape of the cables has to be suited for such an application. Application Area 1) PVC insulated & sheathed flexible Three Core Flat cables are used to connect underwater Submersible Pumpsets with supply line.2) Agriculture, Irrigation, Domestic Installation, Outdoor application & Power Supply.3) The outer sheath of the cable being made of special grade Abrasion resistant PVC makes it impervious to water, grease, oil, etc making cables highly durable. Cable Structure1) Plain Copper conductor extra fine stranded & bunched in accordance to IS 8130/1984 for higher flexibility2) Each of the cores are insulated with PVC Compound for better insulation resistance against water and moisture.3) Cores are laid in flat parallel manner and sheathed for highest performance in severe & difficult conditions.4) Marking of brand name, cross-section ISI License No. & Logo on each mtr.5) Testing of cable carried out as per IS 694/2010 at our In House facility.

Solar Cables are designed to meet the growing needs of the solar industry. Our solar cables is just the beginning of our plans to develop and launch green technology in wires & cables. Solar Cables are flexible and are resistant to abrasion & moisture. Regardless of your panel – to – grid needs, we have the cables to meet your requirements. Applications :These Cables are designed for connecting photovoltaic power supply system. These cables can be used indoor & outdoor for flexible and fixed installations with high mechanical strength in extreme weather conditions. Standard :2 PFG 1169 / 08. 2007.

Product description: Technical Data: Confirming to BS 5308 (Part2) Heat resistance PVC insulation Operating temperature -5°C to +85°C Operating Voltage 500 V Withstand test voltage (stationery) 1000 V AC (core to core) for 1 min 1000 V AC (core to screen) for 1 min Insulation resistance min. 25Mohm/km — Min. bending radius 12 x cable Ci Conductors 0.5, 0.75, 1.0 & 1.50 sqmm of elements 1,2,4,6,8,12,16,19,20, 24, 30 & 50 pairs Cable Structure : Conductor bare stranded copper fine, to Bs6360 class2, as per table 1 of BS5308 TI-1 70°C/TI-2-HR 85°C PVC insulated cores Core identification by numbers on white core Cores stranded in layers with optimal lay-length with Binder tape-PeT Screen of aluminum Pet tape over 7 stranded tinned copper wire 0.50mm2 GI Steel Armour – Wire / Strip Outer sheath of PVC black / blue, FR 85°C / FRLS / ZHLS PVC Oil resistant & adhesion-free Applications:These are safe signal transmission cables with signal protection through 20% overlap high coverage aluminum Pet tape with metal in continuous contact with 7 stranded tinned copper wire of 0.50mm2. It is used in all types of signal transmission connections where the voltage induced by an exterior electromagnetic field may affect the signal transmitted. Its most common applications are control circuits, electronic equipment connections, computer systems

APPLICATIONS OVERVIEW Profibus cables are automation cabling for industrial fieldbus fast-connect-type systems, particularly developed for process applications. They offer excellent electrical transmission performance for their respective Decentralized Peripherals (DP) and Process Automation (PA) applications. The standard for this cable is set by Profibus and Profinet International (PI), a world-leading automation community with a focus on interoperability and compatibility. Profibus, one of the organisation’s two technologies, is standardised to IEC 61158. The Profibus range differs from control cables manufactured to 4-20m in that they can support up to 32 devices per segment and therefore up to a total of 126 devices depending on the system current. Profibus cables offer a suitable alternative to Belden 3079A for many applications. PROFIBUS DP CABLE Our Profibus DP cables represent the optimised performance version of the more generic profibus cable range. These cables are specifically designed to deliver time-critical communication between process automation systems and distributed peripherals. They are widely used in factory processes and in field communications in cell networks. These cables are manufactured to European Fieldbus Standard EN 50170 and they provide transmission rates of up to 12Mbits/second. PROFIBUS PA CABLE Our Profibus PA are designed for the connection of control systems to field instruments on process automation applications. These cables are based on the Profibus DP and use a segment coupler to allow transparent communication between general purpose automation and process automation networks.Both our Profibus DP and Profibus PA are available with a galvanized steel wire braid (GSWB) for additional mechanical protection. They are also available with various different constructions, including outer sheaths with various enhanced properties. PROFIBUS CABLE SELECTION This range forms part of our comprehensive portfolio of Bus cables designed specifically for fieldbus systems. For technical support with the selection of the ideal cable and accessories, please contact our technical team.

Instrumentation cables are designed for Transmission of Analog & Digital signals in instruments and Control Systems. Laser make instrumentation cables are designed to maintain high level of accuracy and sensitivity of the system without drop in signal. It is designed to obtain Maximum rejection of Electromagnetic noise, minimal cross-talk and minimal Electromagnetically or Electromanetically induced noise & common mode interference. Individual pairs or Triads are Colour coded for simplified identification & hook-up. rugged armoured versions are recommended for use in Intrinsically Safe Systems. The Aluminium Myler Tape screening ensures exact data and pulse transmission, protecting the cable against electromagnetic disturbances and interferences. Fire performance options are Designed to resist and withstand extreme fire conditions, with minimal emission of Toxic gases. Lead sheath provides excellent resistant to chemical, oil, gas & radial water blocking. Characteristics : Signal protection between pairs. Good electromagnetic protection from external influences. Excellent Electrical, Thermal & Physical properties. Flame Retardant, Fire Retardant & Fire resistant – Highly recommended in areas with high explosion & Fire risks. Lead sheath provides radial water tightness and resistance to chemicals & hydrocarbons. Excellent mechanical protection during laying, installation & service. Extra pulling force. Option class-5 conductor provides extra flexibility.   Application : Generally used for transmission of signals in control systems. Typical applications include audio, intercom, control, energy measurements, alarm circuits. Suitable for use in wet and dry locations. Armoured cables are recommended for Outdoor & Direct Burial. Unarmoured cables are recommended for indoor use.

Description We offer a superior range of enamelled copper wires aiming to cater the wide variety of applications in the industry ranging from a common motor rewinding to most critical applications like in automobiles. Enamelled winding wire is a film insulated copper (or aluminium) electrical conductor used in form of coil windings in motors, transformers, generators and other electromagnetic equipments. When wound into coils, and energized, enamelled winding wire creates an electromagnetic field, which is utilized to generate the required output form of energy – viz electrical to mechanical (or vice versa) electrical to electrical, and electrical to magnetic energy. ApplicationSuper Enamelled Copper wires are mainly used in domestic equipments, pumps, motors, stabilizers, transformers, fans, Auto Electricals, heavy duty domestic appliances, motors, compressors, large motors and generators.

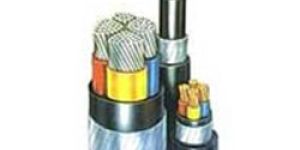

R K Traders Authorized suppliers of Control Cable in Kolkata, West Bengal & in India A wide range of Control Cables (PVC Insulated & Sheathed Flexible Cables) are available with us. These control cables have high tensile strength and accurate resistance to high temperatures. These cables work in both dry and moist conditions. We offer them in black/gray core colours and gray, black and white sheer colours. They are highly flexible for application in different electrical environment. These control cables used in tool machines, steel production units, electrical substations etc.
