Vision Micro Systems Jessore Road, Kolkata, West Bengal

Focusing System: Coaxial Coarse & Fine focusing based on a 4 stage gear reduction system traveling on ball bearing guides.Illumination: Reflected light. Halogen Lamp 6Volts20Watts with intensity control, iris diaphragm & slots for dropping filters with two filters green, daylight blue.

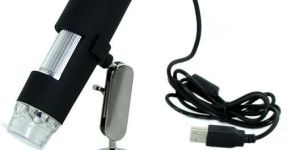

With magnification upto 200x and USB 2 adaptibility and a resolution of 2 Mega Pixel these microscopes are very good for taking photographs of very small objects, its very much useful for online inspection of tiny specimens. The image can direcly be viewed on computer, and with measuring software one can even measure the dimensions of the specimen . Application are varied in Schools, colleges, industries, Electronic Inspection, Documentaion and many.

USB Camera for Microscopes are now widely used for microphotography with high resolution of starting from 1.3 MP, 2MP, 3MP, 5MP and more. This are very useful for online visualization of the microscopic images, also its economical as compared to other digital cameras also you can directly attach to even Binocular microscope also that saves cost for Trinocular Microscope.

Digital Technology had been implimented into Microscopy too. Old Analog cameras are now replaced with Digital cameras with high Megapixel resolution, USB camera had become a necessary tool for microphotography. With the ease of plug and play cameras for microscopes its now very easy to capture images from microscope, do measurements, print and many more options with Image Analysis Softwares

These USB camera can be used for Online viewing of specimen, capture image and do measurement and analysis from any Microscope like Labomed, Vision, Olympus, Nikon, Zeiss, Leica, Hund, Meiji and all with their appropriate microscope adapters.

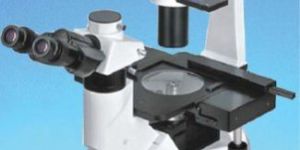

A wide range of Models for varied application such as Bright field, Phase Contrast, Inverted Phase Contrast, Darkfield, etc. Stereo Microscope for 3D observation or LED microscope for white day light experience. Available in Monocular, Binocular and Trinocular configuration with Microphotography attachments. With a modular line of microscopes from the elementary level to fully extendable systems for Educational, laboratory & Industrial application. LABOMED Inc., USA a well recognized brand worldwide. The facilities where LABOMED products are manufactured are ISO 9001:2008 and FDA registered, signifying excellence in both operating and manufacturing practices. All LABOMED Inc., USA microscopes are UL and CE approved.

Surgical Microscope for use the field of Dental Surgery. Labo Inc. USA had come up with the best model for this and we are authorized representative for the same located in Kolkata, west Bengal, India. We have after sales service for all of our product range.

Eyepieces Paired secured wide field eyepieces WF10x20 with eyeshades. Head Binocular 45° inclined tubes with diopter adjustment on left tube, interpupillary distance adjustable between 55 and 75 mm. Stand Rack & pinion metal stand with stove-hardened off-white lacquer. Two coarse adjustment knobs. With transparent and blackwhite object plate. With two object-clips.

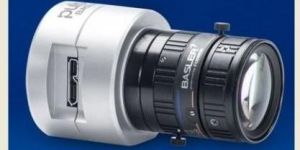

Speed camera Photography, Scientific Photography for Fluorescence photography and all high quality Photography applications for Research application.

Digital USB Camera for Microscopes are now widely used for microphotography with high resolution of starting from 1.3 MP, 2MP, 3MP, 5MP and more. This are very useful for online visualization of the microscopic images, also its economical as compared to other digital cameras also you can directly attach to even Binocular microscope also that saves cost for Trinocular Microscope.  Microscope Camera

These High resolution Digital USB microscope camera is very much useful for Capture of live Image from Microscopes and do measurement and analysis and are easily adabtable to any of the microscopeswith microscope adapters and are available in different Mega pixel resolutions as 2MP, 3MP, 5MP, 9MP and 10MP

For Use in Metallurgy, Petrology, GEM testing , Crystallography, Ore analysis, Rock analysis and even in Biological aplications. The Polarizer and Analyzer is being used for the study of various materials which are sensitive to polarized light or affect the direction of polarized light. We are authorized Supplier of various brands of Microscopes in Kolkata, West Bengal , India.

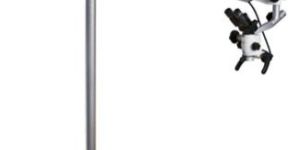

Microscope are also used in surgery these Microscopes are known as Surgical operating microscope or just Operating Microscopes. These Microscope are used basically for microsurgery in the field of Plastic surgery, Ophthalmic surgery ( Eye surgery), ENT surgery ( Ear, Nose and Throat surgery), DNT surgery ( Dental surgery), Gynecology, Neuro and even in the field Cardiology.

We are dealing in ophthalmic microscope, Surgical Operating Microscopes for Eye Microsurgery with better red reflex for use in phaco surgery, IOL and SICS with motorized focus with XY coupling and photographic attachment. We are authorized dealer and supplier located in Kolkata, West Bengal, India.

(Magnification 100x - 1000x) standard set complete with widefield eyepieces NWF10x, Hard anti-reflection coated colour coded Parfocal Achromatic objectives 10x, 40x & 100x (spring, oil imm.), attachable graduated mechanical stage (120x125mm) with convenient adjustment for manipulation of slides & plano-concave mirror in adjustable fork mount, Sub-stage Abbe Condenser (N.A. 1.25) fitted with an iris diaphragm & blue filter (complete set in thermocole packing.) (For Applications in Laboratories, Colleges & Hospitals)

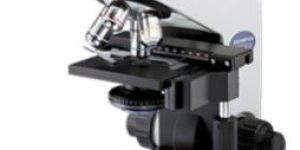

Seidentopf Binocular Trinocular head, in-built 6V 20W halogen light illuminator, with Anti-Fungus Plan Achromatic Objectives 4x,10x,40x (spring) & 100x (oil, spring), paired eyepieces wide field 10x (F.N.20) in thermocole packing, manufactured under license from Olympus Corporation, Japan. Features : UIS2 Plan Infinity Optics providing image flatness, Seidentopf observation head for individual choice of adjustment, Anti-fungus treatmentfor component durability, High eyepoint design eyepiece (F.N.20),Interchangeability of Objectives, the abbe condenser & the light relaysystem fitted with high performance aspheric lenses for bright & uniform illumination, Window in arm & the Ergonomic design for user convenience, Illumination system through SMPS circuit for constant voltage output, Rackless stage for durability and ease of use, Mechanical stage focus-lock prevents mishaps, Component security

Binocular Trinocular head, in built 6V 20W halogen light illuminator, with Anti Fungus Achromatic Objectives iNEA4x,10x,40x (spring) & 100x (oil, spring), paired eyepieces wide field iCWHK10x (F.N.18) in thermocole packing, manufactured under license from Olympus Corporation,Japan. Features : Anti-fungus optics (with sealed optical parts), Interchangeability of Objectives, the abbe condenser & the light relay system fitted with high performance aspheric lenses for bright & crisp image, Window in arm & the Ergonomic design, Illumination system through SMPS circuit etc.

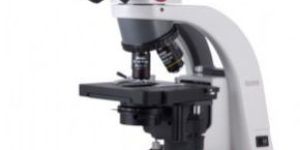

Motic products are available to end-users worldwide through our established international sales and distribution network. Motic is now proud to count more than 2500 members to its workforce and we look ahead to further years of growth and development. We are making continuous efforts to provide our users and OEM clients with innovative technology and quality customer services.

There are various cameras those are used in microphotography such as Digital SLR cameras, Digital cameras, USB Eyepiece Cameras, CCD Cameras, CMOS Microscope cameras, Scientific Microscope cameras, Cooled USB Microscope cameras, Builtin Digital Cameras and many more but one has to choose from these to suit ones budget and application. We offer these complete range of products for microscopic applications.

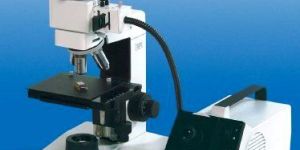

Dedicated to industrial quality control incident light for investigation of metals , ceramics and composite materials. Tramitted light for transparent or powders. Available as incident light or incidenttransmitted light version . Wide range of long working distance objectives. Illumination: Halogen Lamp 12Volts50Watts or 12V100W with intensity control, iris diaphragm & slots for dropping filters with two coloured filters green, daylight blue.

Machine vision camera all high quality Photography applications for Research application. Robotics and Machine Inspection, Encoding bar code,

Line scan camera High Speed Photography, Scientific Photography for Fluorescence photography and all high quality Photography applications for Research application.

Binocular Trinocular Brightfield Microscope for Reasearch Laboratory, Research Institute, Pathological studies in Lab or Hospital, Educational Institutes also have in different configuration with Phase contrast, Darkfield,etc. Objectives : IOS E-PLAN 4x, 10x, 40x, 100x (oil). Stage : Double layer mechanical sliding stage, 216x150mm, moving range 78x54mm, Belt-drive in X direction.

Standard set complete with built in illuminator focusing by separate Built-illuminator, coarse and fine focusing controls, Achromatic Objectives 4x, 10x, 40x (spring) and 100x (spring, oil immersion), with an inclined monocular observation tube rotatable through 360 degree fitted with widefield eyepiece WF10x (F.N.18) and with double layer mechanical stage, substage Condenser having Spiral movement. (complete set in thermocole packing). (For Educational & Medical Applications) Features : Anti-fungus treated optics (Unique chemical treatment keeps fungus away), Parfocal & Centered Objectives (Minimises use of the fine focussing and stage-control knobs during objective change-over), Sturdy, double-plate mechanical stage design, Tamper Proof : Eyepiece & Condenser are pre-fixed to microscope body eliminating the possibility of loss & misplacement.
