Agro Engineers Indraprastha Industrial Area, Kota, Rajasthan

  • Shaft Mounted Speed Reducer

    Shaft Mounted Speed Reducer

    Request for Price

    1 Set(s) (MOQ)

    Agnee shaft mounted speed reducer is one of the most versatile drives offering the largest ratio range and capable of powers up to 280kw. features • model in 7 sizes from b to h with nominal gear ratios of 5:1, 13:1 and 20:1 • extended 2 year warranty (optional). • mounts direct onto the driven shaft: • no alignment problems. • no shaft couplings. • flexible motor mounted in a convenient position. • no expensive adjustable base plate is required for the motor, as v-belt tensioning is done by the use of a torque arm which can be simply shortened or extended to swing the shaft mounted speed reducer about its output hub to tension the 'v' -belts. • quick and easy speed changing via belt drive. • final output speed can be very accurately obtained by adjusting the 'v' -belt' drive ratio. • high efficiency by using helical gears o single - 98% efficiency. O double - 96% efficiency. • anti-run back device can easily be fitted on site. • most shaft mounted speed reducers use "6000" series i. S. O. Plan taper roller bearings, stocked around the world. • double lip type oil seals used throughout. • shaft mount gear boxes can be mounted in any position. • proven history of success in all industrial applications; particularly, conveyors & elevators in the construction industry. • long established and proven drive system. • wide range of variation available: • shaft mount, face mount, foot mount, motor mount, hydraulic input, screw conveyor adaptor. • ultra compact when compared to other designs. • agnee offers a full comprehensive repair facility including spares availability shaft mounted speed reducer are used in road construction machinery, cement industry, mining industries, material handling equipment’s, crushing plants, conveyor system, and power transmission equipments.

    ...more
    Get Best Price
  • Right Angle Worm Gearbox

    Right Angle Worm Gearbox

    Request for Price

    1 Set(s) (MOQ)

    The agnee worm gearboxes have cast iron gear case of streamlined design completely air tight, dust proof and capable of being installed in open without any cover. The worm shaft is made of alloy steel, duly hardened and tempered. The worm wheel is made of chill cast phosphorous bronze and teeth accurately generated on gear hobbing machines. They are supported on extra heavy duty taper roller anti friction bearings of ample margin of safety to allow adequate journals as well as thrust loads. Lubrication is effected by splash of oil from the sump. Thus, no special care is required except for occasional oil topping to the required level. Air cooling is effected by means of standard polypropylene or metal fans. Please read the selection of correct worm gearbox for choosing the correct one for your application. They are available in: • vast range of models suit every individual's requirement • some models like c.d. 50, 60, 75, 85, 100 mm, ratio 30:1 or 40:1 are usually available ex-stock or on short notice • center distances from 40 mm to 400 mm • in single or double stage reductions • ratios from 5:1 to 4900:1 • also made as per customer's specifications, drawing, requirements • overhauling of old gear boxes also undertaken, early delivery schedules • adaptable worm gear boxes, range from cd 25mm to 85mm right angle worm gearboxes contain input shafts that are positioned perpendicular to the output shafts. Right angle worm gearbox have up to 98% efficiency levels, and are common in printing presses and glass cutting equipment.

    ...more
    Get Best Price
  • Planetary Gearboxes

    Planetary Gearboxes

    Request for Price

    1 Set(s) (MOQ)

    Planetary gearbox: mounting type foot/flange- model b201 to b904 & b1002 to b1504 bevel planetary gear box: mounting type-foot/flange model b 201b to b 904b agnee has developed planetary gearbox for various industrial applications operated by electric motor and hydraulic motor. Agnee providing customers with high quality, cost effective, power saving, planetary gear box with wide range of power transmissions. so feel free to become a privileged buyer and purchase for the most competitive prices offered by us. principle: planetary reduction gearbox consist of an internal toothed ring gear to which are set 3 planets mounted on the planet carrier engaging also with the sun gear (pinion) and reduced output speed is taken through planet carrier and ring gear is remain stationary. Output shaft maintaining the same direction of rotation as input. salient features planetary gearbox: high reduction ratios, power saving, high efficiency long life, space-saving compactness, higher overload capacity, reliable and trouble-free service, compact and co-axial sturdy, no-self locking property. technical specifications: reduction ratio: 3.6 to 7000:1 output torque: 10 nm to 1,450,000 nm input power: 0.25 hp to 300 hp (0.18 kw to 224 kw) mounting type: flange/ foot prime mover: electric motor, hydraulic motor input speed: 1440 rpm input type: male shaft, hollow input output type: male shaft, hollow input, spline shaft

    ...more
    Get Best Price
  • Inline Helical Geared Motor

    Inline Helical Geared Motor

    Request for Price

    1 Set(s) (MOQ)

    Double reduction, ratio 1.4 to 71 triple reduction, ratio 36 to 250 we have been engaged in the manufacturing of optimum quality inline helical geared motors and attained a lot in the short span of time. Featuring numerous aesthetic qualities such as continuous duty under difficult operating conditions, gears are carbonized to a hardness of 58 - 62 hrc for durability, gear case and flanges of high strength gray cast iron etc, helical geared motors manufactured by us, is simply unique. Helical geared motor manufactured by us are of latest technology and we have our strong believe in quality manufacturing. The input power of our helical geared motor is 0.18 kw to 90 kw and transmission ratio is 1.4-250. So feel free to come forward and sign a great deal with us. Features � helical gear units are designed for continuous duty under difficult operating conditions. gears are carburized to a hardness of 58 - 62 hrc for durability. gearcase and flanges of high strength gray cast iron. foot mounted, flange mounted. Technical data input power : 0.18 kw to 90 kw. transmission ratio : 1.4-250 mounting structure : foot & flange mounted. model : AM-03 to AM-14

    Brand Name : Agnee

    ...more
    Get Best Price
  • Industrial Gearboxes

    Industrial Gearboxes

    Request for Price

    Get Best Price
  • Helical Gearboxes

    Helical Gearboxes

    Request for Price

    1 Set(s) (MOQ)

    We have h series bevel helical gearboxes and helical gearboxes: agnee h series helical parallel shaft and bevel helical right angle drive industrial gearboxes have been introduced to meet the requirements of today's demanding applications in the medium and heavy-duty sector of the power transmission market. the modular design and construction of the series h offers many engineering and performance benefits including a high degree of interchangeability of parts and sub assemblies. This in turn provides considerable economies of production while maintaining the highest standard of component integrity. apart from standard range, gear boxes are also tailor made to suit individual requirement or as per specifications provided. Please feel free to discuss your requirement and we shall be pleased to make suitable suggestions. product specification: gear tooth geometry design combines maximum efficiency with high load carrying capacity and minimal noise generation. Serviceability of the product was key in the design of the series h range allowing easy maintenance for long life and reliability, which are synonymous with our field reputation. • unit sizes: 80, 90, 100, 112, 125, 140, 160, 180, 200, 225, 250, 280, 315, 355, 400, 450, 500, 560, 630 • transmission ratio: 1.2 - 637 • input power: 0.61 kw to 5,000 kw • torque: up to 117,000 nm the bevel helical gearbox housing is usually made of close grain cast iron. Sometimes housing is also offered in structural steel when the application demands. They are rugged, corrosion resistant and absorb shock and vibration. The helical pinion is made of en 353 case hardening steel, helical gears are made of sae 8620 case hardening steel. The teeth are generated on gear hobbing machine. They are then case carburized, hardened and tempered. Finally, they are surface ground to close tolerances. The teeth flanks are ground on teeth profile grinder. This leads to very good efficiency and a quiet working condition. The output shafts are from alloy steel forging or bars. Low speed shafts can be solid or hollow type. Bearings are fitted on a accurately bored journal and taper roller bearings are used.

    ...more
    Get Best Price
  • Gear Reduction Boxes

    Gear Reduction Boxes

    Request for Price

    Get Best Price
  • Flange Mounted Planetary Gearbox

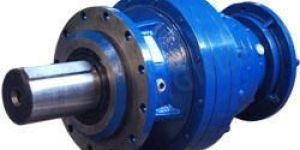

    Flange Mounted Planetary Gearbox

    Request for Price

    1 Set(s) (MOQ)

    Planetary gearbox: mounting type foot/flange- model b201 to b904 & b1002 to b1504 bevel planetary gear box: mounting type-foot/flange model b 201b to b 904b agnee has developed planetary gearbox for various industrial applications operated by electric motor and hydraulic motor. Agnee providing customers with high quality, cost effective, power saving, planetary gear box with wide range of power transmissions. so feel free to become a privileged buyer and purchase for the most competitive prices offered by us. principle: planetary reduction gearbox consist of an internal toothed ring gear to which are set 3 planets mounted on the planet carrier engaging also with the sun gear (pinion) and reduced output speed is taken through planet carrier and ring gear is remain stationary. Output shaft maintaining the same direction of rotation as input. salient features planetary gearbox: high reduction ratios, power saving, high efficiency long life, space-saving compactness, higher overload capacity, reliable and trouble-free service, compact and co-axial sturdy, no-self locking property. technical specifications: reduction ratio: 3.6 to 7000:1 output torque: 10 nm to 1,450,000 nm input power: 0.25 hp to 300 hp (0.18 kw to 224 kw) mounting type: flange/ foot prime mover: electric motor, hydraulic motor input speed: 1440 rpm input type: male shaft, hollow input output type: male shaft, hollow input, spline shaft applications of planetary gearbox: planetary gearbox has its application in machine tools, plastic machinery, goods & personnel lifts, derrick & dockyard cranes, material handling equipments, truck mounted mobile cranes etc. Dredging equipments, road making machinery sugar crystallizers and mill drives.

    ...more
    Get Best Price
  • Bevel Helical Geared Motors

    Bevel Helical Geared Motors

    Request for Price

    1 Set(s) (MOQ)

    We are offering bevel helical geared motors. H series bevel helical gearboxes and helical gearboxes: types h1,h2h2sf,h3h3sf,h4h4sf,b2b2sf, b3b3sf, b4b4sf agnee h series helical parallel shaft and bevel helical right angle drive industrial gearboxes have been introduced to meet the requirements of today's demanding applications in the medium and heavy-duty sector of the power transmission market. the modular design and construction of the series h offers many engineering and performance benefits including a high degree of interchangeability of parts and sub assemblies. This in turn provides considerable economies of production while maintaining the highest standard of component integrity. apart from standard range, gear boxes are also tailor made to suit individual requirement or as per specifications provided. Please feel free to discuss your requirement and we shall be pleased to make suitable suggestions. product specification: gear tooth geometry design combines maximum efficiency with high load carrying capacity and minimal noise generation. Serviceability of the product was key in the design of the series h range allowing easy maintenance for long life and reliability, which are synonymous with our field reputation. • unit sizes: 80, 90, 100, 112, 125, 140, 160, 180, 200, 225, 250, 280, 315, 355, 400, 450, 500, 560, 630 • transmission ratio: 1.2 - 637 • input power: 0.61 kw to 5,000 kw • torque: up to 117,000 nm

    Brand Name : Agnee

    ...more
    Get Best Price
  • Helical Gear Boxes

    Helical Gear Boxes

    Request for Price

    Get Best Price
  • right angle gear boxes

    right angle gear boxes

    Request for Price

    Get Best Price
